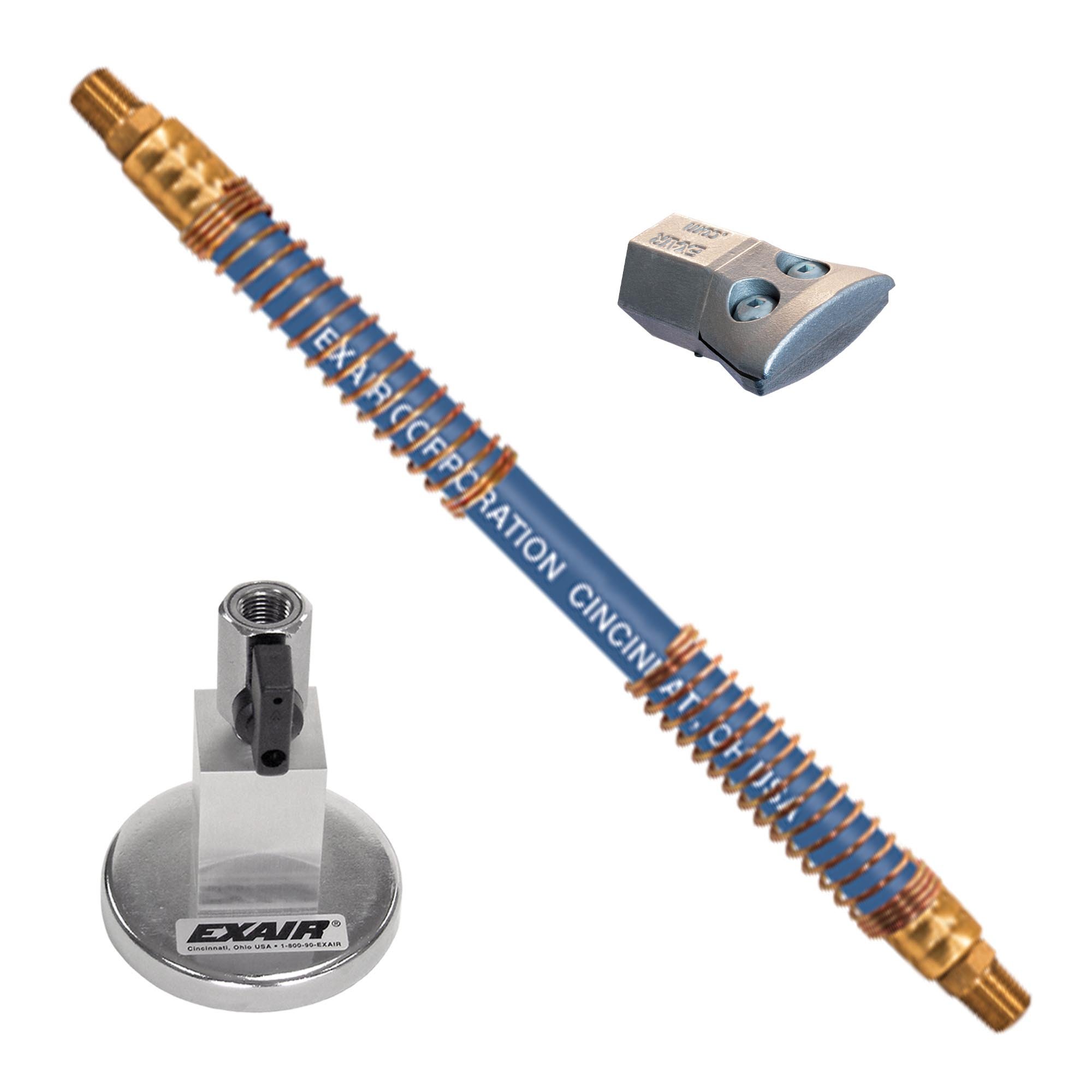

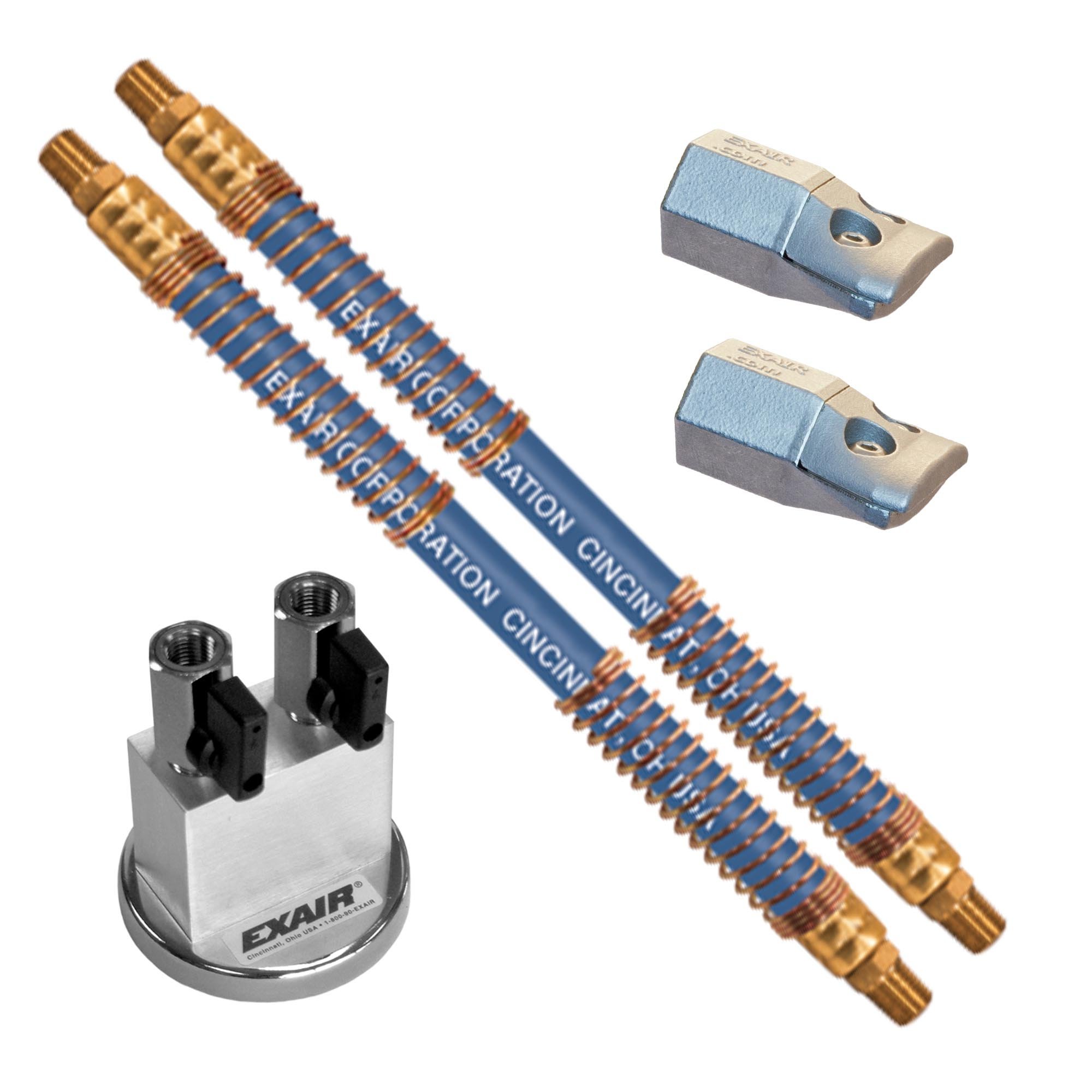

EXAIR 1 Inch Flat Super Air Nozzle™ with Stay Set Hose and Magnetic Base

EXAIR's 1 Inch Flat Super Air Nozzle is a highly efficient, unique flat air nozzle. Their patented (U.S. Pat 5402938) design uses a special shim to maintain the critical position of the component parts. Air is released through a thin slot, across a flat surface. The result is a wide, forceful stream of high velocity, laminar airflow with minimal air consumption and noise. Force and flow may be easily increased or decreased by installing a different shim. The 1 Inch Flat Super Air Nozzle with Stay Set Hose includes EXAIR's Flexible Stay Set Hose for applications where frequent repositioning is required. The Stay Set Hose has "memory" and will not creep or bend. The 1 Inch Flat Super Air Nozzle is available in zinc/aluminum alloy or Type 316 stainless steel.

Product Material Flow Air Inlet Stay Set Hose Length Number of Mag Base Outlets
exair-1-Flat-Super-Air-Nozzle-1126-9356 Zinc-Aluminum 10.5 SCFM 1/4 MNPT 6" (152mm) 1
exair-1-Flat-Super-Air-Nozzle-1126-9456 Zinc-Aluminum 10.5 SCFM 1/4 MNPT 6" (152mm) 2
exair-1-Flat-Super-Air-Nozzle-1126ss-9356 Type 316 Stainless Steel 2.5 SCFM 1/4 MNPT 6" (152mm) 1
exair-1-Flat-Super-Air-Nozzle-1126ss-9456 Type 316 Stainless Steel 2.5 SCFM 1/4 MNPT 6" (152mm) 2
exair-1-Flat-Super-Air-Nozzle-1126-9362 Zinc-Aluminum 10.5 SCFM 1/4 MNPT 12" (305mm) 1
exair-1-Flat-Super-Air-Nozzle-1126-9462 Zinc-Aluminum 10.5 SCFM 1/4 MNPT 12" (305mm) 2
exair-1-Flat-Super-Air-Nozzle-1126ss-9362 Type 316 Stainless Steel 2.5 SCFM 1/4 MNPT 12" (305mm) 1
exair-1-Flat-Super-Air-Nozzle-1126ss-9462 Type 316 Stainless Steel 2.5 SCFM 1/4 MNPT 12" (305mm) 2
exair-1-Flat-Super-Air-Nozzle-1126-9368 Zinc-Aluminum 10.5 SCFM 1/4 MNPT 18" (457mm) 1
exair-1-Flat-Super-Air-Nozzle-1126-9468 Zinc-Aluminum 10.5 SCFM 1/4 MNPT 18" (457mm) 2
exair-1-Flat-Super-Air-Nozzle-1126ss-9368 Type 316 Stainless Steel 2.5 SCFM 1/4 MNPT 18" (457mm) 1
exair-1-Flat-Super-Air-Nozzle-1126ss-9468 Type 316 Stainless Steel 2.5 SCFM 1/4 MNPT 18" (457mm) 2
exair-1-Flat-Super-Air-Nozzle-1126-9374 Zinc-Aluminum 10.5 SCFM 1/4 MNPT  24" (610mm) 1
exair-1-Flat-Super-Air-Nozzle-1126-9474 Zinc-Aluminum 10.5 SCFM 1/4 MNPT  24" (610mm) 2
exair-1-Flat-Super-Air-Nozzle-1126ss-9374 Type 316 Stainless Steel 2.5 SCFM 1/4 MNPT 24" (610mm) 1
exair-1-Flat-Super-Air-Nozzle-1126ss-9474 Type 316 Stainless Steel 2.5 SCFM 1/4 MNPT 24" (610mm) 2
exair-1-Flat-Super-Air-Nozzle-1126-9380 Zinc-Aluminum 10.5 SCFM 1/4 MNPT 30" (762mm) 1
exair-1-Flat-Super-Air-Nozzle-1126-9480 Zinc-Aluminum 10.5 SCFM 1/4 MNPT 30" (762mm) 2
exair-1-Flat-Super-Air-Nozzle-1126ss-9380 Type 316 Stainless Steel 2.5 SCFM 1/4 MNPT 30" (762mm) 1
exair-1-Flat-Super-Air-Nozzle-1126ss-9480 Type 316 Stainless Steel 2.5 SCFM 1/4 MNPT 30" (762mm) 2
exair-1-Flat-Super-Air-Nozzle-1126-9386 Zinc-Aluminum 10.5 SCFM 1/4 MNPT 36" (914mm) 1
exair-1-Flat-Super-Air-Nozzle-1126-9486 Zinc-Aluminum 10.5 SCFM 1/4 MNPT 36" (914mm) 2
exair-1-Flat-Super-Air-Nozzle-1126ss-9386 Type 316 Stainless Steel 2.5 SCFM 1/4 MNPT 36" (914mm) 1
exair-1-Flat-Super-Air-Nozzle-1126ss-9486 Type 316 Stainless Steel 2.5 SCFM 1/4 MNPT 36" (914mm) 2

Applications:

  • Part cleaning
  • Chip removal
  • Liquid blowoff
  • Part cooling
  • Material conveying
  • Part ejection
  • Fiber conveying
  • Air assist

Advantages:

  • Reduced compressed air cost
  • 10 dBA average noise reduction
  • Conserve compressed air
  • Improved blowoff performance
  • Compact
  • Improved safety
  • Meets OSHA noise level requirements
  • Meets OSHA pressure requirements
  • Improved production

1" Flat Super Air Nozzle Materials

  • Zinc Aluminum alloy - general purpose applications. Max temp 250°F (121°C).
  • Type 316 Stainless Steel - high temperatures, corrosive environments, and mechanical wear. Max temp 1000°F (538°C)

Accessories:

exair-1-Flat-Super-Air-Nozzle-1fsanshim

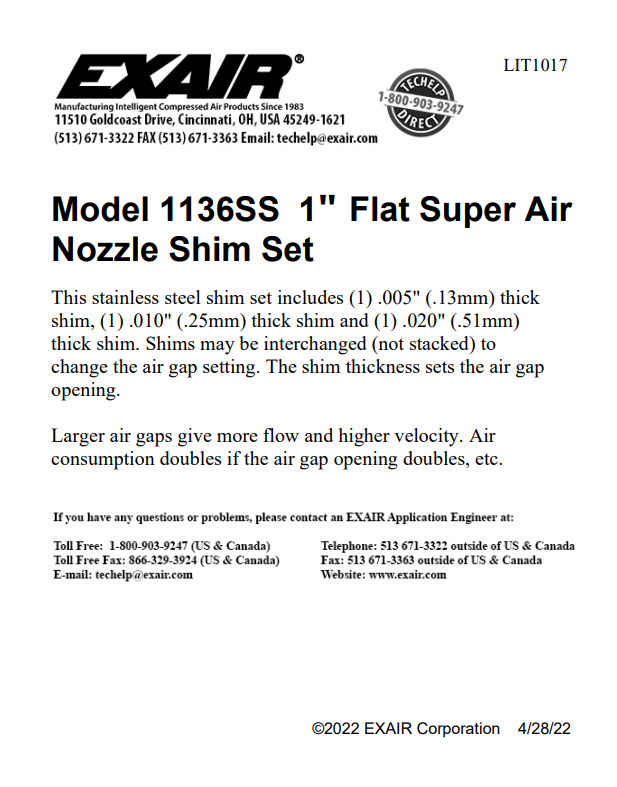

Shim Sets - Shim sets for the 1" Flat Super Air Nozzles include a .005" (0.13mm), .010" (0.25mm), and .020" (0.51mm) thick shim.





swivelfam

Swivel Fittings - make it easy to adjust the aim of the Air Nozzles and Jets. Correct placement of the blowing angle can help optimize performance, reduce noise levels and improve efficiency. Swivel Fittings permit a movement of 25 degrees from the center axis for a total movement of 50 degrees. Type 303 or 316 Stainless Steel.



1" Flat Super Air Nozzle Performance

Air Consumption Force* Sound Level
Model SCFM SLPM Ozs Grams dBA
1126/1126SS 10.5 297 9.8 278 75

*Force measured at 12" (305mm) from target.

Sound level measured at 3' (914mm).

All measurements taken at 80 PSIG (5.5 BAR).

.015" (0.38mm) shim installed.

How EXAIR Flat Super Air Nozzles Work1fsanworksb

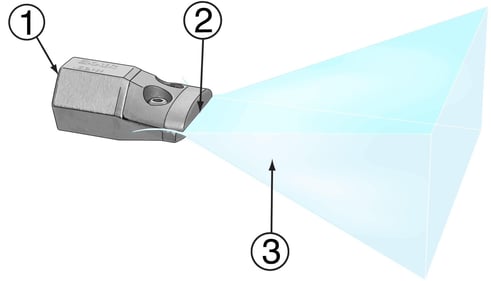

Compressed air flows through an inlet (1) into the plenum chamber of the Flat Super Air Nozzle. The flow is directed to a precise, slotted orifice. As the primary airflow exits the thin slotted nozzle (2), it follows a flat surface that directs the airflow in a perfectly straight line. This creates a uniform sheet of air across the entire length of the Flat Super Air Nozzle. Velocity loss is minimized and force is maximized as the room air (3) is entrained into the primary airstream at a ratio of 40:1. The result is a well defined sheet of laminar airflow with hard-hitting force and minimal wind shear.

1" Flat Super Air Nozzle Dimensions and Airflow

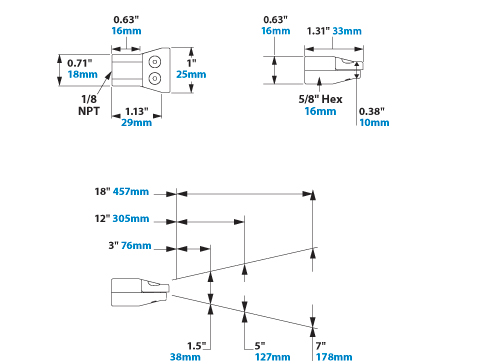

exair-1fsandimflowa


1" Flat Super Air Nozzle Standards and Certifications




OSHA Safe!CE CompliantEXAIR Super Air Nozzles comply with OSHA's Safety Requirements, the EU General Product Safety Directive (2001/95/EC) and meet the noise limitation requirements of the EU Machinery Directive (2006/42/EC). All sound level measurements are taken at 3 feet away.



Conflict Mineral FreeLook for this symbol to designate conflict mineral free products throughout our website. EXAIR supports Section 1502 of the Dodd-Frank Wall Street Reform and Consumer Protection Act and we are committed to compliance with the conflict minerals rule in order to curb the illicit trade of tin, tantalum, tungsten and gold in the DRC region. EXAIR is using the CMRT 3.02 template to document our supply chain and commitment to conflict free products.
