E/One IH901 Indoor Grinder Pump Station

E/One IH901 Basement Grinder Pump Indoor Station

The IH091 sewage grinder pump station is designed to be installed indoors  — in the basement or mechanical room of a home — to pump sewage to the sewer line, septic tank, or other treatment system. Its attractive design fits in with other household mechanical devices.

Features:

The IH091 grinder pump station consists of a pump and tank. The grinder pump, motor controls and level-sensing are integrated into a compact unit, easily removable for service.

The tank is made from tough, corrosion-resistant polyethylene and offers 91 gallons of capacity. The IH091 was designed for use in one, average single-family home. E/One requires the installation of its stainless steel UNI-LATERAL to prevent backflow from the sewer system from entering the grinder pump station.

Inlet Connections: 4″ inlet grommet standard for DWV pipe. Other inlet configurations available from factory.

Discharge Connections: Pump discharge terminates in 1-1/4″ NPT female thread. Can easily be adapted to 1-1/4″ PVC pipe or any other material required by local codes. E/One requires the installation of its stainless steel UNI-LATERAL to prevent backflow from the sewer system from entering the grinder pump station.

Discharge
15 gpm at 0 psig
11 gpm at 40 psig
7.8 gpm at 80 psig

Recommended Alarm Panel:

E/One Sentry Protect Plus

For more information contact an Application Expert at:  1-877-624-5757

Resources

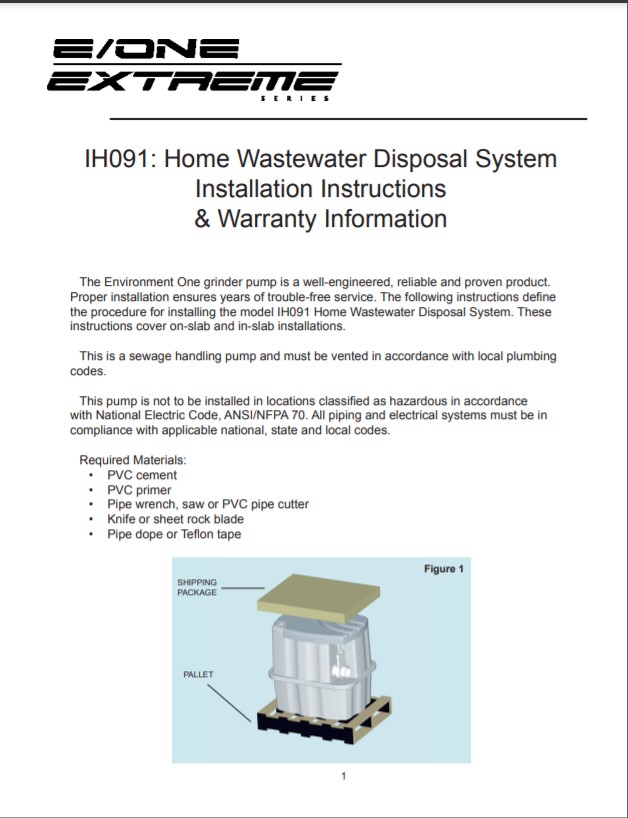

eone ih091 indoor grinder pump installation instructions

eone ih091 indoor grinder pump installation instructions

Download

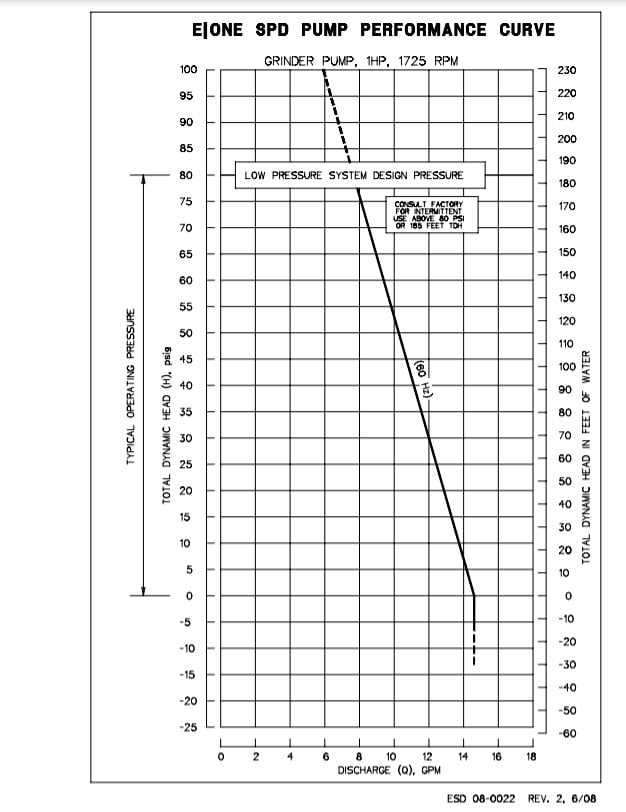

eone ih091 spd pump performance curve

eone ih091 spd pump performance curve

Download

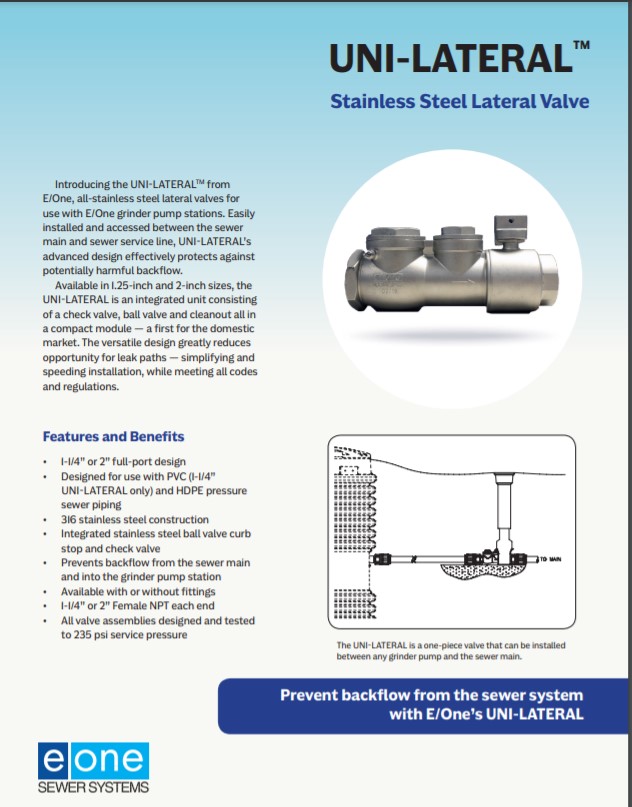

eone lateral valve for grinder pump stations

eone lateral valve for grinder pump stations

Download

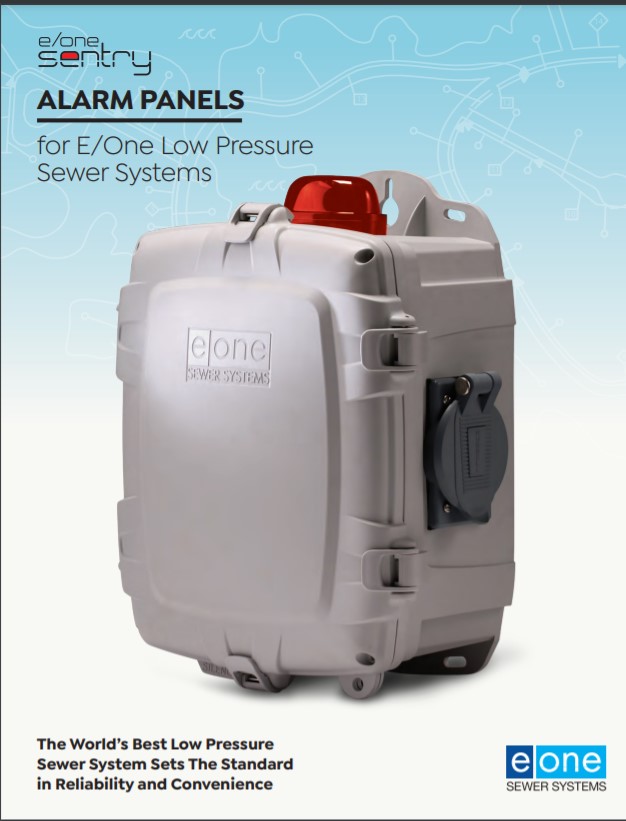

eone sentry panel brochure

eone sentry panel brochure

Download

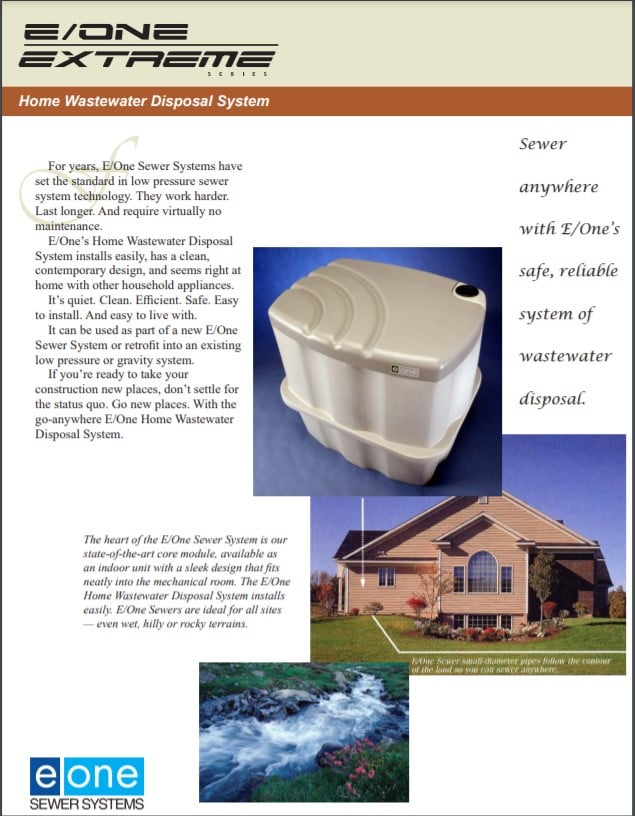

eone ih091 indoor grinder pump brochure

eone ih091 indoor grinder pump brochure

Download

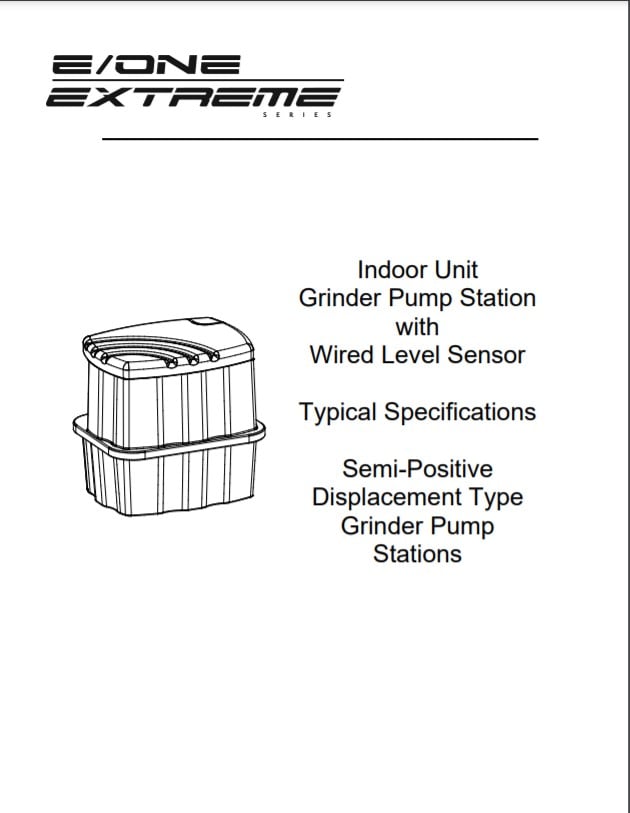

eone ih091 indoor grinder pump specifications

eone ih091 indoor grinder pump specifications

Download
