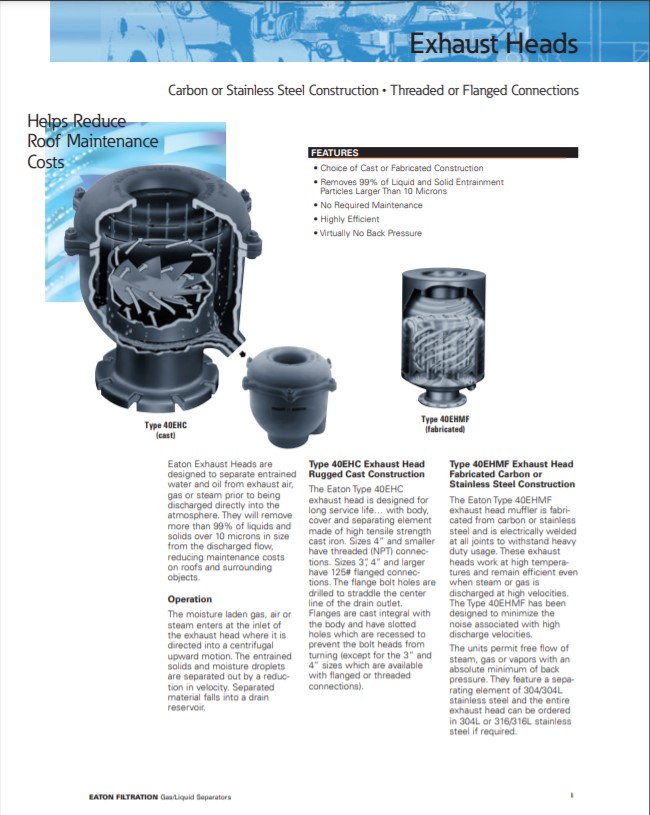

EATON Type 40 Separator Exhaust Heads

Eaton Type 40 Separator Exhaust Heads are designed to separate entrained water and oil from exhaust air, gas or steam prior to being discharged directly into the atmosphere. They will remove up to 99% of liquids and solids over 10 microns in size from the discharged flow, reducing maintenance costs on roofs and surrounding objects.

Eaton Type 40 Separator Exhaust Heads Features

  • Choice of cast or fabricated construction
  • When properly sized, installed, and drained, will remove up to 99% of all liquid and solid entrainment where particle size exceeds 10 microns
  • No moving parts to wear out, no required maintenance
  • Highly efficient
  • Units permit free flow of steam, gas or vapors with an absolute minimum of back pressure

Eaton Type 40 Separator Exhaust Heads Operation
The moisture laden gas, air or steam enters at the inlet of the exhaust head where it is directed into a centrifugal upward motion. The entrained solids and moisture droplets are separated out by a reduction in velocity. Separated material falls into a drain reservoir.

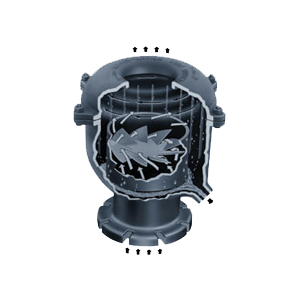

EATON-Separator-Exhaust-Heads-Fig1 EATON Type 40EHC Exhaust Head
  • Rugged cast construction designed for long service life
  • Body, cover and separating element made of high tensile strength cast iron
  • 3” and smaller have threaded (NPT) connections
  • 5” and larger have 125# flanged connections
  • 4” can be ordered with flange or threaded connections

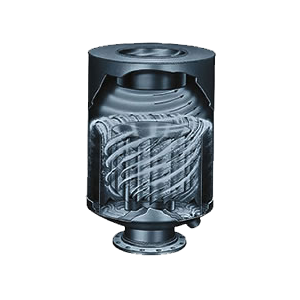

EATON-Separator-Exhaust-Heads-Fig2 EATON Type 40EHMF Exhaust Head
  • Fabricated Carbon or stainless steel construction
  • Welded at all joints to withstand heavy duty usage
  • Work at high temperatures and remain efficient even when steam or gas is discharged at high velocities
  • Designed to minimize the noise associated with high discharge velocities
