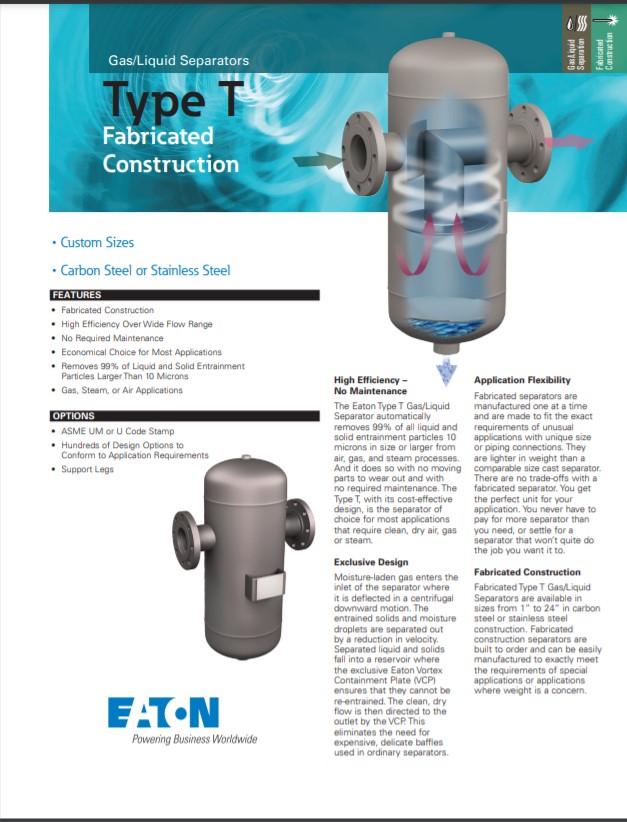

EATON T Fabricated Gas Liquid In-Line Separators

EATON T Fabricated Gas Liquid Separators formerly Wright Austin, with its cost effective design, is the fabricated separator of choice for most applications that require clean, dry air, gas, or steam. EATON T Fabricated Gas Liquid Separators custom manufactured gas/liquid fabricated separators to meet exact requirements of special applications.

Features of EATON T Fabricated Gas Liquid Separators

  • Available from 1” to 24” in carbon steel or cast stainless steel construction sizes
  • High efficiency over wide flow range
  • Economical choice for most applications
  • When properly sized, installed, and drained, will remove up to 99% of all liquid and solid entrainment where particle size exceeds 10 microns
  • No moving parts to wear out, no required maintenance
  • Exclusive Vortex Containment Plate (VCP) System

Options of EATON T Fabricated Gas Liquid Separators

  • ASME UM or U code stamp
  • Custom fabrication to fit exact requirements of applications requiring unique sizes or piping connections, or where weight is a concern
  • Support Legs

EATON EATON T Fabricated Gas Liquid Separators High Efficiency – No Maintenance

Eaton T Gas Liquid Separators automatically remove 99% of all liquid and solid entrainment particles 10 microns in size or larger from air, gas, and steam processes. And they do it with no moving parts to wear out and with no required maintenance. The Type T, with its cost effective design, is the separator of choice for most applications that require clean, dry air, gas or steam.

Exclusive Design

Moisture laden gas enters the inlet of the separator where it is deflected in a centrifugal downward motion. The entrained solids and moisture droplets are separated out by a reduction in velocity. Separated liquid and solids fall into a reservoir where Eaton’s exclusive Vortex Containment Plate (VCP) ensures that they cannot be re-entrained. The clean, dry flow is then directed to the outlet by the Vortex Containment Plate. The VCP eliminates the need for expensive, delicate baffles used in ordinary separators.

Application Flexibility

EATON T Fabricated Gas Liquid Separators are manufactured one at a time and are made to fit the exact requirements of unusual applications with unique size or piping connections. They are lighter in weight than a comparable size cast separator. There are no trade-offs with a fabricated separator. You get the perfect unit for your application. You never have to pay for more separator than you need, or settle for a separator that won’t quite do the job you want it to.

Fabricated Construction

Type T Gas /Liquid Separators are available in sizes from 1” to 24” in carbon steel or stainless steel construction. Fabricated construction separators are built to order and can be easily
manufactured to exactly meet the requirements of special applications or applications where weight is a concern.

We Can Help

Choosing the right gas/liquid separator can present unique problems not encountered in choosing other pipeline components. Why not take advantage of our application experience with gas/liquid separators? Application specialists are available to help you every step of the way…from initial selection, to installation and through start-up…just contact us. 1-877-624-5757


CAPACITIES – MAXIMUM AIR FLOW RATING IN SCFM
Pipe Size (in)25 psig50 psig100 psig150 psig200 psig250 psig
3/4″5575105125150170
1″82110155190220255
1-1/4″130175245300345400
1-1/2″185245345425485560
2″3304456207708701000
2-1/2″500680945117013501550
3″75010001400175019502300
4″132517752500307536004000
5″205027503800475052006000
Rated0.880.991.191.401.601.85


EATON T Fabricated Gas Liquid Separators
