EATON Model 90 1″ to 48″ Fabricated Simplex Pipeline Basket Strainer

EATON Model 90 Fabricated Simplex Strainers can be manufactured for pipeline sizes from 1˝ to 48˝ in carbon steel or stainless steel. If a standard simplex strainer won’t work in your application Eaton can help you design a Model 90 Simplex Strainer to your exact specifications. Other materials are available upon request.

EATON Model 90 Simplex pipeline strainers remove damage causing particulate matter from the process media, protecting system components such as flow meters, pumps, and spray nozzles. The particulate matter is captured in the strainer basket. The line is then temporarily shut down and the basket removed for cleaning or replacement. It is perfect for applications with unique requirements or standard ones where a cast strainer would not fit or be too heavy.

Customize to improve performance and meet higher pressure requirements
A slant top design improves the flow through the strainer and results in significantly lower pressure drops. This design also results in a more compact basket that weighs less than an ordinary basket. This makes it possible for one person to remove it from the strainer housing, when it comes time to clean or change-out the basket.

Common modifications

  • Rotated inlet and outlet nozzles to eliminate an elbow in the downstream piping
  • Lowering or raising either the inlet or the outlet nozzle, this eliminates serious alignment and support problems.

Features

  • Straight through flow design
  • Low pressure loss
  • Slant top basket design
  • Basket perforations from 1/32″ to 1″
  • 20 to 400 mesh linings for fine straining applications

Options

  • ANSI Class 600, 900, or 1500 flanges
  • Hinged cover or davit assembly for easier maintenance
  • Alloy construction for body and baskets
  • RTJ-style connections
  • Vent valves
  • Drain valves
  • Gauge taps
  • Backflushing system for manual or automated cleaning
  • Pressure differential gauge and switches
  • Steam jacket for highly viscous fluids
  • Rotated or offset nozzle placement
  • High pressure capabilities
  • ASME Code construction
  • Brazilian NR-13 available
  • European standards – DIN/PED available
  • Coatings and linings available upon request

Resources

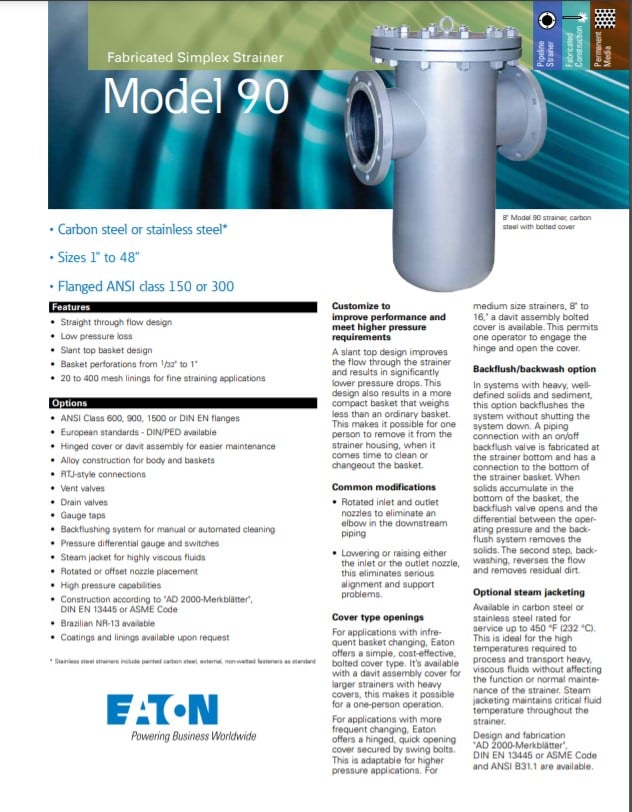

EATON 90 Fabricated Strainers
