EATON Model 30R Simplex Basket Strainers

EATON Model 30R Simplex Basket Strainers are high-quality, low cost simplex basket strainers—perfect for cost sensitive applications.

EATON Model 30R Simplex Basket Strainers – Iron – Threaded or Flanged, 1-1/2″ to 8″

Model 30R Simplex Basket Strainers are a cost effective choice for moderate pressure applications. These include water service in swimming pools, cooling towers and large air conditioning installations.

The clamp type cover is easily removed without tools making basket cleaning or change outs quick and easy. All sizes include, as standard, a drain plug and feature a carefully machined basket seat to prevent any material by-pass.

Features

  • Hand Removable Cover
  • Drain Plug
  • Machined Basket Seat

Options

  • Basket perforations from 1/32″ to 1/2″
  • Basket mesh from 20 to 400
  • Monel baskets
  • Vent valves
  • Drain valves
  • 1/4″ NPT taps
  • Magnetic basket inserts
  • Pressure differential gauge and switch connections


EATON Model 30R Simplex Basket Strainers – Selection Chart

SizeMaterialEnd ConnectionsSealsPressure Rating*
1-1/2″ to 3″IronThreadedBuna-N200 psi (13.8 bar)
1-1/2″ to 8″IronFlanged 125#Buna-N200 psi (13.8 bar)

* @ 100 °F (38 ˚C)


Cv Factors For Water with Clean, Perforated Basket

SizeValue
1-1⁄2″58
2″90
2-1⁄2″140
3″200
4″240
6″370
8″600


EATON Simplex Industrial Basket Strainers

Simplex basket strainers are used where the line can be shut down for short periods to clean or change baskets. Eaton standard cast pipeline strainers meet customers’ expectations and the highest standards, including:

  • ISO 9001-2008 quality management
  • Properly sized components to meet any specified retention requirement and flow rate
  • Ultra low discharge strainer technology that offers reduced purged volumes

Other Simplex Industrial Basket Strainers

EATON Model 72 Simplex Basket Strainers

EATON Model 72L Tefzel Plastic Lined Basket Strainers

EATON Model 72SL Steam Jacketed Basket Strainers

EATON Model 73 Straight Flow Basket Strainers

EATON Model 510 Multi-Basket Strainers


EATON 30R Simplex Basket Strainers-Economy

Join our Mailing List

Resources

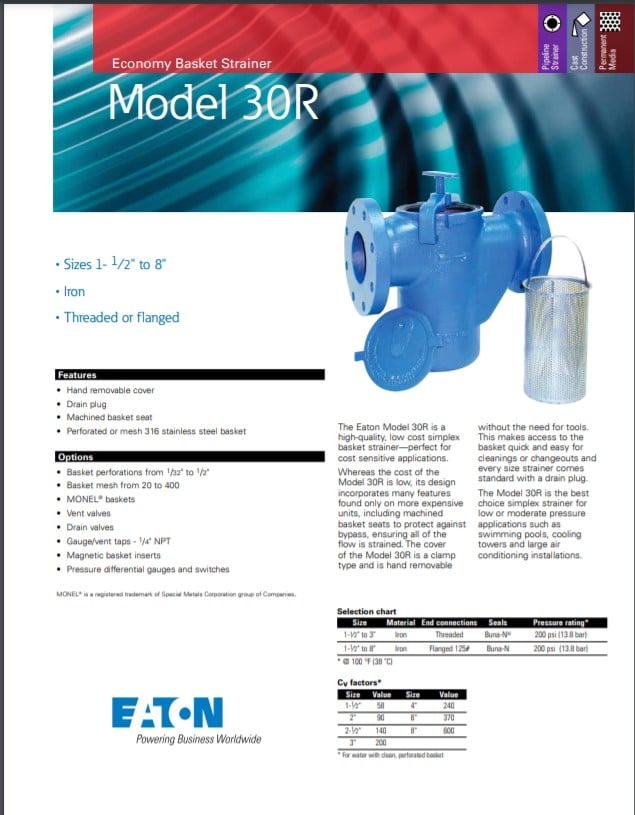

EATON Model 30R Simplex Basket Strainers
