EATON 2596 Cast Fabricated Pipeline Strainers

EATON Model 2596 automatic self-cleaning strainers, designed for the continuous removal of entrained solids from liquids in pipeline systems, available in sizes 2″ through 8″ in cast construction and 10″ through 60″ in fabricated construction. Design and construction are in general accordance with ASME Sec. VIII, Div. 1. A wide range of screen designs and perforation/mesh sizes are available, as well as custom designs and exotic materials.

Eaton 2596 automatic self-cleaning strainer is a motorized unit designed for the continuous removal of entrained solids from liquids in pipeline systems, preventing damage to expensive pipeline system components. It features the unique idL™ shaft seal that positively prevents leakage from the backwash shaft at the top of the strainer. With Eaton’s idL seal the exterior of the strainer stays dry and clean in service, there is never any bothersome external leakage or weeping of the process media down the sides of the strainer.

Eaton’s automatic self-cleaning strainers are commonly used on water service in which the disposal of debris and backwash water is not a problem. Continuous flow is assured and protection is provided for nozzles, pumps, valves, heat exchangers, and process equipment.

With an automatic control system monitoring the strainer operation, cleaning is accomplished by an integral backwash system. A small portion of the screen element is isolated and cleaned by reverse flow. The remaining screen area continues to strain – providing uninterrupted flow. With this efficient design, only a small amount of the liquid being strained is used to carry away the debris from the strainer.


Model 2596 2″ to 8″ – Cast

Eaton’s Cast Model 2596 Automatic Self-Cleaning pipeline strainers 2″ to 8″ are available in cast iron or stainless steel. The strainers are available 2”, 3”, 4”, 4”L, 6”, and 8” sizes and feature Eaton’s Cenpeller™ Technology, which consists of a unique vane plate positioned at the inlet of the strainer element where it contacts the flow before it enters the element. The vane causes the incoming flow to move in a circular motion, forcing the debris against the surface of the strainer element rather than impinging on the element and lodging in the element’s openings. Lodged debris can negatively impact the differential pressure across the strainer, resulting in a shut down of the strainer, while the element is manually cleaned.

Feature/Benefits

  • Flow rates up to 1800 gpm (409 m3/hr)
  • A broad selection of screen options
  • Automatic backwashing for operator-free service and minimal backwash effluent
  • Exclusive idL™ Shaft Seal for long-lasting leak free service life, available up to 24″ only
  • Unitized modular assembly for easy maintenance
  • Cenpeller technology for more efficient and complete backwashing

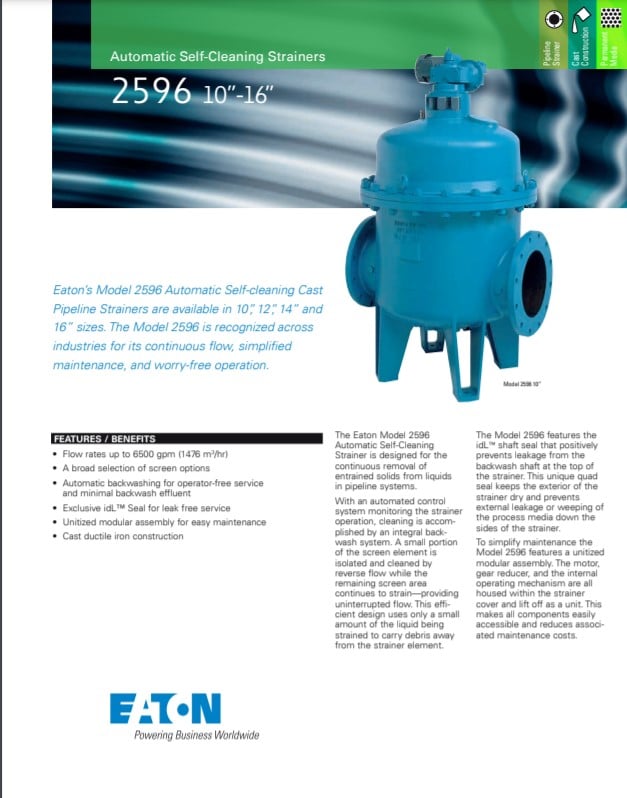

Model 2596 10″ – 16″ – Cast

Eaton’s Cast Model 2596 Automatic Self-Cleaning pipeline strainers 10″ to 16″ are available in cast ductile iron. The strainers are available 10”, 12″, 14”, and 16” sizes.

Feature/Benefits

  • Flow rates up to 7,000 gpm (1590 m3/hr)
  • A broad selection of screen options
  • Automatic backwashing for operator-free service and minimal backwash effluent
  • Exclusive idL™ Shaft Seal for long-lasting leak free service life
  • Unitized modular assembly for easy maintenance


Model 2596 10″ – 60″ – Fabricated

Eaton’s Cast Model 2596 Fabricated Automatic Self-Cleaning pipeline strainers 10” to 60″ are available in fabricated carbon steel and stainless steel. The strainers are available 10”, 12”, 14”, 16”, 18”, 20″, 24”, 30”, 36”, 48”, and 60″.

Feature/Benefits

  • Flow rates up to 50,000 gpm (11,356 m3/hr)
  • A broad selection of screen options
  • Automatic backwashing for operator-free service and minimal backwash effluent
  • Exclusive idL™ Shaft Seal for long-lasting leak free service life
  • Unitized modular assembly for easy maintenance
EATON 2596 Mechanically Cleaned Pipeline Strainers

Join our Mailing List

Resources

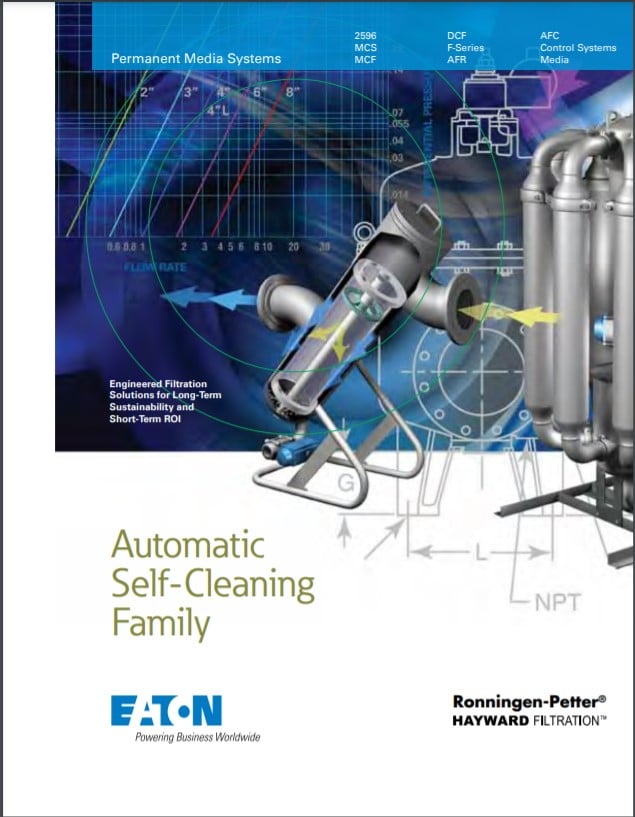

Eaton Automatic Self Cleaning Family Catalog

Download
Size: 8 MB

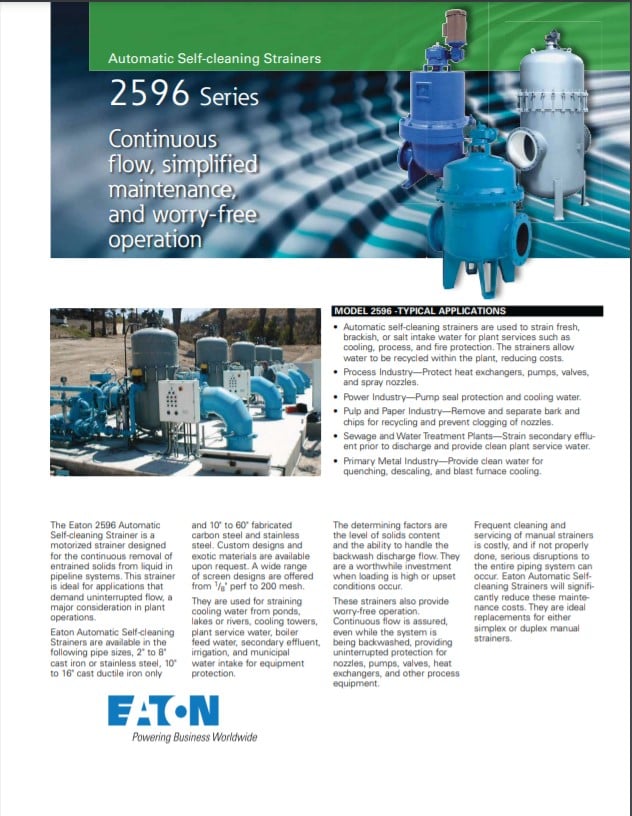

EATON 2596 Mechanically Cleaned Pipeline Strainers - Introduction

Download
Size: 432 KB

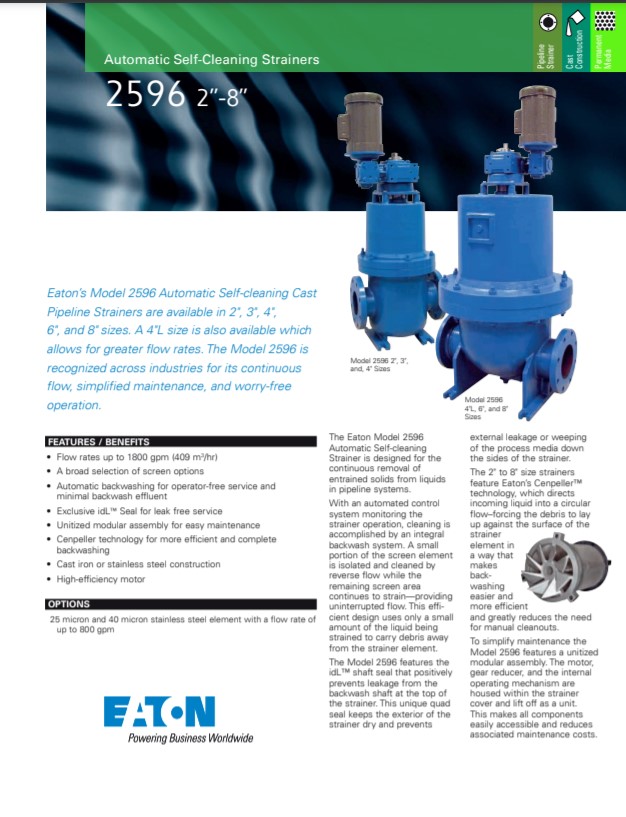

EATON 2596 CAST Mechanically Cleaned Pipeline Strainers 2" to 8"

Download
Size: 1 MB

EATON 2596 CAST Mechanically Cleaned Pipeline Strainers 10" to 16"

Download
Size: 1 MB

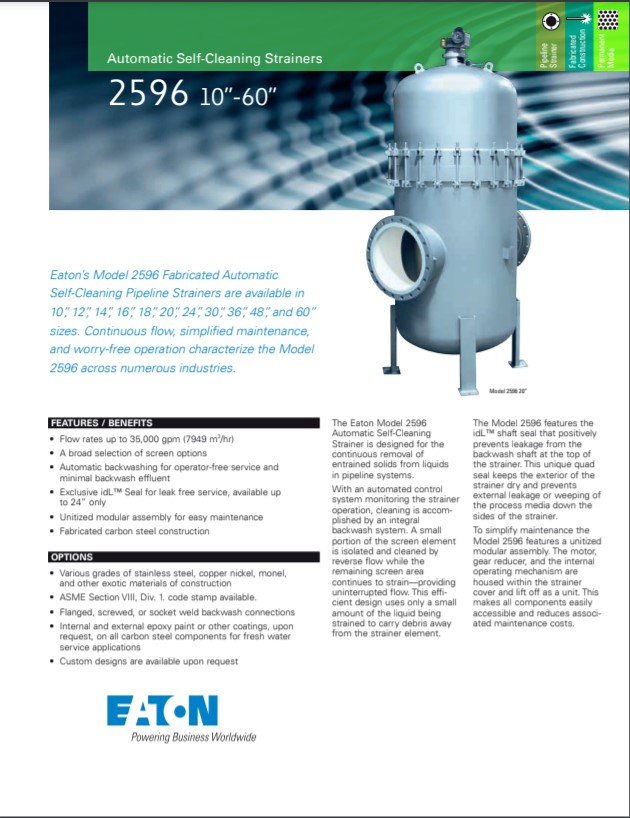

EATON 2596 Fabricated Mechanically Cleaned Pipeline Strainers 10" to 60"
