Custom Spray Nozzle Solutions – Wall Mount Material Injection Nozzle
Application: Material Injection
Product Description: Wall Mount Bete WL Nozzle
Situation: A Bete customer had been purchasing 1/8″ Bete WL Nozzles in PTFE (Polytetrafluoroethylene) for some time. They were fabricating their own PTFE wall mount adapter for their process. While this work-around was satisfactory, they really wanted the nozzle/adapter to be of one-piece construction so that there was no risk of the nozzle falling into the process.
Solution: Bete routinely creates custom products when the need arises. Wall-mounted nozzles are common. The customer had created a preliminary drawing of what they were looking for. Bete Design Engineers then designed a custom PTFE wall mount adapter for the WL nozzle based on the customer’s initial drawing.
The Bete whirl nozzles provide uniform distribution of relatively large droplets. Tangential or axial whirl nozzles feature an internal vane within the nozzle body which causes the liquid to “whirl”. The Bete WL Whirl Nozzle is an axial full cone whirl nozzle. With this design of full cone nozzle the fluid is set into a whirl motion by an internal vane or whirl chamber. The resulting turbulence breaks up the liquid into droplets which are then shaped in to a full cone pattern as they exit the orifice.

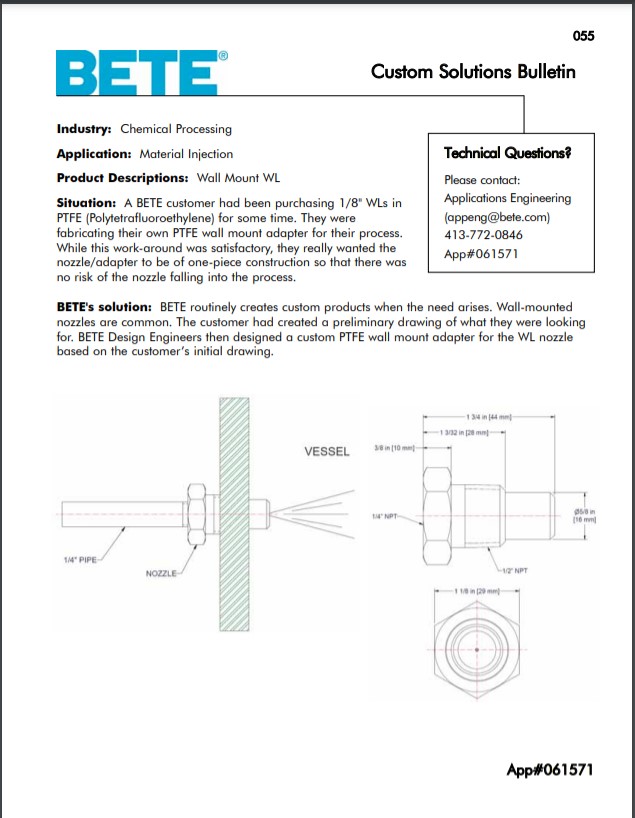

Custom Spray Nozzle Solutions – Wall Mount Material Injection Nozzle Drawings and Sketches:
