Custom Spray Nozzle Solutions – Toluene Injection
Industry: Chemical Processing
Application: Toluene Injection
Product Description: Special BETE XA Lance Assembly
Situation: A large chemical processor called BETE in need of a special XA lance to inject toluene into a process stream. The customer had an existing 36″ duct with a 4″ pipe entering it at a 45 degree angle. The BETE XA lance would need to enter through the 4″ pipe yet spray parallel with the 36″ duct.
Solution: BETE Engineers designed a special BETE XA body that would spray in a direction 45 degrees offset from the inlet pipes. This would allow the specified BETE XAPR250 setup to spray co-currently with the process gas flowing through the duct. The body was incorporated into a lance assembly, also designed by BETE, providing a convenient solution for the customer.

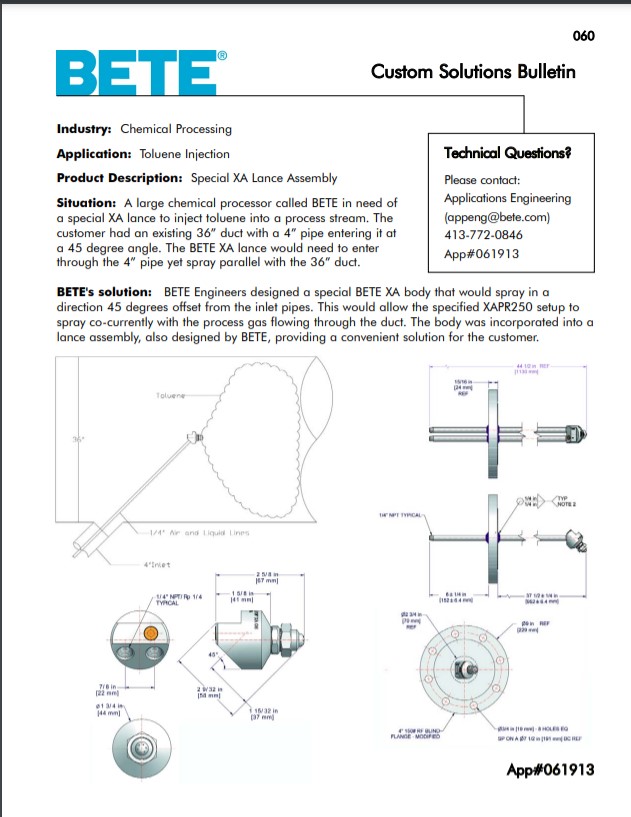

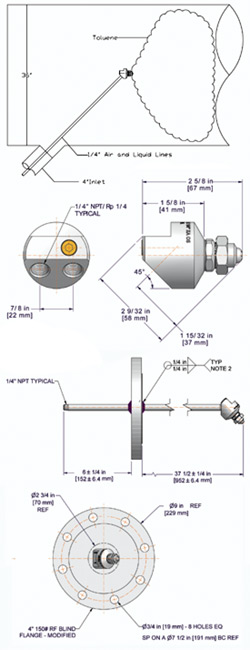

Custom Spray Nozzle Solutions – Toluene Injection Drawings and Sketches
