Coarse Spray and Dense Fog Nozzles for Cooling & Humidification
- Allow multiple flat fan patterns
- Solid one-piece construction
- Female connection

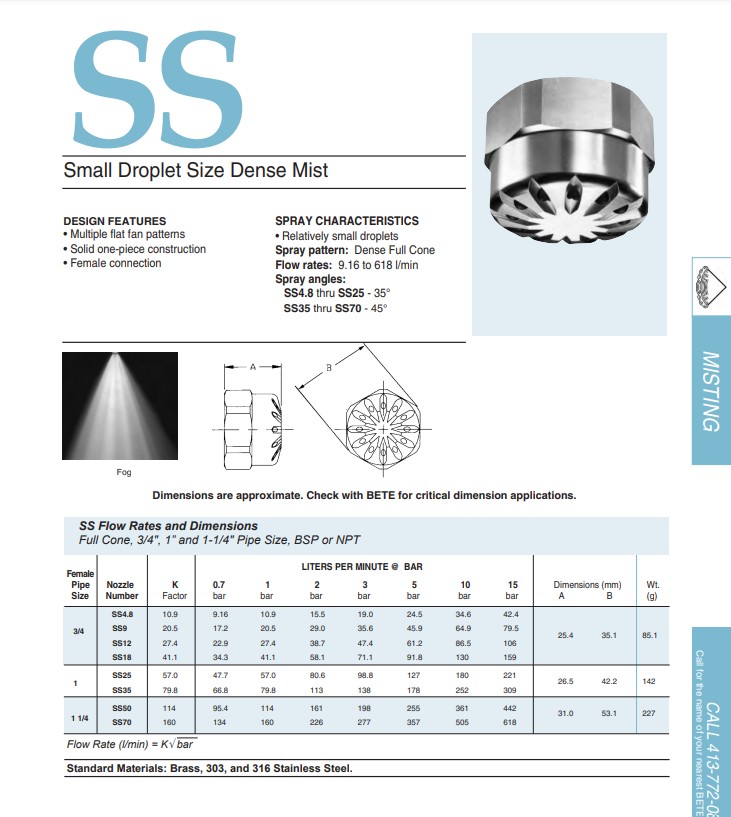

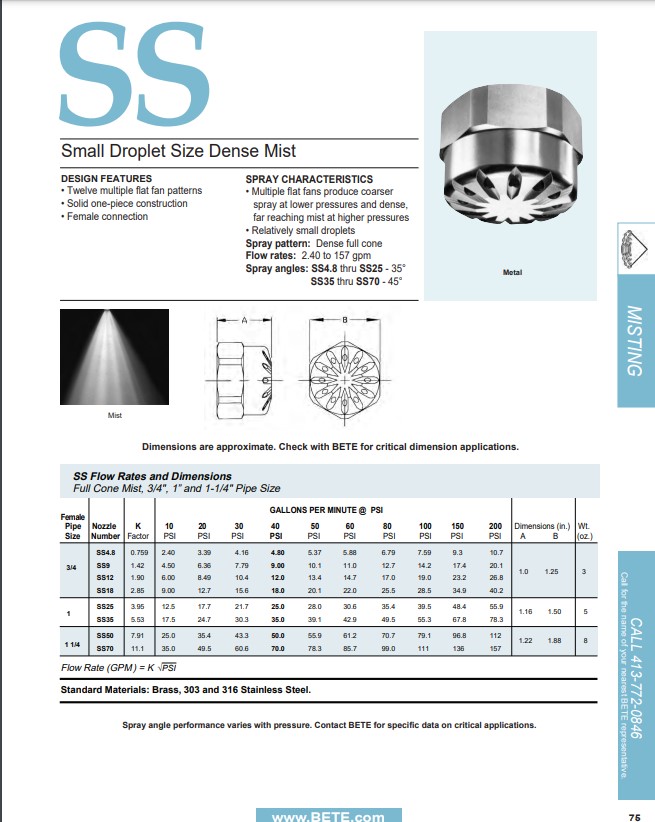

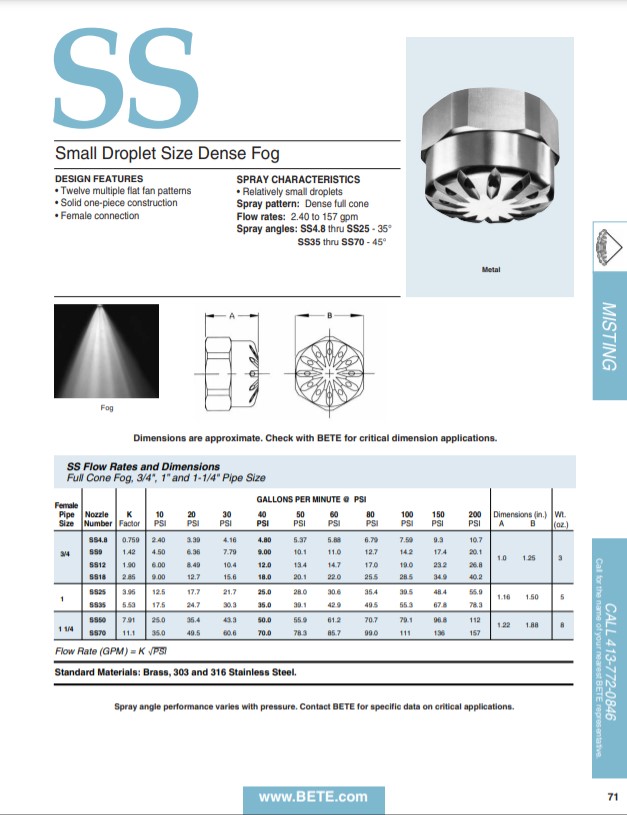

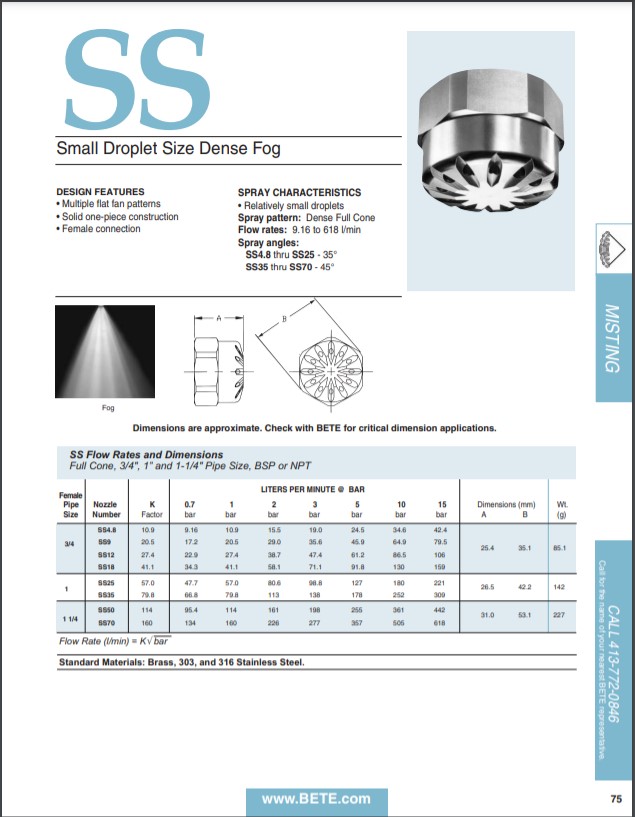

BETE SS Dense Fog & Misting Nozzles Spray Characteristics
- Relatively small droplet size
- Spray pattern: Dense Full Cone Fog
- Available in 3/4″, 1” and 1-1/4″ Pipe Sizes
- Standard Materials: Brass, 303 Stainless Steel, and 316 Stainless Steel
How Spray Pattern is Achieved
- Misting nozzles create a very fine mist or fog. Droplets are typically small enough that buoyancy is significant compared to gravity, allowing drops to appear to float. In the absence of upward airflow, particles are simply falling very slowly.
| Available Spray Angles | Flow Rate Range |
| 35 - 45° | 2.4 to 248 gpm |
| Available Connection Types | Materials |
|
Brass, 303, 316 |
Fan Spray Nozzles
Fan Spray Nozzles are hydraulically driven and produce a flat fan pattern one of two ways. The nozzle either has an angled cut or a sloping deflection face to create the fan spray pattern.
BETE has years of experience with innovative Spray Nozzle design and manufacturing. That knowledge combined with your process expertise, means cutting-edge solutions to industry demands.
Applications BETE SS Dense Fog & Misting Nozzles
- Pond Cooling
- Heating recovery
Nozzle # |
Connection Size |
Spray Angles |
gpm @ psi (Density: 1SG) |
|||||
10 psi |
20 psi |
40 psi |
80 psi |
100 psi |
200 psi |
|||
| SS 4.8 | 3/4″ | 35° | 2.40 | 3.39 | 4.80 | 6.79 | 7.59 | 10.7 |
| SS 9 | 3/4″ | 35° | 4.49 | 6.35 | 8.98 | 12.7 | 14.2 | 20.1 |
| SS 12 | 3/4″ | 35° | 6.01 | 8.50 | 12.0 | 17.0 | 19.0 | 26.9 |
| SS 18 | 3/4″ | 35° | 9.01 | 12.7 | 18.0 | 25.5 | 28.5 | 40.3 |
| SS 25 | 1″ | 35° | 12.5 | 17.7 | 25.0 | 35.3 | 39.5 | 55.9 |
| SS 35 | 1″ | 45° | 17.5 | 24.7 | 35.0 | 49.5 | 55.3 | 78.2 |
| SS 50 | 1-1/4″ | 45° | 25.0 | 35.4 | 50.0 | 70.7 | 79.1 | 112 |
| SS 70 | 1-1/4″ | 45° | 35.1 | 49.6 | 70.2 | 99.3 | 111 | 157 |
