BETE SC Alloy Full Cone Nozzles

BETE Metal Casted Axial Spray Nozzles With Internal Removable Vane

BETE Whirl Nozzles provide uniform distribution of relatively large droplets. Tangential or axial whirl nozzles feature an internal vane within the nozzle body which causes the liquid to “whirl”. The BETE SC spray nozzle is a full cone nozzle designed for use wherever uniform coverage is required.

Design Features of BETE SC Spray Nozzles:

  • Complete line of full cone nozzles made in cast metal alloys
  • Internal removable vane
  • Male and female connections
  • Flanged connections available
  • For plastic nozzles, see BETE NC or MaxiPass nozzles
  • Cast in a variety of alloys

BETE SC Full Cone Nozzles Spray Characteristics

  •  Spray pattern: Full Cone with uniform distribution
Available Spray Angles Flow Rate Range
60 - 120° 1.68 to 2970 gpm
Available Connection Types Materials
  • Pipe: 3/4, 1, 1 1/4, 1 1/2, 2, 2 1/2, 3, 4, 6
  • Connection Methods: Thread (NPT, BSP, Male, Female)
Brass, Carbon Steel, 316

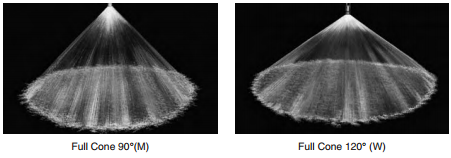

BETE SC Spray Angles

BETE-SC-full-cone-nozzle-spray-angles

Resources

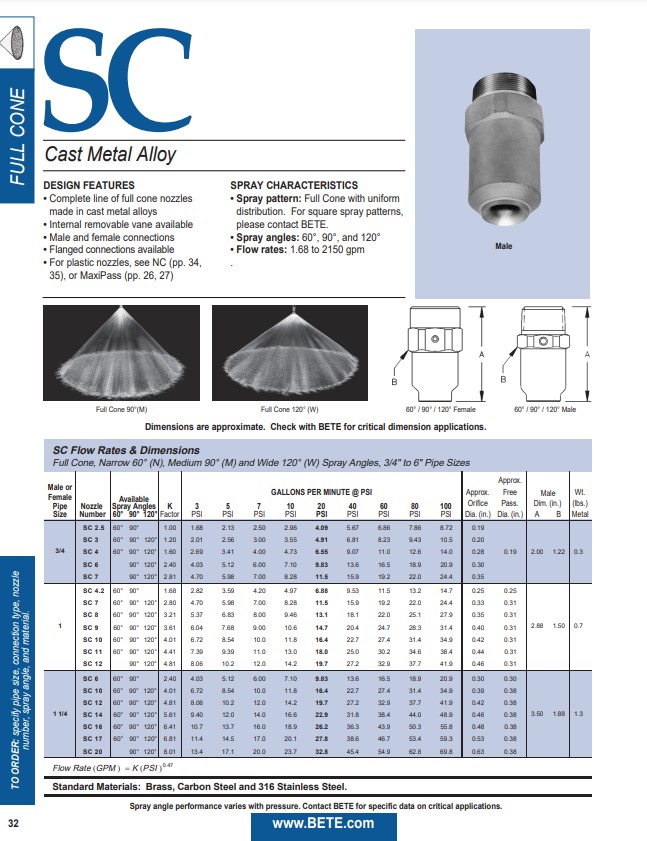

BETE SC - Datasheet

BETE SC - Datasheet

Download

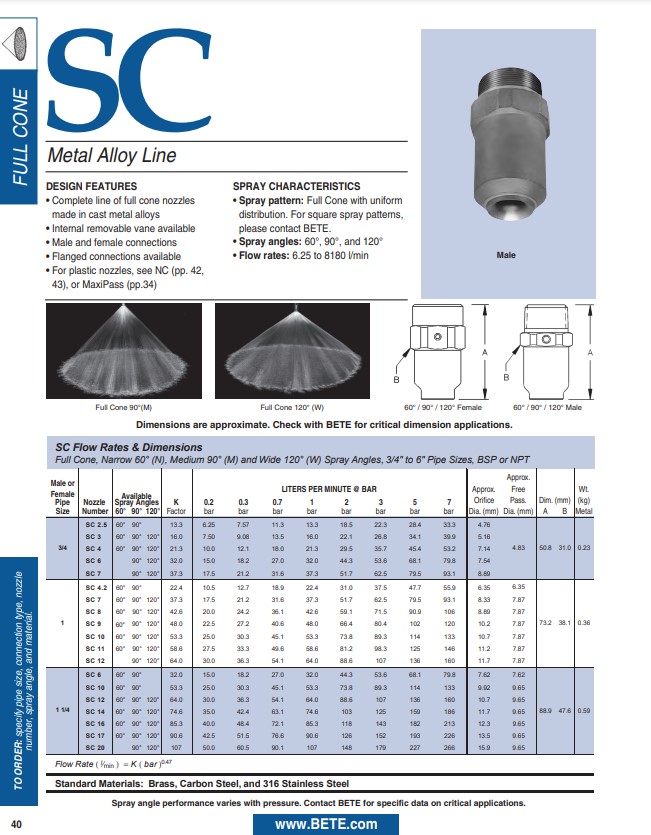

BETE SC Datasheet - Metric

BETE SC Datasheet - Metric

Download
