BETE SA SpiralAir (SA) High-Flow Air Atomizing Spray Nozzles

Reduce Air Consumption With Efficient Two-Phase Atomization

Design Features of BETE SpiralAir (SA) Spray Nozzles

• A two-fluid nozzle using any gas as the atomizing fluid
• Three-stage process that uses atomizing air more efficiently than conventional designs
• Two-phase atomization for the highest performance
• Designed for high reliability in highly hostile environments
• Efficient design reduces compressed air consumption
• Standard and custom lance designs are available for any application

Spray Characteristics

• Flow Rates: 0.33 to 57 GPM (2.0 to 216 L/min)
• Standard Materials: 316 Stainless Steel OR Cobalt Alloy 6 wear components.

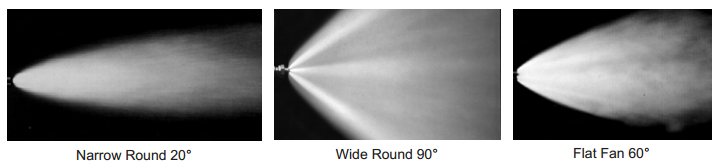

• Spray Angles: 20° to 90° (Other angles available by particular order)


Spray Patterns

• Air Atomizing Spray Nozzles

Common Applications

• Gas Scrubbing
• Gas Cooling
• Gas Conditioning

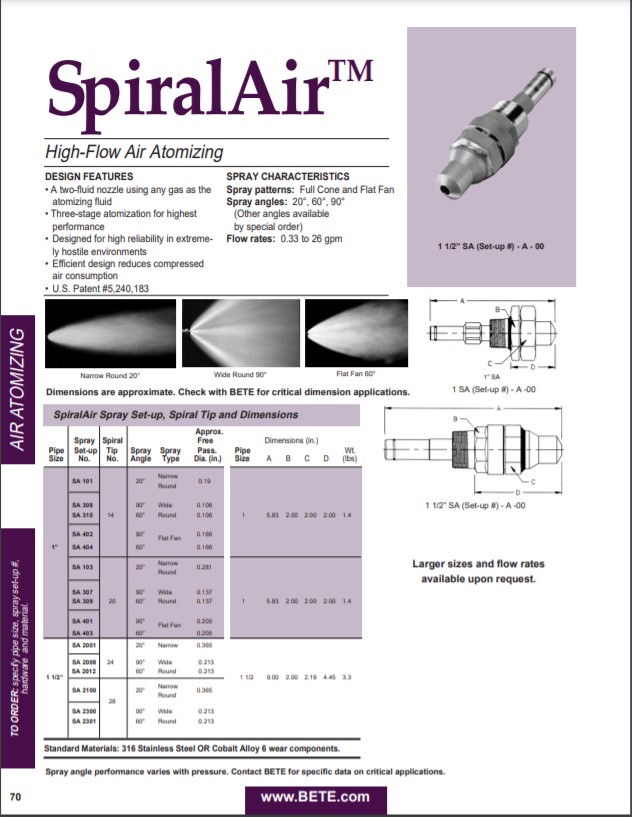

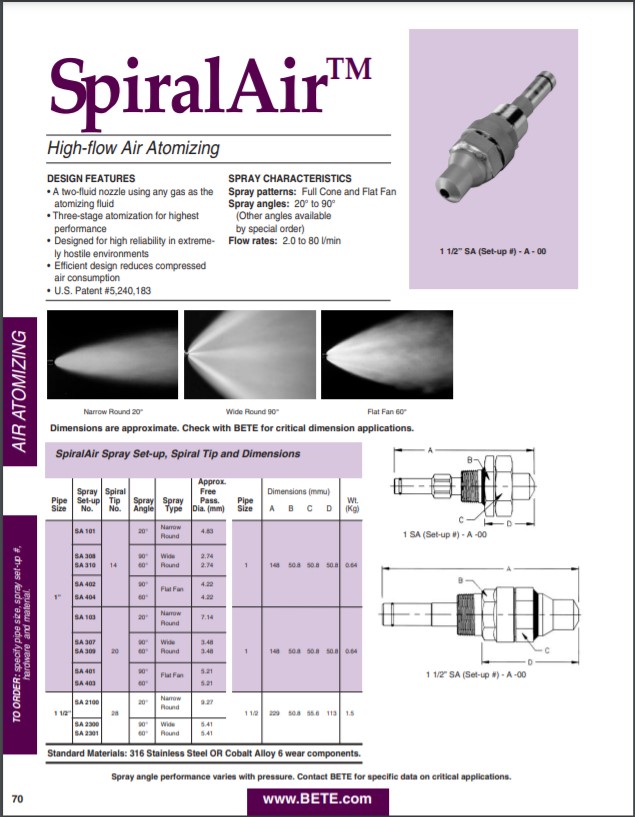

BETE SpiralAir (SA) Spray Nozzle Drawings

BETE SpiralAir (SA) Spray Nozzles Video
