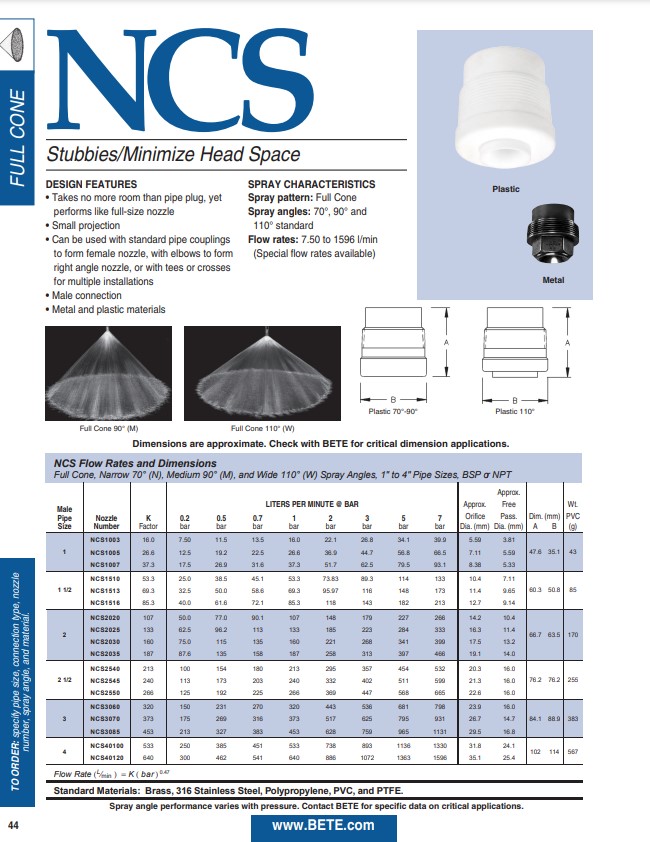

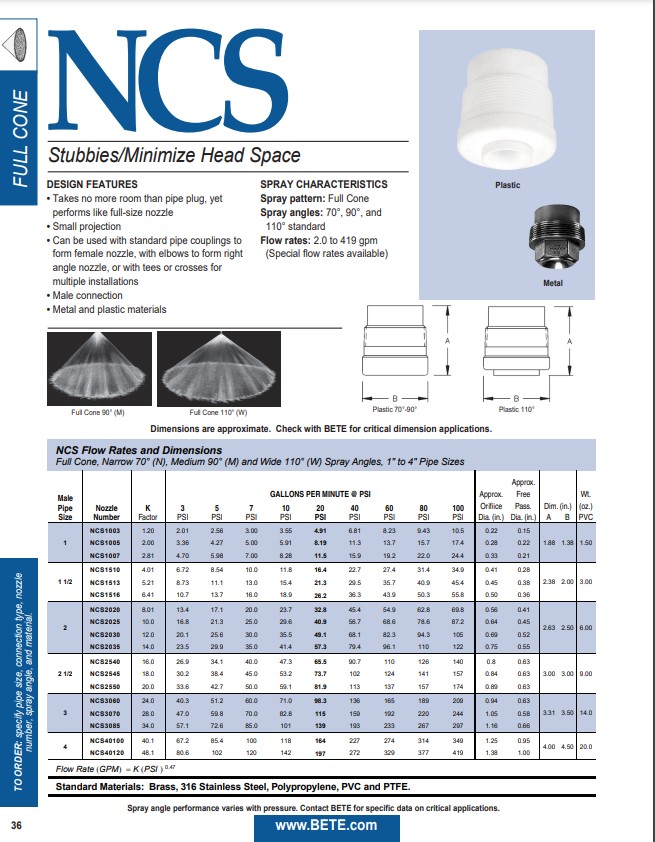

Fits in Tight Spaces and Performs Like a Full-Size Nozzle
Design Features of BETE NCS Full Cone Nozzles
- Takes no more room than pipe plug, yet performs like full-size nozzle
- Small projection
- Can be used with standard pipe couplings to form female nozzle, with elbows to form right angle nozzle, or with tees or crosses for multiple installations
- Male connection
- Metal and plastic materials
Spray Characteristics of BETE NCS Nozzles
- Spray pattern: Full Cone
- Standard Materials: Brass, 316 Stainless Steel, PVC, Polypropylene, and PTFE
| Available Spray Angles | Flow rate Range |
| 70 - 110° | 2.01 to 580 gpm |
| Available Connection Types | Materials |
|
PVC, Polypropylene, PTFE, Brass, 316, Duplex 2205, A494 CW6MC (cast Nickel Alloy 625), A494 CW2M (cast Nickel Alloy C-276), A494 CX2MW (cast Nickel Alloy C-22), A494 CU5MCuC (cast Nickel Alloy 825) |
Full Cone 90° (M)
Full Cone 110° (W)
How Spray Pattern is Achieved for BETE NCS Full Cone Nozzles
- Atomization is achieved by the water spun inside the nozzle and exiting an orifice
- Produces medium to coarse droplet size
- More uniform pattern than spiral nozzles
