Fast, Hygienic Cleaning – Fully 3-A Compliant

Wetting Radius: 18 ft. Maximum | Impact cleaning radius: 8.6 ft. Maximum

Alfa Laval SaniMega SB Spray Heads are an efficient replacement for traditional Static Spray Balls.  They offers liquid impact on the entire tank wall that lies within the spray pattern – a 270°U or a 360° pattern; both at a lower flow rate at equally low pressure. The device is also fully 3-A compliant.

These spray heads are self-cleaning, self-draining and easy to inspect. Their patented one-clip assembly offers easy installation, disassembly and inspection without compromising cleanability and drainability.

Benefits:

  • 40% faster cleaning = more time for production
  • Dynamic cleaning performance and 360° full wetting
  • Saves up 40% of your cleaning cost

Performance Reliability and Long Service Life

Alfa Laval rotary spray heads use the cleaning fluid itself to provide coverage and impact. The physical flow of the cleaning media causes the rotary spray head to rotate, with fan jets laying out a swirling pattern across the inner surface of the vessel.

These jets provide a combination of physical impact and a variable falling film of cleaning fluid that covers all the internal surfaces of the tank or reactor. The variable falling film has higher heat and mass transfer coefficients than the falling film produced by the static spray ball.

The spray head also cleans itself by directing the cleaning media through the rotating bearing track and onto the neck of the elongated head.

Rotary spray heads are a cost-effective alternative to traditional static spray balls because they use only small volumes of cleaning fluid at low pressure. These devices are suitable for virtually all kinds of industrial cleaning, including tanks, reactors, vessels and other containers.

Designed with minimal internal pressure loss, Alfa Laval rotary spray heads rotate at pressures of less than 0.1 bar; however, the recommended operating pressure is between 2 and 3 bar.

Resources

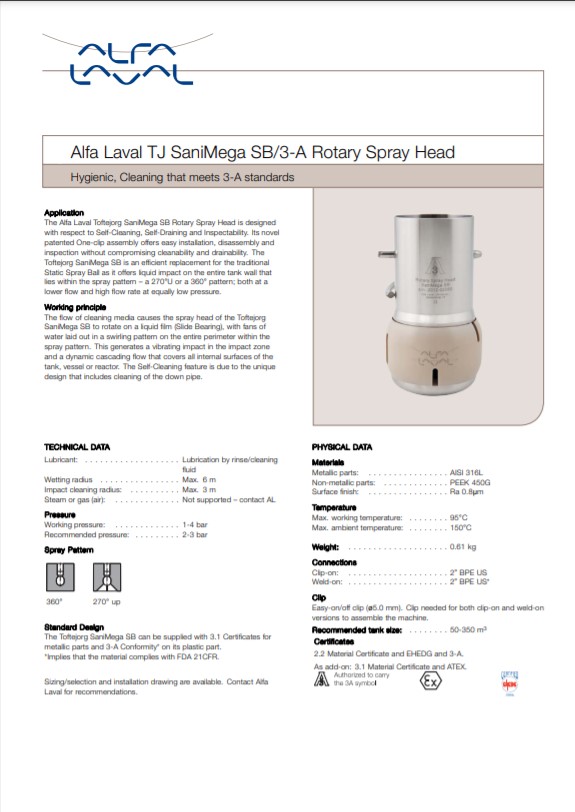

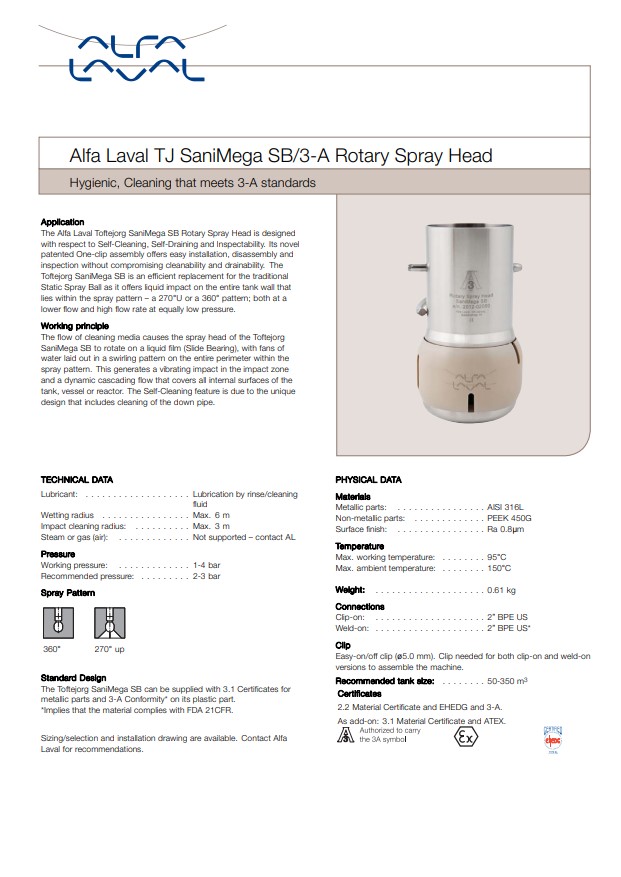

Alfa Laval SaniMega - Product Brochure

Alfa Laval SaniMega - Product Brochure

Download
Alfa Laval SaniMega - Rotary Spray Head - Manual

Alfa Laval SaniMega - Rotary Spray Head - Manual

Download

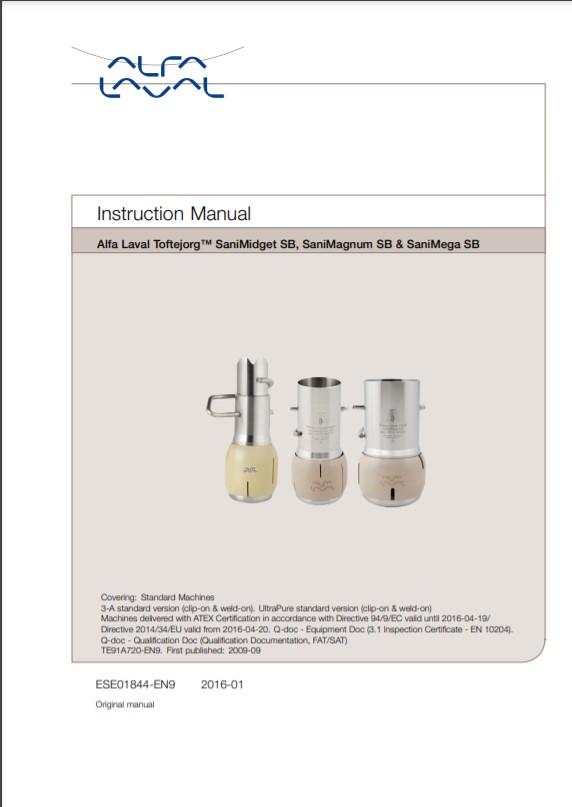

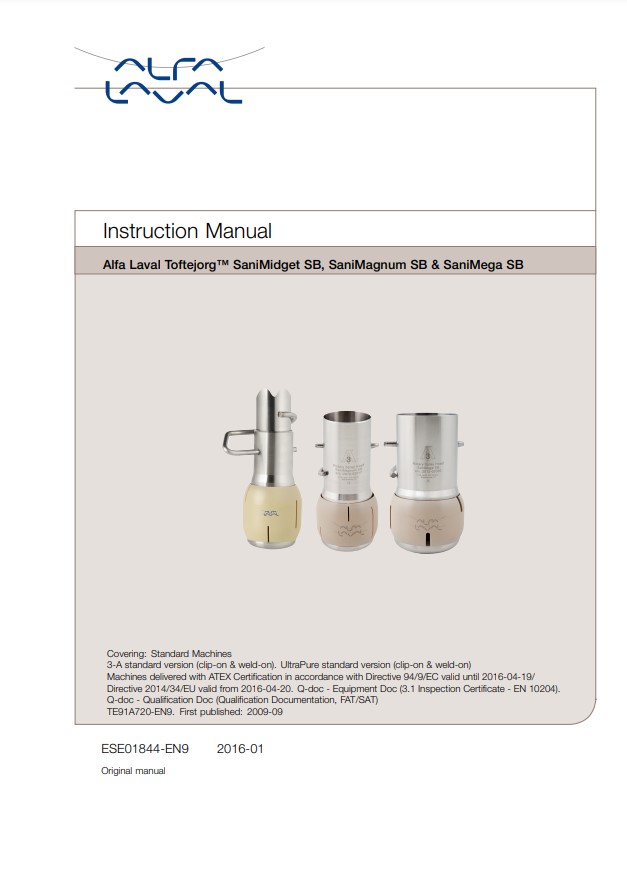

Alfa Laval - SaniMega SB - SaniMagnum SB - SaniMidget SB - Instruction Manual

Alfa Laval - SaniMega SB - SaniMagnum SB - SaniMidget SB - Instruction Manual

Download
