Alfa Laval Toftejorg MULTI Rotary Spray Heads

MULTI Rotary Spray Heads

Engineered for use in most industries, Toftejorg MULTI Rotary Spray Heads from Alfa Laval are highly efficient and offer exceptional cleanability, better end-product quality, greater overall output and reduced operating costs.

Range Includes:


Cost-Effective Cleaning

Alfa Laval Toftejorg MULTI Rotary Spray Heads provide high cleaning efficiency at significantly reduced cycle times to meet the tank-cleaning requirements of various process industries ­­­– from the pulp and paper and chemical processing industries to the bioethanol and starch industries.

Alfa Laval Toftejorg MULTI Rotary Spray Heads also provide measurable savings by cutting energy, chemicals and water consumption for virtually any tank size and configuration. To achieve the best cleaning results, Toftejorg rotary spray heads use an optimized spray pattern to ensure efficient distribution of rinse water to all inner tank surfaces.

The high-impact dense spray pattern removes any residue after the production cycle more quickly and effectively than the much more expensive and time-consuming cleaning methods of soaking in chemicals or manual cleaning. Self-draining and self-cleaning, inside and out, all Toftejorg rotary spray head devices comply with Good Manufacturing Practice.


Performance Reliability and Long Service Life

Designed for minimal internal pressure loss, Alfa Laval Toftejorg MULTI Rotary Spray Heads rotate at pressures of less than 0.1 bar; however, the recommended operating pressure is between 2 and 3 bar. For over half a century, rotary spray head technology has proven successful in providing reliable and repeatable cleaning performance and long service life.


  • 40% faster cleaning = more time for production
  • Dynamic cleaning performance and 360° full wetting
  • Saves up 40% of your cleaning cost

How They Work

Alfa Laval Toftejorg MULTI Rotary Spray Heads use the cleaning fluid itself to provide coverage and impact. The physical flow of the cleaning media causes the rotary spray head to rotate, with fan jets laying out a swirling pattern across the inner surface of the vessel.

MULTI Rotary Spray Heads - Pattern

These jets provide a combination of physical impact and a variable falling film of cleaning fluid that covers all the internal surfaces of the tank or reactor. The variable falling film has higher heat and mass transfer coefficients than the falling film produced by the static spray ball.

The spray head also cleans itself by directing the cleaning media through the rotating bearing track and onto the neck of the elongated head.

Rotary spray heads are a cost-effective alternative to traditional static spray balls because they use only small volumes of cleaning fluid at low pressure.

These devices are suitable for virtually all kinds of industrial cleaning, including tanks, reactors, vessels and other containers.


MULTI Rotary Spray Heads - MULTI Pic MULTI Rotary Spray Heads - SANI Pic MULTI Rotary Spray Heads - SANI SB Pic
   Multi range      Sani range Sani SB range
Certification:
 ATEX            X
2.1 material cert.          X            X         X
3.1 material cert.            X         X
 Q-doc.            X         X
 3A         X
 EHEDG         X
Connection:
 Clip-on          X           X         X
 Weld-on          X           X         X
 Thread          X           X
Surface Finish:
0.8 ra          X          X         X
0.5 ra          X         X
Spray Pattern:
180° Down         X         X
270° UP         X         X         X
360°         X         X         X


alfa-laval-multi-rotary-spray-head

Join our Mailing List

Resources

Alfa-Laval-Product-Catalogue

Download
Size: 2 MB

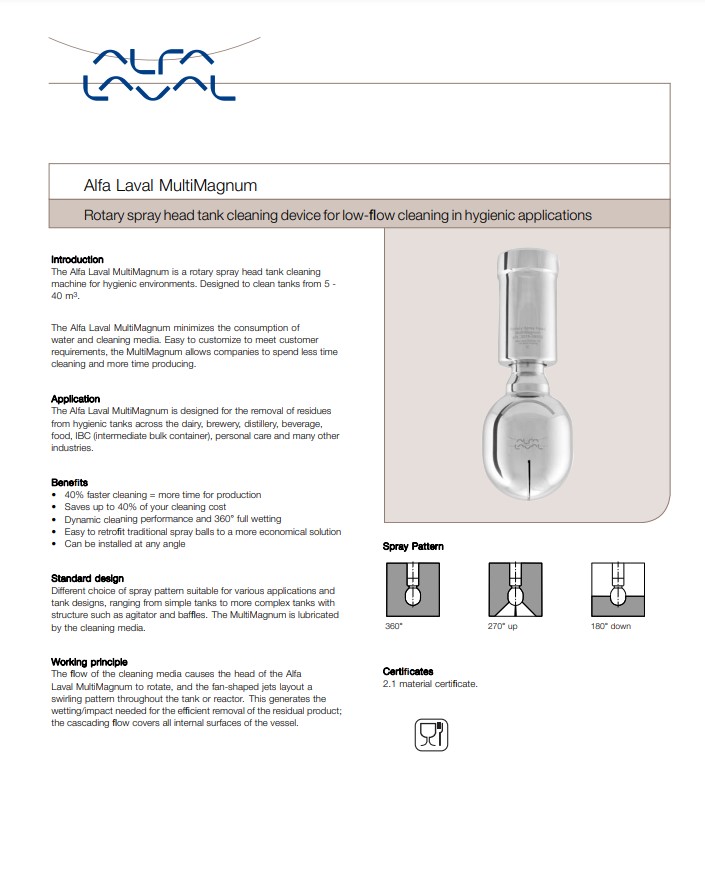

Alfa Laval MULTIMagnum Rotary Spray Head

Download
Size: 1 MB

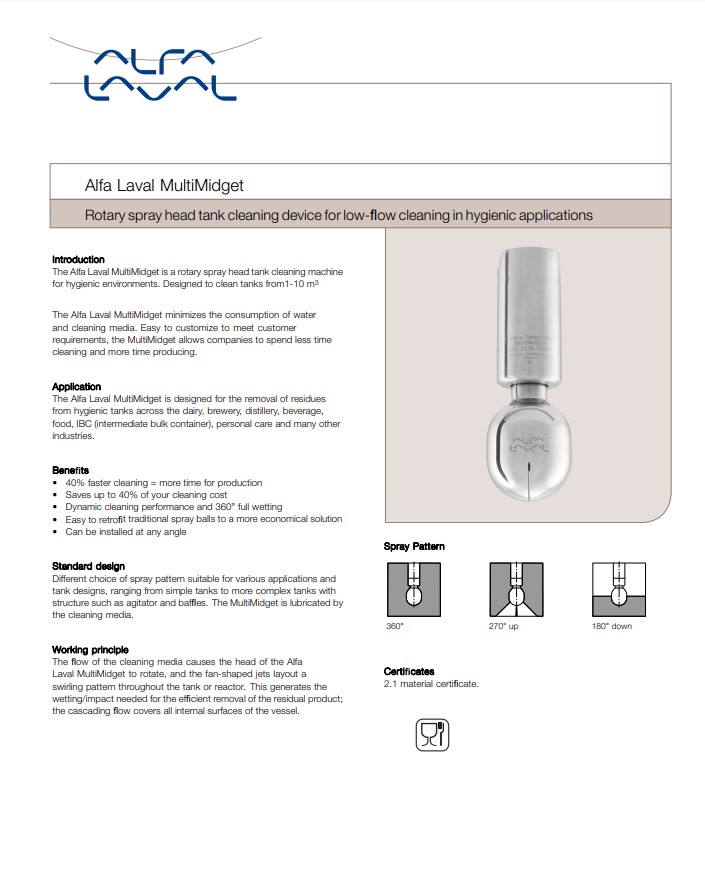

Alfa Laval MULTIMidget Rotary Spray Head
