Alfa Laval BladeClean

Designed to Clean the Underside of Tank Agitators

The Alfa Laval BladeClean tank cleaning device is perfect for any size tank with agitator blades. Incorporating this device into your tank cleaning process will eliminate confined space entry and drastically reduce time spent cleaning, boosting overall tank productivity. Cleaning processing tanks with center obstructions can be tricky, costly, and time-consuming. However, with the Alfa Laval BladeClean, it doesn’t have to be.

Designed for permanent installation, the retractable Alfa Laval BladeClean is installed into the bottom of the tank and when activated, operates at 2 bar (30 psi) and higher, causing a cone of water jets up to 7.6 m (25’) to spray upward at the underside of the tank agitator blades. Reaching up to 4.5 kg (10 lbs.) of force, the water jets clean the agitator blades of product residue. With a positive seal built in to prevent product migration, pair this device with your favorite Alfa Laval Gamajet or Toftejorg rotary impingement tank cleaning device for a fast and effective clean-in-place process.

Benefits:

  • Thoroughly Cleans the Underside of Tank Agitator Blades
  • Boosts Tank Productivity by Reducing Cleaning Times
  • Sanitary Design

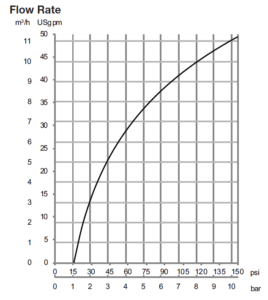

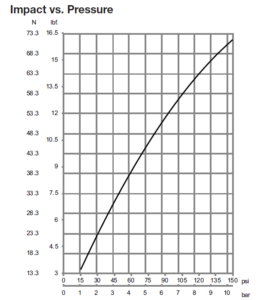

Alfa Laval BladeClean-Flow RateAlfa Laval BladeClean-Impact vs Pressure

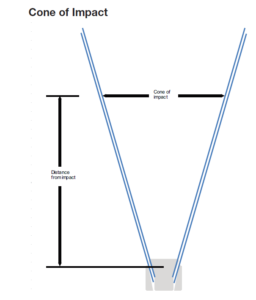

Alfa Laval BladeClean Cone of Impact


Alfa Laval BladeClean

Join our Mailing List

Resources

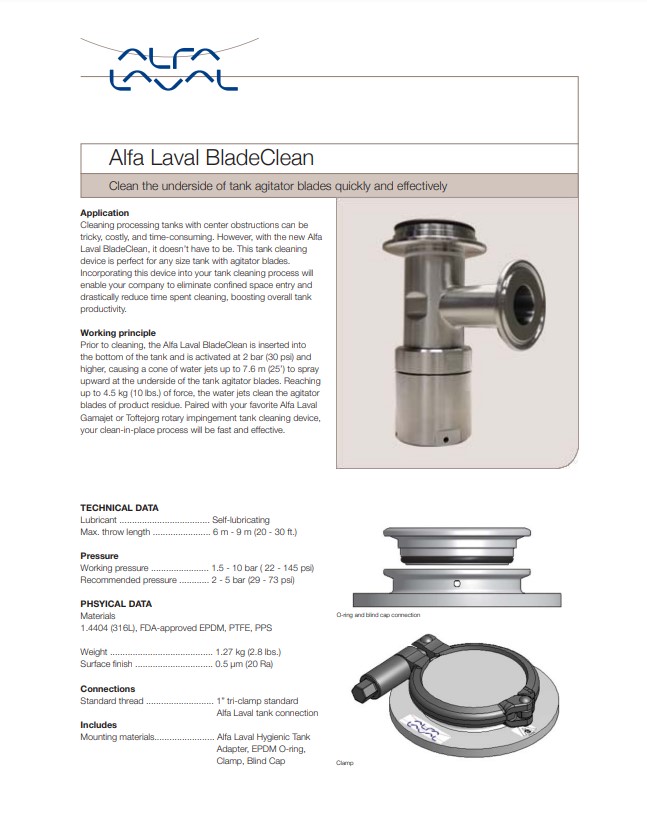

Alfa Laval BladeClean - Product Brochure

Download
Size: 76 KB

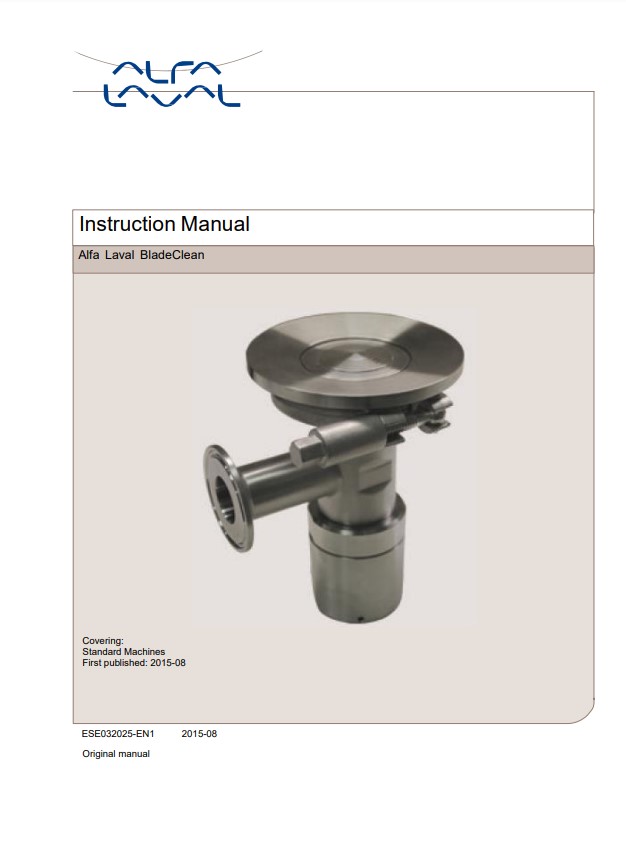

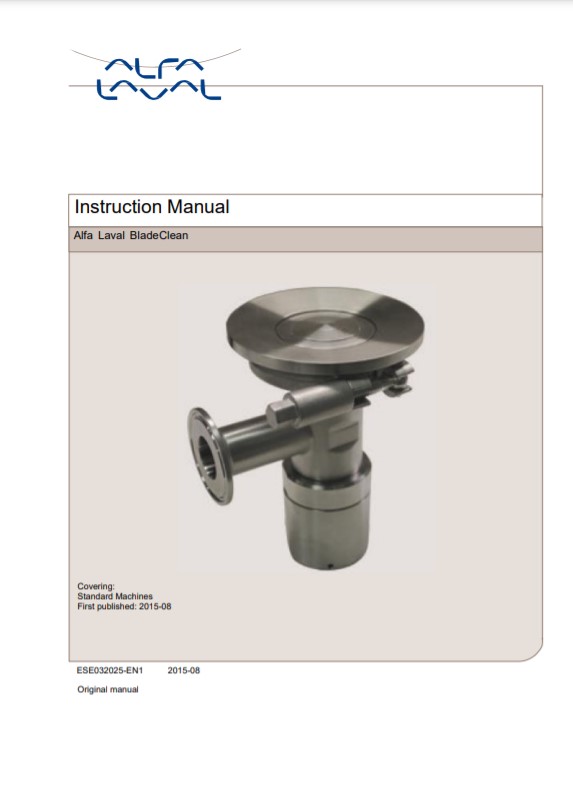

Alfa Laval BladeClean - Manual

Download
Size: 975 KB
