Airpel Series S2 Standard Pressure Self Cleaning Filters

The Standard Range of self cleaning filters provides highly cost effective solutions to difficult liquid filtration problems of all viscosities.

Principle of Operation

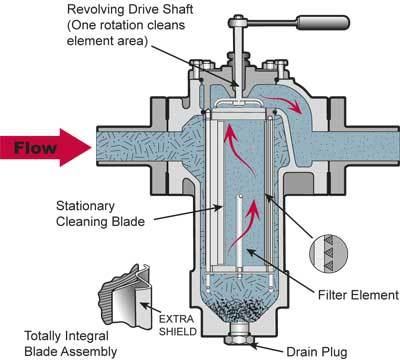

The Airpel Series self-cleaning filter (SCF) blends modern technology with simplicity to provide a versatile method of filtering your process fluids. The filter can be set up for fully or semi-automated or manual operation during which the liquid enters the body and flows through the filter element from outside to in. Debris is collected on the outside of the wedge wire or perforated element. Cleaning takes place without interruption to flow by the rotation of the element against fixed scraper blades. The debris accumulated during rotation is deposited into the bottom of the filter body from where it can be periodically discharged either manually or automatically via the drain port. Ideal for processes that require continuous flow, the SCF range is also suitable for use on unmanned sites and with hazardous process fluids.

S2-Description-Picture



Construction

The Standard Pressure Range of self cleaning filters is comprised of a cast filter head and stainless steel fabricated bowl. Suitable for working pressures and temperatures of 13.8 barg and 260°C (dependent on seal materials) respectively. Various levels of automation and element design can be chosen to suit application and installation demands.

Airpel Series Features and Benefits – Self Cleaning Filters

Feature Advantage Benefit
Three methods of operation Manual, motorised and fully automated options gives the client a choice of control Client can choose level of automation required for their needs and budget
Contained scraper blade design Effective on hazardous and high dirt load processes Less down time and no contact with process fluid giving operator added safety
Dump valve Control of collected waste Zero lost product & 100% control of waste disposal
Wedge wire or perforation design filter elements available Controls size and shape of filtered debris Filtered product quality can be controlled and maintained
Digital control panels (IP65) Can control several filters in remote and un-manned locations Easy programming, no frequent check required as any errors will be reported on the panel and signals sent as required
Standard Airpel Design Wide range of sizes and materials available from standard stock Meets customers delivery and budget requirements
Pre-wired fully automated units Units require mains supply connection only on installation Cost effective due to quick / easy installation and basic electrical knowledge needed



Airpel Series S2 standard pressure self-cleaning filter is designed specifically to provide efficient filtration for liquids on applications with maximum pressures of 13.8 barg, that require continuous filtration without interruption to the flow during the cleaning process.

This product offers a cost effective solution when no flow interruption, no product / operator contact and minimal liquid loss is required.

Easy access to the internal cleaning element is accessed via a Vee clamp so planned maintenance can be undertaken.S2-Picture-Models

4” Self Cleaning Filter comprising for 2 x 3” units manifolded together

SPX can offer various filter models and levels of automation as outlined below, custom requests can also be provided so the filter can be easily integrated in to either a new or existing process line / plant.

Manual

  • Ratchet handle is fitted to the filter for the operator to carry out filter element cleaning process.
  • Filter ‘dump’ connection is suitably plugged ready for the client to their chosen valve.
  • Control panel and Differential pressure indicators not supplied as standard.

Motorised option

  • Manual cleaning handle is replaced by a motor (electrical or Pneumatic) which can then be operated directly or via a control panel.
  • Filter ‘dump’ connection is suitably plugged ready for the client to their chosen valve.
  • Control panel and Differential pressure indicators not supplied as standard.

Fully Automated option

  • Manual cleaning handle is replaced by a motor (electrical or Pneumatic) which can then be operated directly or via a control panel
  • ‘Dump’ valve is replaced by an electro-mechanical or pneumatic valve connected to control panel
  • Differential pressure indicators fitted.
  • All connected to a control panel to monitor and operate the filter accordingly. No manual intervention

Specifications

  • 20mm (3/4”) to 100mm (4”)
  • Flange and screwed connection options
  • Head materials in Cast Iron and Stainless Steel
  • Bowl material stainless steel
  • Filtration levels down to 25 micron
  • High quality 316 stainless steel wedge wire or perforated elements

Options

  • Heating Jackets
  • Manual, Electric & Pneumatic drive options
  • Manual, Motorised & Fully automated control options
  • Remote signalling
  • Wedge Wire and Perforated elements
  • Stainless Steel (std), Stainless Steel Hardened or Plastic blade options depending on process
  • IP65 Automation as standard
  • Explosion proof (ATEX) specification available on request

Maintaining Process Fluid Quality

Maintaining the product quality by the use of an Airpel Series self cleaning filter, helps to reduce downtime, increase productivity and contain/reclaim unwanted debris to comply with company and environmental legislation

Common industries where product quality is essential:

  • Water treatment
  • Food and beverage
  • Pharmaceutical
  • Paints, inks and varnishes, etc.

Automation

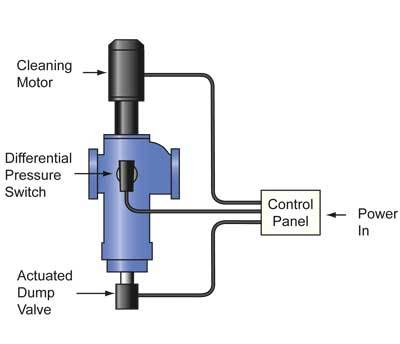

The Airpel Series automated self-cleaning filters allows for stand alone, low maintenance processing of liquids. The range can be automated, either electronically or pneumatically, from 32 mm (1.25″) and above. The level of automation can be selected from manual cleaning and valve operation to fully automated filters which can be supplied wired and fully tested, requiring only on site connection to the power source and dump valve connection.

S2-Picture-Details1

Element Design

The wedge wire element is used in 90% of applications and is likely to remain the most commonly used element in the self cleaning filter. However, for certain critical filtration applications a perforated element has been introduced.

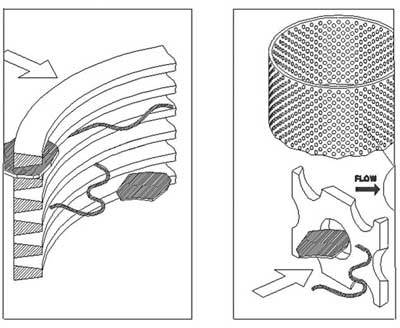

The perforated element will prevent ‘platelet’ shaped debris passing through the element ‘letter box’ fashion and will make the passage of fibrous debris practically impossible.

S2-Picture-Details2
