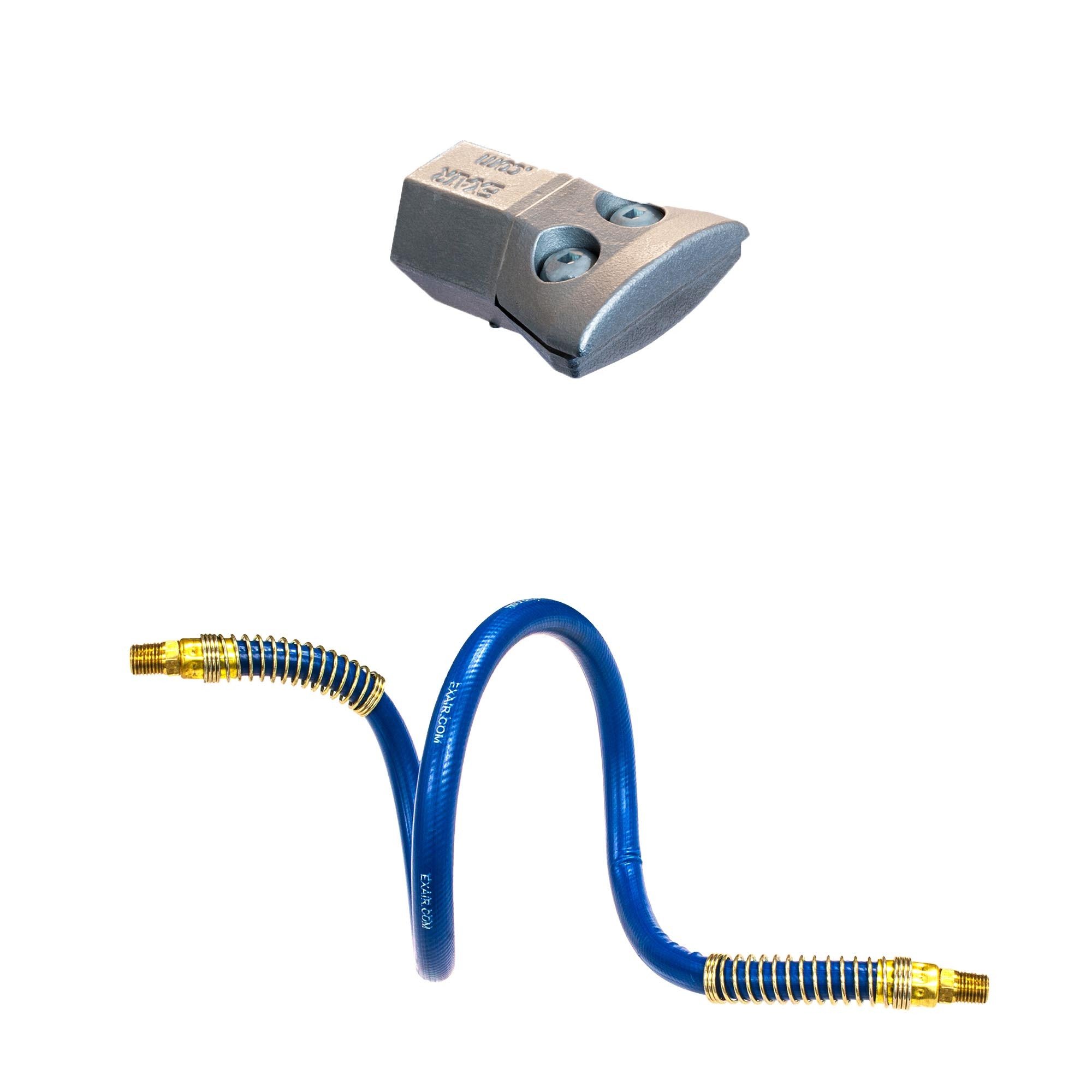

EXAIR 1 Inch Flat Super Air Nozzle™ with Stay Set Hose

EXAIR's 1 Inch Flat Super Air Nozzle is a highly efficient, unique flat air nozzle. Their patented (U.S. Pat 5402938) design uses a special shim to maintain the critical position of the component parts. Air is released through a thin slot, across a flat surface. The result is a wide, forceful stream of high velocity, laminar airflow with minimal air consumption and noise. Force and flow may be easily increased or decreased by installing a different shim. The 1 Inch Flat Super Air Nozzle with Stay Set Hose includes EXAIR's Flexible Stay Set Hose for applications where frequent repositioning is required. The Stay Set Hose has "memory" and will not creep or bend. The 1 Inch Flat Super Air Nozzle is available in zinc/aluminum alloy or Type 316 stainless steel.

Product Material Flow Air Inlet Stay Set Hose Length Number of Mag Base Outlets
exair-1-Flat-Super-Air-Nozzle-1126-9256 Zinc-Aluminum 10.5 SCFM 1/4 MNPT 6" (152mm) Not Applicable
exair-1-Flat-Super-Air-Nozzle-1126ss-9256 Type 316 Stainless Steel 10.5 SCFM 1/4 MNPT 6" (152mm) Not Applicable
exair-1-Flat-Super-Air-Nozzle-1126-9262 Zinc-Aluminum 10.5 SCFM 1/4 MNPT 12" (305mm) Not Applicable
exair-1-Flat-Super-Air-Nozzle-1126ss-9262 Type 316 Stainless Steel 10.5 SCFM 1/4 MNPT 12" (305mm) Not Applicable
exair-1-Flat-Super-Air-Nozzle-1126-9268 Zinc-Aluminum 10.5 SCFM 1/4 MNPT 18" (457mm) Not Applicable
exair-1-Flat-Super-Air-Nozzle-1126ss-9268 Type 316 Stainless Steel 10.5 SCFM 1/4 MNPT 18" (457mm) Not Applicable
exair-1-Flat-Super-Air-Nozzle-1126-9274 Zinc-Aluminum 10.5 SCFM 1/4 MNPT  24" (610mm) Not Applicable
exair-1-Flat-Super-Air-Nozzle-1126ss-9274 Type 316 Stainless Steel 10.5 SCFM 1/4 MNPT 24" (610mm) Not Applicable
exair-1-Flat-Super-Air-Nozzle-1126-9280 Zinc-Aluminum 10.5 SCFM 1/4 MNPT 30" (762mm) Not Applicable
exair-1-Flat-Super-Air-Nozzle-1126ss-9280 Type 316 Stainless Steel 10.5 SCFM 1/4 MNPT 30" (762mm) Not Applicable
exair-1-Flat-Super-Air-Nozzle-1126-9286 Zinc-Aluminum 10.5 SCFM 1/4 MNPT 36" (914mm) Not Applicable
exair-1-Flat-Super-Air-Nozzle-1126ss-9286 Type 316 Stainless Steel 10.5 SCFM 1/4 MNPT 36" (914mm) Not Applicable

Applications:

  • Part cleaning
  • Chip removal
  • Liquid blowoff
  • Part cooling
  • Material conveying
  • Part ejection
  • Fiber conveying
  • Air assist

Advantages:

  • Reduced compressed air cost
  • 10 dBA average noise reduction
  • Conserve compressed air
  • Improved blowoff performance
  • Compact
  • Improved safety
  • Meets OSHA noise level requirements
  • Meets OSHA pressure requirements
  • Improved production

1" Flat Super Air Nozzle Materials

  • Zinc Aluminum alloy - general purpose applications. Max temp 250°F (121°C).
  • Type 316 Stainless Steel - high temperatures, corrosive environments, and mechanical wear. Max temp 1000°F (538°C)

Accessories:

exair-1-Flat-Super-Air-Nozzle-1fsanshim

Shim Sets - Shim sets for the 1" Flat Super Air Nozzles include a .005" (0.13mm), .010" (0.25mm), and .020" (0.51mm) thick shim.





9212Stay Set Hose - For applications where frequent repositioning of standard force Air Nozzles or Jet is required, the Flexible Stay Set Hoses™ are ideal. Simply mount the hose in close proximity to the application and bend it to aim the airstream at the target. Since the hose has “memory”, it will not creep or bend. It always keeps the aim until physically moved to the next position.



swivelfam

Swivel Fittings - make it easy to adjust the aim of the Air Nozzles and Jets. Correct placement of the blowing angle can help optimize performance, reduce noise levels and improve efficiency. Swivel Fittings permit a movement of 25 degrees from the center axis for a total movement of 50 degrees. Type 303 or 316 Stainless Steel.



magfam

Magnetic Bases - are suited to applications where frequent movement of the Air Nozzle or Jet is required. The powerful magnet permits horizontal or vertical mounting that will hold the blowing position of the Stay Set Hose. A shutoff valve is provided that can be used to vary the force and flow.



1" Flat Super Air Nozzle Performance

Air Consumption Force* Sound Level
Model SCFM SLPM Ozs Grams dBA
1126/1126SS 10.5 297 9.8 278 75

*Force measured at 12" (305mm) from target.

Sound level measured at 3' (914mm).

All measurements taken at 80 PSIG (5.5 BAR).

.015" (0.38mm) shim installed.

How EXAIR Flat Super Air Nozzles Work1fsanworksb

Compressed air flows through an inlet (1) into the plenum chamber of the Flat Super Air Nozzle. The flow is directed to a precise, slotted orifice. As the primary airflow exits the thin slotted nozzle (2), it follows a flat surface that directs the airflow in a perfectly straight line. This creates a uniform sheet of air across the entire length of the Flat Super Air Nozzle. Velocity loss is minimized and force is maximized as the room air (3) is entrained into the primary airstream at a ratio of 40:1. The result is a well defined sheet of laminar airflow with hard-hitting force and minimal wind shear.



1" Flat Super Air Nozzle Dimensions and Airflow

exair-1fsandimflowa


1" Flat Super Air Nozzle Standards and Certifications




OSHA Safe!CE CompliantEXAIR Super Air Nozzles comply with OSHA's Safety Requirements, the EU General Product Safety Directive (2001/95/EC) and meet the noise limitation requirements of the EU Machinery Directive (2006/42/EC). All sound level measurements are taken at 3 feet away.



Conflict Mineral FreeLook for this symbol to designate conflict mineral free products throughout our website. EXAIR supports Section 1502 of the Dodd-Frank Wall Street Reform and Consumer Protection Act and we are committed to compliance with the conflict minerals rule in order to curb the illicit trade of tin, tantalum, tungsten and gold in the DRC region. EXAIR is using the CMRT 3.02 template to document our supply chain and commitment to conflict free products.
