Wilden T4 Turbo-Flo™ Stallion® Series Clamped Metal AODD Pump

38 mm (1-1/2") Wilden T4 Turbo-Flo Stallion Series Clamped Metal AODD Pumps

Wilden Stallion Series Air-Operated Double-Diaphragm (AODD) Pumps are ideally suited for rugged mining applications thanks to their unique ability to handle solid-laden mining slurries with ease. Furthering the Stallion Series pump’s ability to handle the toughest mining applications is a robust design featuring a large internal clearance and flow-through path for large-solids passage that prevents the pump from clogging. The Stallion Series is also designed with a polyurethane screen base at its inlet to provide additional durability.

Stallion Series technology incorporates an altered ball/seat check-valve assembly to allow for solids passage. Its polyurethane screen base at the inlet gives added durability.

Features & Benefits of Wilden T4 Turbo-Flo Stallion Series AODD Pumps

  • Clamped design with handles for lightweight portability
  • Large internal clearances due to modified ball, seats, diaphragms and shafts to handle solid-laden slurries
  • Polyurethane screen base to act as an initial filter to keep larger solids from damaging the pump
  • Powered by Pro-Flo SHIFT Air Distribution System (ADS)
Air Inlet 1/2" FNPT
Liquid Inlet 38 mm (1-1/2")
Liquid Discharge 38 mm (1-1/4")
Connection Type NPT/BSPT (Threaded)
Max Suction Lift Capability Ultra-Flex™ - 4.27 m (14') Dry, 8.23 m (27') Wet
Max Flow Rate Ultra-Flex™  - 216 lpm (57 gpm)
Max Pressure 8.6 bar (125 psi)
Max Diameter Solids 13 mm (1/2'')
Displacement Per Stroke* Ultra-Flex™– 0.64 L (0.17 gal)
* 1 cycle = 2 strokes

Performance & Specifications of Wilden T4 Turbo-Flo Stallion Series AODD Pumps

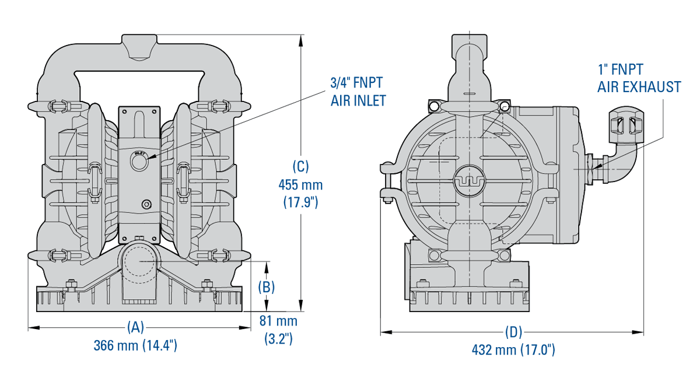

Dimensions

dim-ps4-38mm1-5in-stallion_cmp

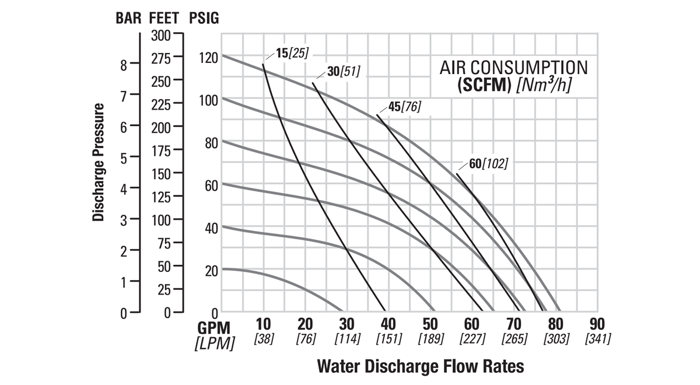

Flow Curve - EZ-Install TPE-Fitted

flo-ps4-38mm1-5in-stallion_cmp

Wetted Housings

Material Ship Weight
Aluminum 17 kg (38 lb)
Cast Iron 26 kg (57 lb)

Non-Wetted Housings

Description Material
Center Section Aluminum
Air Valve Brass
Air Chamber Aluminum, Mild Steel

Elastomer Options

Material Temperature Limits
Buna-N -12°C to 82°C (10°F to 180°F)
EPDM -51°C to 138°C (-60°F to 280°F)
FKM -40°C to 177°C (-40°F to 350°F)
Neoprene -18°C to 93°C (0°F to 200°F)



Resources

Wilden Stallion Series Pumps - Brochure

Wilden Stallion Series Pumps - Brochure

Download

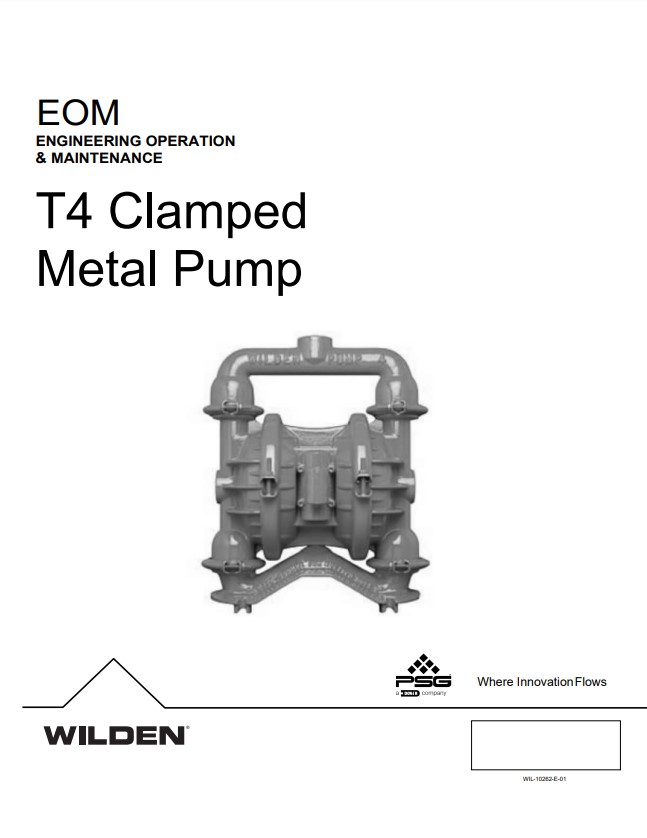

Wilden T4 Turbo‑Flo Clamped Metal Pump EOM

Wilden T4 Turbo‑Flo Clamped Metal Pump EOM

Download
