Finish Thompson UC436L Sealless Pump

Finish Thompson UC436L Sealless Pumps

Fabricated from robust ductile iron and fortified with a DuPont Tefzel (EFTE) lining, the Finish Thompson ULTRAChem UC Series ANSI dimensional magnetic drive pumps offer unmatched corrosion resistance. These pumps are meticulously engineered to excel in the most challenging of applications.

Applications

  • Plating solutions
  • Dehumidification systems
  • Chemical manufacturing, blending, distribution
  • Metal manufacturing

Finish Thompson UC436L Sealless Pump Specifications

________________________________________________________________________________________________________________________

 Suction Port Size:
 4 in
 Discharge Port Size:
 3 in
 Connection Types:
 ANSI/ISO/DIN/PN20 Flange
 Maximum Specific Gravity:
 over 1.8
 Maximum Working Pressure:
 175 psi (12 bar)



   @3450 RPM  @2900 RPM
 Flow Range*:  5 to 440 gpm  1.1 to 100 m3/h
 Maximum Head:  167 ft  35.3 m
 Power Range**:  3 to 30 hp  1.1 to 22 kW
*See Performance tab for individual impeller diameter capability
**Smallest to largest impeller on 1.0 s.g.



 Type:
 Heavy Duty Sealless Mag Drive
 Configuration:
 Horizontal ANSI dimensional A10
 Construction Materials:
 ETFE-lined ductile iron
 O-ring Materials:
 FKM, EPDM, Simriz®, Kalrez®, or Aflas®
 Bushing Materials:
 Carbon, SiC, or Dri-Coat SiC
 Shaft Materials:  SiC or Dri-Coat SiC



 Maximum Temperature:   250º F (121º C)

Kalrez® is a registered trademark of DuPont Performance Elastomers
Simriz® Perfluoroelastomer is a registered trademark of the Simrit® division of Freudenberg-NOK

Aflas® is a trademark of the Asahi Glass Co., Ltd.





Resources

Finish Thompson UC Curves

Finish Thompson UC Curves

Download
Finish Thompson UC Outline Dimensions

Finish Thompson UC Outline Dimensions

Download

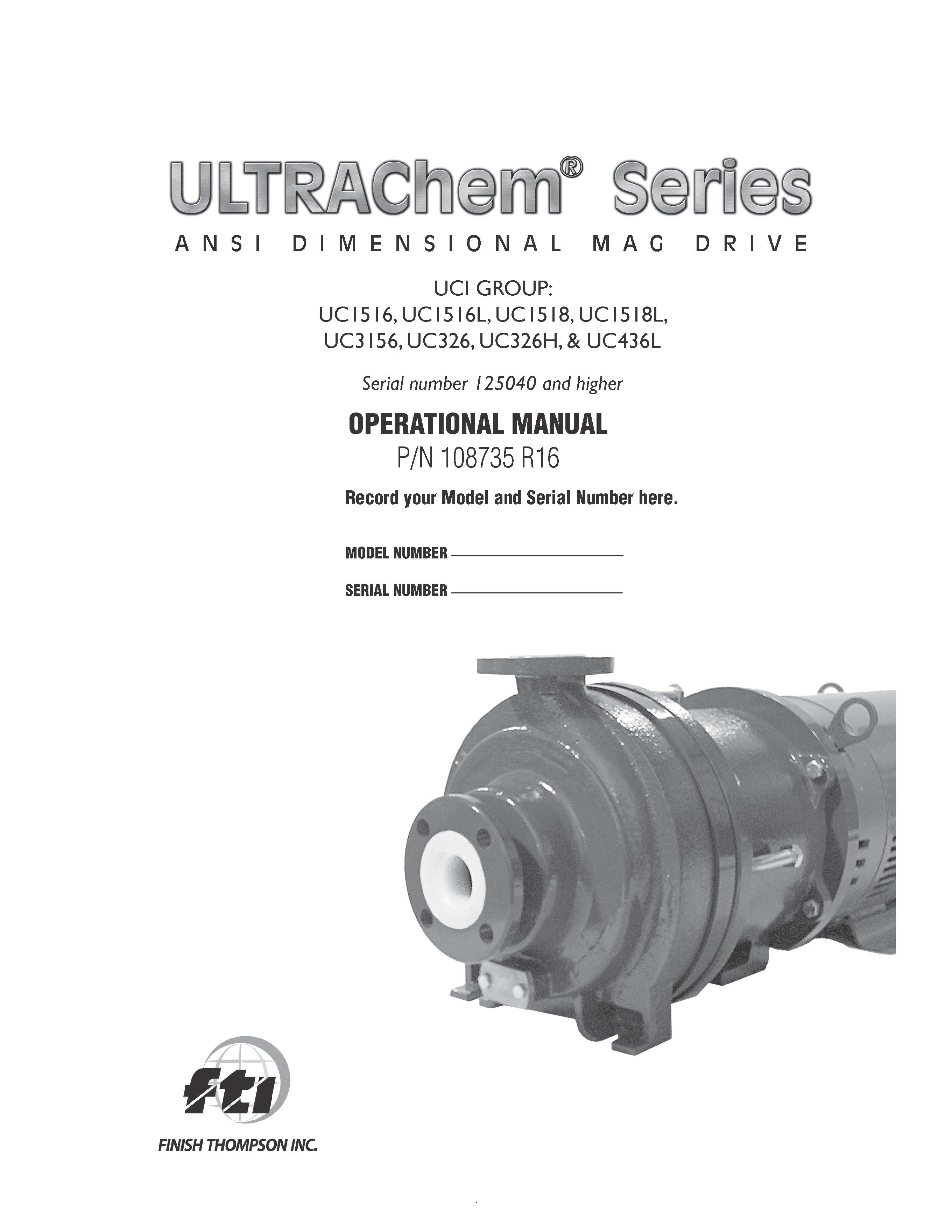

Finish Thompson UCI Group Manual
