Finish Thompson Sealless Pumps - MSDB 2

Finish Thompson Sealless Pumps - MSDB 2

Applications of Finish Thompson Sealless Pumps MSDB 2

  • Chemical processing
  • Plating
  • Water and wastewater
  • Electronics
  • Pharmaceuticals
  • Wet scrubber
  • Spray applications
  • Filtration



















Finish Thompson Sealless Pumps MSDB 2 Specifications

 Suction Port Size:
 1 in
 Discharge Port Size:
 1 in
 Connection Types:
 NPT, BSP, Flange
 Maximum Specific Gravity:
 over 1.8
 Maximum Working Pressure:
 135 psi (9.3 bar)




   @3500 RPM  @2900 RPM
 Flow Range:  1 to 69.8 gpm  0.23 to 15.7 m3/h
 Maximum Head:  204 ft  43.3 m
 Power Range*:  .75 to 4.9 hp  .31 to 2.2 kW
*Based on 1.0 specific gravity



 Type:
 Multi-Stage Sealless Mag Drive
 Configuration:
 Horizontal
 Construction Materials:
 Polypropylene or PVDF
 O-ring Materials:
 FKM, EPDM, Simriz®, or Kalrez®
 Bushing Materials:
 Carbon, glass-filled PTFE, silicon carbide



   Polypropylene  PVDF
 Maximum Temperature:  180º F (82º C)  220º F (104º C)

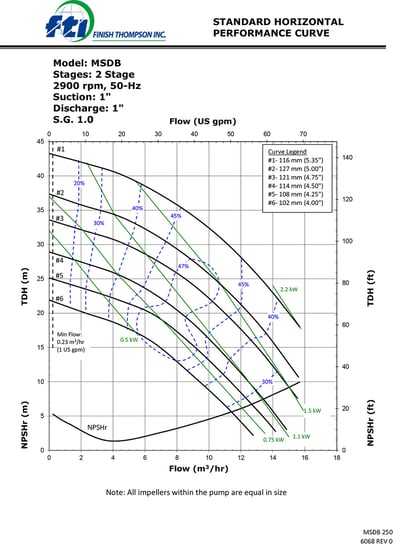

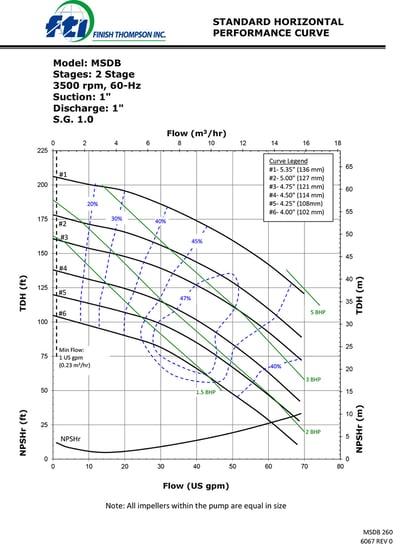

Finish Thompson Sealless MSDB 2 Pump Performance

mdsb2-graph-1mdsb2-graph-2



Sealless Magnetic Drive Pumps: Ideal for Mining Operations

Mining operations demand pumps of exceptional quality and reliability to facilitate extraction. Moreover, the hazardous byproducts often associated with mining necessitate careful handling. In pursuit of safe and efficient mining practices, the use of sealless magnetic drive pumps is paramount. Crafted specifically for rugged chemical applications, Finish Thompson's mag-drive pumps stand as the leading solution across a broad spectrum of mining tasks.

Have a Fluid Handling Problem? We can help you find a Pumping Solution.

John Brooks Company caters to diverse industries, offering suitable pump solutions for nearly all fluid handling needs - including yours! Our success hinges on fostering a collaborative partnership with you, where we help you find a tailored solution to enhance your systems, boost productivity, and minimize operational expenses

Consult with a John Brooks Company Pump expert today to help you determine the most suitable pump type for your application needs.
