Wilden V150 Velocity Compact Pumps – 1/2″ (13mm) Bolted Plastic Pumps are air-operated double-diaphragm (AODD) pumps, designed with versatility. Featuring a unique detachable mounting foot, Velocity Series pumps can easily be reoriented into a vertical or horizontal position with multiple inlet and discharge port options, a critical consideration for systems and skids.

  • Numerous mounting configurations to fit any application
  • 16.9′ (5.1m) dry suction lift for better priming
  • Startup pressures as low as 15 psi (1.03 bar)
  • Bore-seal design that eliminates leaks that result from torque decay
  • Interchangeable footprint with previous Wilden designs (P1, P100)

Performance & Specifications:

AIR INLET: 1/2″ FNPT
CONNECTION TYPE: FNPT (Threaded)
MAX PRESSURE: 100 psi (6.9 bar)
LIQUID INLET: 1/2″ (13mm)
LIQUID DISCHARGE: 1/2″ (13mm)
MAX FLOW RATE: TPE & PTFE:   5.7 gpm (21.6 lpm)
MAX DIAMETER SOLIDS: 1/16″ (1.6mm)
MAX SUCTION LIFT CAPABILITY: TPE:  DRY – 16′ (4.8m) | WET – 26′ (7.6m)

PTFE:  DRY – 16.9′ (5.1m) | WET – 26′ (7.6m)

DISPLACEMENT PER STROKE (1 cycle = 2 strokes): TPE & PTFE:   0.03 gal (0.11 L)

Wetted Housings



Non-Wetted Housings

MATERIAL SHIP WEIGHT   DESCRIPTION MATERIAL
Polypropylene 7 lbs (3 kg) Air Valve Polypropylene
PVDF 8 lbs (3.7 kg) Air Chamber PET, Aluminum (Accu-Flo™ only)

Elastomer Options

Material Temperature Limits
PTFE® 40°F to 220°F (4°C to 104°C)
Wil-Flex™ -40°F to 225°F (-40°C to 107°C)

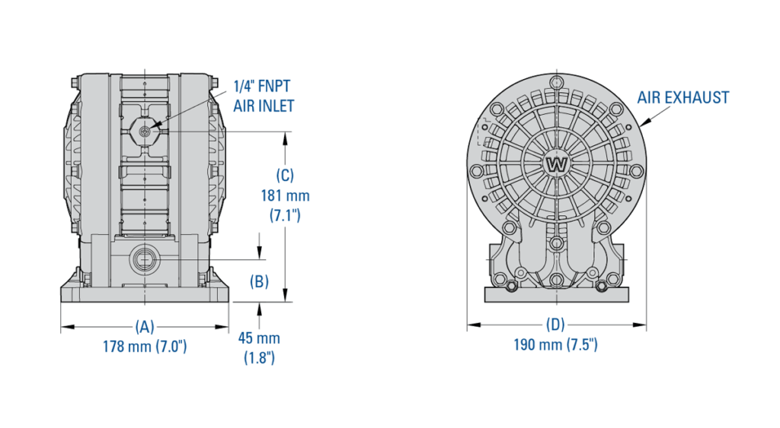

Dimensions

Dimensions-1-2-inch-Velocity-Series-Compact-Pump-1024x563

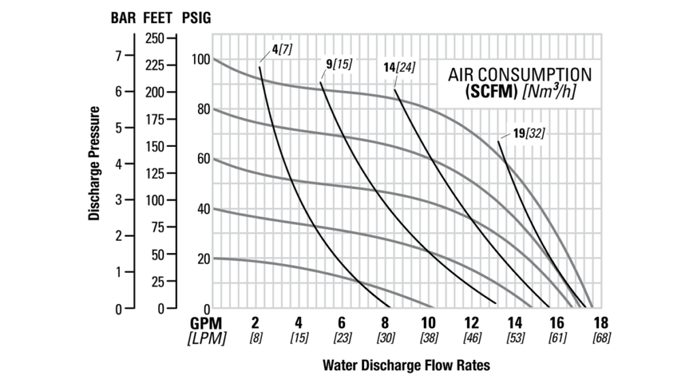

Flow Curve – TPE-Fitted

Flow-Curve-1-2-inch-Velocity-Series-Compact-Pump-1024x563

Resources

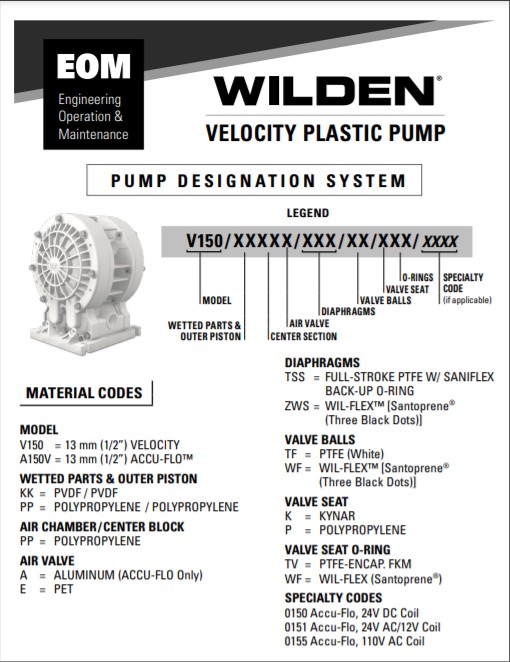

EOM 1-2 inch Velocity Series Pump

EOM 1-2 inch Velocity Series Pump

Download

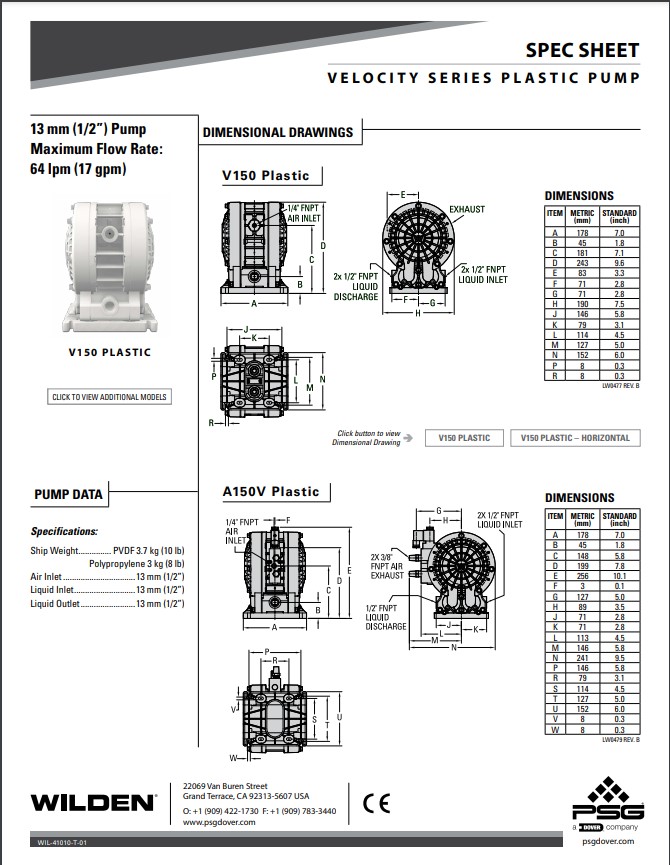

Spec Sheet 1-2 inch Velocity Series Compact Pumps

Spec Sheet 1-2 inch Velocity Series Compact Pumps

Download
