Wilden PS8 Pro-Flo SHIFT Clamped Plastic AODD Pumps

2″ | 51 mm Pro-Flo SHIFT Series Clamped Plastic Pump

Wilden PS8 Pro-Flo SHIFT Clamped Plastic AODD Pumps incorporate the same benefits as a clamped metal pump, these plastic versions offer a simple, rugged design that is ideally suited for chemical applications. Engineered with ease of maintenance in mind, clamped plastic pumps are simple to install and are made for quick serviceability, allowing the pump to be taken apart and put back together with only a single tool.

AIR INLET: 3/4″ FNPT
CONNECTION TYPE: DIN/ANSI (Flanged)
MAX PRESSURE: 125 psi (8.6 bar)
LIQUID INLET: 2″ (51 mm)
LIQUID DISCHARGE: 2″ (51 mm)
MAX FLOW RATE:


Rubber:  170 gpm (643 lpm)
EZ-Install TPE:  170 gpm (643 lpm)
Full-Stroke – PTFE:  158 gpm (597 lpm)
MAX DIAMETER SOLIDS: 1/4″ (6.4 mm)
MAX SUCTION LIFT CAPABILITY:


Rubber:  DRY – 21.8′ (6.6m) | WET – 27.2′ (8.3m)
EZ-Install TPE:  DRY – 20.2′ (6.2m) | WET – 27.2′ (8.3m)
Full-Stroke – PTFE:  DRY – 19.9′ (6.1m) | WET – 27.2′ (8.3m)
DISPLACEMENT PER STROKE (1 cycle = 2 strokes):


Rubber:  0.75 gal (2.8 L)
EZ-Install TPE:  0.72 gal (2.7 L)
Full-Stroke – PTFE:  0.69 gal (2.6 L)

Benefits and Features:

  • DIN and ANSI Flanged Inlet/Discharge Liquid Connections
  • Rotatable Inlet and Discharge for Flexibility
  • Decades of Proven Performance
  • Clamped Connections for Faster Maintenance
  • Low Cost
  • Simple Installation
  • Ease of Operation & Maintenance

Wetted Housings



Non-Wetted Housings

MATERIAL SHIP WEIGHT   DESCRIPTION MATERIAL
Polypropylene 79 lbs (36 kg) Center Block Polypropylene, Aluminum, Stainless Steel
    Air Valve Polypropylene, Aluminum, Stainless Steel
      Air Chamber Polypropylene, Aluminum, Stainless Steel

Elastomer Options

Material Temperature Limits
Buna-N 10°F to 180°F (-12°C to 82°C)
EPDM -60°F to 280°F (-51°C to 138°C)
FKM -40°F to 350°F (-40°C to 177°C)
Geolast® -40°F to 180°F (-40°C to 82°C)
Neoprene 0°F to 200°F (-18°C to 93°C)
PTFE 40°F to 220°F (4°C to 104°C)

40°F to 300°F (4°C to 149°C) – 13 mm (1/2″) and 25 mm (1″) models only

Polyurethane 10°F to 150°F (-12°C to 66°C)
Saniflex™ -20°F to 220°F (-29°C to 104°C)
Wil-Flex™ -40°F to 225°F (-40°C to +107°C)



Certifications

CE Mark (Conformité Européene – European Conformity)

Wilden-CE-Certification

Wilden Pump & Engineering LLC has met the criteria for placing the CE mark on our product line. On December 3, 1999, Wilden fully self-certified its product line by meeting all the regulations of the Machinery and PED (Pressure Equipment) Directives. Every pump manufactured by Wilden will now receive the CE mark. Each pump box will also include a Safety Supplement manual in the eleven official languages of the European Community. This CE mark certification is indicative of Wilden’s pledge to providing our distributor network with all the sales tools necessary to excel in a global economy.

Resources

Wilden Pro-Flo Shift Brochure

Wilden Pro-Flo Shift Brochure

Download

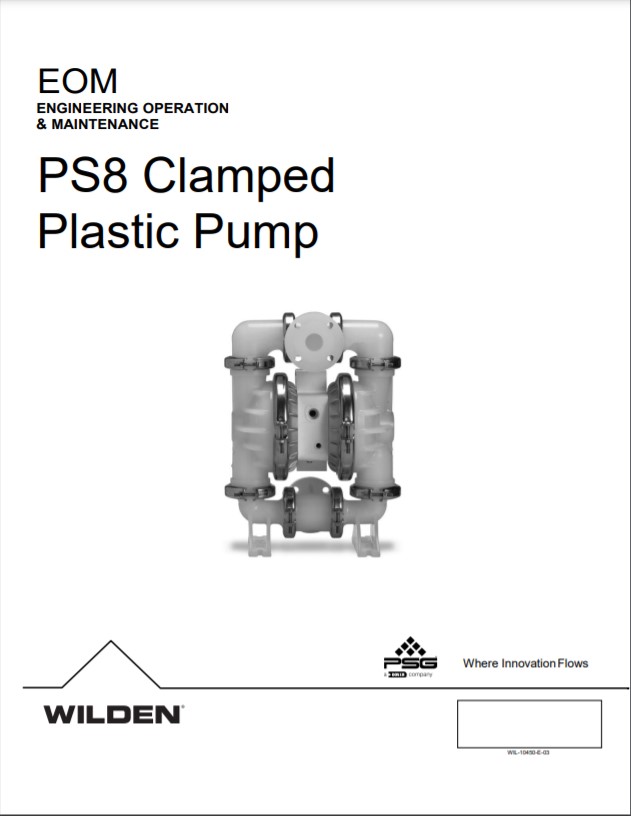

Wilden PS8 Pro Flo Shift Clamped Plastic AODD Pump EOM

Wilden PS8 Pro Flo Shift Clamped Plastic AODD Pump EOM

Download

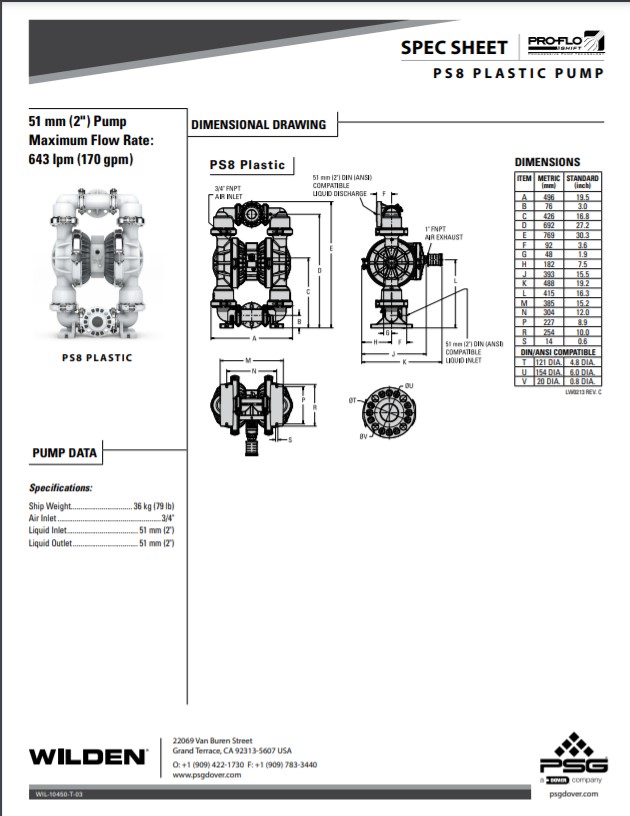

Wilden PS8 Pro-Flo Shift Clamped Plastic AODD Pump Spec Sheet

Wilden PS8 Pro-Flo Shift Clamped Plastic AODD Pump Spec Sheet

Download
