Wilden PS2 Saniflo Hygienic Series Clamped Metal Pumps

1″ | 25 mm Saniflo Hygienic Pro-Flo SHIFT Series Clamped Metal Pump

Wilden PS2 Saniflo Hygienic Series Clamped Metal Pumps are uniquely designed for high-cleanliness requirements and feature a free-draining flow path that enables clean-in-place (CIP) capability. The HS flow-through liquid-path design also eliminates any potential areas where product residue can be trapped and contaminate the product. They are perfect for low-acid, pasteurized and protein-based products all the way up to bio-pharmaceutical sterile processes. HS pumps also meet the highest standards and requirements in the industry, including 3A, ATEX, EC 1935/2004, FDA CFR 21.177 and USP Class VI certification is available only for Saniflo HS pumps with PTFE elastomer options.

  • Featuring energy efficient Pro-Flo® SHIFT ADS
  • Free-draining flow path for CIP capability
  • Easy assembly with self-centering ball cages
  • Permanent or rotatable stand for cleaning
  • Multiple valve options: ball, mushroom, or flap for different application requirements
  • Shear sensitive
  • Greater flow – more gallons pumped per SCFM
Certification-EC-Logo-100x100 Certification-USP-Logo-150x75 Certification-3a-Logo-100x100 Certification-fda-Logo-100x100 Wilden-CE-Certification Wilden-EX-Certification



AIR INLET: 1/2″ FNPT
CONNECTION TYPE: Tri-Clamp®
  DIN
  SMS
MAX PRESSURE: 125 psi (8.6 bar)
VALVE OPTIONS: Ball
LIQUID INLET: 1″ (25mm)
LIQUID DISCHARGE: 1″ (25mm)
MAX FLOW RATE:

Integral Piston – Full-Stroke:  32 gpm (172 lpm)
TPE – Full-Stroke:  45.2 gpm (171 lpm)
PTFE – Full-Stroke:  44.1 gpm (167 lpm)
Rubber:  41 gpm (155 lpm)
MAX DIAMETER SOLIDS: 1/4″ (6.4 mm)
MAX SUCTION LIFT CAPABILITY:

Integral Piston – Full-Stroke:   DRY – 17.0′ (5.2m) | WET – 25.0′ (7.6m)
TPE – Full-Stroke:   DRY – 25.0′ (7.6m) | WET – 29.5′ (9.0m)
PTFE – Full-Stroke:  DRY – 15.3′ (4.7m) | WET – 29.5′ (9.0m)
Rubber:   DRY – 9.1′ (2.8m) | WET – 29.5′ (9.0m)
DISPLACEMENT PER STROKE (1 cycle = 2 strokes):

Integral Piston – Full-Stroke:  0.029 gal (0.11 L)
TPE – Full-Stroke:   0.029 gal (0.11 L)
PTFE – Full-Stroke:   0.08 gal (0.3 L)
Rubber:   0.08 gal (0.3 L)



Wetted Housings



Non-Wetted Housings

MATERIAL SHIP WEIGHT   DESCRIPTION MATERIAL
315L Stainless Steel 80 lbs (40 kg) Center Block Nickel-Plated Aluminum
    Air Valve Nickel-Plated Aluminum

Elastomer Options

Material Temperature Limits
EPDM -60°F to 280°F (-51°C to 138°C)
FKM -40°F to 350°F (-40°C to 177°C)
PTFE 40°F to 220°F (4°C to 104°C)

40°F to 300°F (4°C to 149°C) – 1/2″ (13 mm)  and  1″ (25 mm) models only

Saniflex™ -20°F to 220°F (-29°C to 104°C)

Resources

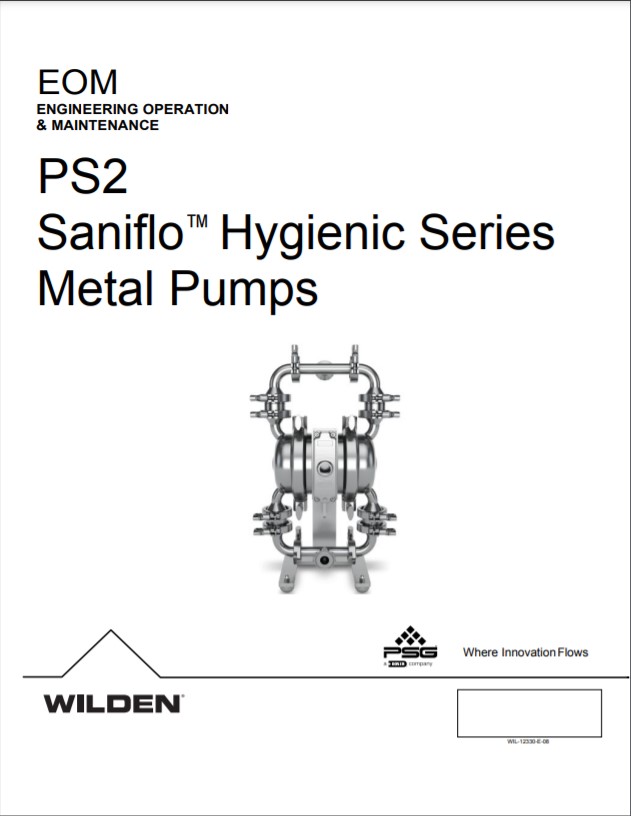

Wilden PS2 Saniflo Hygienic Series Clamped Metal Pump EOM

Wilden PS2 Saniflo Hygienic Series Clamped Metal Pump EOM

Download

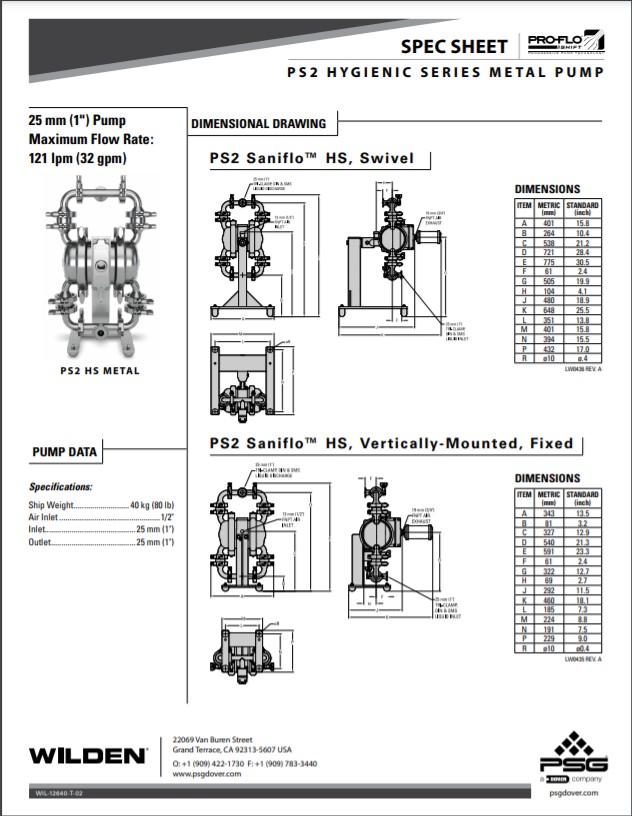

Wilden PS2 Saniflo Hygienic Series Clamped Metal Pump Spec Sheet

Wilden PS2 Saniflo Hygienic Series Clamped Metal Pump Spec Sheet

Download
Wilden Saniflo Series Brochure

Wilden Saniflo Series Brochure

Download
