1/2″ | 13 mm Saniflo FDA Series Clamped Metal Pump

Wilden P1 Saniflo FDA Clamped Metal AODD Pumps ensure reliability without sacrificing ease of maintenance. With simple installation and easy serviceability, it’s ready for rugged utilitarian applications that require a robust design. Featuring the Wilden original air-operated double-diaphragm pump design, clamped metal pumps offer a simple, rugged design for general industrial applications. Designed with ease of maintenance in mind, clamped pumps are simple to install and are made for quick serviceability, allowing the pump to be taken apart and put back together with only a single tool.

  • Tri-Clamp® connections with wingnut clamped design
  • Quick breakdown/reassembly for cleaning
  • Shear sensitive
  • Robust durability
  • Straight flow-through design

Wilden® Saniflo FDA Series Pumps for Hygienic and Sanitary Applications

Wilden Saniflo™ FDA Series pumps are designed for standard food applications that don’t require the Hygienic™ Series (HS) design or clean-in-place (CIP) capability. They are well suited for sanitary applications moving high-acid, high-sugar and high-fat media. With simple installation and robust design, FDA pumps comply with FDA, CE, EC 1935/2004 and ATEX requirements.

Applications Include:

  • Food and Beverage
  • Prepared Food and Sauces
  • Poultry and Dairy
  • Sweeteners and Acids

Certification-EC-Logo-100x100 Certification-fda-Logo-100x100 Wilden-CE-Certification Wilden-EX-Certification
AIR INLET: 3/4″ FNPT
CONNECTION TYPE: Tri-Clamp®
MAX PRESSURE: 125 psi (8.6 bar)
LIQUID INLET: 1/2″ (13mm)
LIQUID DISCHARGE: 1/2″ (13mm)
MAX FLOW RATE: Rubber:  15.5 gpm (57.3 lpm)
TPE:  15.4 gpm (58.3 lpm)
PTFE:  14.4 gpm (54.4 lpm)
MAX DIAMETER SOLIDS: 1/16″ (1.59 mm)
MAX SUCTION LIFT CAPABILITY: Rubber:  DRY – 19.0′ (5.8m) | WET – 31.0′ (9.5m)
TPE:   DRY – 17.0′ (5.2m) | WET – 31.0′ (9.5m)
PTFE:   DRY – 16.0′ (4.9m) | WET – 31.0′ (9.5m)
DISPLACEMENT PER STROKE (1 cycle = 2 strokes): Rubber:  0.029 gal (0.11 L)
TPE:  0.029 gal (0.11 L)
PTFE:  0.025 gal (0.09 L)



Wetted Housings



Non-Wetted Housings

MATERIAL SHIP WEIGHT   DESCRIPTION MATERIAL
Stainless Steel 20 lbs (9 kg) Center Block Polypropylene, Conductive Polypropylene, Acetal, Conductive Acetal
    Air Valve Polypropylene, Conductive Polypropylene, Acetal, Conductive Acetal



Elastomer Options



Material

Temperature Limits
EPDM -60°F to 280°F (-51°C to 138°C)
PTFE 40°F to 220°F (4°C to 104°C)

40°F to 300°F (4°C to 149°C) – 1/2″ (13mm) and 1″ (25mm) models only

Saniflex™ -20°F to 220°F (-29°C to 104°C)

Resources

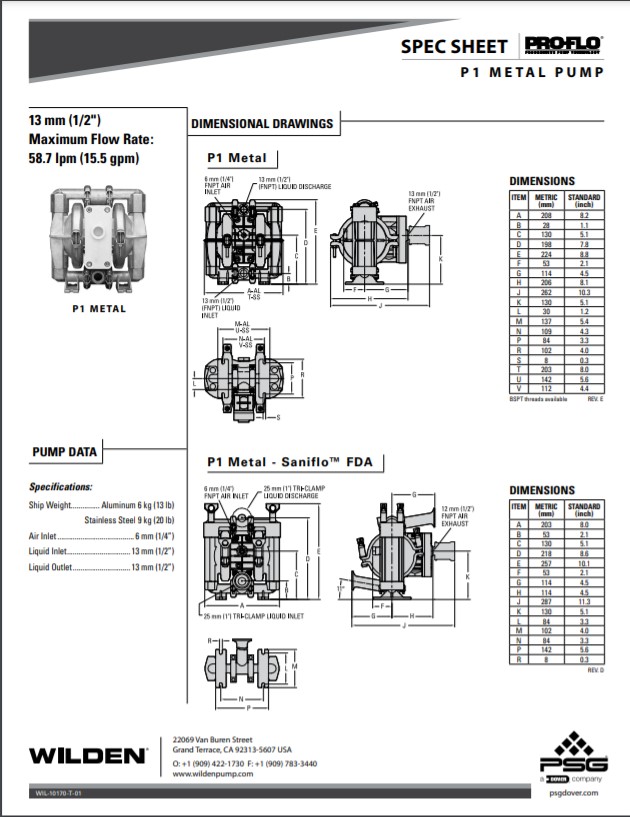

Wilden P1 Saniflo FDA Series Clamped Metal Pumps Spec-Sheet

Wilden P1 Saniflo FDA Series Clamped Metal Pumps Spec-Sheet

Download

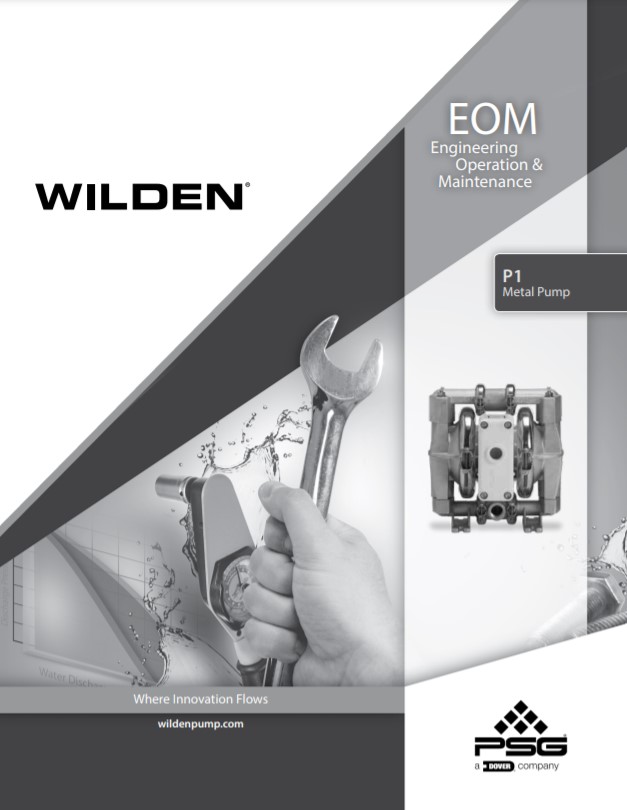

Wilden P1 Saniflo FDA Series Clamped Metal Pumps-EOM

Wilden P1 Saniflo FDA Series Clamped Metal Pumps-EOM

Download

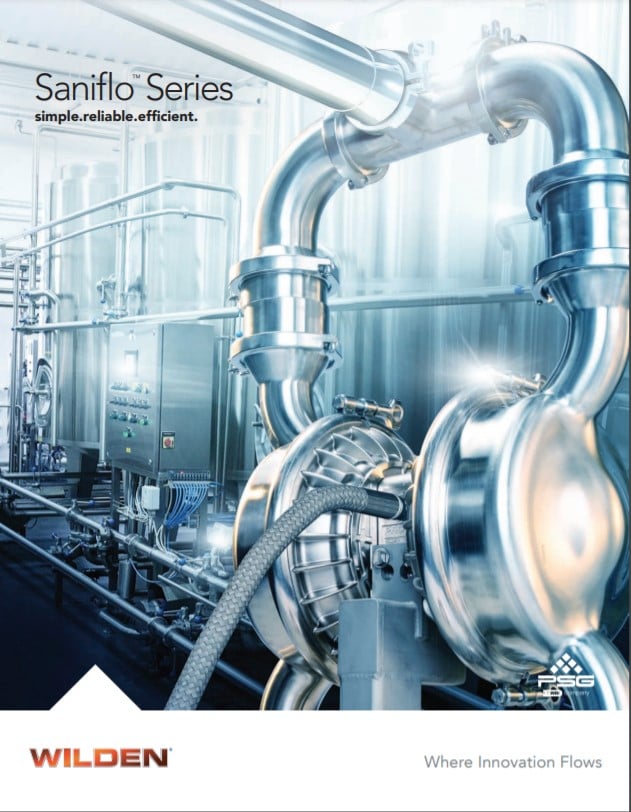

Wilden Saniflo Series Brochure

Wilden Saniflo Series Brochure

Download
