Wilden H220 FIT Metal High-Pressure Pumps

1″ | 25 mm

Wilden H220 FIT Metal High-Pressure Pumps ensures total product containment while the redesigned liquid path reduces internal friction to maximize output and efficiency. A reliable performer, this pump has greater flow rates compared to earlier Wilden pumps and its closest competitor. The FIT design uses a wetted path that minimizes the number of fasteners and allows for single socket reassembly for faster, easier maintenance compared to legacy Wilden pumps and competitors.

Wilden H220 FIT Metal Benefits and Features



The Successful Solution

  • Higher flow rates/increased pump output
  • Intrinsically safe
  • Bolted connections for superior containment
  • Variable flow and pressure
  • Shear-sensitive
  • Dry-run capable
  • Portable and submersible
  • Viscous and non-viscous product transfer
  • Large solids passage
  • High suction lift
  • Ease of operation and maintenance



Dependable

  • Longest Mean Time Between Repair (MTBR)
  • Increased On/Off reliability
  • Reduced turbulence
  • Superior torque retention
  • Anti-freezing ADS
  • Reduced internal friction
  • Largest chemical compatibilities



Economical

  • Greater flow per SCFM input
  • Reduced air consumption and kilowatt usage
  • Lower operational costs and downtime
  • Optimized applications



Wilden H220 FIT Metal Performance



WETTED HOUSING

(Water Chambers and Manifolds)

Material Ship Wt
Ductile Iron 38 kg (84 lbs)
Stainless Steel 37 kg (81 lbs)



NON-WETTED HOUSING

Description Material
Center Section Aluminum
Air Valve Ductile iron, stainless steel



MAX FLOW RATE

  • TPE/Full-Stroke PTFE – 93.9 lpm (24.8 gpm)



MAX INLET PRESSURE

  • 6.9 BAR (100 PSIG)

MAX DISCHARGE PRESSURE

  • 20.7 BAR (300 PSIG)

MAXIMUM SUCTION LIFT CAPABILITY

  • TPE/Full-Stroke PTFE – 2.8 m (9.1′) Dry, 9.0 m (29.5′) Wet

MAXIMUM DIAMETER SOLIDS

  • 6.4 mm (1/4”)

DISPLACEMENT PER STROKE

  • TPE/Full-Stroke PTFE – 0.189 L (0.05 gal)



Elastomer Options

Material Temperature Limits
PTFE +4 to +104 °C (+40 to +220 °F)
Wil-Flex™ -40 to +107 °C (-40 to +225 °F)



Certifications

CE Mark (Conformité Européene – European Conformity)

Wilden-CE-Certification

Wilden Pump & Engineering LLC has met the criteria for placing the CE mark on our product line. On December 3, 1999, Wilden fully self-certified its product line by meeting all the regulations of the Machinery and PED (Pressure Equipment) Directives. Every pump manufactured by Wilden will now receive the CE mark. Each pump box will also include a Safety Supplement manual in the eleven official languages of the European Community. This CE mark certification is indicative of Wilden’s pledge to providing our distributor network with all the sales tools necessary to excel in a global economy.

Resources

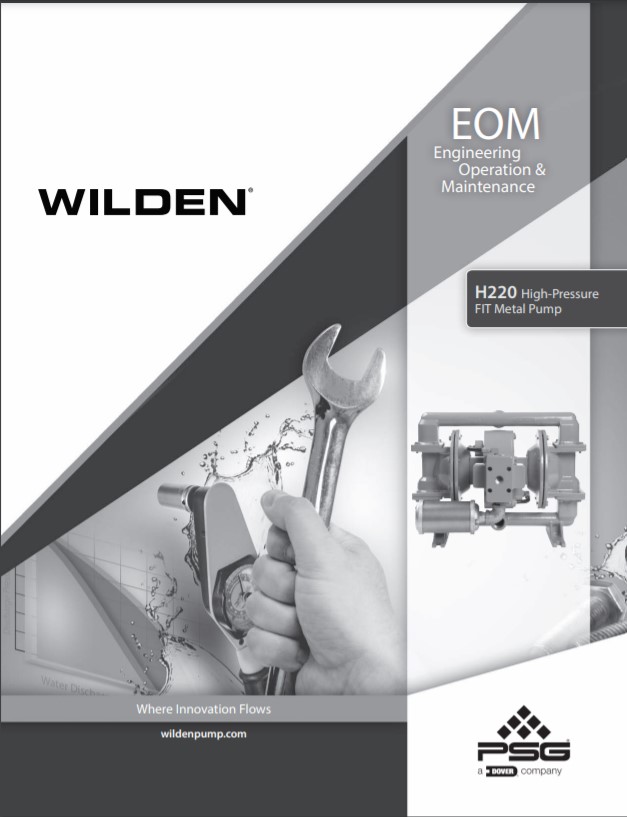

Wilden H220 High-Pressure FIT Metal-EOM

Wilden H220 High-Pressure FIT Metal-EOM

Download

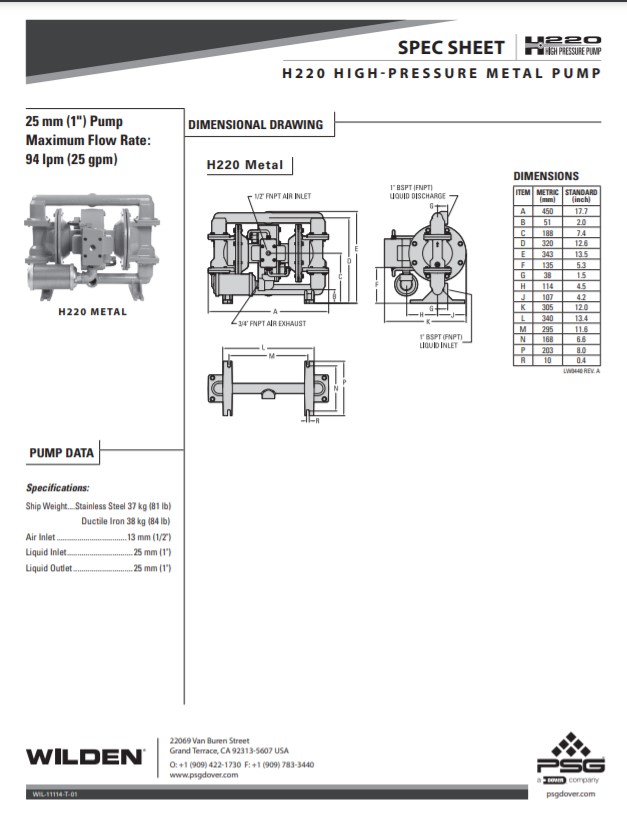

Wilden H220 High-Pressure FIT Metal Spec-Sheet

Wilden H220 High-Pressure FIT Metal Spec-Sheet

Download
