Wilden AODD Pump Diaphragms – Unique Designs and Material Options

Wilden has taken diaphragm science beyond yesterday’s standards to bring you more durable products that will reliably stand up to oil, chemicals, acids and other aggressive fluids. Wilden has also focused on sanitary applications by pioneering new hygienic, FDA-compliant diaphragms with enhanced flex life and durability for significant savings in labor and downtime.

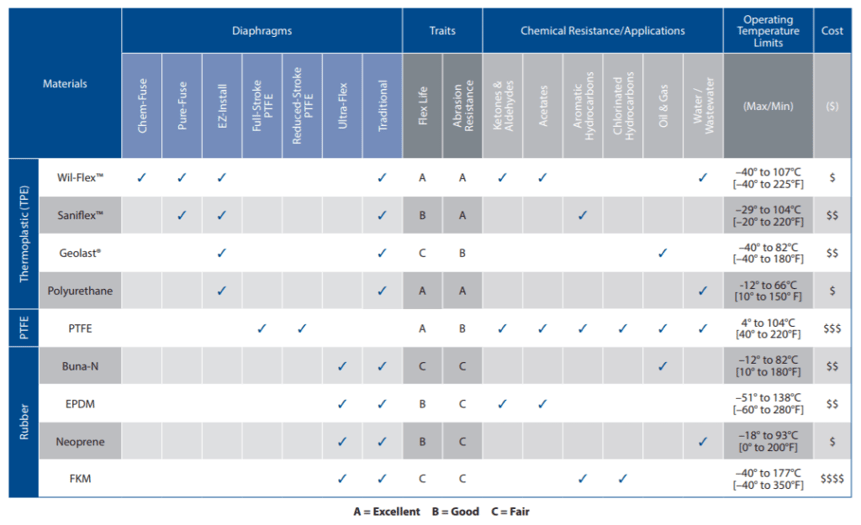

Wilden’s offering includes a number of material options that have been tested extensively over the years for use in AODD pump diaphragms. These materials can be grouped into three primary families: rubber, thermoplastic elastomer(TPE) and polytetrafluoroethylene (PTFE). These primary materials are available in a variety of designs – each offering unique benefits depending on the application and the characteristics of the product being pumped. Additionally, Wilden diaphragms are offered in a number of shapes, including traditional, contoured and convolute.

Wilden-Diaphragm-Selection-Chart-1024x625





























With so many options to choose from – why not let our Application Experts assist you in selecting the best product for your specific application.

Call:  1-877-624-5757

Wilden AODD Pump Diaphragm Designs:

Wilden-Chem-Fuse-Diaphragms-150x150

Chem-Fuse IPD

Wilden-Chem-Fuse-Diaphragms-150x150

Pure-Fuse IPD

Wilden-EZ-Install-Diaphragms-150x150

EZ-Install Diaphragm

Wilden-Full-Stroke-PTFE-Diaphragms-150x150

Full-Stroke PTFE Diaphragm

Wilden-Reduced-Stroke-PTFE-Diaphragms-150x150

Reduced-Stroke PTFE Diaphragm

Wilden-Ultra-Flex-Diaphragms-150x150

Ultra-Flex Diaphragm



Wilden-Traditional-Pie-Shaped-Diaphragms-150x150

Traditional Pie-Shaped Diaphragm







Resources

Wilden Chemical Resistance Guide

Wilden Chemical Resistance Guide

Download
Wilden Diaphragms Brochure

Wilden Diaphragms Brochure

Download
