Wilden A1 and A1P Original Plastic Metal AODD Pumps

1/2″ | 13 mm

Wilden A1 and A1P Original Plastic Metal AODD Pumps ensure reliability without sacrificing ease of maintenance. With simple installation and easy serviceability, they are ready for rugged utilitarian applications that require a robust design.

Available wetted path materials are polypropylene or PVDF.

Wilden A1 and A1P Original Plastic Metal AODD Pumps come equipped with the Accu-Flo™ Air Distribution System (ADS), which provides direct electrical interface control, reduced system costs, automated system operation and lube-free operation.

Wilden A1 and A1P Original Plastic Metal Benefits and Features

The Successful Solution
  • Decades of proven performance
  • Intrinsically safe
  • Clamped connections for faster maintenance
  • Self-priming
  • Variable speed
  • Dry-run without damage
  • Single-point exhaust option
  • Shear-sensitive
  • Widest range of materials in the industry
Dependable
  • Longest Mean Time Between Repair (MTBR)
  • Proven air distribution systems (ADS)
  • Simplicity of design
  • Superior anti-freezing
  • Increased On/Off reliability
Economical
  • Low cost
  • Simple installation
  • Ease of maintenance

Wilden A1 and A1P Original Plastic Metal Performance

WETTED HOUSINGS

(Water Chambers and Manifolds)

Material Ship Wt
Polypropylene 4.1 kg (9.0 lbs)
PVDF 5.1 kg (11.0 lbs)



NON-WETTED HOUSINGS
Description Material
Center Section Polypropylene or Carbon-filled Acetal
Air Valve Brass, or Nickel-plated Brass



FLOW RATE

  • TO 37.4 LPM (9.9 GPM)

MAX PRESSURE

  • 8.6 BAR (125 PSI)

MAXIMUM SUCTION LIFT CAPABILITY

  • 6.05 m Dry (20′)

MAXIMUM DIAMETER SOLIDS

  • 1.6 mm (1/16”)

DISPLACEMENT PER STROKE

Model A1T

  • Rubber- 0.12 l (.032 gal.)
  • PTFE- 0.11 l (.028 gal)

Model A1P

  • Rubber- 0.06 l (.015 gal.)
  • PTFE- 0.04 l (.014 gal)

Elastomer Options

Material Temperature Limits
Buna-N -12.2 to +82.2 °C (+10 to +180 °F)
Polyurethane -12.2 to +65.6 °C (+10 to +150 °F)
PTFE +4.4 to +104.4 °C (+40 to +220 °F)
Saniflex™ -28.9 to +104.4 °C (+20 to +220 °F)
Viton -40 to +176.7 °C (-40 to +350 °F)
Wil-Flex™ -40 to +107.2 °C (-40 to +225 °F)

Certifications

CE Mark (Conformité Européene – European Conformity)

Wilden-CE-Certification

Wilden Pump & Engineering LLC has met the criteria for placing the CE mark on our product line. On December 3, 1999, Wilden fully self-certified its product line by meeting all the regulations of the Machinery and PED (Pressure Equipment) Directives. Every pump manufactured by Wilden will now receive the CE mark. Each pump box will also include a Safety Supplement manual in the eleven official languages of the European Community. This CE mark certification is indicative of Wilden’s pledge to providing our distributor network with all the sales tools necessary to excel in a global economy.

Resources

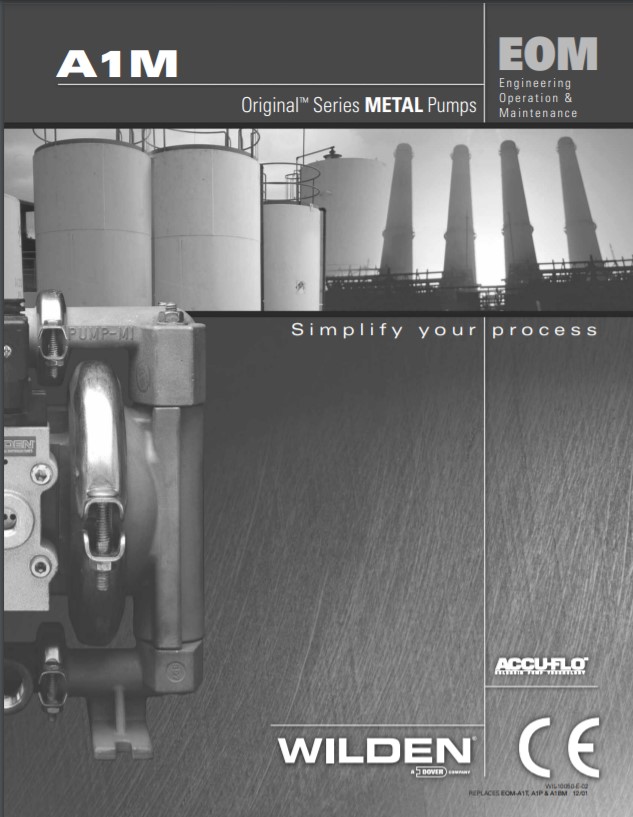

Wilden A1 Original Clamped Metal Pump EOM

Wilden A1 Original Clamped Metal Pump EOM

Download
