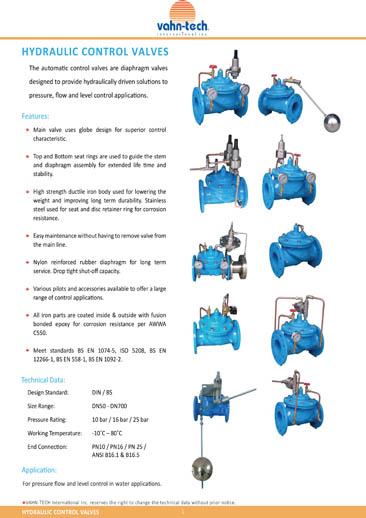

Features
- Main valve uses globe design for superior control characteristic.
- Top and Bottom seat rings are used to guide the stem and diaphragm assembly for extended life time and stability.
- High strength ductile iron body used for lowering the weight and improving long term durability. Stainless steel used for seat and disc retainer ring for corrosion resistance.
- Easy maintenance without having to remove valve from the main line.
- Nylon reinforced rubber diaphragm for long term service. Drop tight shut-off capacity.
- Various pilots and accessories available to offer a large range of control applications.
- All iron parts are coated inside & outside with fusion bonded epoxy for corrosion resistance per AWWA C550.
- Meet standards BS EN 1074-5, ISO 5208, BS EN 12266-1, BS EN 558-1, BS EN 1092-2.
Specifications
| Design Standard | DIN / BS |
| Size Range | 2” – 28” |
| Pressure Rating | 10 bar 16 bar 25 bar |
| Working Temperature | -10˚C ~ +80˚C -50˚F ~ +176˚F |
| End Connection | PN10 PN16 PN25 ANSI B16.1 B16.5 |
