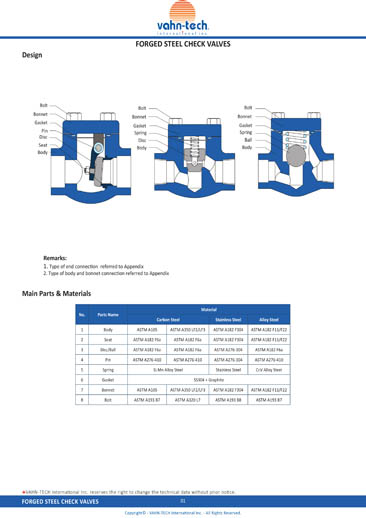

Vahn-Tech offers 4 different designs of API 602 Forged Check Valves - available with welded and integral flange connections :
- Swing Check Valves
- Y-Type Check Valves
- Piston Check Valves
- Lift Check Valves
Specifications
| Design Standard | API 602 / BS 15761 |
| Size Range | ½” – 2” |
| Pressure Rating | Class 150 – 2500 Class 800 |
| Working Temperature | -196˚C ~ +650˚C -320˚F ~ +1200˚F |
| End Connection |
ANSI B16.5 - Flange ASME B16.25 - Butt-Weld ASME B16.11 - Socket-Weld / Threaded Ends |
| Face-to-Face | ASME B16.10 |
| Test & Inspection | API 598 / API 6D |
