SANDPIPER S30 Non-Metallic Standard Duty AODD Ball Valve Pumps are ideally suited for intermittent, on-demand, portable, moderately abrasive fluids, and suspended solids. Standard duty pumps are constructed in Aluminum, Cast Iron, Stainless Steel and non-metallic materials such as PTFE, Polypropylene, and PVDF with Elastomer TPE (thermal plastic elastomers) and PTFE options in diaphragms and check valves.

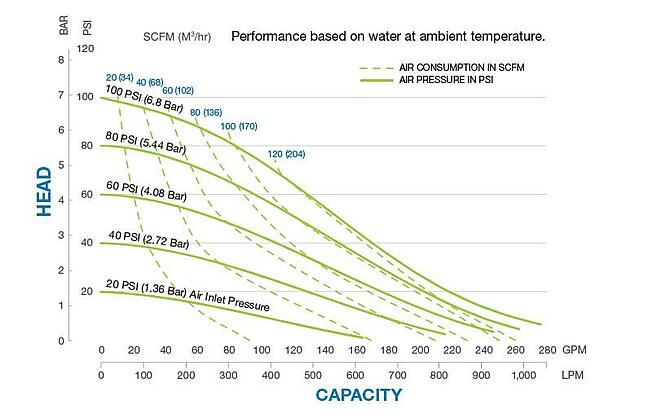

SANDPIPER S30 Non-Metallic – Performance Curve
SANDPIPER S30 Non-Metallic – Specifications
|
Port Size :
|
3″ ANSI Flange or 80mm DIN Flange
|
| Capacity : |
0 to 280 gpm (1,060 lpm)
|
|
Air Distribution Valve :
|
No-lube, no-stall design
|
|
Solids-Handling :
|
Up to ¾” (19 mm)
|
|
Heads Up To:
|
100 psi or 231 ft of water (7 bar or 70 meters)
|
|
Displacement/Stroke :
|
1.0 gallon (3.8 liters)
|
|
Max Operating Pressure :
|
100 psi (7 bar)
|
|
Shipping Weight :
|
Polypropylene:165 lbs. (75 kg)
PVDF: 271 lbs (123 kg)
|
Features and Benefits of the Standard Duty Ball Valve Pumps
- Available in corrosion-resistant polypropylene or PVDF
- Class-leading maximum flow rate and efficiency
- ESADS+ air distribution system: the only pump in its class with an externally serviceable air distribution system (see below)
- Bolted construction with stainless steel fastenersServiceability: The air distribution system (ADS) is one of the most frequently serviced parts of any AODD pump. Only SANDPIPER’s ESADS+ feature allows access to the complete ADS without removing the pump from service. Repair or clean in five minutes (versus 55 minutes for competitors).Simplicity: SANDPIPER’S original ADS is fully interchangeable, repairable and inline-serviceable. Other manufacturers frequently change ADS designs, creating issues with interchangeability, obsolete inventory and increased cost of ownership.
