SANDPIPER S1F Non-Metallic Standard Duty Ball Valve Pumps are ideally suited for intermittent, on-demand, portable, moderately abrasive fluids, and suspended solids. Standard duty pumps are constructed in Aluminum, Cast Iron, Stainless Steel and non-metallic materials such as PTFE, Polypropylene, and PVDF with Elastomer TPE (thermal plastic elastomers) and PTFE options in diaphragms and check valves.

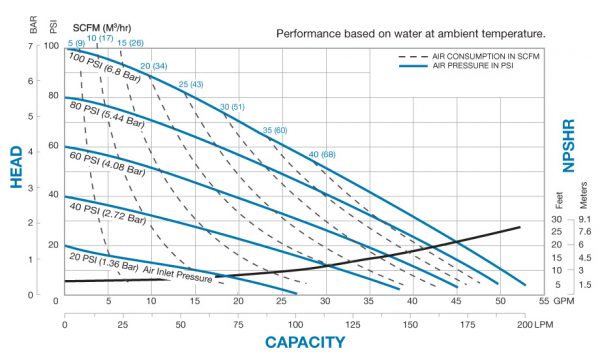

SANDPIPER S1F Non-Metallic – Performance Curve

S1Fnm_curve-600x359

SANDPIPER S1F Non-Metallic – Specifications

Port Size :
1″ ANSI Flange
PN10 25mm DIN Flange
Capacity :
0 to 53 gpm (200 lpm)
Air Distribution Valve :
No-lube, no-stall design
Solids-Handling :
Up to .25″ (6 mm)
Heads Up To:
100 psi or 231 ft. of water (7 bar or 70 meters)
Displacement/Stroke :
.19 gallons (.72 liters)
Max Operating Pressure :
100 psi (7 bar)
Shipping Weight :
Polypropylene: 42 lbs. (19 kg)
PVDF: 54 lbs. (24 kg)



Features and Benefits of the Standard Duty Ball Valve Pumps

  • Light Weight & Portable – Weights as low as 3 lbs (1 kg).
  • All Bolted Construction – Durable & high pressure capable
  • Top Discharge – For pumping out of tough areas
  • Ball Check Valves – Provides powerful, high flow pumping
  • Diaphragm Connecting Rods – Reliable and consistent diaphragm control
  • ESADS + Plus Air Valve – Externally Serviceable Air Distribution System
  • Dynamic Manifold Connections – 90° – 180° rotation options
  • Certifications Available – CE, ATEX and ABS
