SANDPIPER S05 Metallic Standard Duty Ball Valve Pumps are ideally suited for intermittent, on-demand, portable, moderately abrasive fluids, and suspended solids. Standard duty pumps are constructed in Aluminum, Cast Iron, Stainless Steel and non-metallic materials such as PTFE, Polypropylene, and PVDF with Elastomer TPE (thermal plastic elastomers) and PTFE options in diaphragms and check valves.

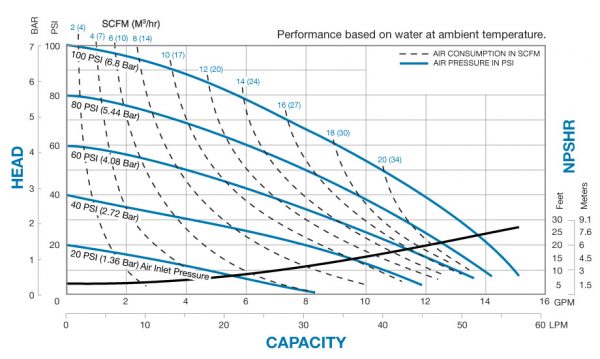

SANDPIPER S05 Metallic – Performance Curve

S05m_curve-600x359

SANDPIPER S05 Metallic – Specifications

Port Size :
1/2″ NPT (Internal) or 1/2″ BSP (Tapered)
1″ NPT (External) or 1″ BSP (Tapered)
1/2″ Raised Face 150# ANSI Flanges – Stainless Steel ONLY
Capacity : 0 to 15 gpm (56 lpm)
Air Distribution Valve :
No-lube, no-stall design
Solids-Handling :
Up to .125″ (3 mm)
Heads Up To:
125 psi or 298 ft. of water (8.6 bar or 86 meters)
Displacement/Stroke :
.026 gallons (.098 liters)
Max Operating Pressure :
125 psi (8.6 bar) metallic center & 100 psi (7 bar) non-metallic center
Shipping Weight :
Aluminum: 15 lbs. (7 kg.)
Stainless Steel: 21 lbs. (10 kg.)



Features and Benefits of the Standard Duty Ball Valve Pumps

  • Light Weight & Portable – Weights as low as 3 lbs (1 kg).
  • All Bolted Construction – Durable & high pressure capable
  • Top Discharge – For pumping out of tough areas
  • Ball Check Valves – Provides powerful, high flow pumping
  • Diaphragm Connecting Rods – Reliable and consistent diaphragm control
  • ESADS + Plus Air Valve – Externally Serviceable Air Distribution System
  • Dynamic Manifold Connections – 90° – 180° rotation options
  • Certifications Available – CE, ATEX and ABS.

MORE SANDPIPER PUMPS

Resources

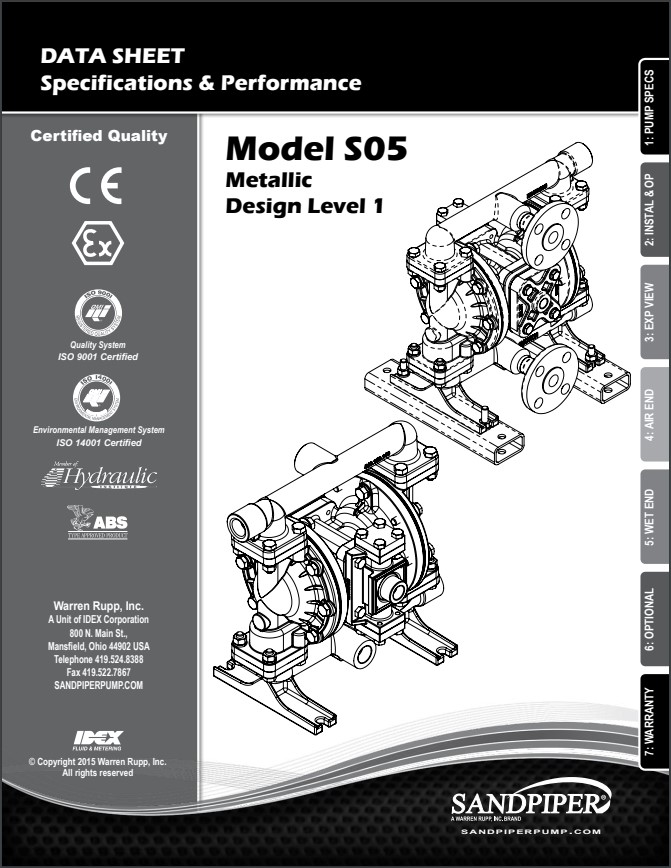

s05 mdl1ds datasheet
