Pulsafeeder Centrifugal Pumps -Eastern Type EC

Pulsafeeder Centrifugal Pumps – Eastern Type EC

Pulsafeeder Centrifugal Pumps – Eastern Type EC are Close-Coupled Multi-Stage Horizontal Centrifugal Pumps – Flows to 80 gpm; Heads to 380 feet.

Features :

  • Close-Coupled Configuration with Motors to 184C Frame
  • Mechanical Seal Type 21
  • Type 9  Single and Double arrangements available

Materials of Construction

  • 316 Stainless Steel to Alloy C

EASTERN Centrichem single-stage and multi-stage centrifugal pumps are designed for a wide variety of process industry applications, pilot plant operations and laboratory uses. And, just as important, the Pulsafeeder centrifugal pumps – Eastern Type EC are designed for long, dependable service.

Industrial Construction
Each Centrichem pump is close coupled for greater strength, and comes ready to mount directly to NEMA 56C or 143/5TC or 182/4C motors. Consult factory for IEC motor frames. This design eliminates the need for special base-plate mountings, couplings, or complicated drives. Pump chambers, rear housings, covers and impellers are all precision castings to ensure that pump walls are smooth. This avoids crevices which can lead to product contamination. Precision castings also reduce flow resistance to a minimum. This improves their hydraulic efficiencies to a level unmatched in pumps of this size. Generous clearance and the overhung shaft design of the single-stage pumps enable them to handle corrosive liquids that contain low percentages of solids. And their mechanical rotary seals make these pumps suitable for extensive applications with acids, alkalis, and solvents.

Resources

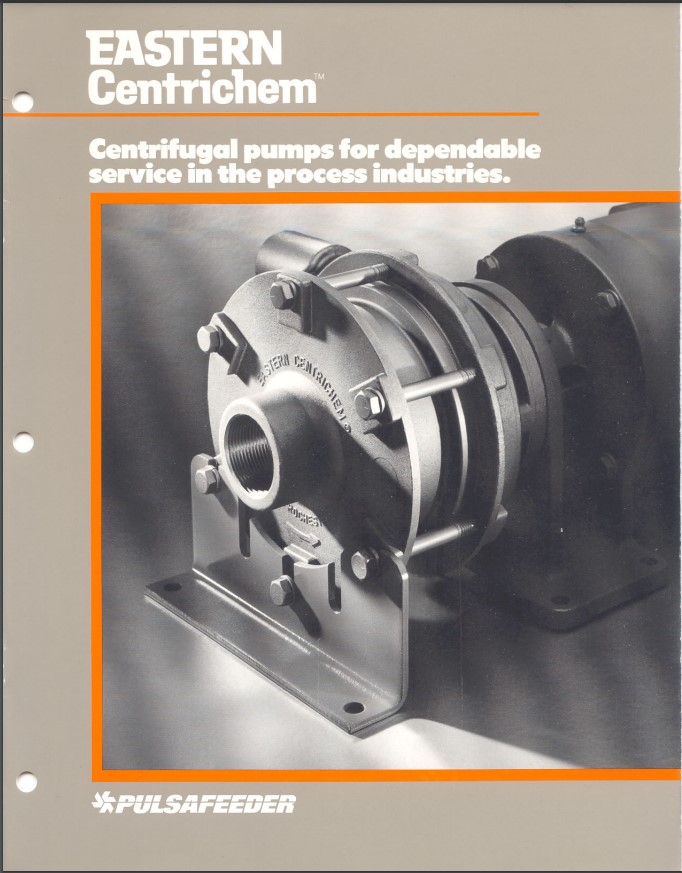

PULSAFEEDER Eastern Type EC

PULSAFEEDER Eastern Type EC

Download
