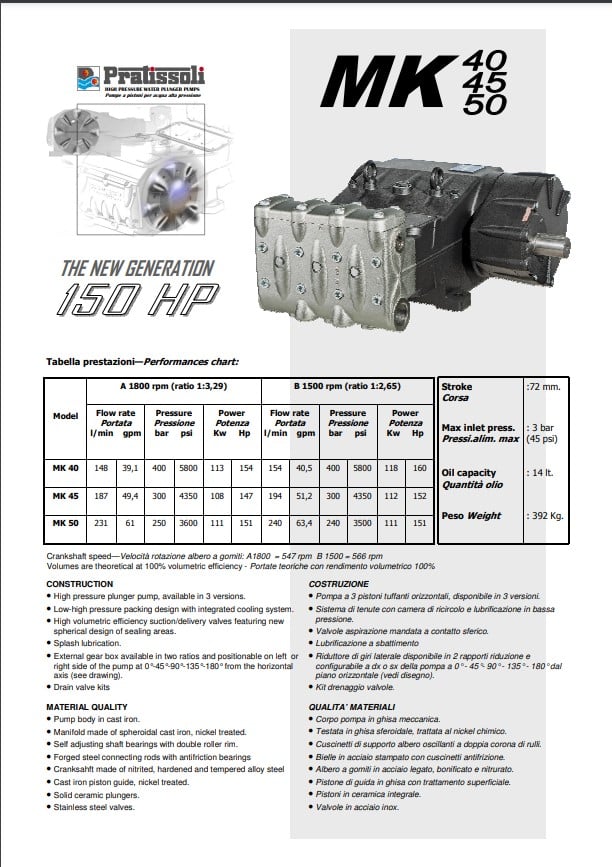

Pratissoli Series MK High Pressure Plunger Pumps

Pratissoli Series MK High Pressure Plunger Pumps



Construction

High pressure plunger pump, available in 3 versions. Low-high pressure packing design with integrated cooling system. High volumetric efficiency suction/delivery valves featuring newspherical design of sealing areas. Splash lubrication. External gear box available in two ratios and positionable on left orright side of the pump at 0°-45°-90°-135°-180° from the horizontal axis (see drawing). Drain valve kits.

Material quality

Pump body in cast iron. Manifold made of spheroidal cast iron, nickel treated. Self adjusting shaft bearings with double roller rim. Forged steel connecting rods with antifriction bearings Cranksahft made of nitrited, hardened and tempered alloy steel Cast iron piston guide, nickel treated. Solid ceramic plungers. Stainless steel valves.

Pump Model Volume Pressure Power rpm Weight Kg. Dimensions mm.
L/min GPM bar psi kW HP
MK 40 154 40,5 400 5800 118 160 1800 393 829x747x362
MK 40 154 40,5 400 5800 118 160 1500 393 829x747x362
MK 45 194 51,2 300 4350 111 151 1800 393 829x747x362
MK 45 194 51,2 300 4350 111 151 1500 393 829x747x362
MK 50 240 63,4 250 3600 115 156 1500 393 829x747x362
MK 50 240 63,4 250 3600 115 156 1800 393 829x747x362
MK 55 290 76,7 200 2900 111 151 1800 407 841x747x400
MK 55 290 76,7 200 2900 111 151 1500 407 841x747x400
MK 60 346 91,4 170 2500 112 153 1800 407 841x747x400
MK 60 346 91,4 170 2500 112 153 1500 407 841x747x400
MK 65 406 107,3 150 2175 116 158 1500 407 841x747x400
MK 65 406 107,3 150 2175 116 158 1800 407 841x747x400
