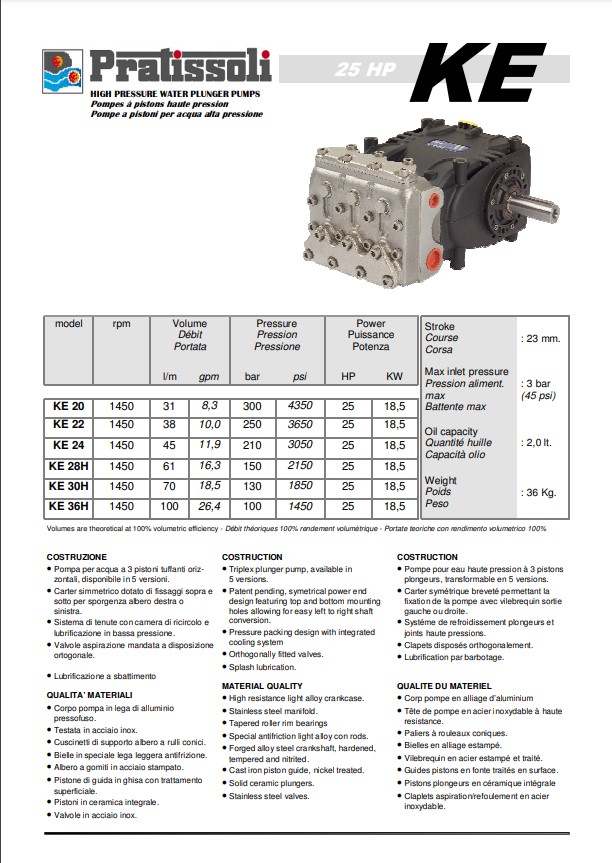

Pratissoli Series KE High Pressure Plunger Pumps
| Construction Triplex high pressure plunger pump, five versions in one Symmetrical crankcase for easy “left to right” conversion Single P.T.O. shaft, d. 30 Plunger seal design: HP seal + LH seal with cooling chamber in low pressure Long life Suction/Delivery in line valves with spherical profile Splash lubrication | Material quality Patent pending pump body in die-cast aluminium Nickel-treated stainless steel head Conical shaft bearings Aluminium alloy connecting rods Forged steel crankshaft Crankshaft sealings in viton Guide pistons in surface-treated cast iron Full ceramic plungers Stainless steel valves. |
| Pump Model | Volume | Pressure | Power | rpm | Weight Kg. | Dimensions mm. | |||
| L/min | GPM | bar | psi | kW | HP | ||||
| KE 20 | 30 | 8 | 300 | 4350 | 18,4 | 25 | 1450 | 36 | 387x341x196 |
| KE 22 | 37 | 10 | 250 | 3650 | 18,4 | 25 | 1450 | 36 | 387x341x196 |
| KE 24 | 45 | 11,9 | 210 | 3050 | 18,4 | 25 | 1450 | 36 | 387x341x196 |
| KE 28 H | 61 | 16,1 | 150 | 2170 | 18,4 | 25 | 1450 | 36 | 387x341x196 |
| KE 30 H | 70 | 18,5 | 130 | 1880 | 18,4 | 25 | 1450 | 36 | 387x341x196 |
| KE 36 H | 100 | 26,4 | 100 | 1450 | 18,4 | 25 | 1450 | 36 | 387x341x196 |
