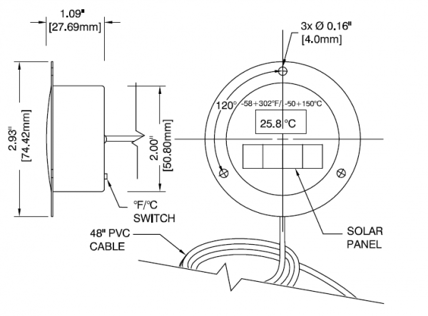

Model DIT200 Diagram
 |

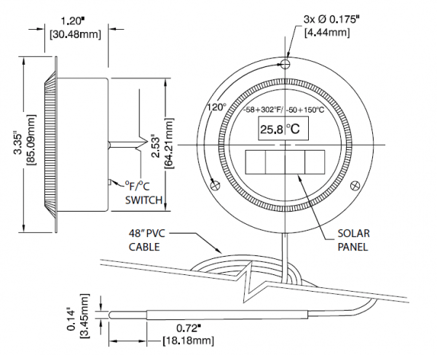

Model DIT250 Diagram
 |
Specifications for Remote Reading Solar Digital Thermometer:
| Case | 304 stainless steel c/w front flange |
|---|---|
| Dial | 2 in (50 mm), 2 ½ in (63 mm) |
| Lens | Polycarbonate |
| Capillary outlet | Center back |
| Capillary | 48 in (1.4 m) PVC |
| Probe | 304 stainless steel |
| Display | Liquid crystal (LCD) up to 3 digits and one decimal |
| Energy source | Solar powered, includes lithium back-up battery |
| Ambient temperature | 14 to 140°F / -10 to 60°C |
| Operating temperature | Dual scale switch -58 to 302°F / -50 to 150°C |
| Accuracy | ASME B40.200(B40.3), Grade A ± 1 % CAN/CGSB – 14.5 |
To order, use the code in the corresponding column
| Diameter ø | Range | Product code |
|---|---|---|
| 2 in (50 mm) | -58 to 302˚F / -50 to 150˚C | DIT200 |
| 2 ½ in (63 mm) | -58 to 302˚F / -50 to 150˚C | DIT250 |
