Pitanco Precision Clamp-On Thermometer

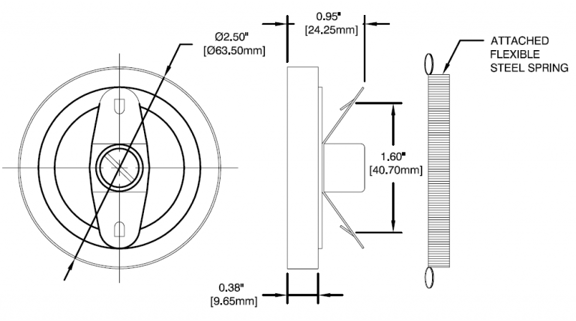

Model TCL250 – 08 Diagram



Clamp-on-thermometer-diagram-768x429





Specifications for Clamp-On Thermometer:

Case Zinc plated steel with spring attachment
Dial 2 ½ in (63 mm) white aluminum, graduations °F in black and °C in blue
Ring Steel chrome plated
Lens Acrylic
Pointer Aluminum painted black
Movement Bimetallic coil
Stem Brass surface with zero reset
Ambient temperature -40 to 250°F / -40 to 121°C
Operating temperature Maximum 75 % of full scale value
Accuracy ASME B40.200(B40.3), Grade A ± 1 % CAN/CGSB – 14.4



To order, use the code in the corresponding column

Range
Product code
30 to 240˚F / 0 to 115˚C TCL250-03
-40 to 110˚F / -40 to 40˚C TCL250-08
