Offering the same reliability and performance as the U Series, the Super U Series provides additional features such as external shimless adjustment, dual protection of bearings and an “easy-grip” cover plate handle. These pumps are among the most efficient self-priming, solids-handling pumps available. Their unique hydraulic design and smooth wall volute casing minimize friction loss and drag. The multi-vane, open impeller is designed for high efficiency operation yet can still handle limited solids. The pumps not only deliver high efficiencies (up to 75%), they also perform efficiently across a broad operating range. Varying machine loads that cause pumps to operate right or left of its best efficiency point will affect operating efficiency by only a small percentage.

Gorman-Rupp Super U Self-Priming Pumps Specifications:

  • Size: 3″ to 6″ (75 mm to 150 mm)
  • Max Capacity: 1500 gpm (95 lps)
  • Max Head: 207′ (63 m)
  • Max Solids: 1-1/4″ (32 mm)

Materials of Construction

  • Cast Iron
  • GR Hard Iron
  • 316 Stainless Steel Fitted
  • CD4MCu

Applications Include

  • Pumping solids
  • Pumping sludge
  • Pumping wastewater
  • Pumping industrial wastewater
  • Pumping slurries
  • Sump pump
  • Pumping drilling mud
  • Pumping frac water
  • Pumping waste oil
  • De-watering pump

Interchangeable With

  • Flygt
  • Cornell
  • Pioneer
  • Weir self priming

For more information contact us at:1-877-624-5757

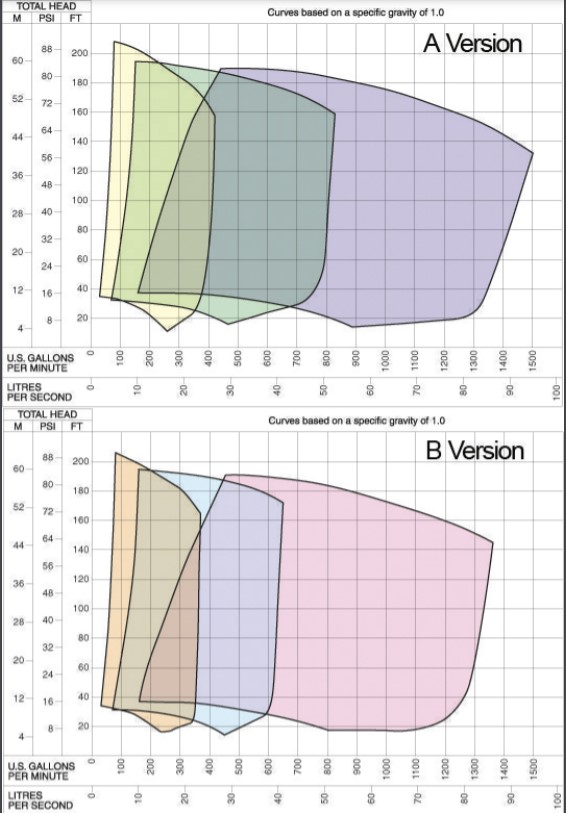

Gorman-Rupp Super U Self-Priming Pumps Performance Curve

Gorman-Rupp Super U Self-Priming Pumps Performance Curve

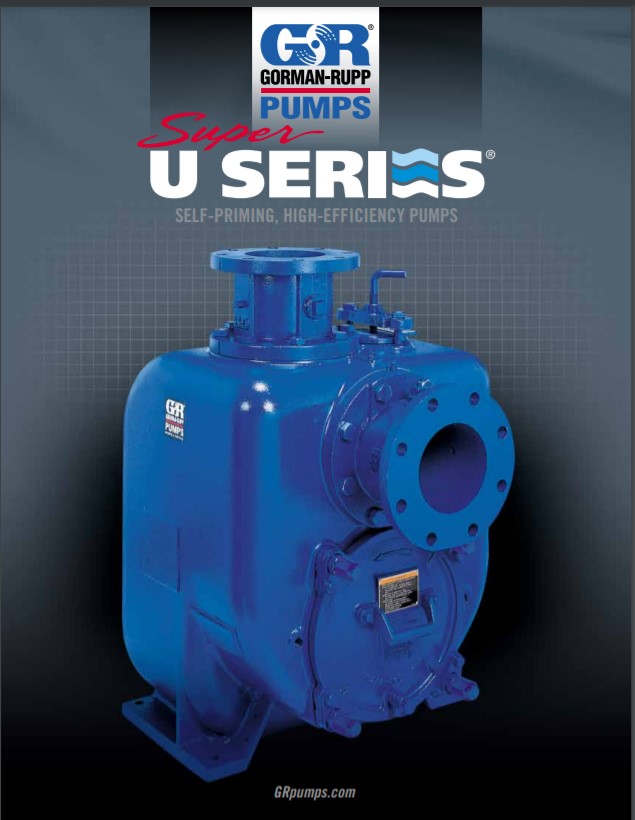

Gorman-Rupp Super U Self Priming Pumps Brochure

Gorman-Rupp Super U Self Priming Pumps Brochure
