Gorman Rupp ReliaSource Auto-Start Lift Station

Gorman Rupp ReliaSource Auto-Start Lift Station uses a 12V DC level control that drives the pump with a standby engine providing normal pumping service during power failures. When power resumes, electric motor operation is automatically restored. Meets all standby requirements and uses a variety of fuels. Gorman-Rupp base mounted pump stations are pre-engineered units with an extensive selection of pumps, motors, controls, piping and accessories. Gorman-Rupp has many standard designs for new installations, or we can custom design for existing installations with minimum hook-up time. Base mounted pump stations are available with 2″, 3″, 4″, 6″, 8″ or 10″ T Series or Super T Series pumps to match system requirements. For consistently heavy flows, a third or fourth pump may be added. Flows shown are for single pump operation. For high head/low flow, we offer standard staged designs.

Gorman Rupp ReliaSource Auto-Start Lift Station Specifications:

Size 3″ (80 mm)

4″ (100 mm)

6″ (150 mm)

8″ (200 mm)

10″ (250 mm)

Max Capacity 3400 GPM (215 lps)
Max Head 320′ (98 m)
Max Solids 3″ (76 mm)
Max Temperature 160º F (71 C)
Motor – Voltage 200 V 3P, 230 V 3P, 460 V 3P
Motor – Cycles 60 Hz
Horsepower 3 HP – 150 HP

Applications Include:

  • Pumping Solids
  • Pumping Sludge
  • Pumping WasteWater
  • Pumping Industrial WasteWater
  • Pumping Slurries
  • Sump Pump
  • Pumping Drilling Mud
  • Pumping Frac Water
  • Pumping Waste Oil
  • De-Watering Pump

Interchangeable With:

  • Flygt
  • Cornell
  • Pioneer
  • Weir Self Priming

For more information contact us at: 1-877-624-5757

Resources

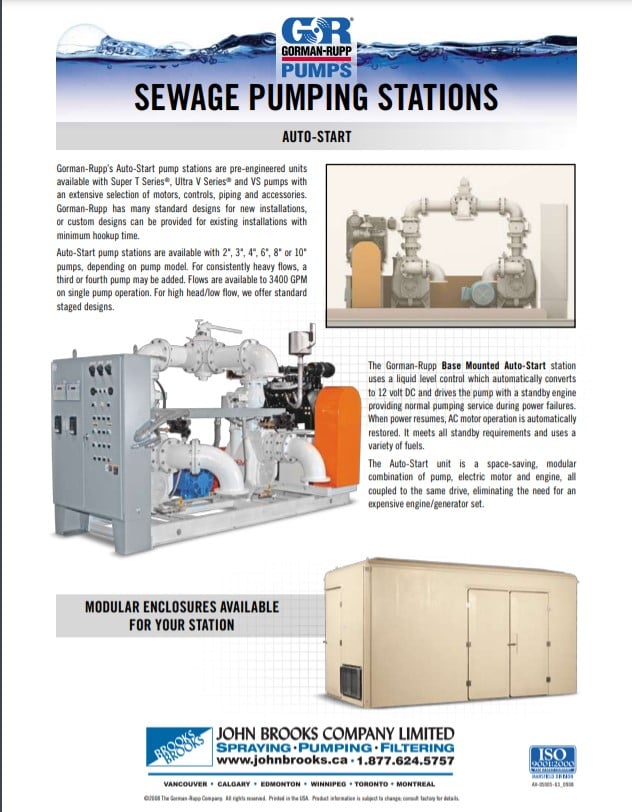

Gorman-Rupp ReliaSource Auto Start Lift Station

Gorman-Rupp ReliaSource Auto Start Lift Station

Download

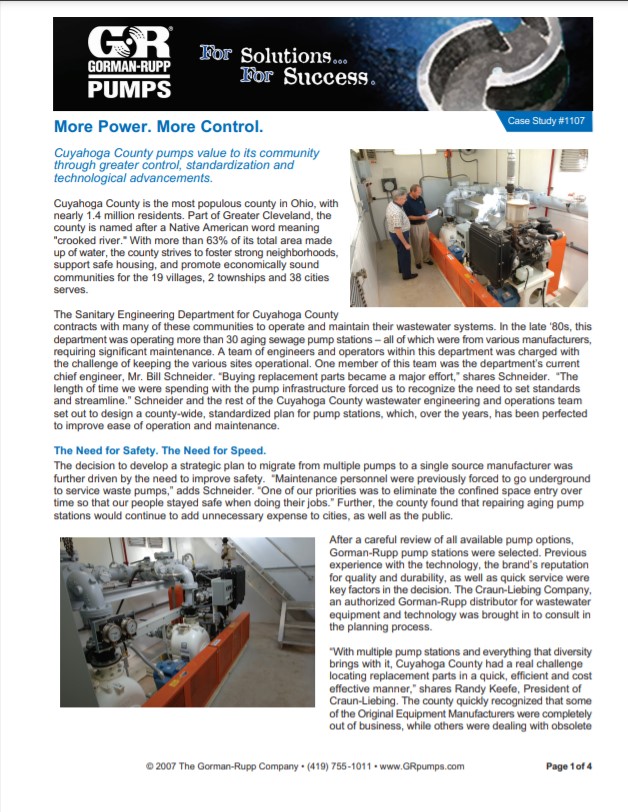

Gorman-Rupp ReliaSource Auto Start Lift Station Case Study

Gorman-Rupp ReliaSource Auto Start Lift Station Case Study

Download
Gorman-Rupp Reliasource Product Guide

Gorman-Rupp Reliasource Product Guide

Download
Gorman-Rupp Integrinex Control Kit Flyer

Gorman-Rupp Integrinex Control Kit Flyer

Download

Talk to one of our Experts

Reach out to our team of Spraying, Pumping, Filtering, Valve, and Systems Specialists today. We know we can help you with any municipal or industrial application challenges.
