Gorman Rupp ReliaSource 6×6 Above-Ground Lift Station

The Gorman Rupp ReliaSource 6×6 Above-Ground Lift Station is a Packaged system, fully customizable, heavy solids-handling pre-engineered unit shipped complete from the factory. With a neat and trim low-silhouette that blends seamlessly with its surroundings, the only thing that stands out about the ReliaSource® 6×6 Above-Ground Lift Station is its reliable performance. This complete pumping system combines powerful, heavy-duty pumping with quality construction and a host of convenient features to ensure it meets your heavy solids-handling requirements year after year. Like all ReliaSource lift stations, our 6×6 above-ground model is fully customizable, pre-engineered and shipped complete from the factory. Just add power and connect piping for decades of dependable performance.
The 6′ x 6′ fiberglass enclosure accommodates two pumps and motors sized to meet your requirements.

Gorman Rupp ReliaSource 6×6 Above-Ground Lift Station Specifications:

Size: 2″ (50 mm)
3″ (75 mm)
4″ (100 mm)
6″ (150 mm)
Max Capacity: 1,300 GPM
(82 lps)
Max Head: 150′ (46 m)
Max Solids: 3″
(76 mm)
Max
Temperature:
160 F (71 C)
Motor- Voltage: 115 V 1P
460 V 3P
575 V 3P
Motor- Cycles: 60 Hz
Horsepower: 1/2 HP – 3 HP



Applications Include:

  • Pumping sewage
  • Sewage lift stations
  • Water booster stations
  • Industrial sewage
  • Self-priming pumps
  • Solids handling pumps
  • Wastewater pumps
  • Sump pumps

Interchangeable With:

  • Flygt
  • Cornell
  • Pioneer
  • Weir Self Priming

Gorman Rupp ReliaSource 6×6 Above-Ground Lift Station Features:

Pumps:

  • Accommodates two Gorman-Rupp Super T Series or Ultra V Series self-priming centrifugal, heavy duty solids-handling pumps
  • Specifically designed for sewage and industrial wastewater handling applications
  • Heavy-duty construction and easy-to-service design
  • Range of motor sizes to meet your unique requirements

Enclosure:

  • Low-silhouette fiberglass construction resists corrosion, mildew, fungus, mold and UV rays
  • Provides a superior barrier to caustic or acidic atmospheres
  • Removable or hinged door panel for easy pump and control access
  • Vandal-resistant design for added security

Controls:

  • Robust, custom engineered, NEMA-rated automatic controls to operate pump function and warning systems
  • Choose from a variety of adjustable pressure controls, H-O-A selectors, overload reset buttons and circuit breakers for station accessories
  • Clearly marked field connections for fast and efficient electrical hook-up
  • Available U.L. and C.S.A. listed

Warranty:

  • Industry-leading, 60-month warranty
  • Covers the entire packaged system – enclosure, pumps, valves and controls

50 Years of Gorman-Rupp Lift Stations Video:



Resources

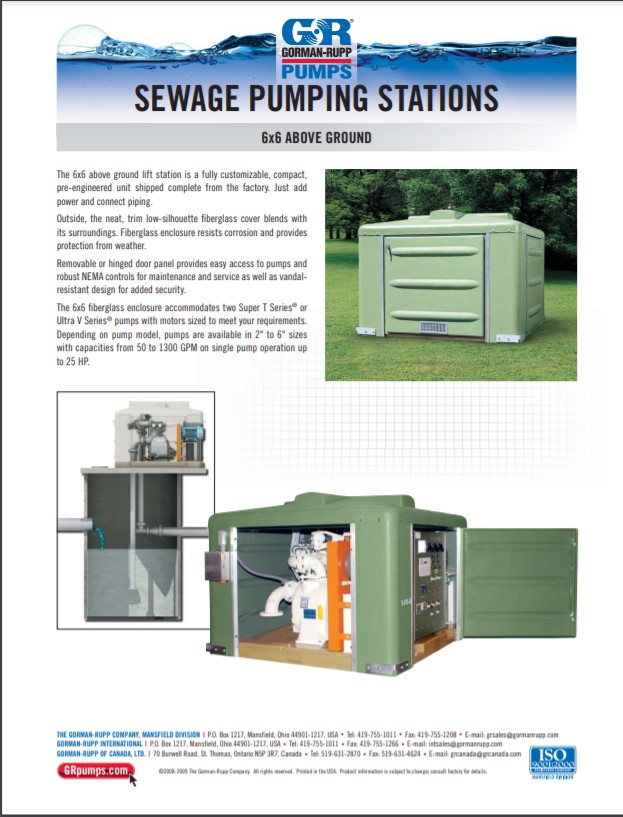

Gorman-Rupp ReliaSource 6x6 Above Ground Lift Station Brochure

Gorman-Rupp ReliaSource 6x6 Above Ground Lift Station Brochure

Download
Gorman-Rupp Reliasource Product Guide

Gorman-Rupp Reliasource Product Guide

Download
Gorman-Rupp Integrinex Control Kit Flyer

Gorman-Rupp Integrinex Control Kit Flyer

Download
