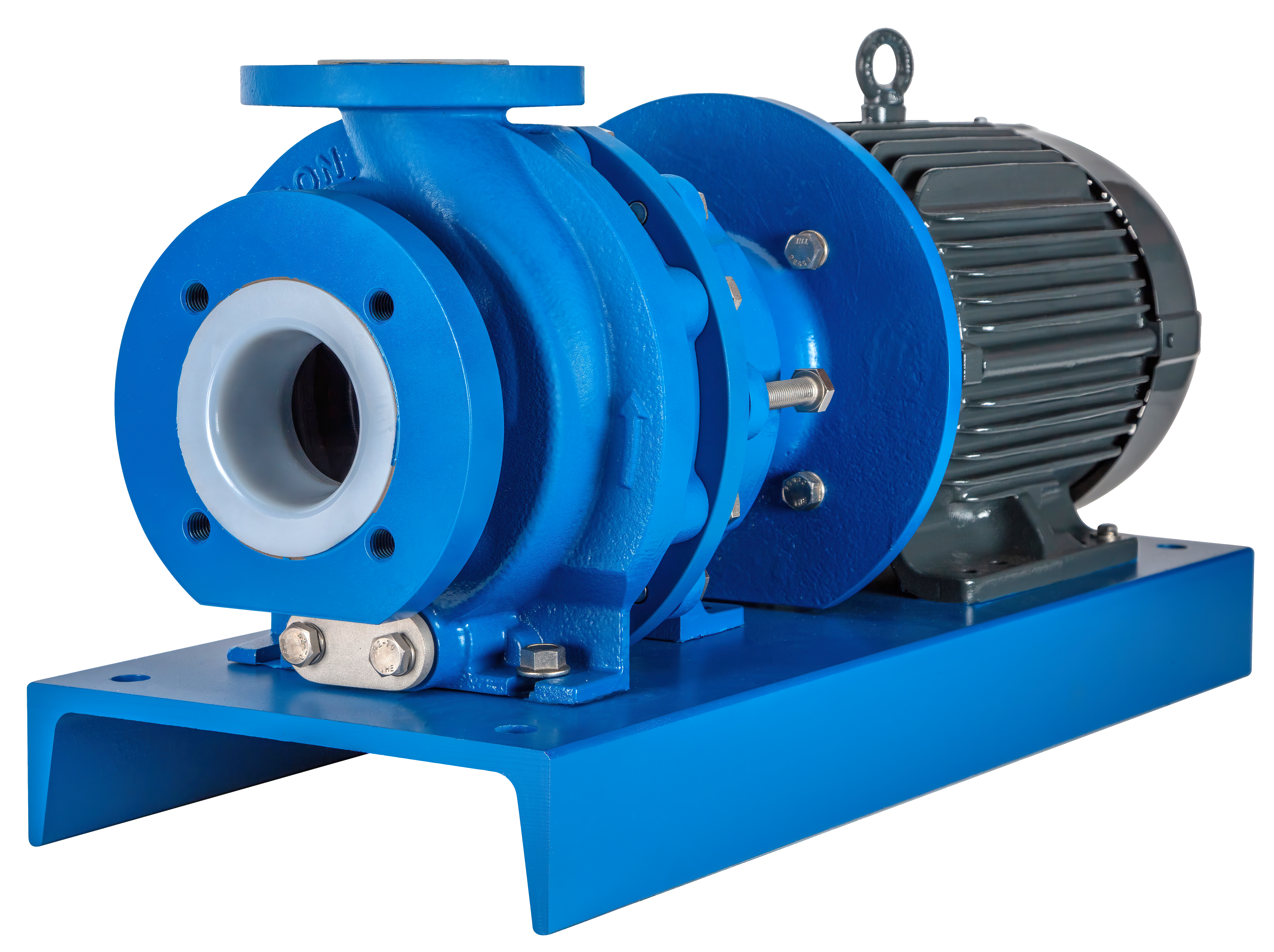

Finish Thompson UCR Series ANSI Dimensional Pumps
Engineered for exceptional reliability in the most extreme chemical processing applications
- Pure ETFE housing lining, barrier liner, and molding over the magnets provide the ultimate in corrosion resistance
- ANSI dimensional for efficient installation
- Sealless mag drive pumps constructed from tough ductile iron feature powerful neodymium magnets
- Standard FEP encapsulated FKM O-ring for maximum application flexibility
Series Features:
- Complete encapsulation of inner drive magnets in pure, UNFILLED ETFE for superior corrosion resistance
- Pure, unfilled ETFE barrier for maximum protection against permeation from aggressive chemicals
- Built-in reliability based on the industry’s lowest radial loads
- Careful design balances axial forces inside the pump to control excess thrust loads
- Unique snap-fit connection locks the impeller securely to the inner drive magnet
- Fully supported shaft and dual bushings designed for optimum alignment preventing premature wear
- Every pump is tested before shipment and shipped with its specific curve at no additional cost
Specifications:
- Maximum working pressure to 300 psi (20.7 Bar)
- Maximum viscosity: over 200 cP
- Maximum temperature: 250°F (121°C)
- Flow range: models from 1 to 1,450 gpm (0.3 to 329 m3/hr)
- Maximum head: models up to 492 feet (150 meters)
- Specific gravity: over 1.8
- Casing: ANSI/ASME B73.1m & 73.3
- Flanges: ANSI 150#, ANSI 300#, or ISO PN40
- Certifications: CE/UKCA/ATEX
- Motor frames: NEMA: 143-405 | IEC: 90-280 | Bearing frame | Gas engine
