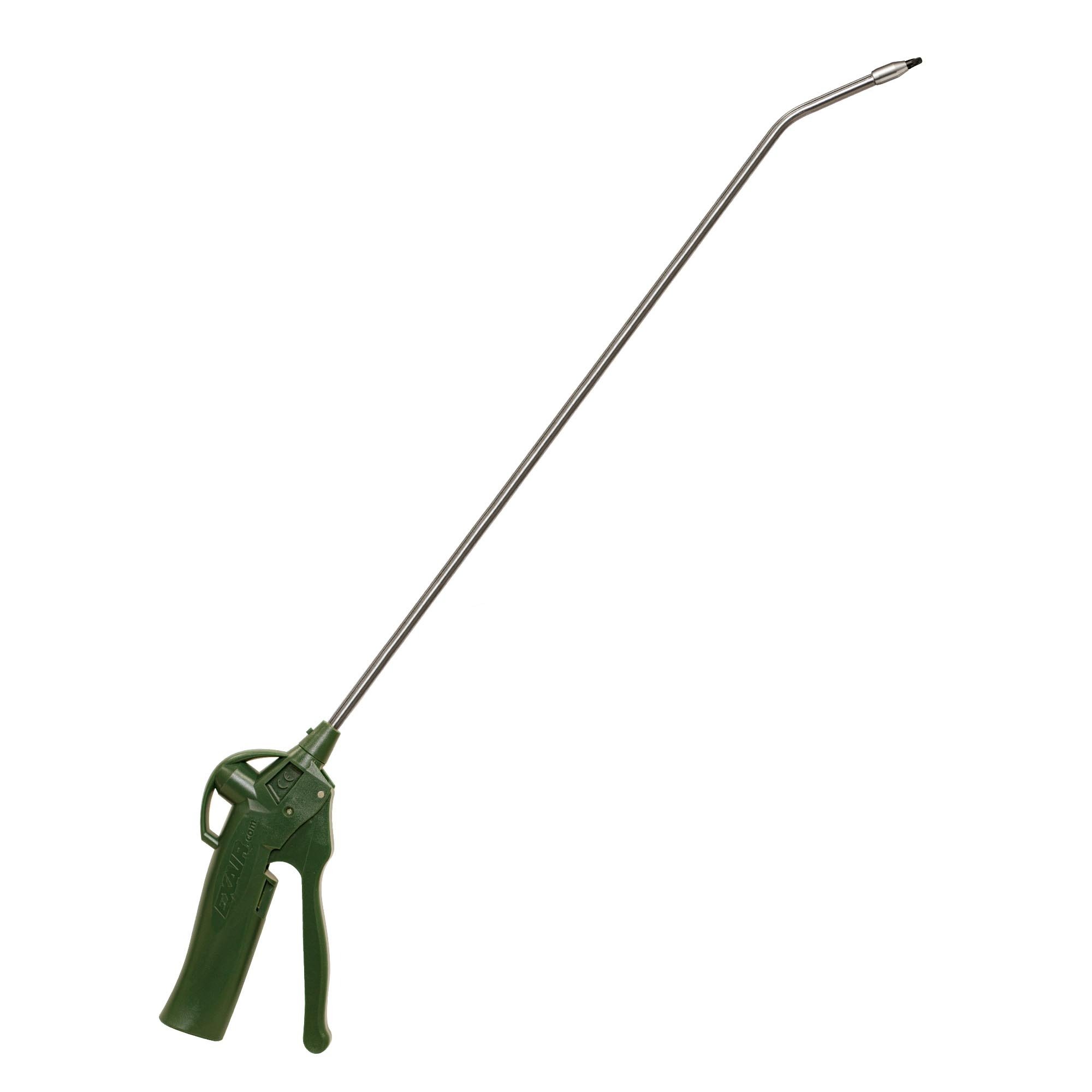

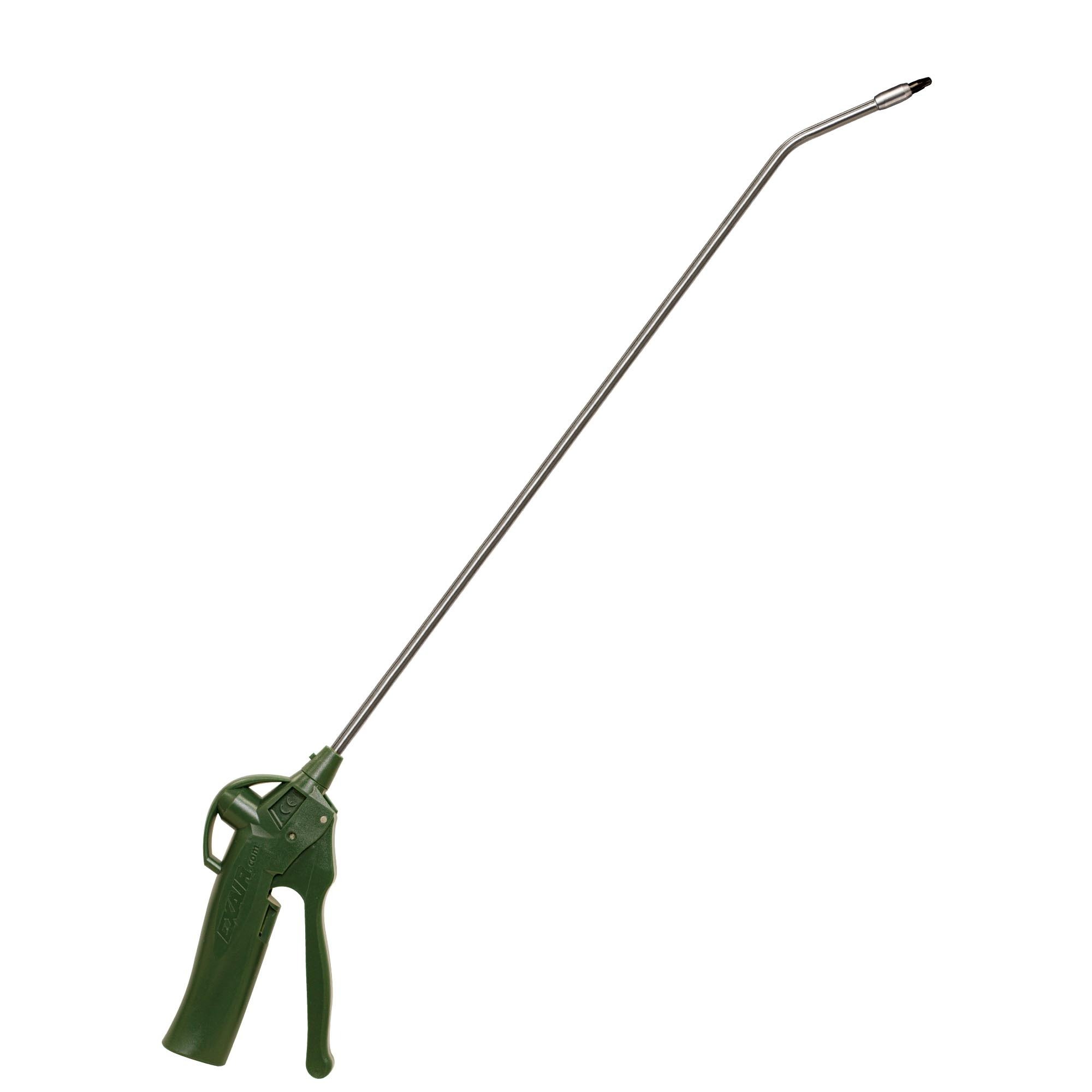

EXAIR VariBlast® Precision Safety Air Gun with Nozzle and Extension Pipe

These models include longer Type 316 stainless steel Extension Pipes for hard to reach areas. EXAIR VariBlast® Precision Safety Air Gun is a uniquely powerful gun which produces variable force with the simple adjustment of the trigger valve. You decide how much force is needed for the application by squeezing the trigger a little or all the way for maximum force! This glass reinforced nylon air gun can be equipped with many of our 1/8 NPT engineered air nozzles. The VariBlast Precision Safety Air Gun is small, comfortable and powerful while remaining light and ergonomic.

Product Flow Nozzle Type Force Extension Pipe Length Stay Set Hose Length Chip Shield Air Inlet
exair-precision-safety-air-gun-with-nozzle-extension-pipe-2.5SCFM-1808-peek-12 2.5 SCFM (71 SLPM) PEEK (Plastic) Atto Super Air Nozzle 2 oz/ 57 grams 12" (305mm) N/A N/A 1/4 FNPT
exair-precision-safety-air-gun-with-nozzle-extension-pipe-2.5SCFM-1808-peek-20 2.5 SCFM (71 SLPM) PEEK (Plastic) Atto Super Air Nozzle 2 oz/ 57 grams 20" (506mm) N/A N/A 1/4 FNPT
exair-precision-safety-air-gun-with-nozzle-extension-pipe-2.5SCFM1808ss-12 2.5 SCFM (71 SLPM) St. Steel Atto Super Air Nozzle 2 oz/ 57 grams 12" (305mm) N/A N/A 1/4 FNPT
exair-precision-safety-air-gun-with-nozzle-extension-pipe-2.5SCFM-1808ss-20 2.5 SCFM (71 SLPM) St. Steel Atto Super Air Nozzle 2 oz/ 57 grams 20" (506mm) N/A N/A 1/4 FNPT
exair-precision-safety-air-gun-with-nozzle-extension-pipe-4.9SCFM-1809-peek-12 4.9 SCFM (139 SLPM) PEEK (Plastic) Atto Super Air Nozzle 5 oz/ 142 grams 12" (305mm) N/A N/A 1/4 FNPT
exair-precision-safety-air-gun-with-nozzle-extension-pipe-4.9SCFM-1809ss-12 4.9 SCFM (139 SLPM) St. Steel Atto Super Air Nozzle 5 oz/ 142 grams 12" (305mm) N/A N/A 1/4 FNPT
exair-precision-safety-air-gun-with-nozzle-extension-pipe-4.9SCFM-1809-peek-20 4.9 SCFM (139 SLPM) PEEK (Plastic) Atto Super Air Nozzle 5 oz/ 142 grams 20" (506mm) N/A N/A 1/4 FNPT
exair-precision-safety-air-gun-with-nozzle-extension-pipe-4.9SCFM-1809ss-20 4.9 SCFM (139 SLPM) St. Steel Atto Super Air Nozzle 5 oz/ 142 grams 20" (506mm) N/A N/A 1/4 FNPT
exair-precision-safety-air-gun-with-nozzle-extension-pipe-8.3SCFM-1810-peek-12 8.3 SCFM (235 SLPM) PEEK (Plastic) Atto Super Air Nozzle 8.1 oz/ 230 grams 12" (305mm) N/A N/A 1/4 FNPT
exair-precision-safety-air-gun-with-nozzle-extension-pipe-8.3SCFM-1810ss-12 8.3 SCFM (235 SLPM) St. Steel Atto Super Air Nozzle 8.1 oz/ 230 grams 12" (305mm) N/A N/A 1.4 FNPT
exair-precision-safety-air-gun-with-nozzle-extension-pipe-8.3SCFM-1810-peek-20 8.3 SCFM (235 SLPM) PEEK (Plastic) Atto Super Air Nozzle 8.1 oz/ 230 grams 20" (506mm) N/A N/A 1.4 FNPT
exair-precision-safety-air-gun-with-nozzle-extension-pipe-8.3SCFM-1810ss-20 8.3 SCFM (235 SLPM) St. Steel Atto Super Air Nozzle 8.1 oz/ 230 grams 20" (506mm) N/A N/A 1.4 FNPT

Specifications:

Model 1808SS VariBlast Precision Safety Air Gun

Nozzle: 1108SS Stainless Steel Atto Super Air Nozzle

Model 1808SS VariBlast Precision Safety Air Gun
Inlet: 1/4 FNPT
Air Consumption Force* Sound Level
SCFM SLPM Ozs Grams dBA
2.5 71 2.0 57 58

Also available:

1808-PEEK with 1108-PEEK PEEK Plastic Atto Super Air Nozzle

Model 1809SS VariBlast Precision Safety Air Gun

Nozzle: 1109SS Stainless Steel Pico Super Air Nozzle

Model 1809SS VariBlast Precision Safety Air Gun
Inlet: 1/4 FNPT
Air Consumption Force* Sound Level
SCFM SLPM Ozs Grams dBA
4.9 139 5.0 142 68

Also available:

1809-PEEK with 1109-PEEK PEEK Plastic Pico Super Air Nozzle

Model 1810SS VariBlast Precision Safety Air Gun

Nozzle: 1110SS Stainless Steel Nano Super Air Nozzle

Model 1810SS VariBlast Precision Safety Air Gun
Inlet: 1/4 FNPT
Air Consumption Force* Sound Level
SCFM SLPM Ozs Grams dBA
8.3 235 8.1 230 75

Also available:

1810-PEEK with 1110-PEEK PEEK Plastic Nano Super Air Nozzle

*Force measured at 12" (305mm) from target. Sound level measured at 3' (914mm). All measurements taken at 80 PSIG (5.5 BAR).

Applications:

  • Part cleaning
  • Chip removal
  • Liquid blowoff
  • Part cooling
  • Part drying

Advantages:

  • Lightweight
  • Comfortable to operate during extended use
  • Variable flow trigger
  • Highly focused blast of air
  • Small nozzle and extension can fit into tight spaces
  • Reduced compressed air cost
  • Improved blowoff performance
  • Improved safety
  • Meets OSHA noise level requirements
  • Meets OSHA pressure requirements

Materials:

VariBlast Precision Safety Air Gun Body:

  • High impact Polyoxymethylene with ergonomic grip.

Nozzle Options:

  • Type 316 stainless steel nozzles provide excellent corrosion resistance. Maximum temperature: 1000°F (538°C).
  • PEEK thermoplastic nozzles offer protection from product scratches. Offers excellent chemical resistance. Maximum temperature: 320°F (160°C).

Accessories:

VariBlast Precision Safety Air Gun with 12 inch (305mm) Extension Pipe.

Type 316 stainless steel Extension Pipe - extends the reach of your VariBlast Precision Safety Air Gun. Besides the standard size, Extension Pipes are available in 12" (305mm) and 20" (508mm) lengths.



Chip Shields

Chip Shields - durable polycarbonate shields that protect operators from flying debris often associated with blowing chips off machined parts. They are also great for controlling splashback from drying operations.



Safety Air Gun Standards and Certifications

CE CompliantOSHA Safe!

EXAIR Safety Air Guns comply with OSHA's Safety Requirements, the EU General Product Safety Directive (2001/95/EC) and meet the noise limitation requirements of the EU Machinery Directive (2006/42/EC).All sound level measurements are taken at 3 feet away.

Conflict Mineral Free

Look for this symbol to designate conflict mineral free products throughout our website. EXAIR supports Section 1502 of the Dodd-Frank Wall Street Reform and Consumer Protection Act and we are committed to compliance with the conflict minerals rule in order to curb the illicit trade of tin, tantalum, tungsten and gold in the DRC region. EXAIR is using the CMRT 3.02 template to document our supply chain and commitment to conflict free products.
