| Product | Flow | Nozzle Type | Force | Extension Pipe Length | Stay Set Hose Length | Chip Shield | Air Inlet |
 |
56 SCFM (1585 SLPM) | Zinc-Alum. Super Air Nozzle 4 Cluster | 3.2 lbs / 1.45 kg | 36" (3 ft/ .9m) | N/A | N/A | 3/8NPT |
 |
56 SCFM (1585 SLPM) | Zinc-Alum. Super Air Nozzle 4 Cluster | 3.2 lbs / 1.45 kg | 72" (6 ft/ 1.8m) | N/A | N/A | 3/8NPT |
 |
57 SCFM (1614 SLPM) | St. Steel 1 NPT Back Blow Air Nozzle | N/A | 36" (3 ft/ .9m) | N/A | N/A | 1 NPT |
 |
57 SCFM (1614 SLPM) | St. Steel 1 NPT Back Blow Air Nozzle | N/A | 72" (6 ft/ 1.8m) | N/A | N/A | 1 NPT |
 |
91 SCFM (2577 SLPM) | St. Steel 3/4 NPT Super Air Nozzle | 4.5 lbs / 2.04 kg | 36" (3 ft/ .9m) | N/A | N/A | 3/4 NPT |
 |
91 SCFM (2577 SLPM) | St. Steel 3/4 NPT Super Air Nozzle | 4.5 lbs / 2.04 kg | 72" (6 ft/ 1.8m) | N/A | N/A | 3/4 NPT |
|
91 SCFM (2577 SLPM) | Zinc-Alum. 3/4 NPT Super Air Nozzle | 4.5 lbs / 2.04 kg | 36" (3 ft/ .9m) | N/A | N/A | 3/4 NPT |
|
91 SCFM (2577 SLPM) | Zinc-Alum. 3/4 NPT Super Air Nozzle | 4.5 lbs / 2.04 kg | 72" (6 ft/ 1.8m) | N/A | N/A | 3/4 NPT |
 |
98 SCFM (2773 SLPM) | Zinc-Alum. Super Air Nozzle | 5.7 lbs / 2.59 kg | 36" (3 ft/ .9m) | N/A | N/A | 1/2 NPT |
 |
98 SCFM (2773 SLPM) | Zinc-Alum. Super Air Nozzle | 5.7 lbs / 2.59 kg | 72" (6 ft/ 1.8m) | N/A | N/A | 1/2 NPT |
 |
135 SCFM (3823 SLPM) | St. Steel 1 NPT Super Air Nozzle | 6.6 lbs / 3.01 kg | 36" (3 ft/ .9m) | N/A | N/A | 1 NPT |
 |
135 SCFM (3823 SLPM) | St. Steel 1 NPT Super Air Nozzle | 6.6 lbs / 3.01 kg | 72" (6 ft/ 1.8m) | N/A | N/A | 1 NPT |
|
135 SCFM (3823 SLPM) | Zinc-Alum. 1 NPT Super Air Nozzle | 6.6 lbs / 3.01 kg | 36" (3 ft/ .9m) | N/A | N/A | 1 NPT |
 |
135 SCFM (3823 SLPM) | Zinc-Alum. 1 NPT Super Air Nozzle | 6.6 lbs / 3.01 kg | 72" (6 ft/ 1.8m) | N/A | N/A | 1 NPT |
 |
168 SCFM (4754 SLPM) | Zinc-Alum. Super Air Nozzle 12 Cluster | 9.8 lbs / 4.45kg | 36" (3 ft/ .9m) | N/A | N/A | 1 NPT |
 |
168 SCFM (4754 SLPM) | Zinc-Alum. Super Air Nozzle 12 Cluster | 9.8 lbs / 4.45kg | 72" (6 ft/ 1.8m) | N/A | N/A | 1 NPT |
 |
188 SCFM (5324 SLPM) | Zinc-Alum. 1-1/4 NPT Super Air Nozzle | 9.4 lbs / 4.25 kg | 36" (3 ft/ .9m) | N/A | N/A | 1-1/4 NPT |
 |
188 SCFM (5324 SLPM) | Zinc-Alum. 1-1/4 NPT Super Air Nozzle | 9.4 lbs / 4.25 kg | 72" (6 ft/ 1.8m) | N/A | N/A | 1-1/4 NPT |
 |
300 SCFM (8495 SLPM) | Zinc-Alum. 1-1/4 NPT Super Air Nozzle | 15 lbs/ 6.8 kg | 36" (3 ft/ .9m) | N/A | N/A | 1-1/4 NPT |
 |
300 SCFM (8495 SLPM) | Zinc-Alum. 1-1/4 NPT Super Air Nozzle | 15 lbs/ 6.8 kg | 72" (6 ft/ 1.8m) | N/A | N/A | 1-1/4 NPT |
 |
460 SCFM (13026 SLPM) | Zinc-Alum. 1-1/4 NPT Super Air Nozzle | 23 lbs/ 10.43 kg | 36" (3 ft/ .9m) | N/A | N/A | 1-1/4 NPT |
 |
460 SCFM (13026 SLPM) | Zinc-Alum. 1-1/4 NPT Super Air Nozzle | 23 lbs/ 10.43 kg | 72" (6 ft/ 1.8m) | N/A | N/A | 1-1/4 NPT |
Specifications:

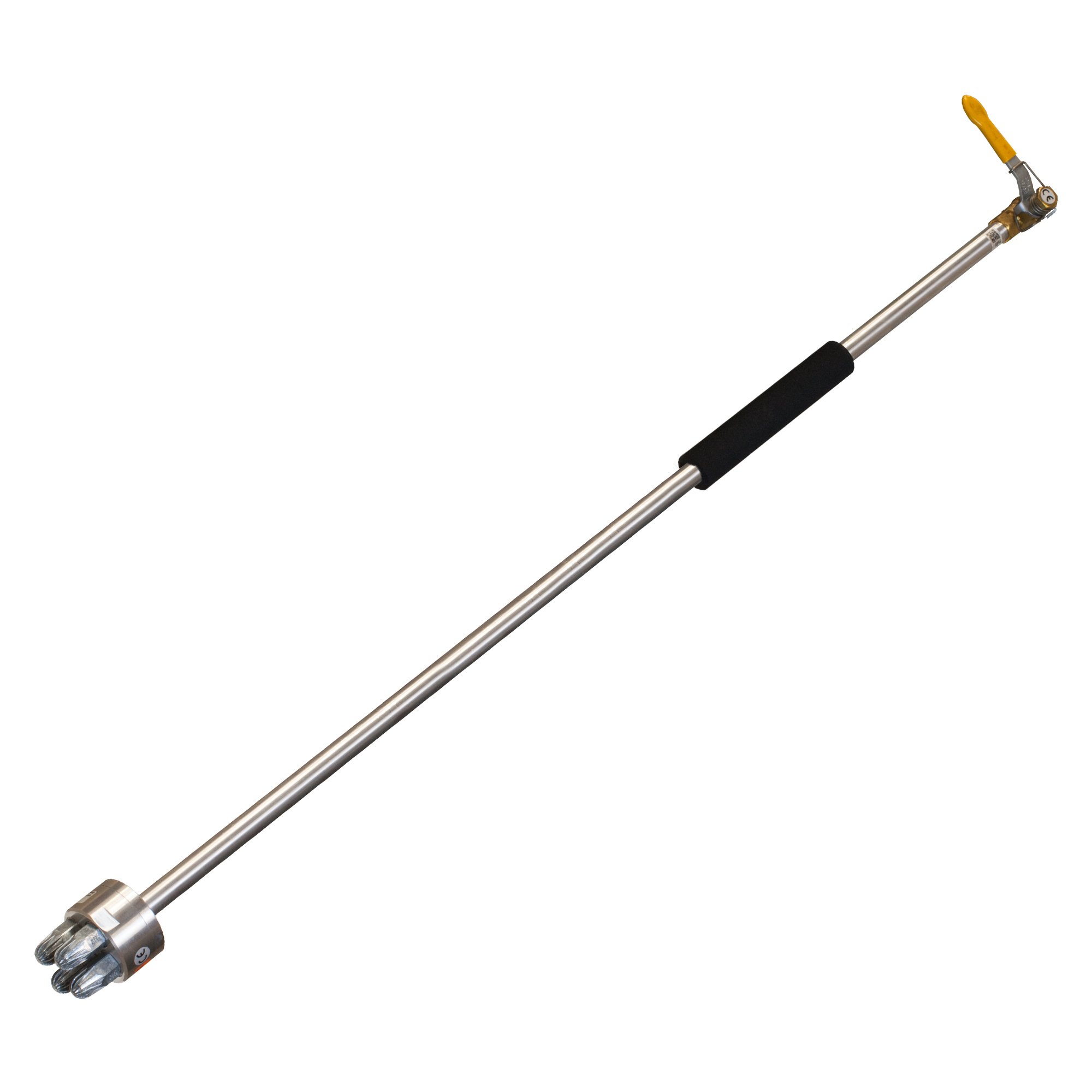

Model 1213-4 Super Blast Safety Air GunNozzle: 1111-4 Zinc Aluminum Super Air Nozzle Cluster |
|||||
Inlet: 3/8 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Lbs | Kg | dBA | |
| 56 | 1,585 | 3.2 | 1.45 | 82 | |

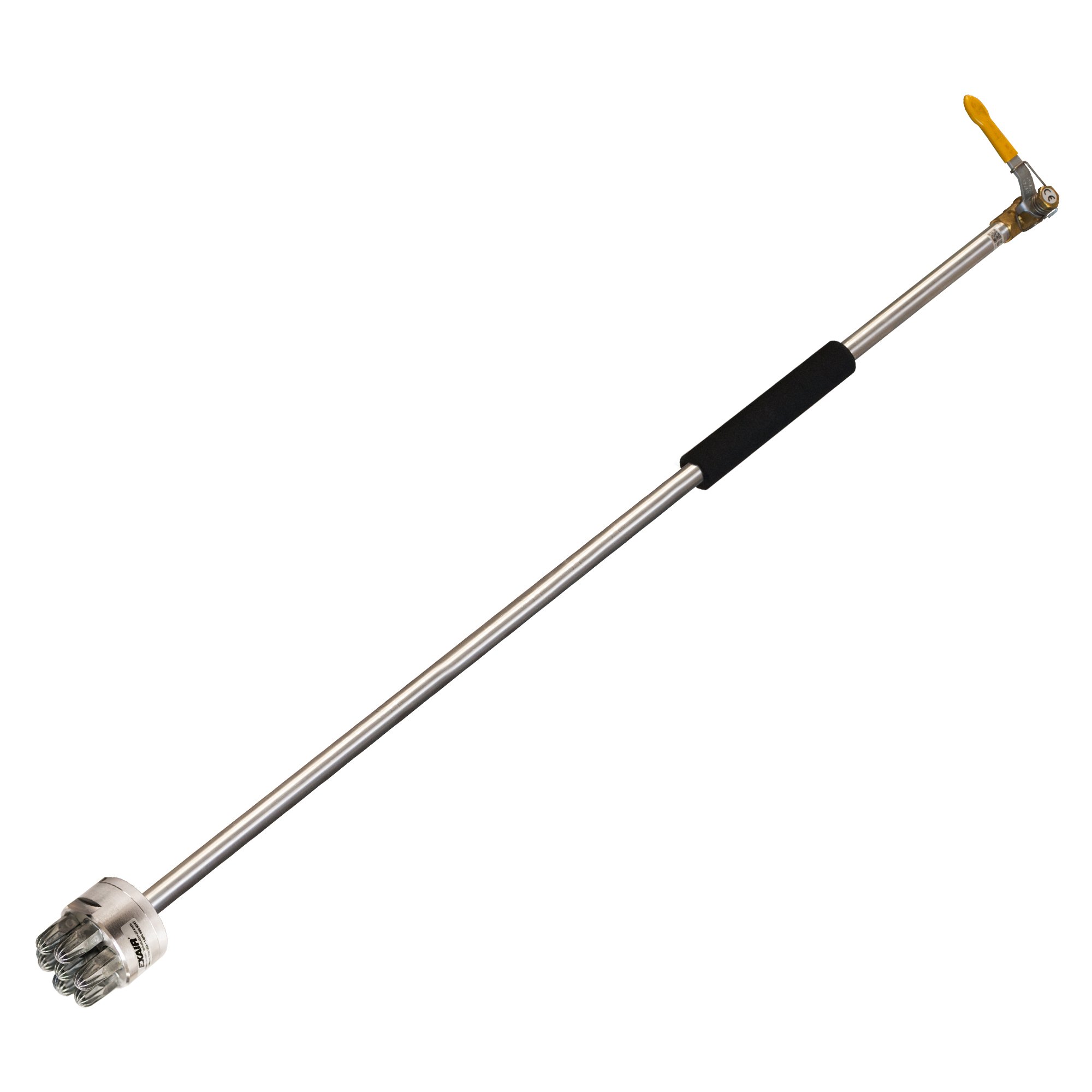

Model 1213-7 Super Blast Safety Air GunNozzle: 1111-7 Zinc Aluminum Super Air Nozzle Cluster |
|||||
Inlet: 1/2 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Lbs | Kg | dBA | |
| 98 | 2,773 | 5.7 | 2.59 | 85 | |

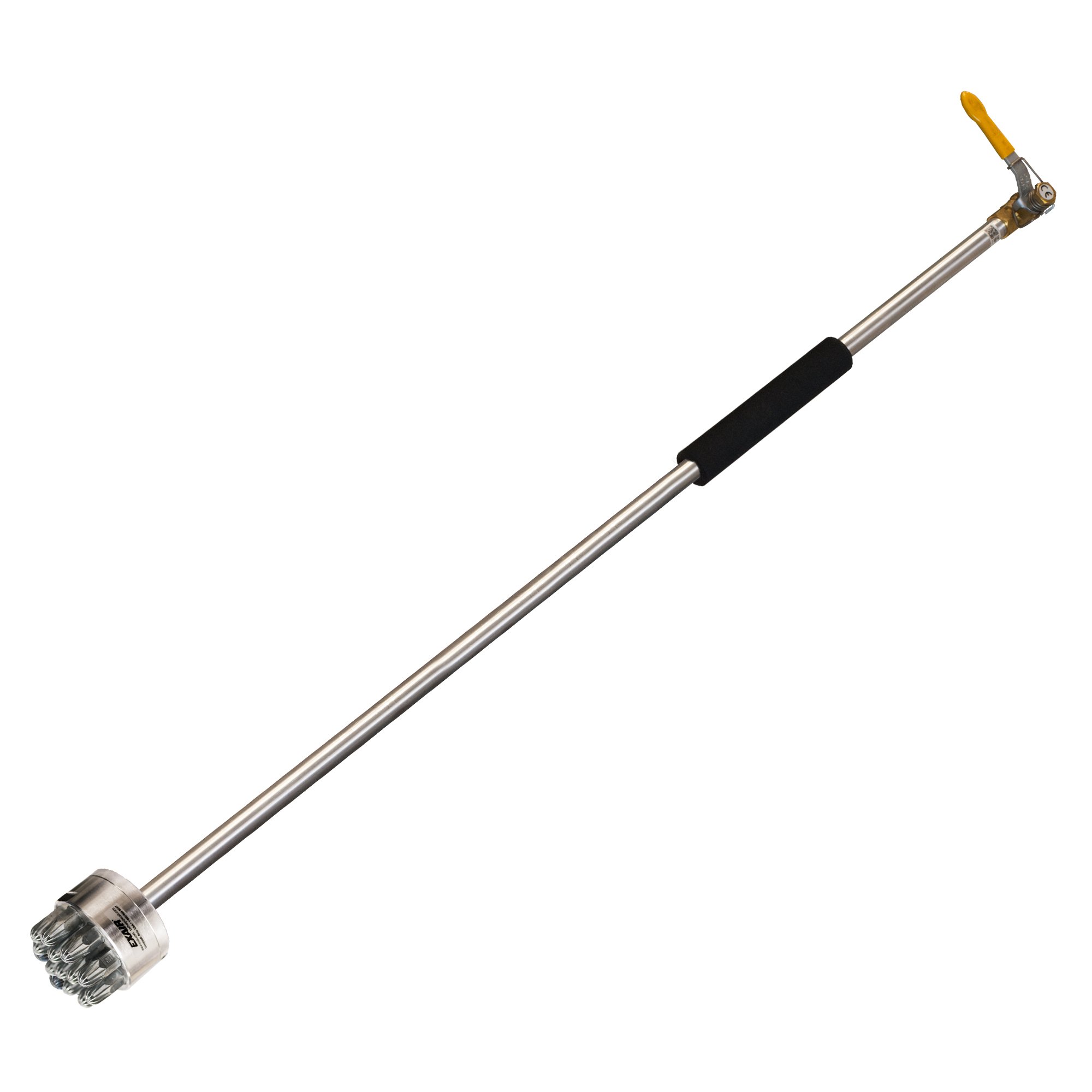

Model 1213-12 Super Blast Safety Air GunNozzle: 1111-12 Zinc Aluminum Super Air Nozzle Cluster |
|||||
Inlet: 1 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Lbs | Kg | dBA | |
| 168 | 4,754 | 9.8 | 4.45 | 89 | |
Model 1214SS Super Blast Safety Air GunNozzle: 1112SS Stainless Steel Super Air Nozzle |
|||||
Inlet: 3/4 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Lbs | Kg | dBA | |
| 91 | 2,577 | 4.5 | 2.04 | 96 | |
|
Also available: 1214 with 1112 Zinc Aluminum Super Air Nozzle |
|||||

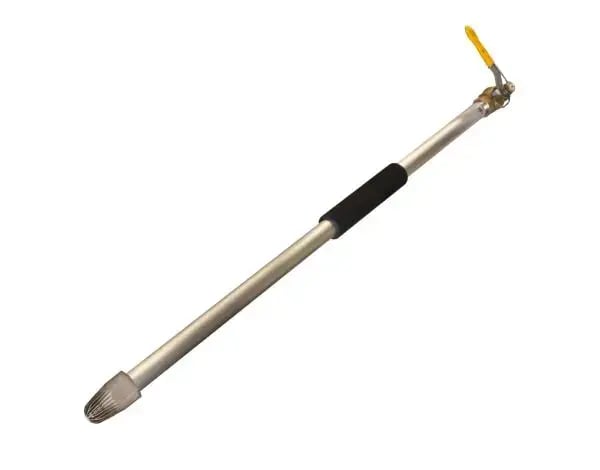

Model 1215SS Super Blast Safety Air GunNozzle: 1114SS Stainless Steel Super Air Nozzle |
|||||
Inlet: 1 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Lbs | Kg | dBA | |
| 135 | 3,823 | 6.6 | 2.99 | 99 | |
|
Also available: 1215 with 1114 Zinc Aluminum Super Air Nozzle |
|||||

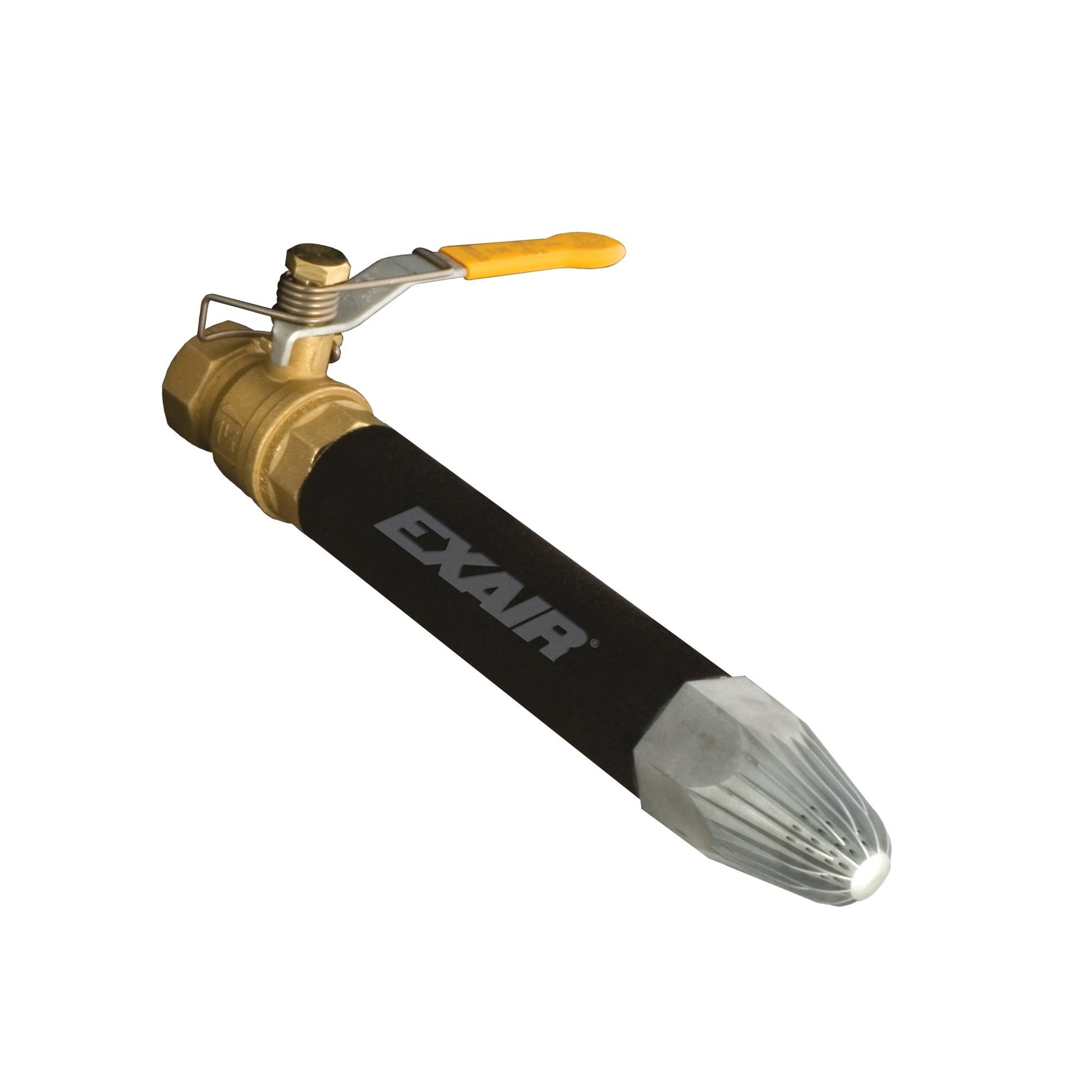

Model 1216 Super Blast Safety Air GunNozzle: 1116 Zinc Aluminum Super Air Nozzle |
|||||
Inlet: 1-1/4 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Lbs | Kg | dBA | |
| 188 | 5,324 | 9.4 | 4.26 | 102† | |
|
†Without hearing protection, only use 1 hour per day OSHA 29 CFR 1910.95(a) |
|||||

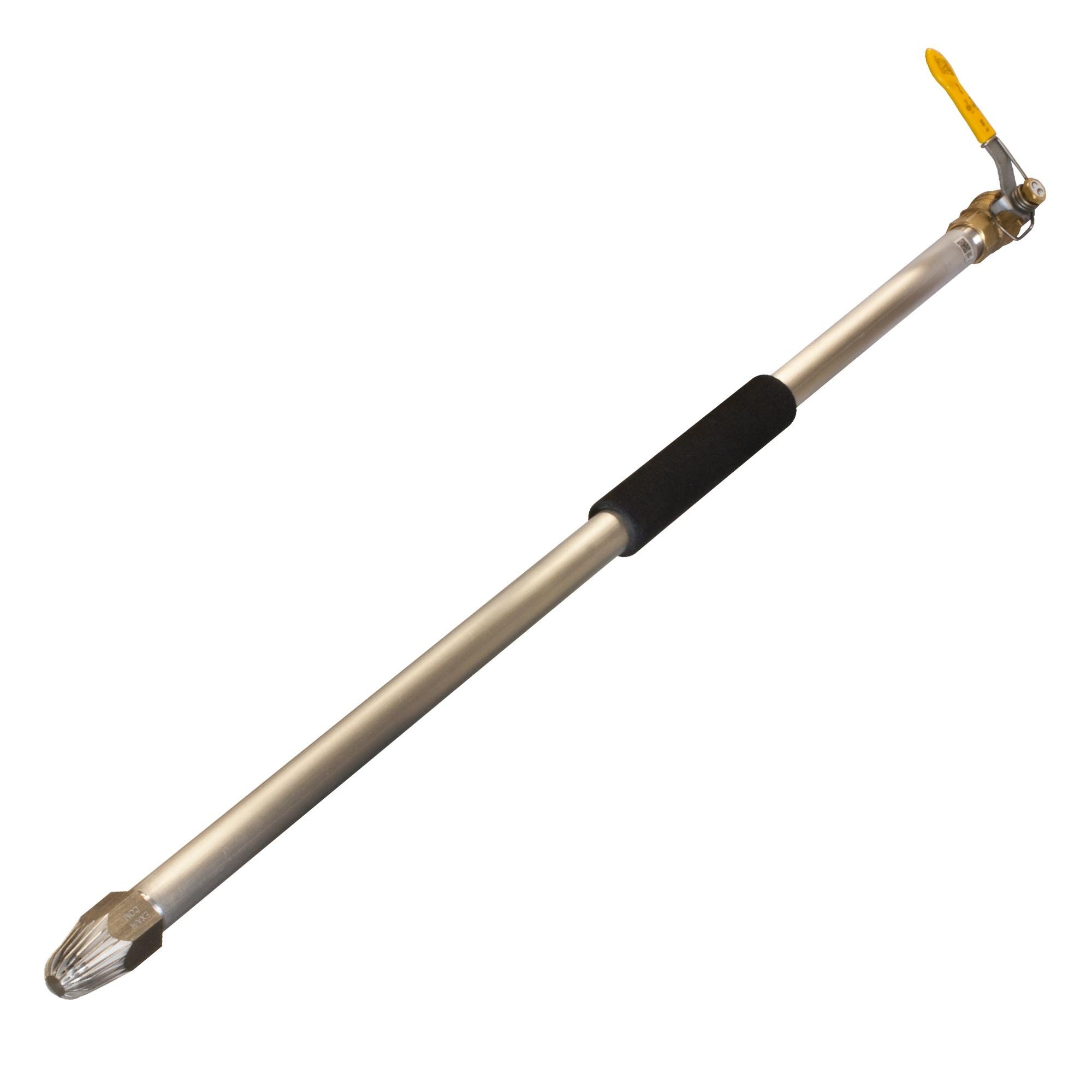

Model 1217 Super Blast Safety Air GunNozzle: 1118 Zinc Aluminum Super Air Nozzle |
|||||
Inlet: 1-1/4 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Lbs | Kg | dBA | |
| 300 | 8,495 | 15 | 6.8 | 106† | |
|
†Without hearing protection, only use 1/2 hour per day OSHA 29 CFR 1910.95(a) |
|||||
Model 1218 Super Blast Safety Air GunNozzle: 1120 Zinc Aluminum Super Air Nozzle |
|||||
Inlet: 1-1/4 FNPT
|
Air Consumption | Force* | Sound Level | ||
| SCFM | SLPM | Lbs | Kg | dBA | |
| 460 | 13,026 | 23 | 10.43 | 109† | |
|
†Without hearing protection, only use 1/2 hour per day OSHA 29 CFR 1910.95(a) |
|||||

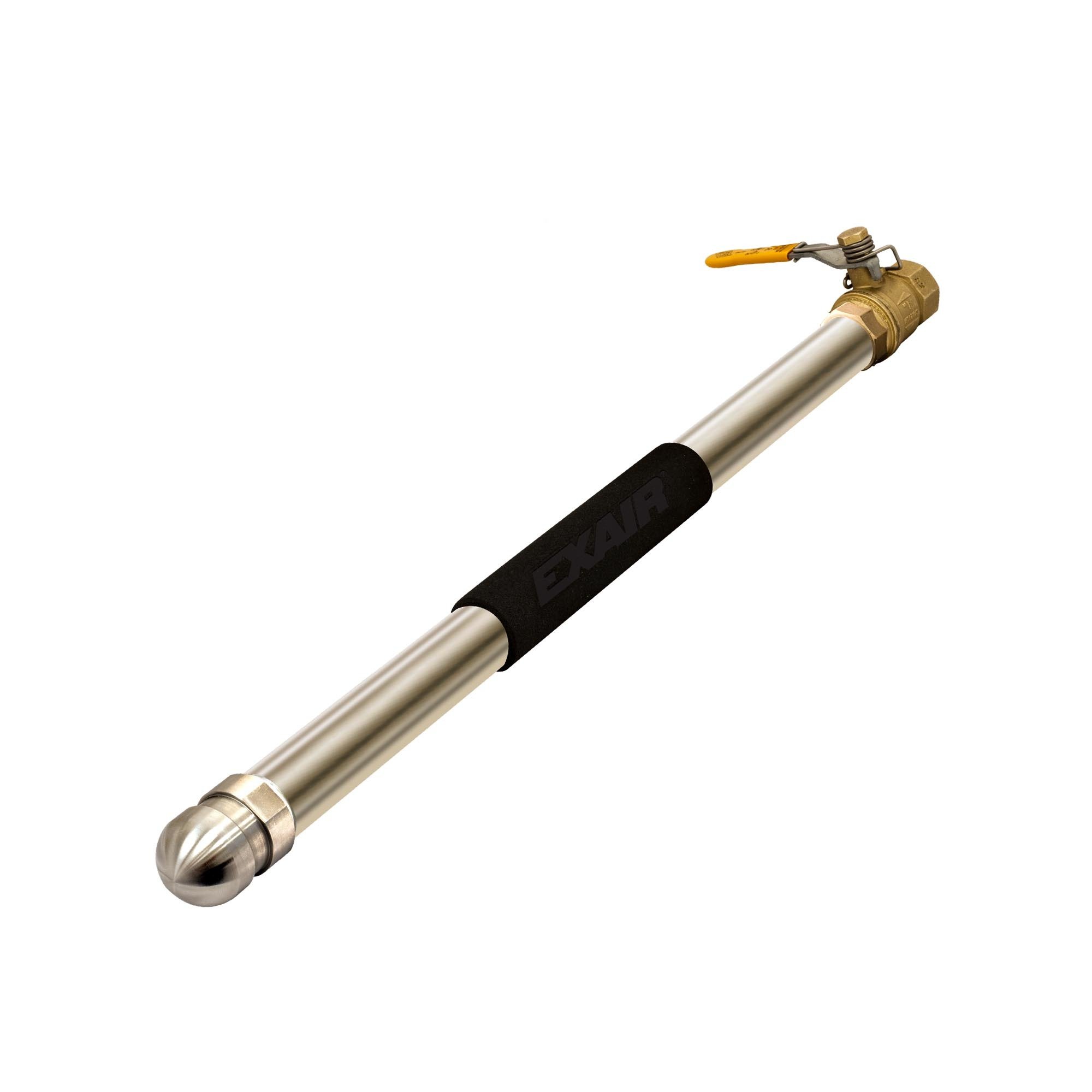

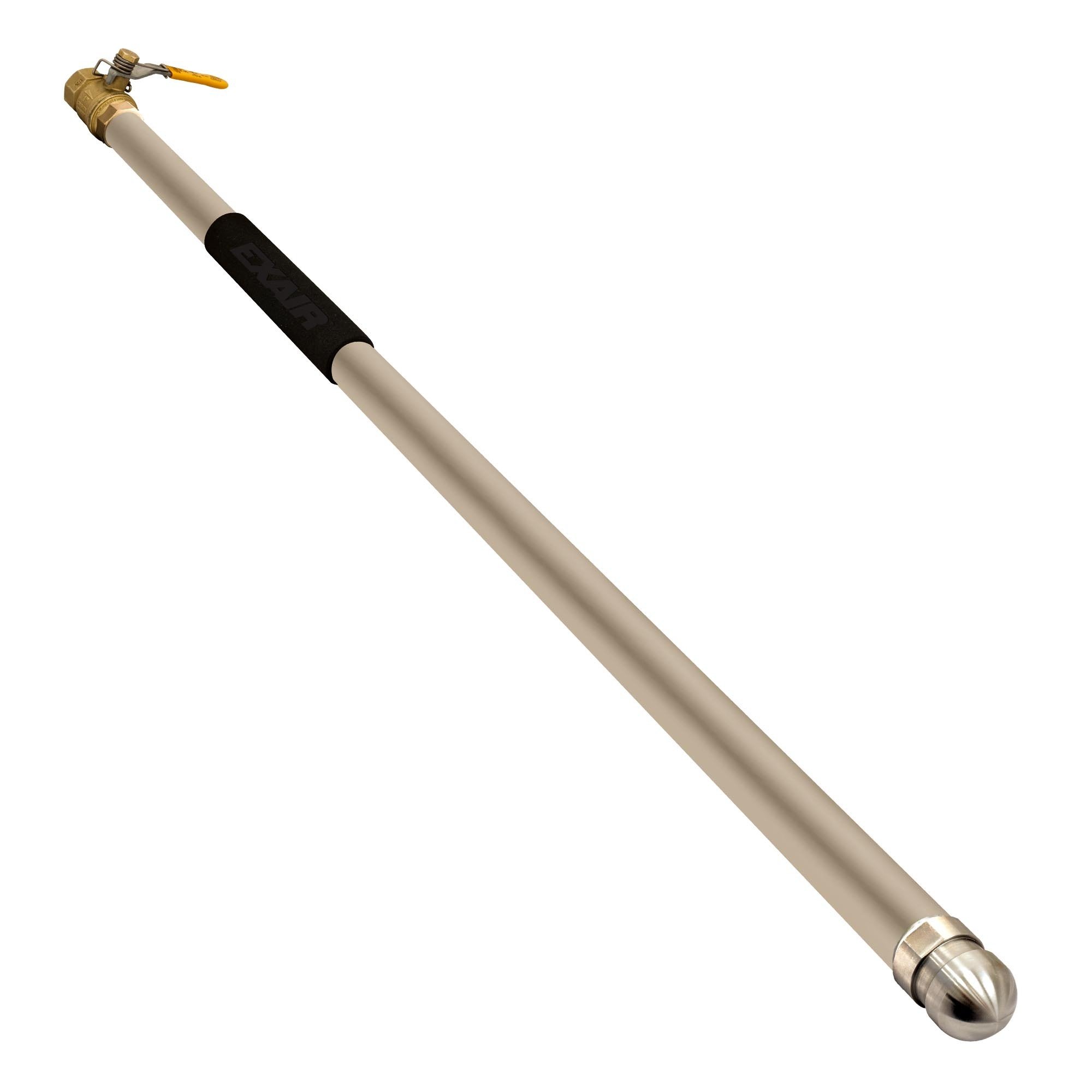

Model 1219SS Super Blast Back Blow Safety Air GunNozzle: 1008SS Stainless Steel Back Blow Air Nozzle |
||||
|
Inlet: 1-1/4 FNPT
|
Air Consumption | Sound Level | Use with: | |
| SCFM | SLPM | dBA | Inside Diameter | |
| 57 | 1,614 | 89 | 2" - 16" (51 - 406mm) | |
*Force measured at 12" (305mm) from target. Sound level measured at 3' (914mm). All measurements taken at 80 PSIG (5.5 BAR).
Safety Air Gun Standards and Certifications
EXAIR Safety Air Guns comply with OSHA's Safety Requirements, the EU General Product Safety Directive (2001/95/EC) and meet the noise limitation requirements of the EU Machinery Directive (2006/42/EC). All sound level measurements are taken at 3 feet away.
