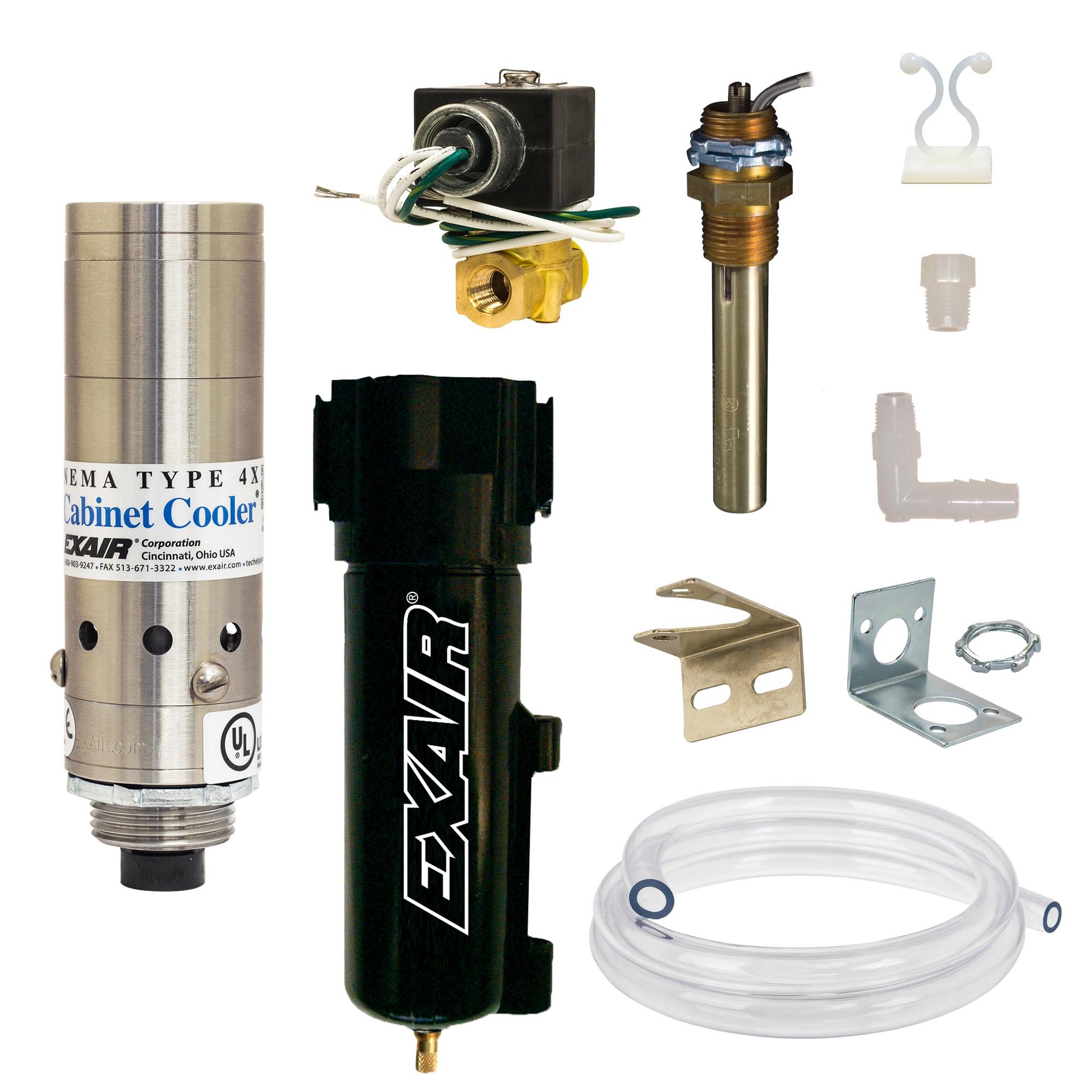

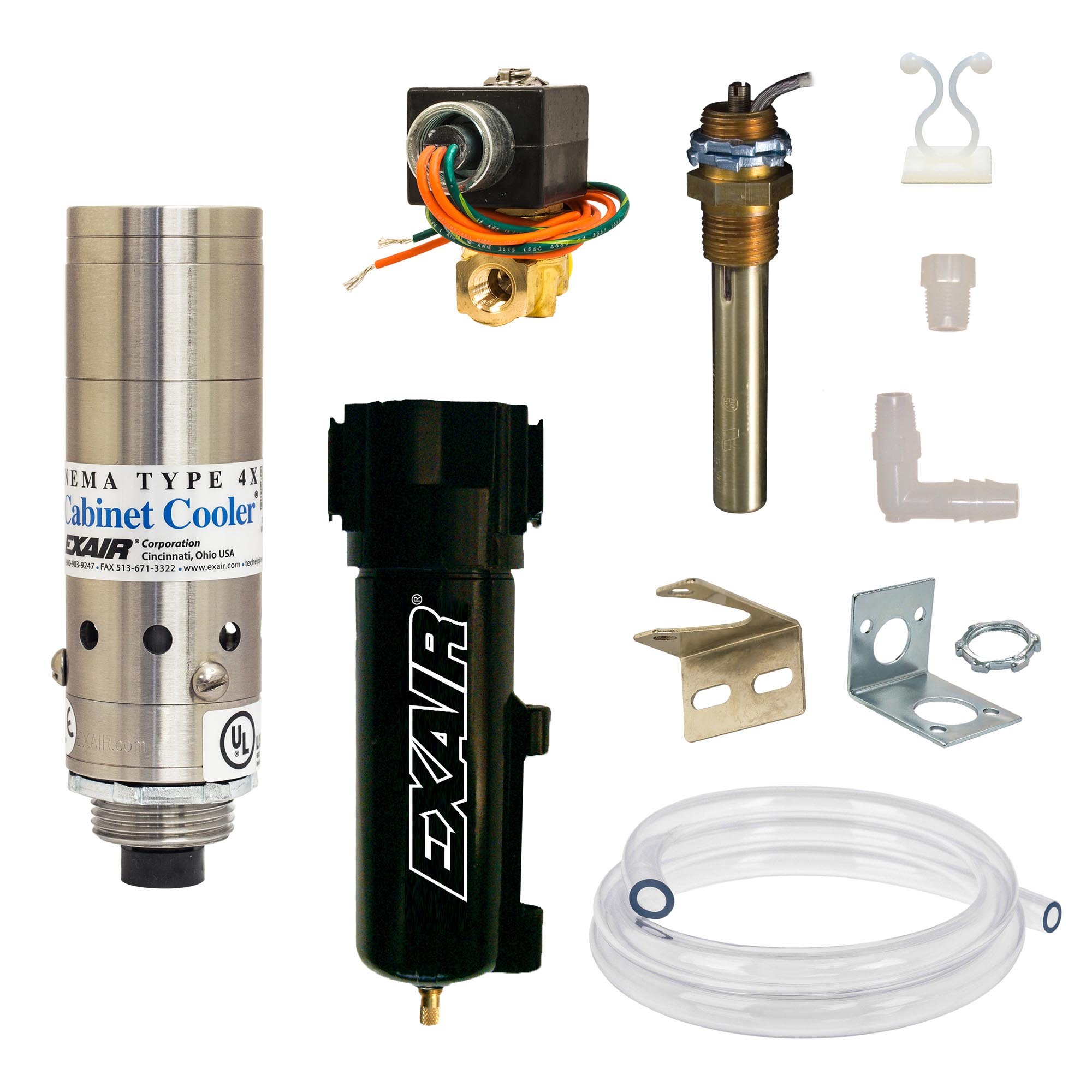

NEMA 4X thermostat control systems are the most efficient way to operate a Cabinet Cooler. They save air by activating the cooler only when internal temperatures approach critical levels. Thermostat controlled cooler systems are the best option when experiencing fluctuating heat loads caused by environment or seasonal changes. The standard thermostat control systems include an adjustable thermostat factory set at 95°F (35°C). NEMA 4X (IP66) Cabinet Coolers are constructed of stainless steel for food service and corrosive environments. EXAIR Cabinet Coolers incorporate a vortex tube to produce cold air from compressed air - with no moving parts. The compact Cabinet Cooler can be installed in minutes through a standard electrical knockout. NEMA 4X (IP66) Cabinet Cooler® Systems (dust-tight, oil-tight, splash resistant, corrosion resistant, indoor/outdoor service) incorporate a low pressure relief valve for both the vortex tube and cabinet air exhaust. This valve closes and seals when the cooler is not operating to maintain the integrity of a NEMA 4 enclosure. They are available in many cooling capacities for large and small control panels. All Cabinet Coolers are UL Listed and CE compliant.
| Product | BTU/Hr | Voltage | Material | Type | Vortex capacity | Air Inlet | |
 |
275 | Electronic Temperature Control | 120V | Type 303 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 4 SCFM (113 SLPM) | 1/8 FNPT |
 |
275 | Electronic Temperature Control | 240V | Type 303 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 4 SCFM (113 SLPM) | 1/8 FNPT |
 |
275 | Electronic Temperature Control | 120V | Type 316 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 4 SCFM (113 SLPM) | 1/8 FNPT |
|
275 | Electronic Temperature Control | 240V | Type 316 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 4 SCFM (113 SLPM) | 1/8 FNPT |
 |
275 | Solenoid Valve | 120V | Type 303 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 4 SCFM (113 SLPM) | 1/8 FNPT |
 |
275 | Solenoid Valve | 240V | Type 303 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 4 SCFM (113 SLPM) | 1/8 FNPT |
 |
275 | Solenoid Valve | 24VDC | Type 303 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 4 SCFM (113 SLPM) | 1/8 FNPT |
 |
275 | Solenoid Valve | 120V | Type 316 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 4 SCFM (113 SLPM) | 1/8 FNPT |
 |
275 | Solenoid Valve | 240V | Type 316 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 4 SCFM (113 SLPM) | 1/8 FNPT |
|
275 | Solenoid Valve | 24VDC | Type 316 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 4 SCFM (113 SLPM) | 1/8 FNPT |
 |
550 | Electronic Temperature Control | 120V | Type 303 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 8 SCFM (227 SLPM) | 1/8 FNPT |
 |
550 | Electronic Temperature Control | 240V | Type 303 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 8 SCFM (227 SLPM) | 1/8 FNPT |
 |
550 | Electronic Temperature Control | 120V | Type 316 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 8 SCFM (227 SLPM) | 1/8 FNPT |
 |
550 | Electronic Temperature Control | 240V | Type 316 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 8 SCFM (227 SLPM) | 1/8 FNPT |
 |
550 | Solenoid Valve | 120V | Type 303 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 8 SCFM (227 SLPM) | 1/8 FNPT |
 |
550 | Solenoid Valve | 240V | Type 303 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 8 SCFM (227 SLPM) | 1/8 FNPT |
 |
550 | Solenoid Valve | 24VDC | Type 303 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 8 SCFM (227 SLPM) | 1/8 FNPT |
|
550 | Solenoid Valve | 120V | Type 316 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 8 SCFM (227 SLPM) | 1/8 FNPT |
|
550 | Solenoid Valve | 240V | Type 316 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 8 SCFM (227 SLPM) | 1/8 FNPT |
|
550 | Solenoid Valve | 24VDC | Type 316 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 8 SCFM (227 SLPM) | 1/8 FNPT |
 |
1000 | Electronic Temperature Control | 120V | Type 303 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 15 SCFM (425 SLPM) | 1/4 FNPT |
 |
1000 | Electronic Temperature Control | 240V | Type 303 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 15 SCFM (425 SLPM) | 1/4 FNPT |
 |
1000 | Electronic Temperature Control | 120V | Type 316 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 15 SCFM (425 SLPM) | 1/4 FNPT |
 |
1000 | Electronic Temperature Control | 240V | Type 316 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 15 SCFM (425 SLPM) | 1/4 FNPT |
 |
1000 | Solenoid Valve | 120V | Type 303 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 15 SCFM (425 SLPM) | 1/4 FNPT |
 |
1000 | Solenoid Valve | 240V | Type 303 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 15 SCFM (425 SLPM) | 1/4 FNPT |
 |
1000 | Solenoid Valve | 24VDC | Type 303 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 15 SCFM (425 SLPM) | 1/4 FNPT |
|
1000 | Solenoid Valve | 120V | Type 316 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 15 SCFM (425 SLPM) | 1/4 FNPT |
 |
1000 | Solenoid Valve | 240V | Type 316 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 15 SCFM (425 SLPM) | 1/4 FNPT |
 |
1000 | Solenoid Valve | 24VDC | Type 316 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 15 SCFM (425 SLPM) | 1/4 FNPT |
 |
1700 | Electronic Temperature Control | 120V | Type 303 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 25 SCFM (708 SLPM) | 1/4 FNPT |
 |
1700 | Electronic Temperature Control | 240V | Type 303 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 25 SCFM (708 SLPM) | 1/4 FNPT |
 |
1700 | Electronic Temperature Control | 120V | Type 316 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 25 SCFM (708 SLPM) | 1/4 FNPT |
 |
1700 | Electronic Temperature Control | 240V | Type 316 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 25 SCFM (708 SLPM) | 1/4 FNPT |
 |
1700 | Solenoid Valve | 120V | Type 303 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 25 SCFM (708 SLPM) | 1/4 FNPT |
 |
1700 | Solenoid Valve | 240V | Type 303 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 25 SCFM (708 SLPM) | 1/4 FNPT |
 |
1700 | Solenoid Valve | 24VDC | Type 303 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 25 SCFM (708 SLPM) | 1/4 FNPT |
 |
1700 | Solenoid Valve | 120V | Type 316 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 25 SCFM (708 SLPM) | 1/4 FNPT |
|
1700 | Solenoid Valve | 240V | Type 316 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 25 SCFM (708 SLPM) | 1/4 FNPT |
 |
1700 | Solenoid Valve | 24VDC | Type 316 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 25 SCFM (708 SLPM) | 1/4 FNPT |
 |
2000 | Electronic Temperature Control | 120V | Type 303 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 30 SCCFM (850 SLPM) | 1/4 FNPT |
 |
2000 | Electronic Temperature Control | 240V | Type 303 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 30 SCCFM (850 SLPM) | 1/4 FNPT |
 |
2000 | Electronic Temperature Control | 120V | Type 316 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 30 SCCFM (850 SLPM) | 1/4 FNPT |
|
2000 | Electronic Temperature Control | 240V | Type 316 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 30 SCCFM (850 SLPM) | 1/4 FNPT |
 |
2000 | Solenoid Valve | 120V | Type 303 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 30 SCCFM (850 SLPM) | 1/4 FNPT |
 |
2000 | Solenoid Valve | 240V | Type 303 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 30 SCCFM (850 SLPM) | 1/4 FNPT |
 |
2000 | Solenoid Valve | 24VDC | Type 303 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 30 SCCFM (850 SLPM) | 1/4 FNPT |
 |
2000 | Solenoid Valve | 120V | Type 316 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 30 SCCFM (850 SLPM) | 1/4 FNPT |
 |
2000 | Solenoid Valve | 240V | Type 316 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 30 SCCFM (850 SLPM) | 1/4 FNPT |
 |
2000 | Solenoid Valve | 24VDC | Type 316 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 30 SCCFM (850 SLPM) | 1/4 FNPT |
 |
2800 | Electronic Temperature Control | 120V | Type 303 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 40 SCFM (1133 SLPM) | 1/4 FNPT |
 |
2800 | Electronic Temperature Control | 240V | Type 303 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 40 SCFM (1133 SLPM) | 1/4 FNPT |
 |
2800 | Electronic Temperature Control | 120V | Type 316 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 40 SCFM (1133 SLPM) | 1/4 FNPT |
 |
2800 | Electronic Temperature Control | 240V | Type 316 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 40 SCFM (1133 SLPM) | 1/4 FNPT |
 |
2800 | Solenoid Valve | 120V | Type 303 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 40 SCFM (1133 SLPM) | 1/4 FNPT |
 |
2800 | Solenoid Valve | 240V | Type 303 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 40 SCFM (1133 SLPM) | 1/4 FNPT |
 |
2800 | Solenoid Valve | 24VDC | Type 303 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 40 SCFM (1133 SLPM) | 1/4 FNPT |
 |
2800 | Solenoid Valve | 120V | Type 316 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 40 SCFM (1133 SLPM) | 1/4 FNPT |
 |
2800 | Solenoid Valve | 240V | Type 316 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 40 SCFM (1133 SLPM) | 1/4 FNPT |
 |
2800 | Solenoid Valve | 24VDC | Type 316 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 40 SCFM (1133 SLPM) | 1/4 FNPT |
 |
3400 | Electronic Temperature Control | 120V | Type 303 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 50 SCFM (1416 SLPM) | 1/4 FNPT |
 |
3400 | Electronic Temperature Control | 240V | Type 303 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 50 SCFM (1416 SLPM) | 1/4 FNPT |
 |
3400 | Electronic Temperature Control | 120V | Type 316 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 50 SCFM (1416 SLPM) | 1/4 FNPT |
 |
3400 | Electronic Temperature Control | 240V | Type 316 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 50 SCFM (1416 SLPM) | 1/4 FNPT |
 |
3400 | Solenoid Valve | 120V | Type 303 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 50 SCFM (1416 SLPM) | 1/4 FNPT |
 |
3400 | Solenoid Valve | 240V | Type 303 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 50 SCFM (1416 SLPM) | 1/4 FNPT |
 |
3400 | Solenoid Valve | 24VDC | Type 303 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 50 SCFM (1416 SLPM) | 1/4 FNPT |
 |
3400 | Solenoid Valve | 120V | Type 316 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 50 SCFM (1416 SLPM) | 1/4 FNPT |
|
3400 | Solenoid Valve | 240V | Type 316 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 50 SCFM (1416 SLPM) | 1/4 FNPT |
 |
3400 | Solenoid Valve | 24VDC | Type 316 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 50 SCFM (1416 SLPM) | 1/4 FNPT |
 |
4000 | Electronic Temperature Control | 120V | Type 303 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 60 SCFM (1699 SLPM) | 1/4 FNPT |
 |
4000 | Electronic Temperature Control | 240V | Type 303 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 60 SCFM (1699 SLPM) | 1/4 FNPT |
 |
4000 | Electronic Temperature Control | 120V | Type 316 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 60 SCFM (1699 SLPM) | 1/4 FNPT |
 |
4000 | Electronic Temperature Control | 240V | Type 316 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 60 SCFM (1699 SLPM) | 1/4 FNPT |
 |
4000 | Solenoid Valve | 120V | Type 303 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 60 SCFM (1699 SLPM) | 1/4 FNPT |
 |
4000 | Solenoid Valve | 240V | Type 303 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 60 SCFM (1699 SLPM) | 1/4 FNPT |
 |
4000 | Solenoid Valve | 24VDC | Type 303 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 60 SCFM (1699 SLPM) | 1/4 FNPT |
 |
4000 | Solenoid Valve | 120V | Type 316 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 60 SCFM (1699 SLPM) | 1/4 FNPT |
 |
4000 | Solenoid Valve | 240V | Type 316 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 60 SCFM (1699 SLPM) | 1/4 FNPT |
 |
4000 | Solenoid Valve | 24VDC | Type 316 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 60 SCFM (1699 SLPM) | 1/4 FNPT |
 |
4800 | Electronic Temperature Control | 120V | Type 303 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 70 SCFM (1982 SLPM) | 1/4 FNPT |
 |
4800 | Electronic Temperature Control | 240V | Type 303 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 70 SCFM (1982 SLPM) | 1/4 FNPT |
 |
4800 | Electronic Temperature Control | 120V | Type 316 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 70 SCFM (1982 SLPM) | 1/4 FNPT |
 |
4800 | Electronic Temperature Control | 240V | Type 316 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 70 SCFM (1982 SLPM) | 1/4 FNPT |
 |
4800 | Solenoid Valve | 120V | Type 303 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 70 SCFM (1982 SLPM) | 1/4 FNPT |
 |
4800 | Solenoid Valve | 240V | Type 303 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 70 SCFM (1982 SLPM) | 1/4 FNPT |
 |
4800 | Solenoid Valve | 24VDC | Type 303 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 70 SCFM (1982 SLPM) | 1/4 FNPT |
 |
4800 | Solenoid Valve | 120V | Type 316 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 70 SCFM (1982 SLPM) | 1/4 FNPT |
 |
4800 | Solenoid Valve | 240V | Type 316 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 70 SCFM (1982 SLPM) | 1/4 FNPT |
 |
4800 | Solenoid Valve | 24VDC | Type 316 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 70 SCFM (1982 SLPM) | 1/4 FNPT |
 |
5600 | Electronic Temperature Control | 120V | Type 303 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 80 SCFM (2265 SLPM) | 1/4 FNPT |
 |
5600 | Electronic Temperature Control | 240V | Type 303 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 80 SCFM (2265 SLPM) | 1/4 FNPT |
 |
5600 | Electronic Temperature Control | 120V | Type 316 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 80 SCFM (2265 SLPM) | 1/4 FNPT |
 |
5600 | Electronic Temperature Control | 240V | Type 316 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 80 SCFM (2265 SLPM) | 1/4 FNPT |
 |
5600 | Solenoid Valve | 120V | Type 303 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 80 SCFM (2265 SLPM) | 1/4 FNPT |
 |
5600 | Solenoid Valve | 240V | Type 303 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 80 SCFM (2265 SLPM) | 1/4 FNPT |
 |
5600 | Solenoid Valve | 24VDC | Type 303 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 80 SCFM (2265 SLPM) | 1/4 FNPT |
 |
5600 | Solenoid Valve | 120V | Type 316 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 80 SCFM (2265 SLPM) | 1/4 FNPT |
 |
5600 | Solenoid Valve | 240V | Type 316 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 80 SCFM (2265 SLPM) | 1/4 FNPT |
 |
5600 | Solenoid Valve | 24VDC | Type 316 Stainless Steel | NEMA 4X Thermostat Control Cabinet Cooler | 80 SCFM (2265 SLPM) | 1/4 FNPT |
High Temp or NHP and Filter not applicable with EXAIR NEMA 4X St. St. Cabinet Cooler® Systems w Therm.
Applications:
- Programmable controllers
- Line control cabinets
- Motor control centers
- Relay panels
- NC/CNC systems
- Modular control centers
- CCTV cameras
- Computer cabinets
- Cool laser housings
- Electronic scales
NEMA 4X Cabinet Cooler Advantages:
- Low cost
- Corrosion resistant in harsh environments
- Compact
- Cooling capacities up to 5,600 Btu/hr. (1,641 Watts)
- Quiet
- Install in minutes
- Maintain NEMA 4X integrity (IP66)
- Stabilize enclosure temperature and humidity
- No CFC's
- No moving parts - maintenance free
- Mount in standard electrical knockout
- Stop nuisance tripping
- Stop heat damage
- Eliminate fans and filters
- Eliminate lost production
- Stop circuit drift
- Stop dirt contamination
- Provide washdown protection
Models:
NEMA 4X (IP66) Cabinet Cooler Systems - Type 303 Stainless Steel 120V, Thermostat Control |
|
| Model | Btu/hr. (Watts) |
| 4804SS | 275 (80) |
| 4808SS | 550 (162) |

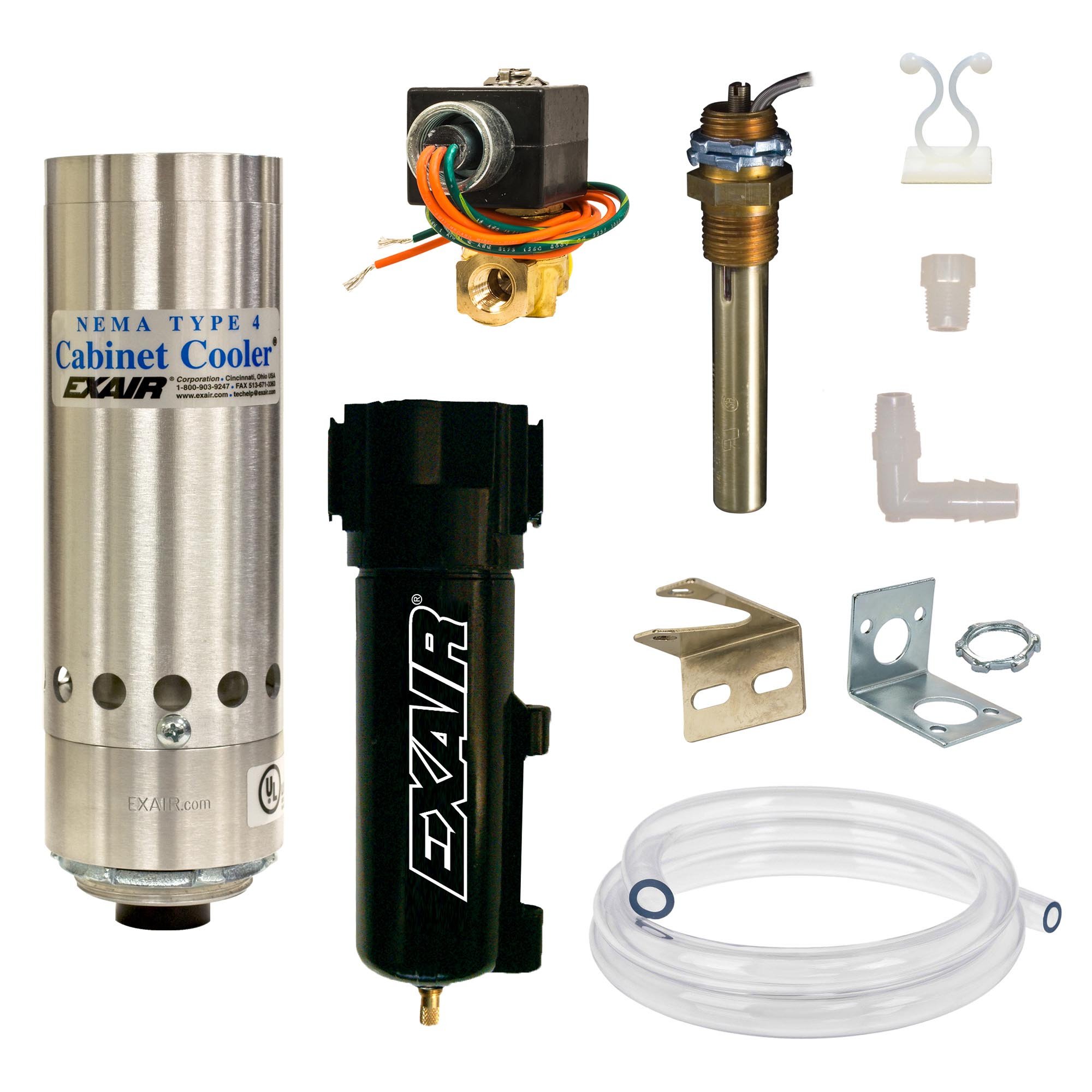

| 4815SS | 1,000 (293) |
| 4825SS | 1,700 (498) |
| 4830SS | 2,000 (586) |
| 4840SS | 2,800 (821) |

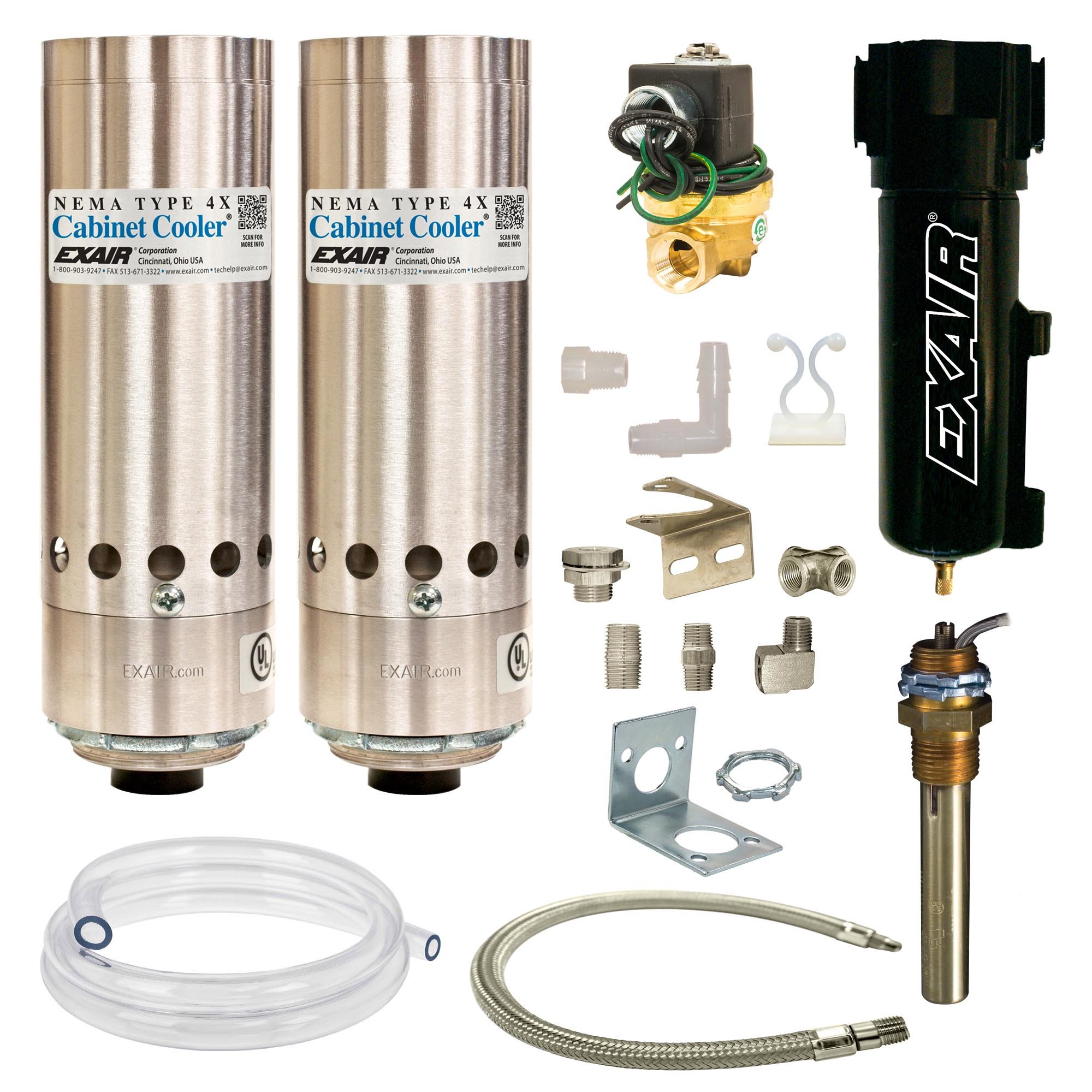

| 4850SS | 3,400 (997) |
| 4860SS | 4,000 (1,171) |
| 4870SS | 4,800 (1,406) |
| 4880SS | 5,600 (1,641) |
NEMA 4X (IP66) Cabinet Cooler Systems - Type 316 Stainless Steel 120V, Thermostat Control |
|
| Model | Btu/hr. (Watts) |
| 4804SS-316 | 275 (80) |
| 4808SS-316 | 550 (162) |
| 4815SS-316 | 1,000 (293) |
| 4825SS-316 | 1,700 (498) |
| 4830SS-316 | 2,000 (586) |
| 4840SS-316 | 2,800 (821) |
| 4850SS-316 | 3,400 (997) |
| 4860SS-316 | 4,000 (1,171) |
| 4870SS-316 | 4,800 (1,406) |
| 4880SS-316 | 5,600 (1,641) |
NEMA 4X (IP66) Cabinet Cooler Systems - Type 303 Stainless Steel 240V, Thermostat Control Systems |
|
| Model | Btu/hr. (Watts) |
| 4804SS-240 | 275 (80) |
| 4808SS-240 | 550 (162) |
| 4815SS-240 | 1,000 (293) |
| 4825SS-240 | 1,700 (498) |

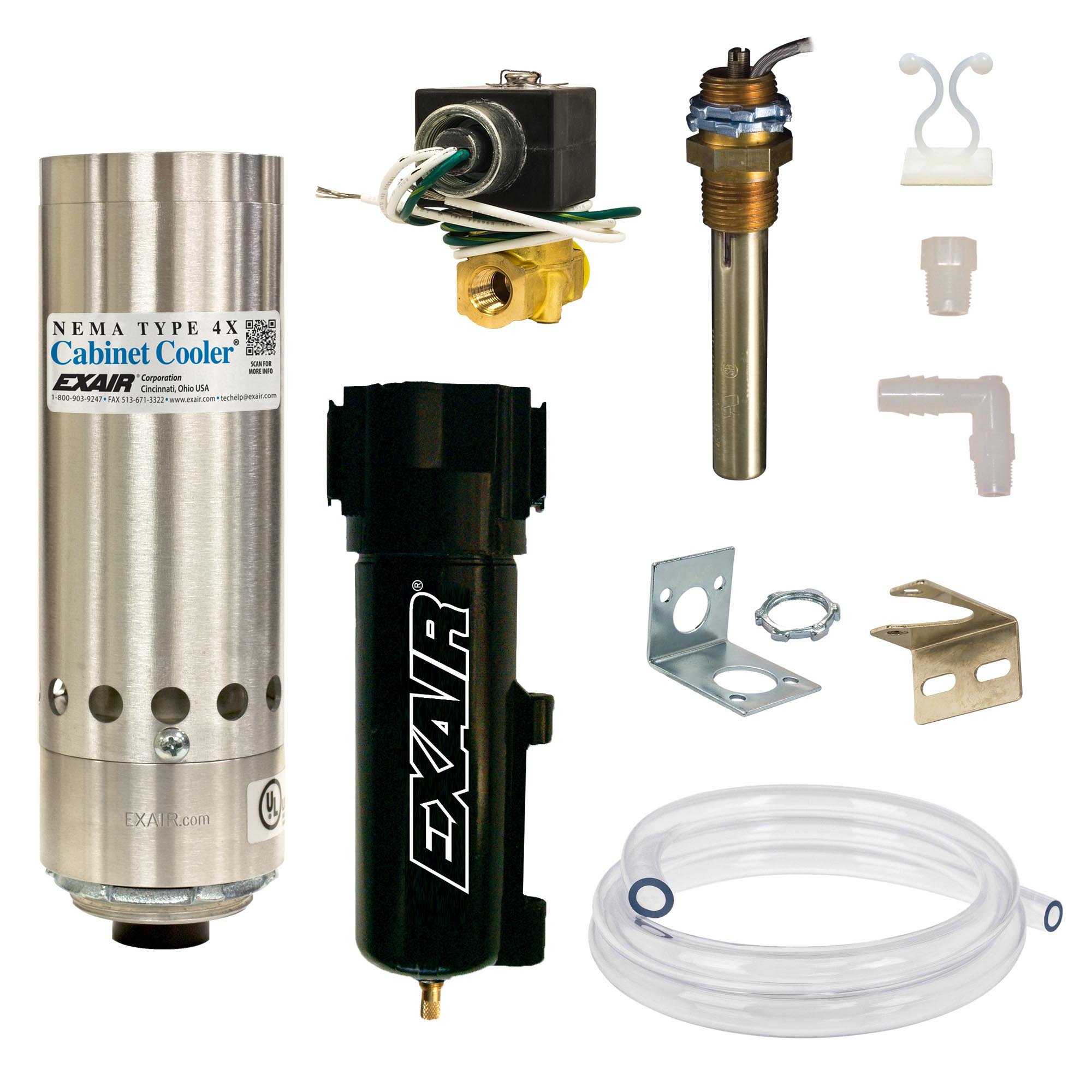

| 4830SS-240 | 2,000 (586) |
| 4840SS-240 | 2,800 (821) |
| 4850SS-240 | 3,400 (997) |
| 4860SS-240 | 4,000 (1,171) |
| 4870SS-240 | 4,800 (1,406) |
| 4880SS-240 | 5,600 (1,641) |
NEMA 4X (IP66) Cabinet Cooler Systems - Type 316 Stainless Steel 240V, Thermostat Control Systems |
|
| Model | Btu/hr. (Watts) |
| 4804SS-316-240 | 275 (80) |
| 4808SS-316-240 | 550 (162) |
| 4815SS-316-240 | 1,000 (293) |
| 4825SS-316-240 | 1,700 (498) |
| 4830SS-316-240 | 2,000 (586) |
| 4840SS-316-240 | 2,800 (821) |
| 4850SS-316-240 | 3,400 (997) |
| 4860SS-316-240 | 4,000 (1,171) |
| 4870SS-316-240 | 4,800 (1,406) |
| 4880SS-316-240 | 5,600 (1,641) |
NEMA 4X (IP66) Cabinet Cooler Systems - Type 303 Stainless Steel 24VDC, Thermostat Control Systems |
|
| Model | Btu/hr. (Watts) |
| 4804SS-24VDC | 275 (80) |
| 4808SS-24VDC | 550 (162) |

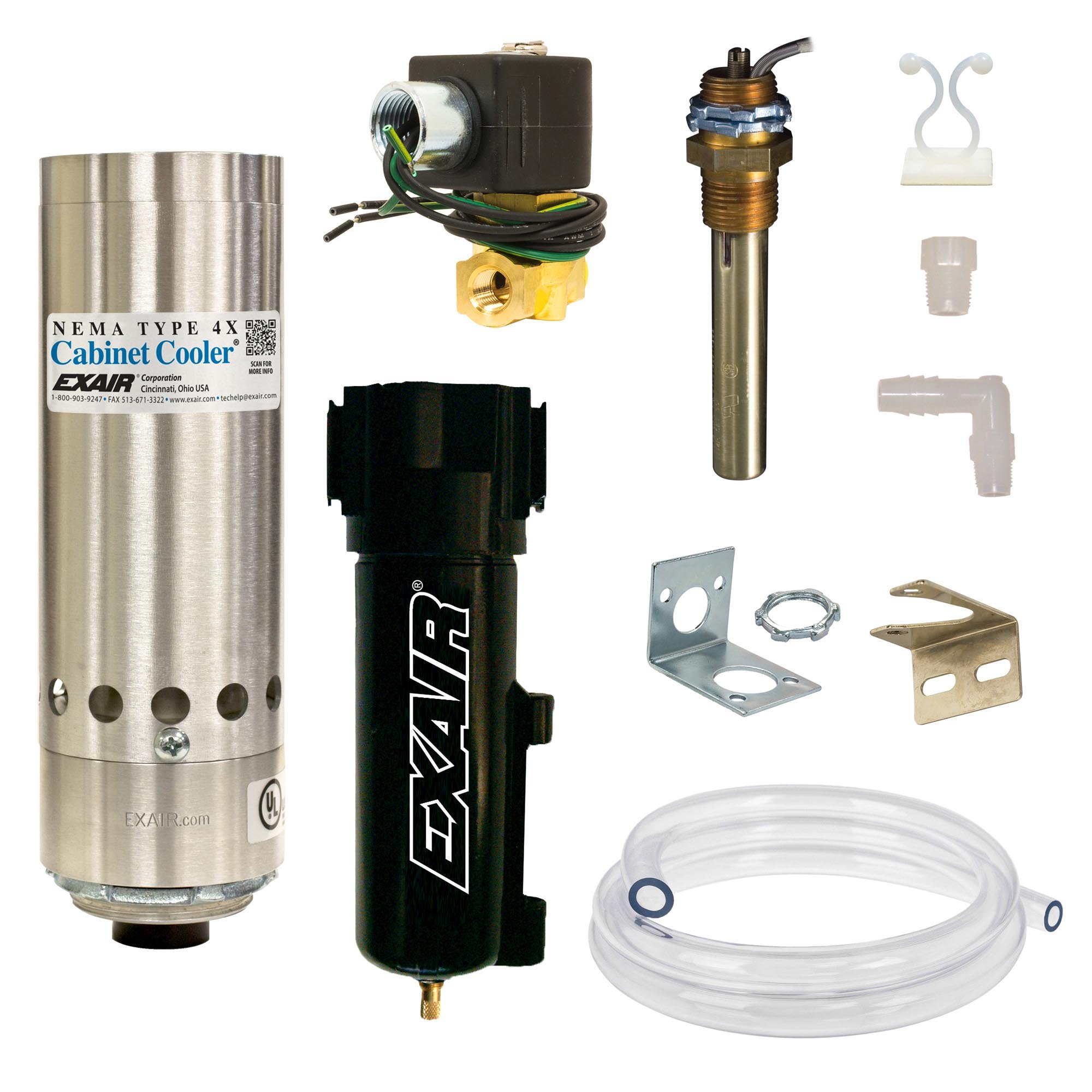

| 4815SS-24VDC | 1,000 (293) |
| 4825SS-24VDC | 1,700 (498) |
| 4830SS-24VDC | 2,000 (586) |
| 4840SS-24VDC | 2,800 (821) |
| 4850SS-24VDC | 3,400 (997) |
| 4860SS-24VDC | 4,000 (1,171) |
| 4870SS-24VDC | 4,800 (1,406) |
| 4880SS-24VDC | 5,600 (1,641) |
NEMA 4X (IP66) Cabinet Cooler Systems - Type 316 Stainless Steel 24VDC, Thermostat Control Systems |
|
| Model | Btu/hr. (Watts) |
| 4804SS-316-24VDC | 275 (80) |
| 4808SS-316-24VDC | 550 (162) |
| 4815SS-316-24VDC | 1,000 (293) |
| 4825SS-316-24VDC | 1,700 (498) |
| 4830SS-316-24VDC | 2,000 (586) |
| 4840SS-316-24VDC | 2,800 (821) |
| 4850SS-316-24VDC | 3,400 (997) |
| 4860SS-316-24VDC | 4,000 (1,171) |
| 4870SS-316-24VDC | 4,800 (1,406) |

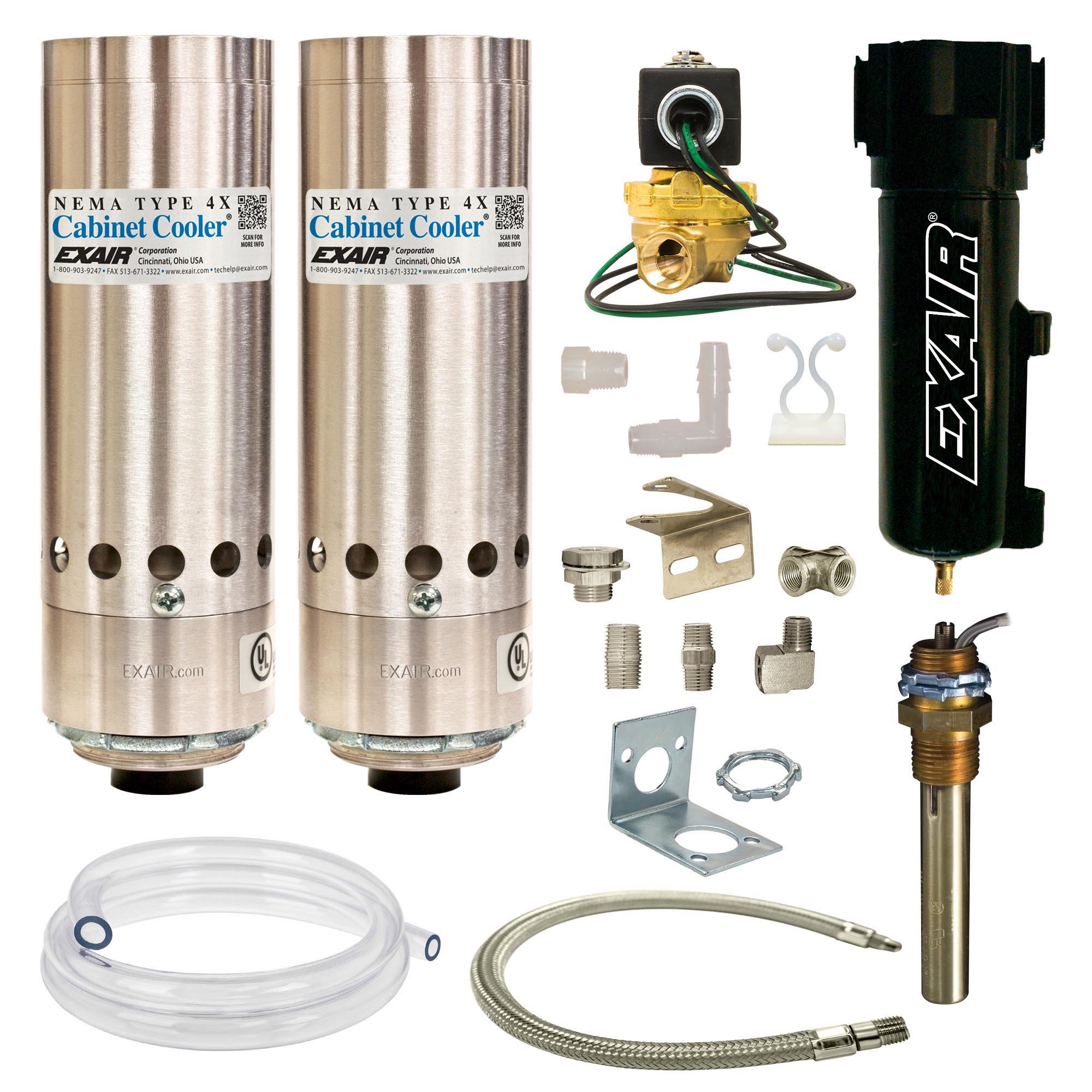

| 4880SS-316-24VDC | 5,600 (1,641) |
NEMA 4X (IP66) Cabinet Cooler Thermostat Control System with ETC - Type 303 Stainless Steel 120V |
|
| Model | Btu/hr. (Watts) |
| 4804SS-ETC120 | 275 (80) |
| 4808SS-ETC120 | 550 (162) |
| 4815SS-ETC120 | 1,000 (293) |
| 4825SS-ETC120 | 1,700 (498) |
| 4830SS-ETC120 | 2,000 (586) |
| 4840SS-ETC120 | 2,800 (821) |
| 4850SS-ETC120 | 3,400 (997) |
| 4860SS-ETC120 | 4,000 (1,171) |

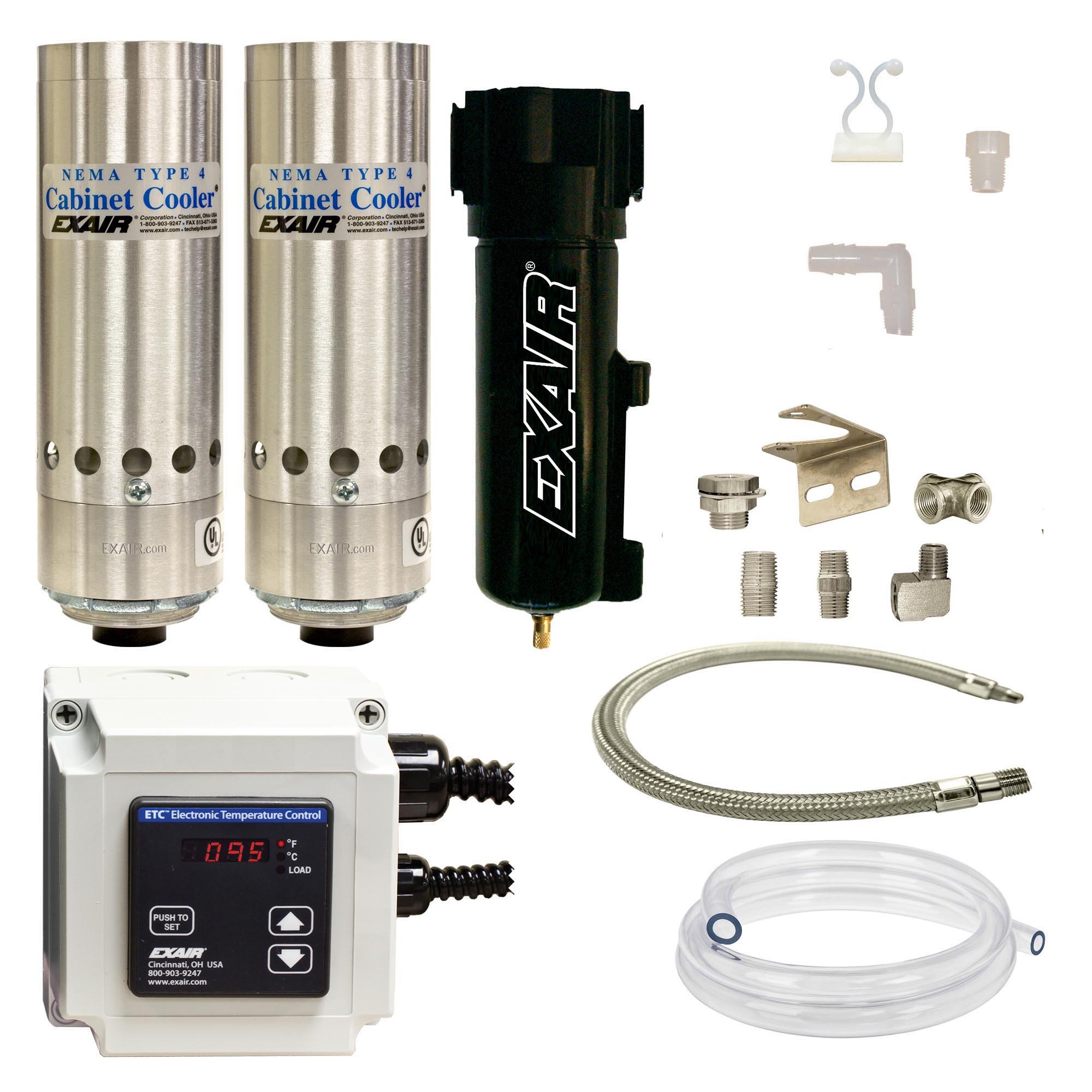

| 4870SS-ETC120 | 4,800 (1,406) |
| 4880SS-ETC120 | 5,600 (1,641) |
NEMA 4X (IP66) Cabinet Cooler Thermostat Control System with ETC - Type 316 Stainless Steel 120V |
|
| Model | Btu/hr. (Watts) |
| 4804SS-316-ETC120 | 275 (80) |

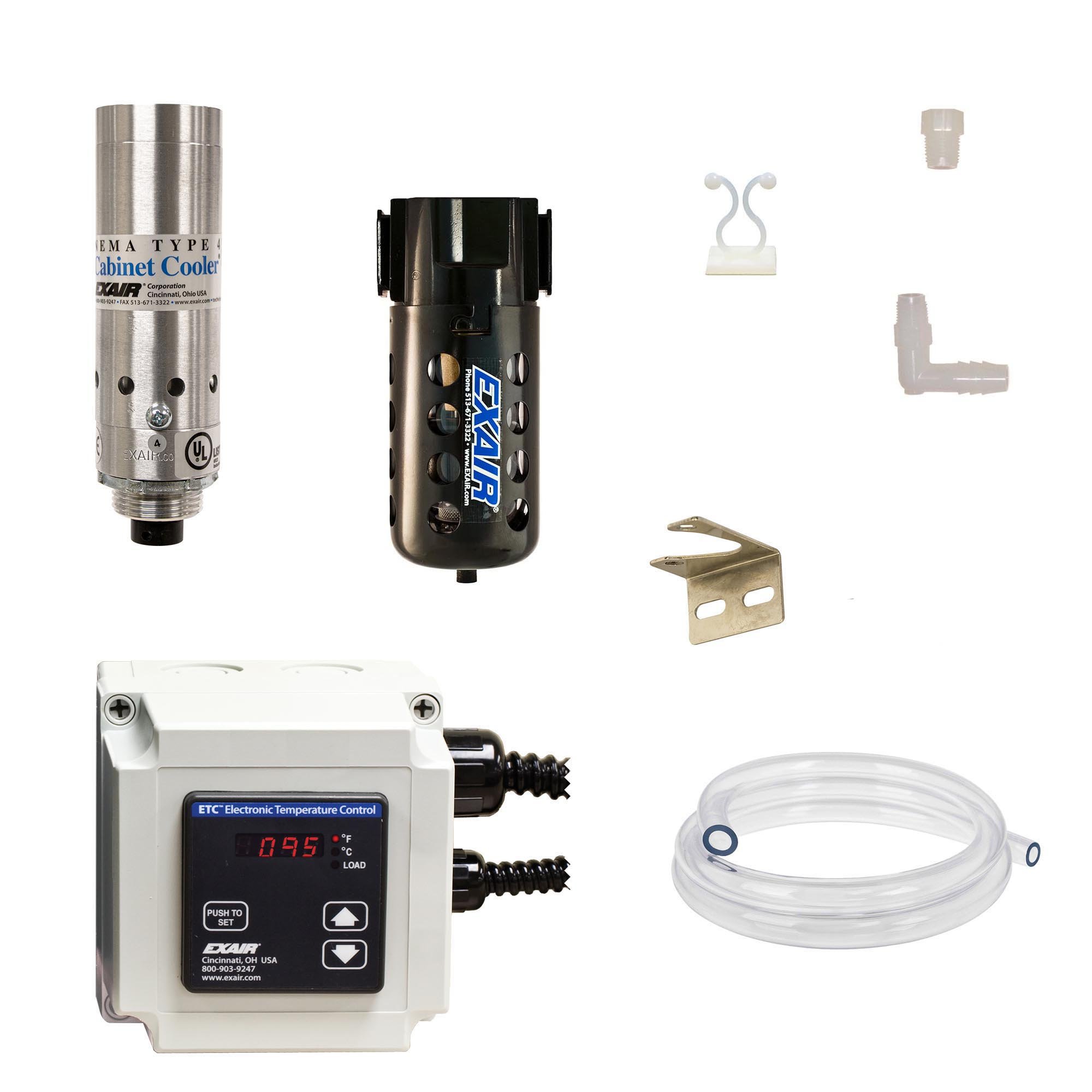

| 4808SS-316-ETC120 | 550 (162) |
| 4815SS-316-ETC120 | 1,000 (293) |
| 4825SS-316-ETC120 | 1,700 (498) |
| 4830SS-316-ETC120 | 2,000 (586) |

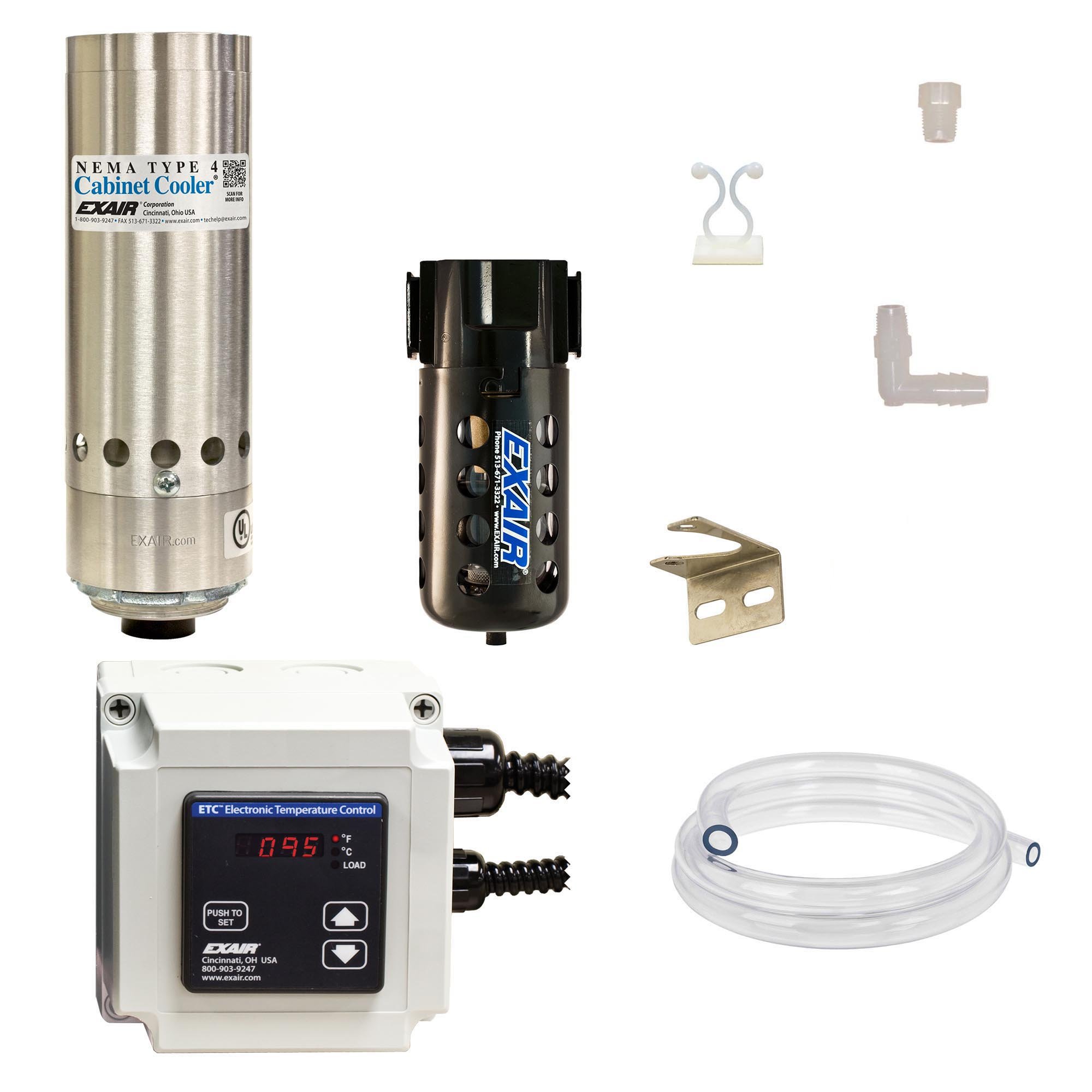

| 4840SS-316-ETC120 | 2,800 (821) |
| 4850SS-316-ETC120 | 3,400 (997) |
| 4860SS-316-ETC120 | 4,000 (1,171) |
| 4870SS-316-ETC120 | 4,800 (1,406) |
| 4880SS-316-ETC120 | 5,600 (1,641) |
NEMA 4X (IP66) Cabinet Cooler Thermostat Control System with ETC - Type 303 Stainless Steel 240V |
|
| Model | Btu/hr. (Watts) |
| 4804SS-ETC240 | 275 (80) |
| 4808SS-ETC240 | 550 (162) |
| 4815SS-ETC240 | 1,000 (293) |
| 4825SS-ETC240 | 1,700 (498) |
| 4830SS-ETC240 | 2,000 (586) |
| 4840SS-ETC240 | 2,800 (821) |
| 4850SS-ETC240 | 3,400 (997) |
| 4860SS-ETC240 | 4,000 (1,171) |
| 4870SS-ETC240 | 4,800 (1,406) |
| 4880SS-ETC240 | 5,600 (1,641) |
NEMA 4X (IP66) Cabinet Cooler Thermostat Control System with ETC - Type 316 Stainless Steel 240V |
|
| Model | Btu/hr. (Watts) |
| 4804SS-316-ETC240 | 275 (80) |
| 4808SS-316-ETC240 | 550 (162) |
| 4815SS-316-ETC240 | 1,000 (293) |
| 4825SS-316-ETC240 | 1,700 (498) |
| 4830SS-316-ETC240 | 2,000 (586) |
| 4840SS-316-ETC240 | 2,800 (821) |
| 4850SS-316-ETC240 | 3,400 (997) |
| 4860SS-316-ETC240 | 4,000 (1,171) |
| 4870SS-316-ETC240 | 4,800 (1,406) |
| 4880SS-316-ETC240 | 5,600 (1,641) |
Accessories:
Side Mount Kits:
EXAIR's Side Mount Kits make mounting on the side of an electrical enclosure possible when there is limited space on the top or side. (NEMA 4 and 4X Cabinet Cooler Systems must be mounted vertically.) Side Mount Kits maintain the NEMA rating of large and small NEMA Type 12, 4, and 4X enclosures. they mount in a standard electrical knockout (1-1/2 NPS). Side Mount Kits for NEMA 12 Cabinet Cooler Systems have an aluminum construction. Those for NEMA 4 and 4X Cabinet Cooler Systems are Type 303 or Type 316 stainless steel.
Specifications:
NEMA 4X (IP66) Type 303 Stainless Steel with Thermostat Control - Performance |
||||
| Model | Capacity | Sound Level dBA | ||
| Btu/hr. | Watts | |||
| 4804SS, 4804SS-240, 4804SS-24VDC, 4804SS-ETC120, 4804SS-ETC240 | 275 | 80 | 59* | |
| 4808SS, 4808SS-240, 4808SS-24VDC, 4808SS-ETC120, 4808SS-ETC240 | 550 | 162 | 67* | |
| 4815SS, 4815SS-240, 4815SS-24VDC, 4815SS-ETC120, 4815SS-ETC240 | 1,000 | 293 | 73 | |
| 4825SS, 4825SS-240, 4825SS-24VDC, 4825SS-ETC120, 4825SS-ETC240 | 1,700 | 498 | 80 | |
| 4830SS, 4830SS-240, 4830SS-24VDC, 4830SS-ETC120, 4830SS-ETC240 | 2,000 | 586 | 80 | |
| 4840SS, 4840SS-240, 4840SS-24VDC, 4840SS-ETC120, 4840SS-ETC240 | 2,800 | 821 | 82 | |
| 4850SS, 4850SS-240, 4850SS-24VDC, 4850SS-ETC120, 4850SS-ETC240 | 3,400 | 997 | 84 | |
| 4860SS, 4860SS-240, 4860SS-24VDC, 4860SS-ETC120, 4860SS-ETC240 | 4,000 | 1,171 | 84 | |
| 4870SS, 4870SS-240, 4870SS-24VDC, 4870SS-ETC120, 4870SS-ETC240 | 4,800 | 1,406 | 84 | |
| 4880SS, 4880SS-240, 4880SS-24VDC, 4880SS-ETC120, 4880SS-ETC240 | 5,600 | 1,641 | 85 | |
| *With optional cold muffler installed. Cooling Capacity at 100 PSIG (6.9 BAR) Supply Pressure. | ||||
NEMA 4X (IP66) Type 316 Stainless Steel with Thermostat Control - Performance |
||||
| Model | Capacity | Sound Level dBA | ||
| Btu/hr. | Watts | |||
| 4804SS-316, 4804SS-316-240, 4804SS-316-24VDC, 4804SS-316-ETC120, 4804SS-316-ETC240 | 275 | 80 | 59* | |
| 4808SS-316, 4808SS-316-240, 4808SS-316-24VDC, 4808SS-316-ETC120, 4808SS-316-ETC240 | 550 | 162 | 67* | |
| 4815SS-316, 4815SS-316-240, 4815SS-316-24VDC, 4815SS-316-ETC120, 4815SS-316-ETC240 | 1,000 | 293 | 73 | |
| 4825SS-316, 4825SS-316-240, 4825SS-316-24VDC, 4825SS-316-ETC120, 4825SS-316-ETC240 | 1,700 | 498 | 80 | |
| 4830SS-316, 4830SS-316-240, 4830SS-316-24VDC, 4830SS-316-ETC120, 4830SS-316-ETC240 | 2,000 | 586 | 80 | |
| 4840SS-316, 4840SS-316-240, 4840SS-316-24VDC, 4840SS-316-ETC120, 4840SS-316-ETC240 | 2,800 | 821 | 82 | |
| 4850SS-316, 4850SS-316-240, 4850SS-316-24VDC, 4850SS-316-ETC120, 4850SS-316-ETC240 | 3,400 | 997 | 84 | |
| 4860SS-316, 4860SS-316-240, 4860SS-316-24VDC, 4860SS-316-ETC120, 4860SS-316-ETC240 | 4,000 | 1,171 | 84 | |
| 4870SS-316, 4870SS-316-240, 4870SS-316-24VDC, 4870SS-316-ETC120, 4870SS-316-ETC240 | 4,800 | 1,406 | 84 | |
| 4880SS-316, 4880SS-316-240, 4880SS-316-24VDC, 4880SS-316-ETC120, 4880SS-316-ETC240 | 5,600 | 1,641 | 85 | |
| *With optional cold muffler installed. Cooling Capacity at 100 PSIG (6.9 BAR) Supply Pressure. | ||||
