EXAIR NEMA 12 (IP54) Cabinet Cooler® Systems (dust-tight, oil tight) are ideal for general industrial environments where no liquids or corrosives are present. Unlike an expensive, freon-based air conditioner, EXAIR Cabinet Coolers incorporate a vortex tube to produce cold air from compressed air - with no moving parts. The compact Cabinet Cooler can be installed in minutes through a standard electrical knockout and maintains the NEMA rating of the electronic enclosure. All Cabinet Coolers are UL Listed and CE Compliant. They are a low cost, reliable way of cooling and purging electronic control panels.
| Product | BTU/Hr | Solenoid Valve (standard) or ETC (upgrade) | Voltage | Material | Type | High Temp or NHP | Vortex capacity | Air Inlet | Filter |
 |
275 | N/A | N/A | Stainless Steel Vortex Tube - Aluminum Outer Component | NEMA 12 Cabinet Cooler Only | Non Hazardous Purge | 4 SCFM (113 SLPM) | 1/8 MNPT | N/A |
 |
550 | N/A | N/A | Stainless Steel Vortex Tube - Aluminum Outer Component | NEMA 12 Cabinet Cooler Only | Non Hazardous Purge | 8 SCFM (227 SLPM) | 1/8 MNPT | N/A |
 |
1000 | N/A | N/A | Stainless Steel Vortex Tube - Aluminum Outer Component | NEMA 12 Cabinet Cooler Only | Non Hazardous Purge | 15 SCFM (425 SLPM) | 1/4 MNPT | N/A |
 |
1700 | N/A | N/A | Stainless Steel Vortex Tube - Aluminum Outer Component | NEMA 12 Cabinet Cooler Only | Non Hazardous Purge | 25 SCFM (708 SLPM) | 1/4 MNPT | N/A |
 |
2000 | N/A | N/A | Stainless Steel Vortex Tube - Aluminum Outer Component | NEMA 12 Cabinet Cooler Only | Non Hazardous Purge | 30 SCFM (850 SLPM) | 1/4 MNPT | N/A |
 |
2800 | N/A | N/A | Stainless Steel Vortex Tube - Aluminum Outer Component | NEMA 12 Cabinet Cooler Only | Non Hazardous Purge | 40 SLPM (1133 SLPM) | 1/4 MNPT | N/A |
Specifications:
NEMA 12 (IP54) Non Hazardous Purge Cabinet Cooler - Performance |
||||
| Model | Capacity | Sound Level dBA | ||
| Btu/hr. | Watts | |||
| NHP4004 | 275 | 80 | 59* | |

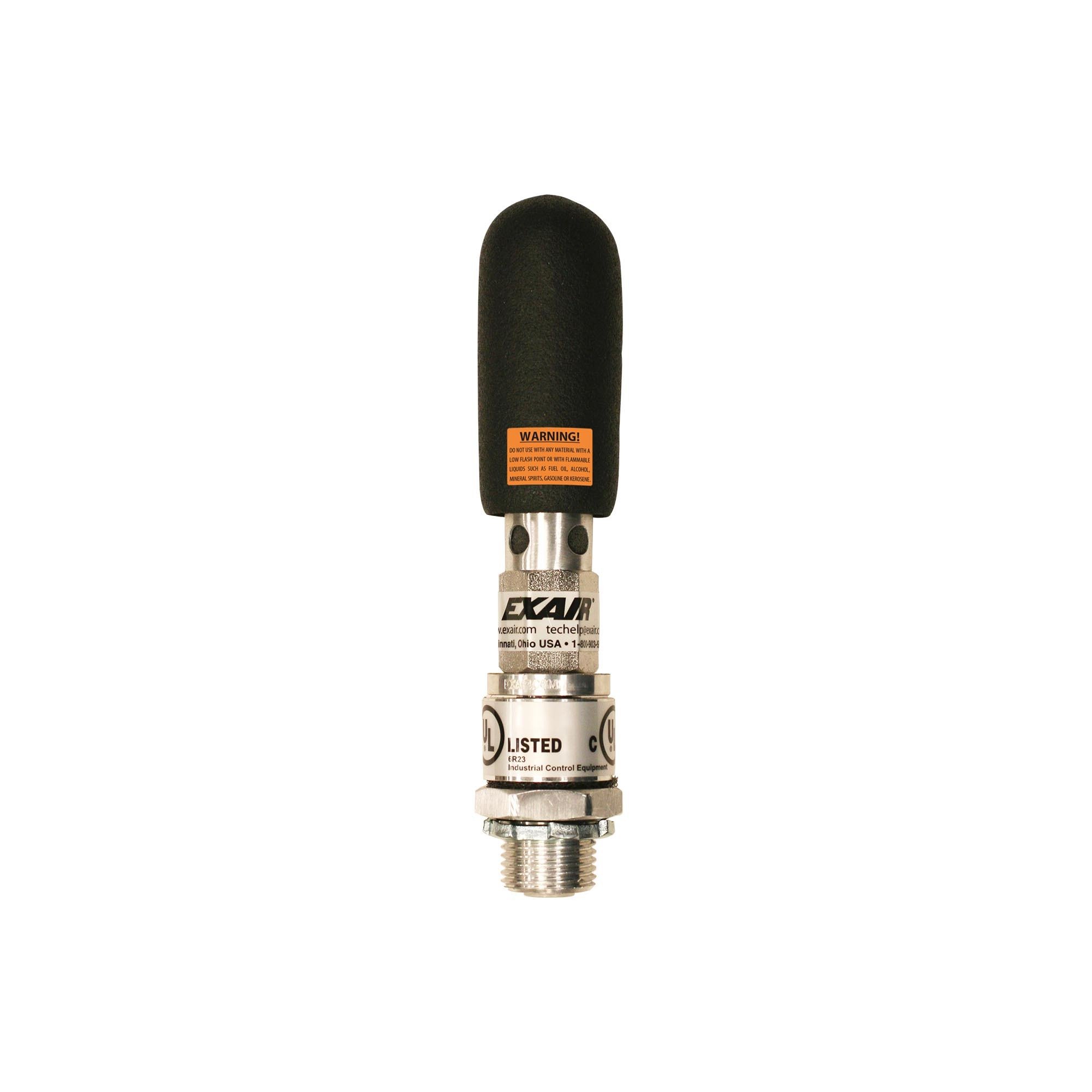

| NHP4008 | 550 | 162 | 67* | |
| NHP4015 | 1,000 | 293 | 73* | |
| NHP4025 | 1,700 | 498 | 74* | |
| NHP4030 | 2,000 | 586 | 74* | |

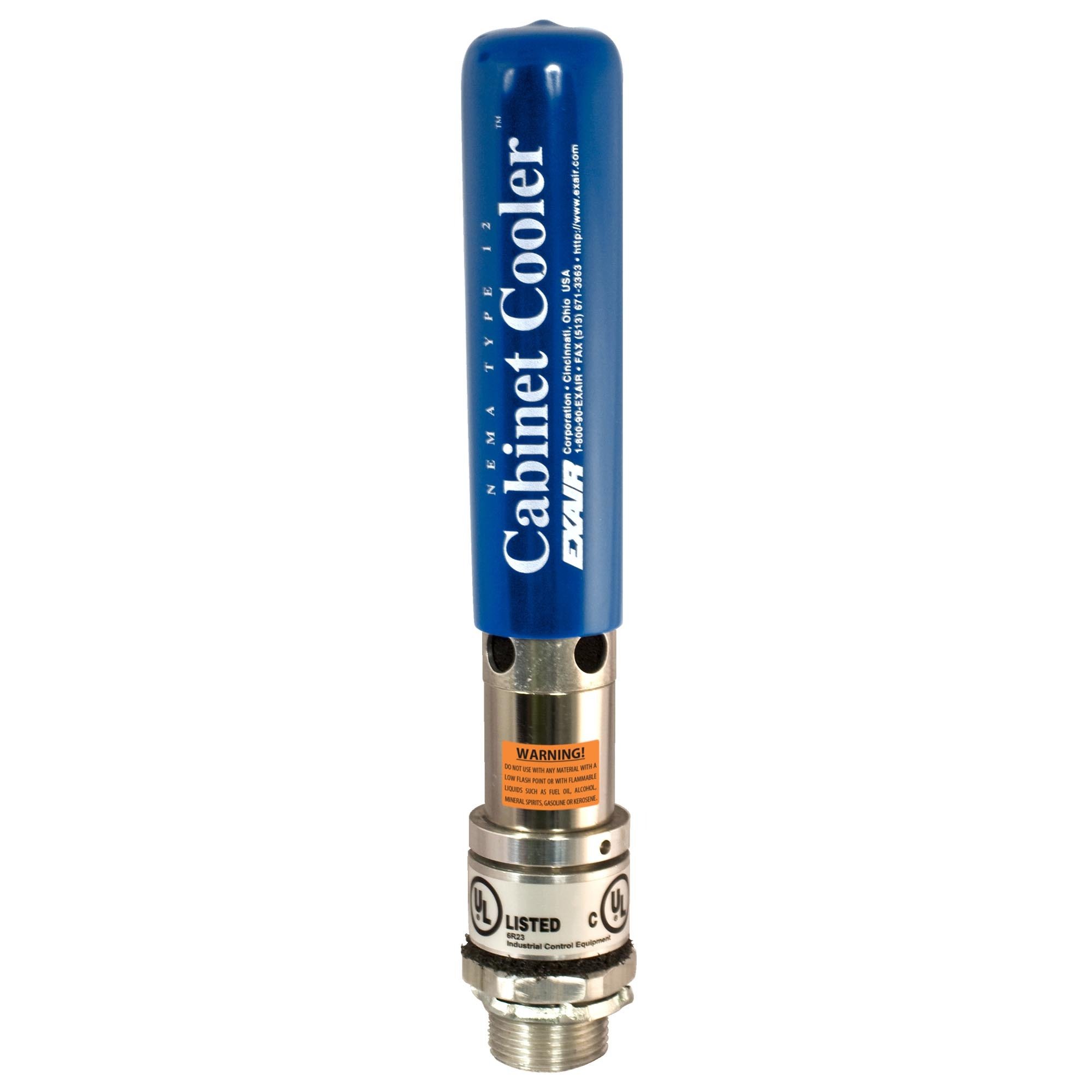

| NHP4040 | 2,800 | 821 | 78* | |
| *With optional cold muffler installed. Cooling Capacity at 100 PSIG (6.9 BAR) Supply Pressure. | ||||
Applications:
- Programmable controllers
- Line control cabinets
- Motor control centers
- Relay panels
- NC/CNC systems
- Modular control centers
- CCTV cameras
- Computer cabinets
- Cool laser housings
- Electronic scales
Cabinet Cooler Standards and Certifications
EXAIR's Cabinet Cooler Systems comply with OSHA's Safety Requirements, the EU General Product Safety Directive (2001/95/EC) and meet the noise limitation requirements of the EU Machinery Directive (2006/42/EC). In addition, Cabinet Cooler Systems are Listed to applicable UL Standards and requirements by Underwriters' Laboratories. All sound level measurements are taken at 3 feet away.
