EXAIR High Temperature Cabinet Coolers for ambient temperatures of 125°F to 200°F (52°C to 93°C) are available in many cooling capacities for large and small control panels. The standard thermostat control systems include an adjustable thermostat factory set at 95°F (35°C). Dirt and dust resistant NEMA 12 thermostat control systems are the most efficient way to operate a Cabinet Cooler. They save air by activating the cooler only when internal temperatures approach critical levels. Thermostat controlled cooler systems are the best option when experiencing fluctuating heat loads caused by environment or seasonal changes. They are a low cost, reliable way to cool and purge electronic control panels. EXAIR Cabinet Coolers incorporate a vortex tube to produce cold air from compressed air - with no moving parts. The compact Cabinet Cooler can be installed in minutes through a standard electrical knockout. NEMA 12 (IP54) Cabinet Cooler® Systems (dust-tight, oil-tight) are ideal for general industrial environments where no liquids or corrosives are present. NEMA 12 (IP54) Cabinet Coolers are available in many cooling capacities for large and small control panels. All Cabinet Coolers are UL Listed and CE compliant.
| Product | BTU/Hr | Solenoid Valve (standard) or ETC (upgrade) | Voltage | Material | Type | High Temp or NHP | Vortex capacity | Air Inlet | Filter |
 |
1000 | N/A | 120V | Stainless Steel Vortex Tube - Aluminum Outer Components | NEMA 12 Thermostat Cabinet Cooler | High Temperature | 15 SCFM (425 SLPM) | 1/4 MNPT | N/A |
 |
1000 | N/A | 240V | Stainless Steel Vortex Tube - Aluminum Outer Components | NEMA 12 Thermostat Cabinet Cooler | High Temperature | 15 SCFM (425 SLPM) | 1/4 MNPT | N/A |
 |
1000 | N/A | 24VDC | Stainless Steel Vortex Tube - Aluminum Outer Components | NEMA 12 Thermostat Cabinet Cooler | High Temperature | 15 SCFM (425 SLPM) | 1/4 MNPT | N/A |
 |
1700 | N/A | 120V | Stainless Steel Vortex Tube - Aluminum Outer Components | NEMA 12 Thermostat Cabinet Cooler | High Temperature | 25 SCFM (708 SLPM) | 1/4 MNPT | N/A |
 |
1700 | N/A | 240V | Stainless Steel Vortex Tube - Aluminum Outer Components | NEMA 12 Thermostat Cabinet Cooler | High Temperature | 25 SCFM (708 SLPM) | 1/4 MNPT | N/A |
 |
1700 | N/A | 24VDC | Stainless Steel Vortex Tube - Aluminum Outer Components | NEMA 12 Thermostat Cabinet Cooler | High Temperature | 25 SCFM (708 SLPM) | 1/4 MNPT | N/A |
 |
2000 | N/A | 120V | Stainless Steel Vortex Tube - Aluminum Outer Components | NEMA 12 Thermostat Cabinet Cooler | High Temperature | 30 SCFM (850 SLPM) | 1/4 MNPT | N/A |
 |
2000 | N/A | 240V | Stainless Steel Vortex Tube - Aluminum Outer Components | NEMA 12 Thermostat Cabinet Cooler | High Temperature | 30 SCFM (850 SLPM) | 1/4 MNPT | N/A |
 |
2000 | N/A | 24VDC | Stainless Steel Vortex Tube - Aluminum Outer Components | NEMA 12 Thermostat Cabinet Cooler | High Temperature | 30 SCFM (850 SLPM) | 1/4 MNPT | N/A |
 |
2800 | N/A | 120V | Stainless Steel Vortex Tube - Aluminum Outer Components | NEMA 12 Thermostat Cabinet Cooler | High Temperature | 40 SCFM (1133 SLPM) | 1/4 MNPT | N/A |
 |
2800 | N/A | 240V | Stainless Steel Vortex Tube - Aluminum Outer Components | NEMA 12 Thermostat Cabinet Cooler | High Temperature | 40 SCFM (1133 SLPM) | 1/4 MNPT | N/A |
 |
2800 | N/A | 24VDC | Stainless Steel Vortex Tube - Aluminum Outer Components | NEMA 12 Thermostat Cabinet Cooler | High Temperature | 40 SCFM (1133 SLPM) | 1/4 MNPT | N/A |
 |
3400 | N/A | 120V | Stainless Steel Vortex Tube - Aluminum Outer Components | NEMA 12 Thermostat Cabinet Cooler | High Temperature | 50 SCFM (1416 SLPM) | 1/4 MNPT | N/A |
 |
3400 | N/A | 240V | Stainless Steel Vortex Tube - Aluminum Outer Components | NEMA 12 Thermostat Cabinet Cooler | High Temperature | 50 SCFM (1416 SLPM) | 1/4 MNPT | N/A |
 |
3400 | N/A | 24VDC | Stainless Steel Vortex Tube - Aluminum Outer Components | NEMA 12 Thermostat Cabinet Cooler | High Temperature | 50 SCFM (1416 SLPM) | 1/4 MNPT | N/A |
 |
4000 | N/A | 120V | Stainless Steel Vortex Tube - Aluminum Outer Components | NEMA 12 Thermostat Cabinet Cooler | High Temperature | 60 SCFM (1699 SLPM) | 1/4 MNPT | N/A |
 |
4000 | N/A | 240V | Stainless Steel Vortex Tube - Aluminum Outer Components | NEMA 12 Thermostat Cabinet Cooler | High Temperature | 60 SCFM (1699 SLPM) | 1/4 MNPT | N/A |
 |
4000 | N/A | 24VDC | Stainless Steel Vortex Tube - Aluminum Outer Components | NEMA 12 Thermostat Cabinet Cooler | High Temperature | 60 SCFM (1699 SLPM) | 1/4 MNPT | N/A |
 |
4800 | N/A | 120V | Stainless Steel Vortex Tube - Aluminum Outer Components | NEMA 12 Thermostat Cabinet Cooler | High Temperature | 70 SCFM (1982 SLPM) | 1/4 MNPT | N/A |
 |
4800 | N/A | 240V | Stainless Steel Vortex Tube - Aluminum Outer Components | NEMA 12 Thermostat Cabinet Cooler | High Temperature | 70 SCFM (1982 SLPM) | 1/4 MNPT | N/A |
 |
4800 | N/A | 24VDC | Stainless Steel Vortex Tube - Aluminum Outer Components | NEMA 12 Thermostat Cabinet Cooler | High Temperature | 70 SCFM (1982 SLPM) | 1/4 MNPT | N/A |
 |
5600 | N/A | 120V | Stainless Steel Vortex Tube - Aluminum Outer Components | NEMA 12 Thermostat Cabinet Cooler | High Temperature | 80 SCFM (2265 SLPM) | 1/4 MNPT | N/A |
 |
5600 | N/A | 240V | Stainless Steel Vortex Tube - Aluminum Outer Components | NEMA 12 Thermostat Cabinet Cooler | High Temperature | 80 SCFM (2265 SLPM) | 1/4 MNPT | N/A |
 |
5600 | N/A | 24VDC | Stainless Steel Vortex Tube - Aluminum Outer Components | NEMA 12 Thermostat Cabinet Cooler | High Temperature | 80 SCFM (2265 SLPM) | 1/4 MNPT | N/A |
Specifications:
NEMA 12 (IP54) High Temperature Cabinet Cooler with Thermostat - Performance |
||||
| Model | Capacity | Sound Level dBA | ||
| Btu/hr. | Watts | |||
| HT4315, HT4315-240, HT4315-24VDC | 1,000 | 293 | 73* | |

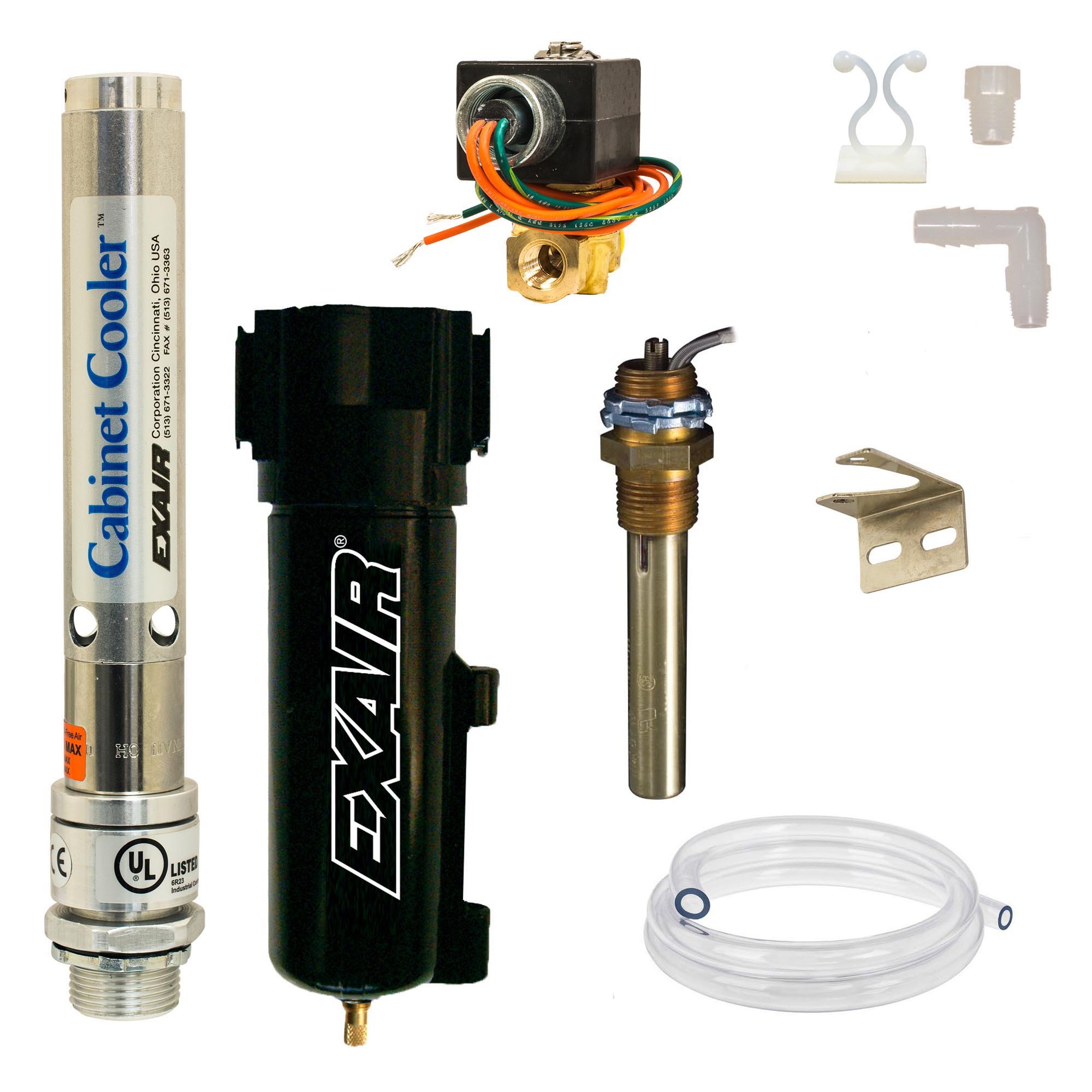

| HT4325, HT4325-240, HT4325-24VDC | 1,700 | 498 | 74* | |

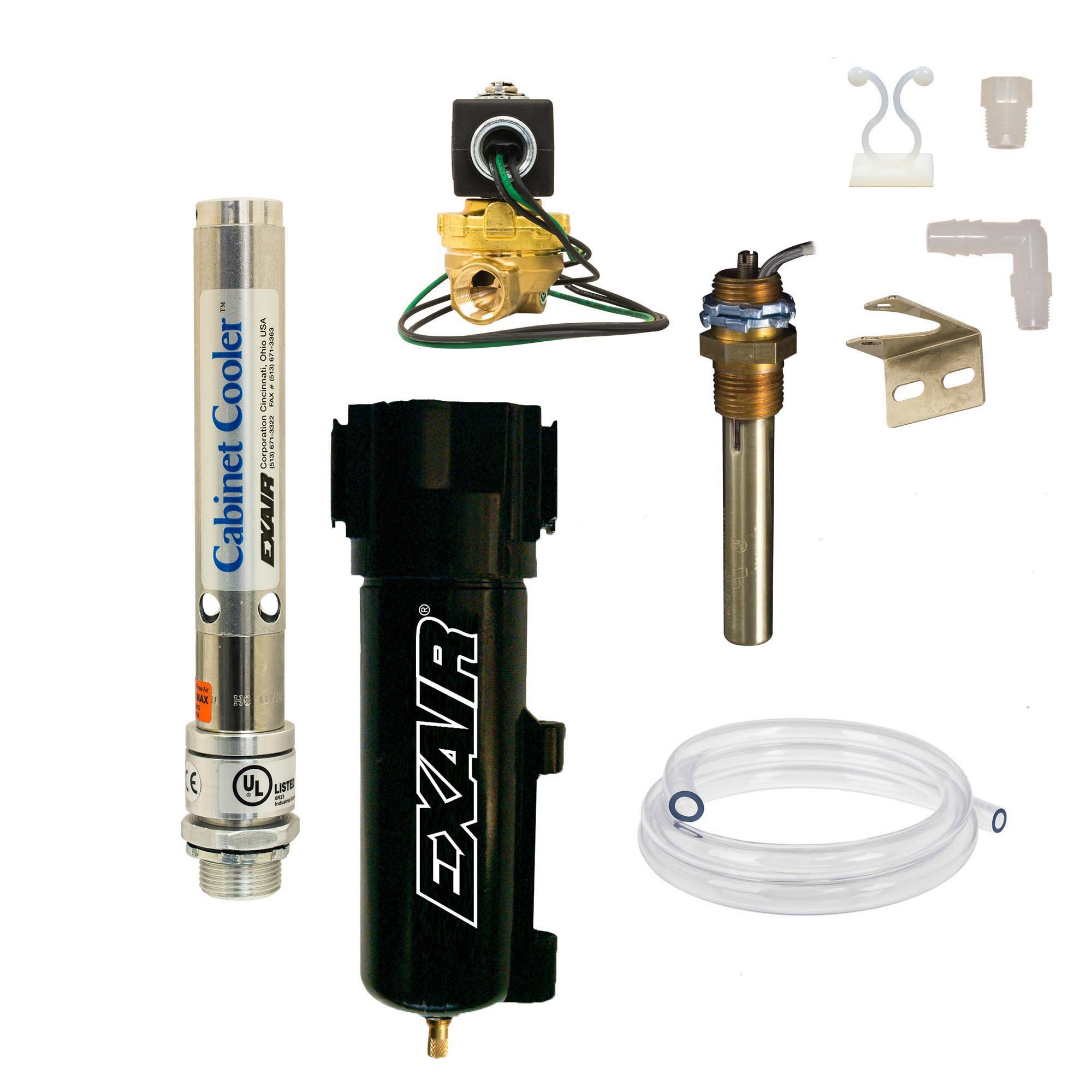

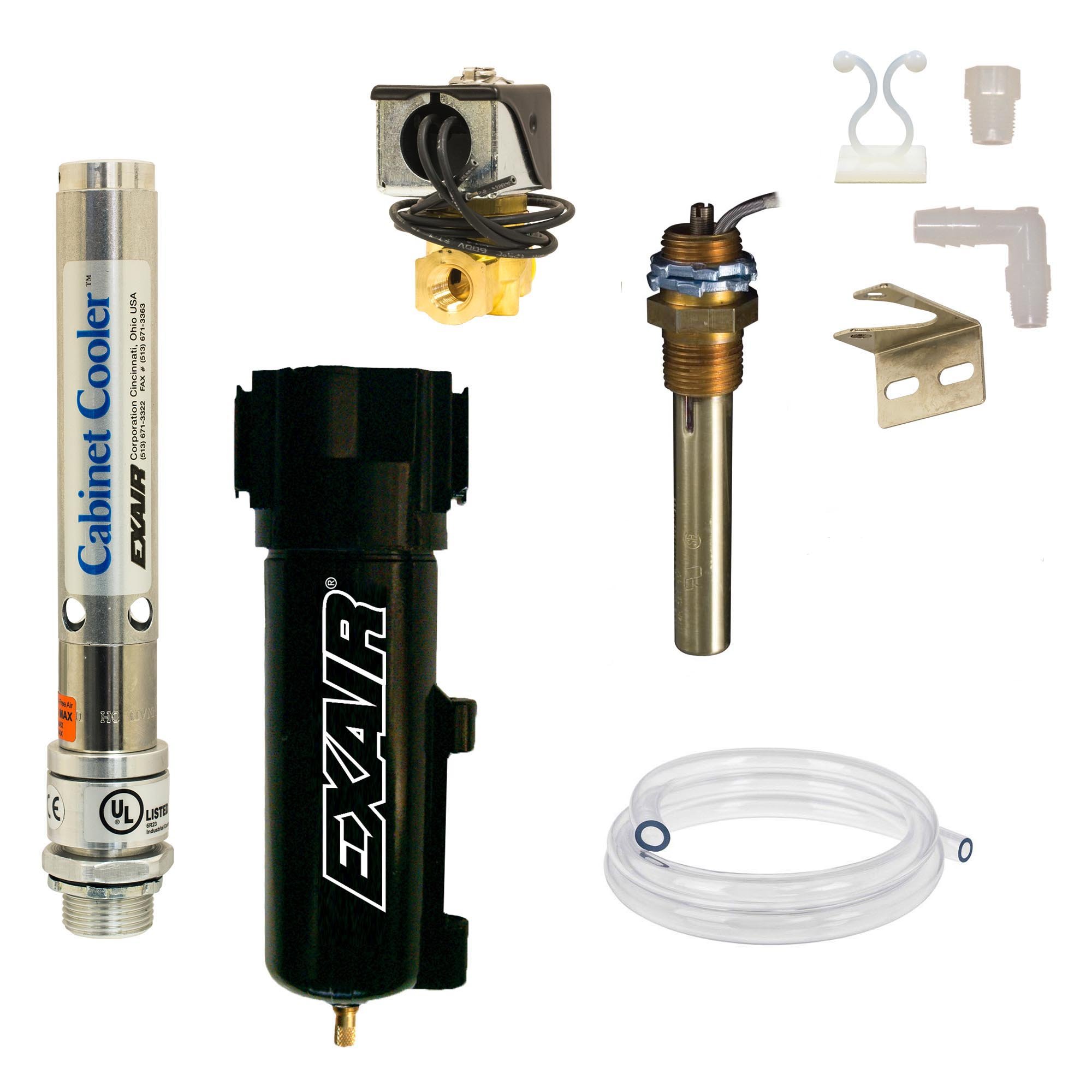

| HT4330, HT4330-240, HT4330-24VDC | 2,000 | 586 | 74* | |
| HT4340, HT4340-240, HT4340-24VDC | 2,800 | 821 | 78* | |
| HT4350, HT4350-240, HT4350-24VDC | 3,400 | 997 | 75* | |

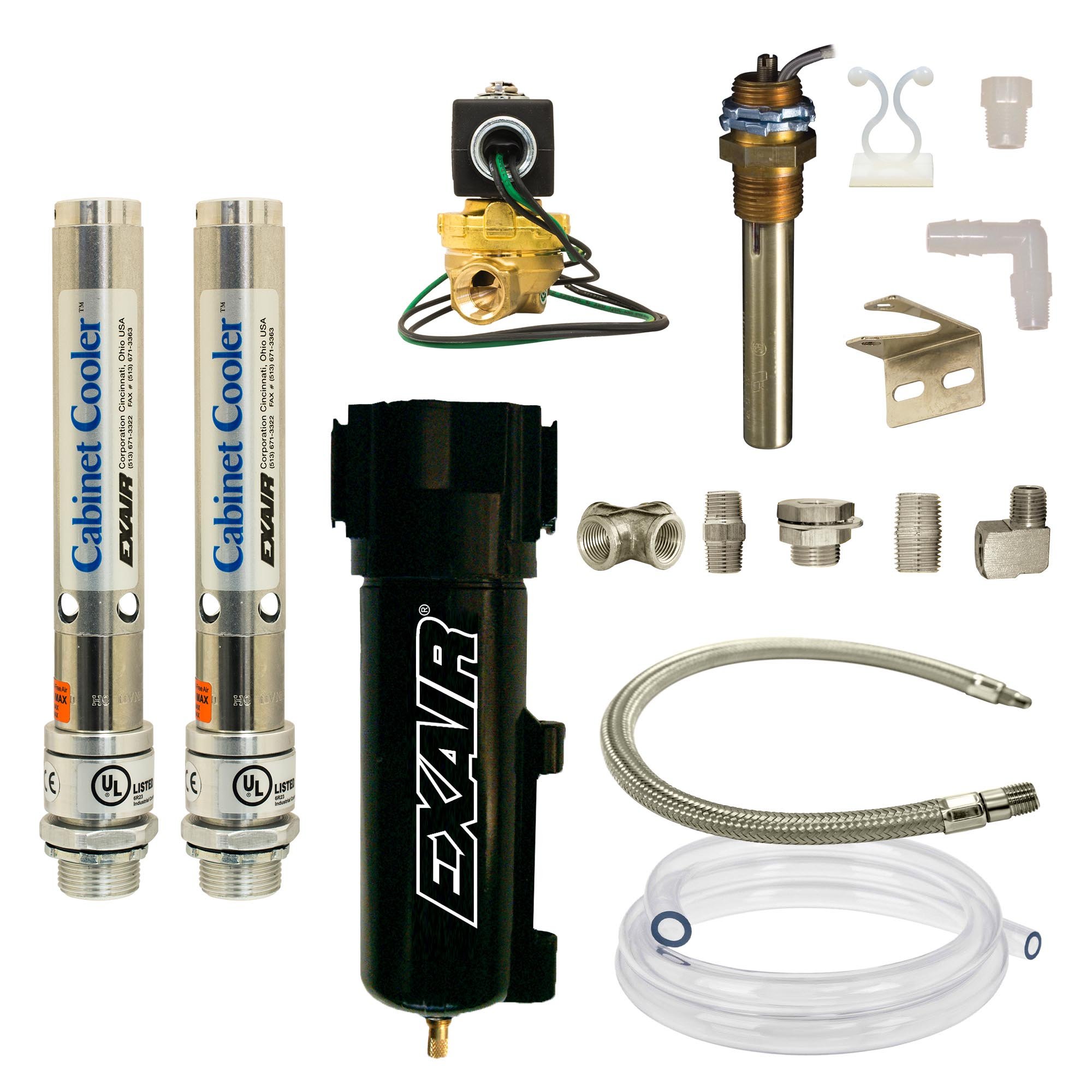

| HT4360, HT4360-240, HT4360-24VDC | 4,000 | 1,171 | 77* | |
| HT4370, HT4370-240, HT4370-24VDC | 4,800 | 1,406 | 77* | |

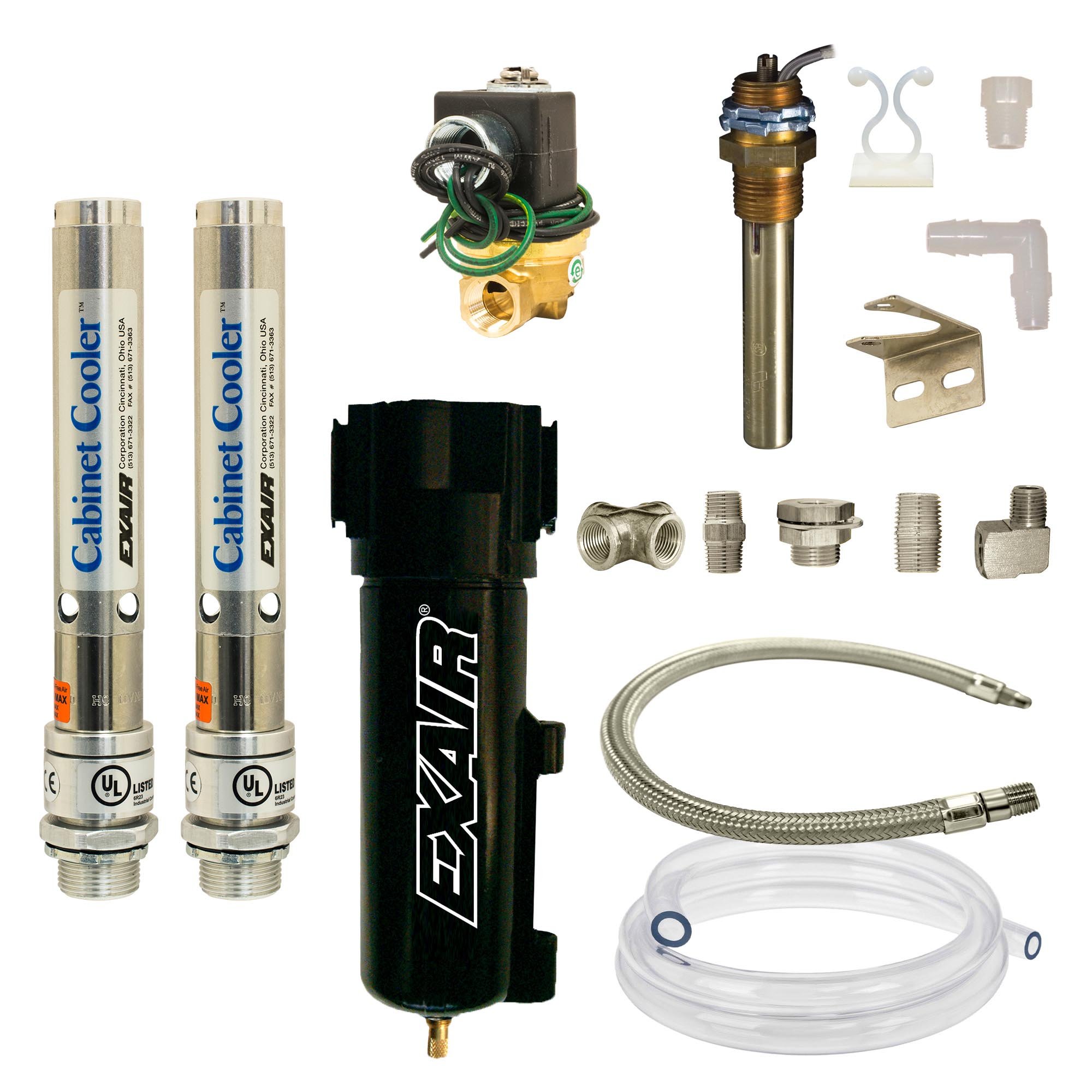

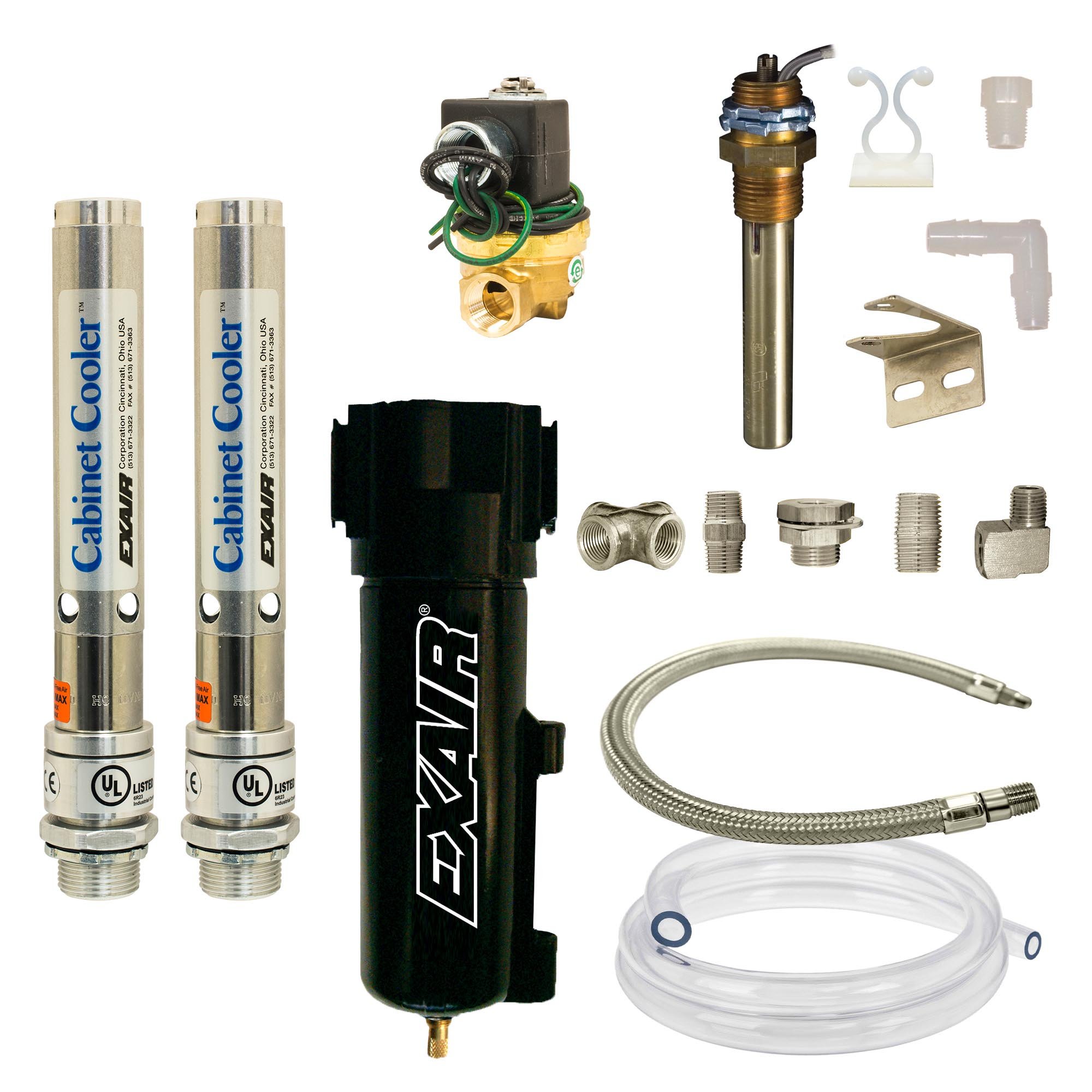

| HT4380, HT4380-240, HT4380-24VDC | 5,600 | 1,641 | 79* | |
| *With optional cold muffler installed. Cooling Capacity at 100 PSIG (6.9 BAR) Supply Pressure. | ||||
Applications:
- Programmable controllers
- Line control cabinets
- Motor control centers
- Relay panels
- NC/CNC systems
- Modular control centers
- CCTV cameras
- Computer cabinets
- Cool laser housings
- Electronic scales
NEMA 12 Cabinet Cooler Advantages:
- Withstand ambient temperatures up to 200°F
- Low cost
- Compact
- Cooling capacities up to 5,600 Btu/hr. (1,641 Watts)
- Quiet
- Install in minutes
- Maintain NEMA 12 integrity (IP54)
- Stabilize enclosure temperature and humidity
- No CFC's
- No moving parts - maintenance free
- Mount in standard electrical knockout
- Stop nuisance tripping
- Stop heat damage
- Eliminate fans and filters
- Eliminate lost production
- Stop circuit drift
- Provide protection from dirt and dust
Models:
NEMA 12 (IP54) High Temperature Cabinet Cooler Systems, Thermostat Control |
|
| Model | Btu/hr. (Watts) |
| HT4315 | 1,000 (293) |
| HT4325 | 1,700 (498) |
| HT4330 | 2,000 (586) |
| HT4340 | 2,800 (821) |
| HT4350 | 3,400 (997) |
| HT4360 | 4,000 (1,171) |
| HT4370 | 4,800 (1,406) |
| HT4380 | 5,600 (1,641) |
NEMA 4 (IP66) High Temperature Cabinet Cooler Systems, Thermostat Control (240V) |
|
| Model | Btu/hr. (Watts) |
| HT4315-240 | 1,000 (293) |
| HT4325-240 | 1,700 (498) |
| HT4330-240 | 2,000 (586) |
| HT4340-240 | 2,800 (821) |
| HT4350-240 | 3,400 (997) |
| HT4360-240 | 4,000 (1,171) |
| HT4370-240 | 4,800 (1,406) |
| HT4380-240 | 5,600 (1,641) |
NEMA 4 (IP66) High Temperature Cabinet Cooler Systems, Thermostat Control (24VDC) |
|
| Model | Btu/hr. (Watts) |
| HT4315-24VDC | 1,000 (293) |
| HT4325-24VDC | 1,700 (498) |
| HT4330-24VDC | 2,000 (586) |
| HT4340-24VDC | 2,800 (821) |
| HT4350-24VDC | 3,400 (997) |
| HT4360-24VDC | 4,000 (1,171) |
| HT4370-24VDC | 4,800 (1,406) |
| HT4380-24VDC | 5,600 (1,641) |
Accessories:
EXAIR's Side Mount Kits make mounting on the side of an electrical enclosure possible when there is limited space on the top or side. (NEMA 4 and 4X Cabinet Cooler Systems must be mounted vertically.) Side Mount Kits maintain the NEMA rating of large and small NEMA Type 12, 4, and 4X enclosures. they mount in a standard electrical knockout (1-1/2 NPS). Side Mount Kits for NEMA 12 Cabinet Cooler Systems have an aluminum construction. Those for NEMA 4 and 4X Cabinet Cooler Systems are Type 303 or Type 316 stainless steel.
Cabinet Cooler Standards and Certifications
EXAIR's Cabinet Cooler Systems comply with OSHA's Safety Requirements, the EU General Product Safety Directive (2001/95/EC) and meet the noise limitation requirements of the EU Machinery Directive (2006/42/EC). In addition, Cabinet Cooler Systems are Listed to applicable UL Standards and requirements by Underwriters' Laboratories. All sound level measurements are taken at 3 feet away.
