| Product | BTU? Hr | Solenoid Valve (standard) or ETC (upgrade) | Voltage | Material | Type | High Temp or NHP | Vortex capacity | Air Inlet | Filter |
 |
1000 | N/A | N/A | Stainless Steel Vortex Tube - Aluminum Outer Components | NEMA 12 Continuous Operation Cabinet Cooler | Higher Temperature | 15 SCFM (425 SLPM) | 1/4 MNPT | N/A |
 |
1700 | N/A | N/A | Stainless Steel Vortex Tube - Aluminum Outer Components | NEMA 12 Continuous Operation Cabinet Cooler | Higher Temperature | 25 SCFM (708 SLPM) | 1/4 MNPT | N/A |
 |
200 | N/A | N/A | Stainless Steel Vortex Tube - Aluminum Outer Components | NEMA 12 Continuous Operation Cabinet Cooler | Higher Temperature | 30 SCFM (850 SLPM) | 1/4 MNPT | N/A |
 |
2800 | N/A | N/A | Stainless Steel Vortex Tube - Aluminum Outer Components | NEMA 12 Continuous Operation Cabinet Cooler | Higher Temperature | 40 SCFM (1133 SLPM) | 1/4 MNPT | N/A |
 |
3400 | N/A | N/A | Stainless Steel Vortex Tube - Aluminum Outer Components | NEMA 12 Continuous Operation Cabinet Cooler | Higher Temperature | 50 SCFM (1416 SLPM) | 1/4 MNPT | N/A |
 |
4000 | N/A | N/A | Stainless Steel Vortex Tube - Aluminum Outer Components | NEMA 12 Continuous Operation Cabinet Cooler | Higher Temperature | 60 SCFM (1699 SLPM) | 1/4 MNPT | N/A |
 |
4800 | N/A | N/A | Stainless Steel Vortex Tube - Aluminum Outer Components | NEMA 12 Continuous Operation Cabinet Cooler | Higher Temperature | 70 SCFM (1982 SLPM) | 1/4 MNPT | N/A |
 |
5600 | N/A | N/A | Stainless Steel Vortex Tube - Aluminum Outer Components | NEMA 12 Continuous Operation Cabinet Cooler | Higher Temperature | 80 SCFM (2265 SLPM) | 1/4 MNPT | N/A |
Specifications:
NEMA 12 (IP54) High Temperature Cabinet Cooler, Continuous Operation - Performance |
||||
| Model | Capacity | Sound Level dBA | ||
| Btu/hr. | Watts | |||
| HT4215 | 1,000 | 293 | 73* | |
| HT4225 | 1,700 | 498 | 74* | |
| HT4230 | 2,000 | 586 | 74* | |
| HT4240 | 2,800 | 821 | 78* | |
| HT4250 | 3,400 | 997 | 75* | |
| HT4260 | 4,000 | 1,171 | 77* | |
| HT4270 | 4,800 | 1,406 | 77* | |
| HT4280 | 5,600 | 1,641 | 79* | |
| *With optional cold muffler installed. Cooling Capacity at 100 PSIG (6.9 BAR) Supply Pressure. | ||||
Applications:
- Programmable controllers
- Line control cabinets
- Motor control centers
- Relay panels
- NC/CNC systems
- Modular control centers
- CCTV cameras
- Computer cabinets
- Cool laser housings
- Electronic scales
Advantages:
- Withstand ambient temperatures up to 200°F
- Low cost
- Compact
- Cooling capacities up to 5,600 Btu/hr. (1,641 Watts)
- Quiet
- Install in minutes
- Maintain NEMA 12 integrity (IP54)
- Stabilize enclosure temperature and humidity
- No CFC's
- No moving parts - maintenance free
- Mount in standard electrical knockout
- Stop nuisance tripping
- Stop heat damage
- Eliminate fans and filters
- Eliminate lost production
- Stop circuit drift
- Provide protection from dirt and dust
Models:

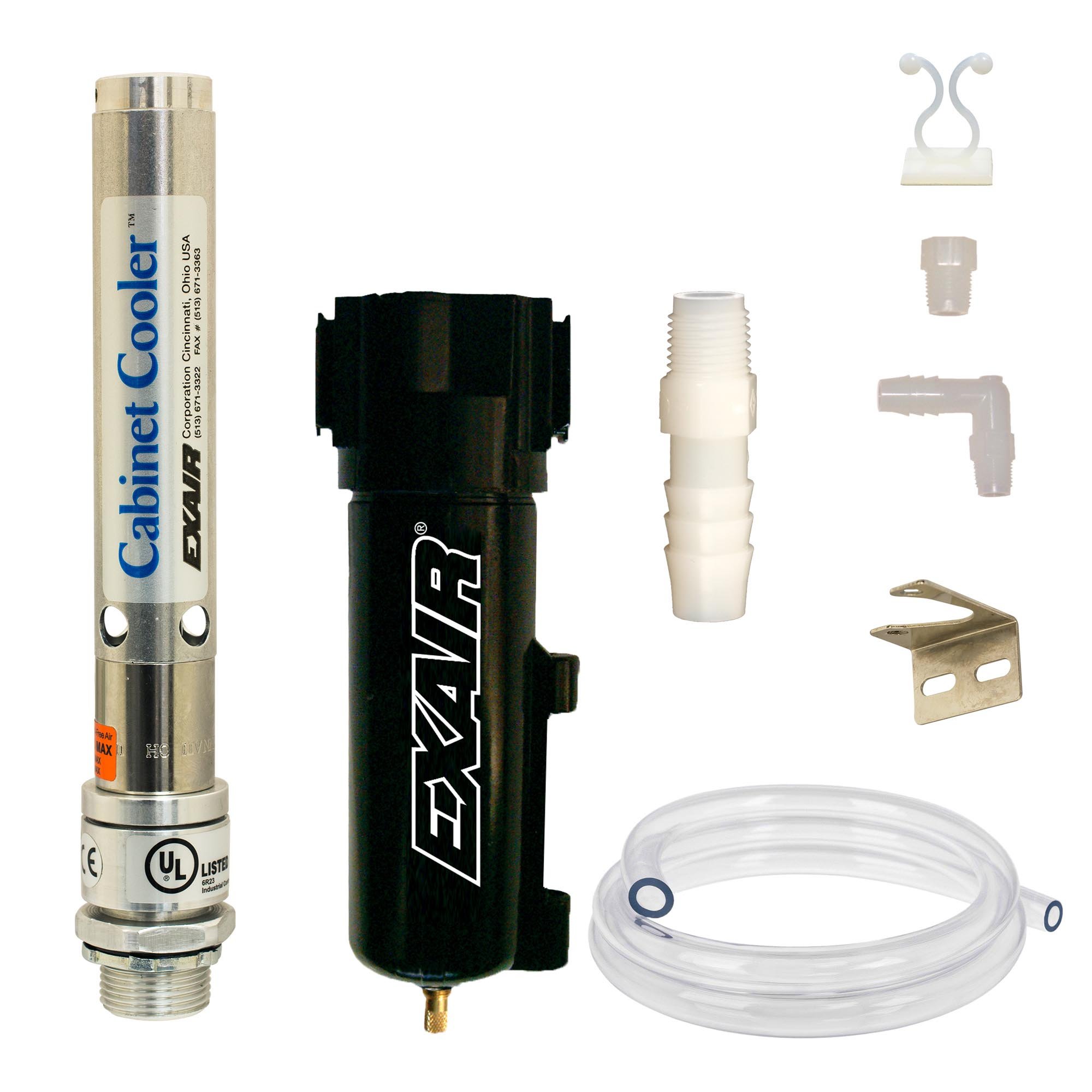

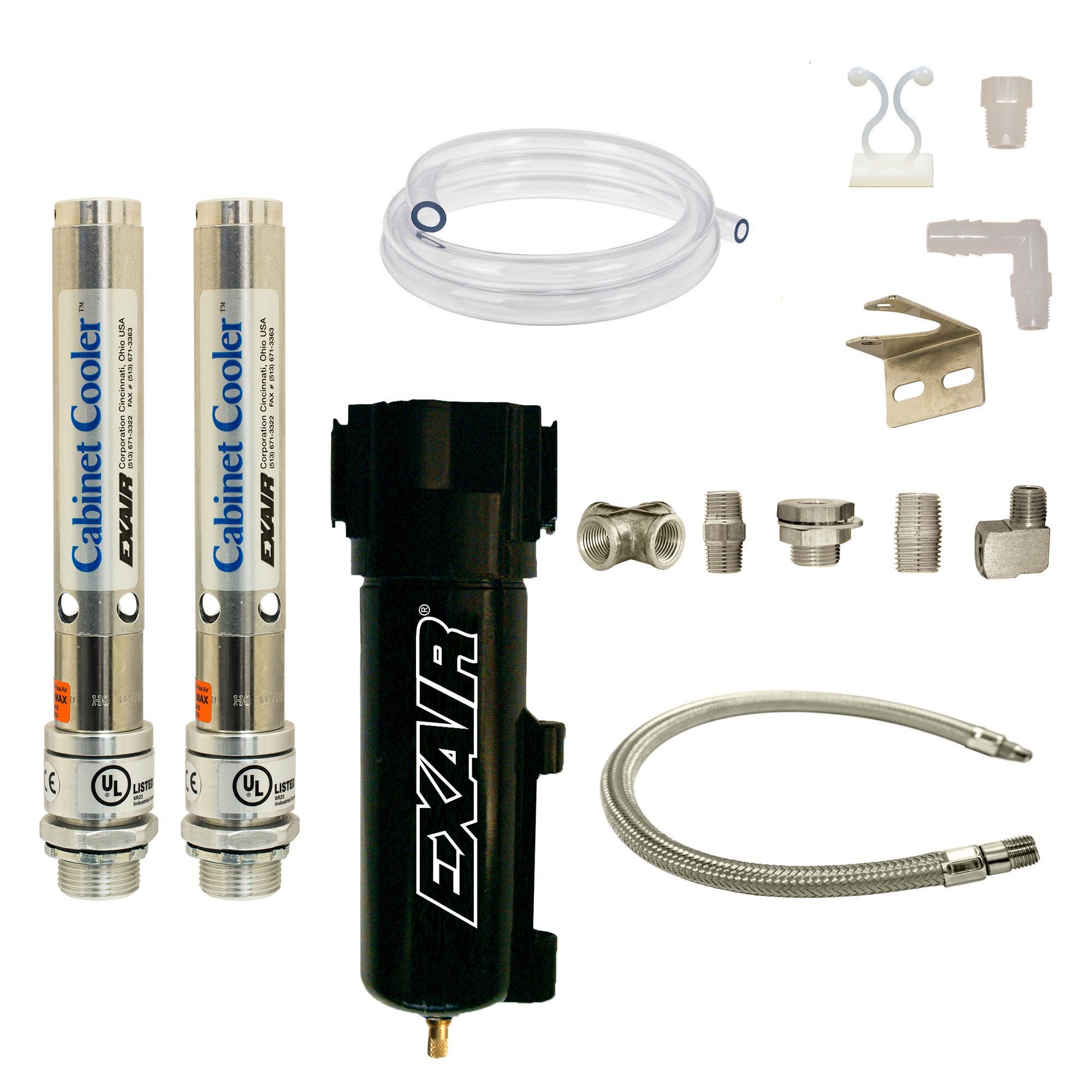

NEMA 12 (IP54) High Temperature Cabinet Cooler Systems, Continuous Operation |
|
| Model | Btu/hr. (Watts) |
| HT4215 | 1,000 (293) |
| HT4225 | 1,700 (498) |
| HT4230 | 2,000 (586) |
| HT4240 | 2,800 (821) |
| HT4250 | 3,400 (997) |
| HT4260 | 4,000 (1,171) |
| HT4270 | 4,800 (1,406) |
| HT4280 | 5,600 (1,641) |
Accessories:
EXAIR's Side Mount Kits make mounting on the side of an electrical enclosure possible when there is limited space on the top or side. (NEMA 4 and 4X Cabinet Cooler Systems must be mounted vertically.) Side Mount Kits maintain the NEMA rating of large and small NEMA Type 12, 4, and 4X enclosures. they mount in a standard electrical knockout (1-1/2 NPS). Side Mount Kits for NEMA 12 Cabinet Cooler Systems have an aluminum construction. Those for NEMA 4 and 4X Cabinet Cooler Systems are Type 303 or Type 316 stainless steel.
Cabinet Cooler Standards and Certifications
EXAIR's Cabinet Cooler Systems comply with OSHA's Safety Requirements, the EU General Product Safety Directive (2001/95/EC) and meet the noise limitation requirements of the EU Machinery Directive (2006/42/EC). In addition, Cabinet Cooler Systems are Listed to applicable UL Standards and requirements by Underwriters' Laboratories. All sound level measurements are taken at 3 feet away.
