EXAIR NEMA 12 (IP54) Cabinet Cooler® Systems (dust-tight, oil-tight) are ideal for general industrial environments where no liquids or corrosives are present. Dirt, dust and oil resistant NEMA 12 thermostat control systems are the most efficient way to operate a Cabinet Cooler. They save air by activating the cooler only when internal temperatures approach critical levels. Thermostat controlled cooler systems are the best option when experiencing fluctuating heat loads caused by environment or seasonal changes. Standard thermostat control systems include an adjustable thermostat factory set at 95°F (35°C). The NEMA 12 (IP54) compact Cabinet Cooler can be installed in minutes through a standard electrical knockout and maintains the NEMA rating of the electronic enclosure. All Cabinet Coolers are UL Listed and CE compliant. They are a low cost, reliable way to cool and purge electronic control panels. EXAIR Cabinet Coolers incorporate a vortex tube to produce cold air from compressed air - with no moving parts.
Cooling capacities up to 5,600 Btu/hr. (1,641 Watts)
Quiet
Install in minutes
Maintain NEMA 12 integrity (IP54)
Stabilize enclosure temperature and humidity
No CFC's
No moving parts - maintenance free
Mount in standard electrical knockout
Stop nuisance tripping
Stop heat damage
Eliminate fans and filters
Eliminate lost production
Stop circuit drift
Provide protection from dirt and dust
Models:

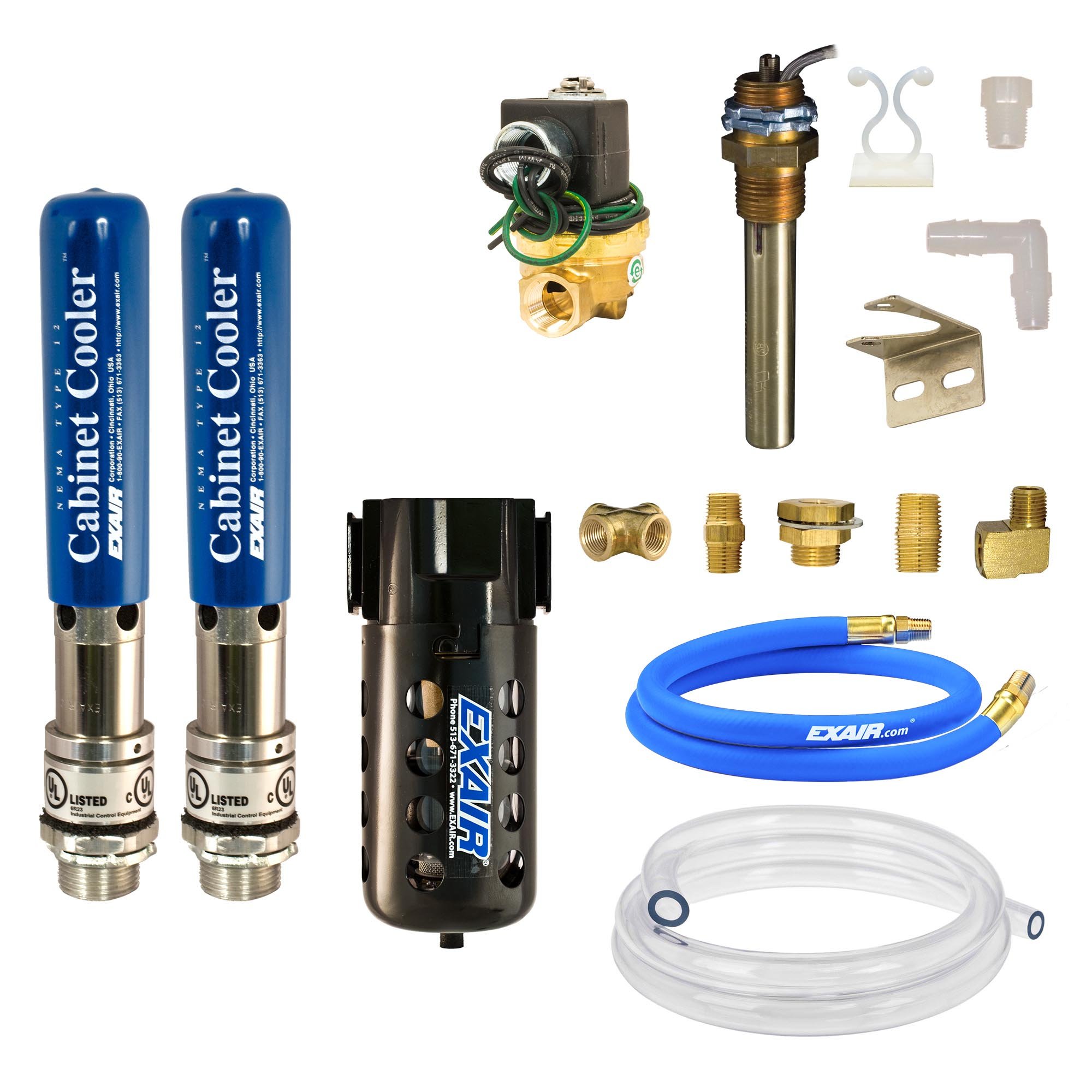

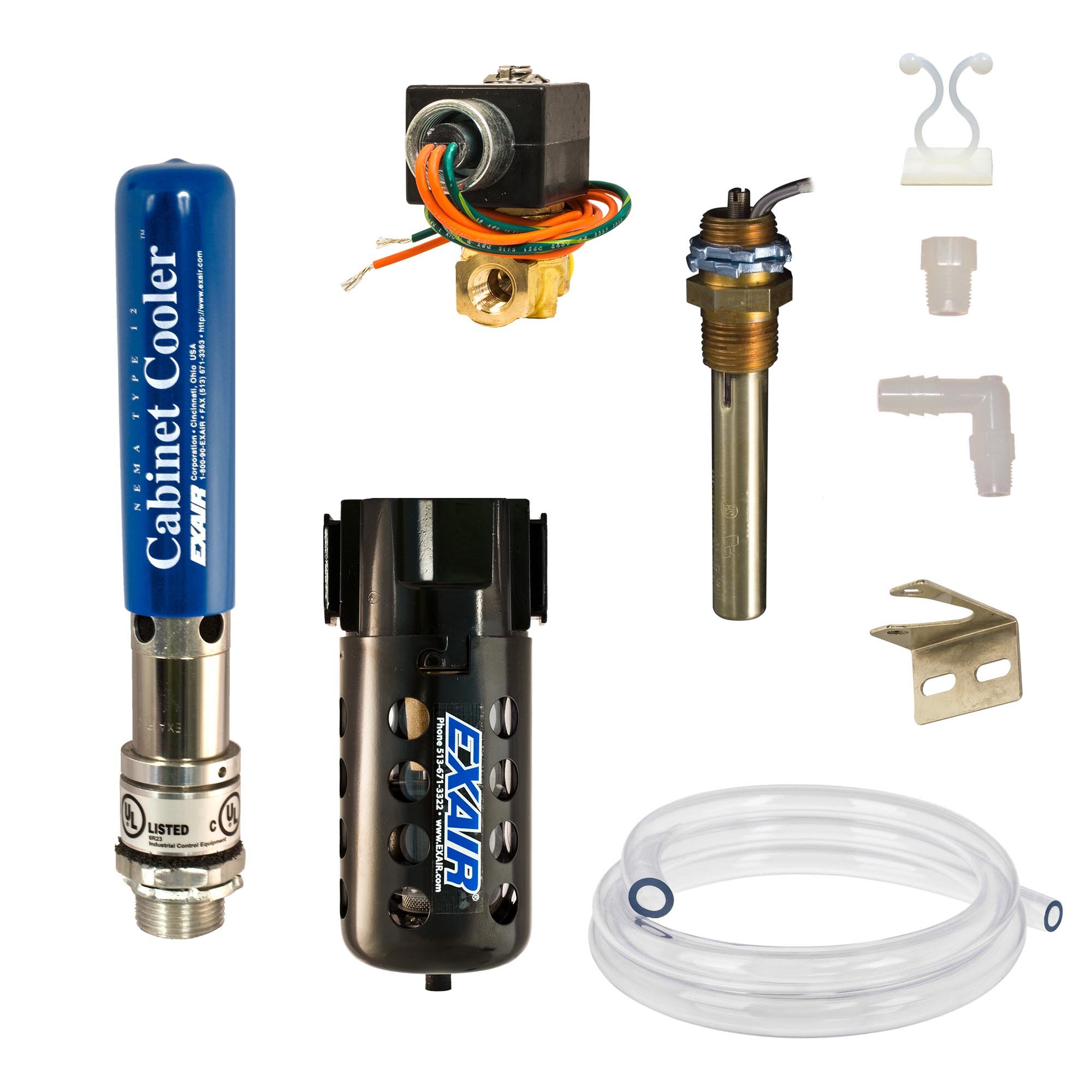

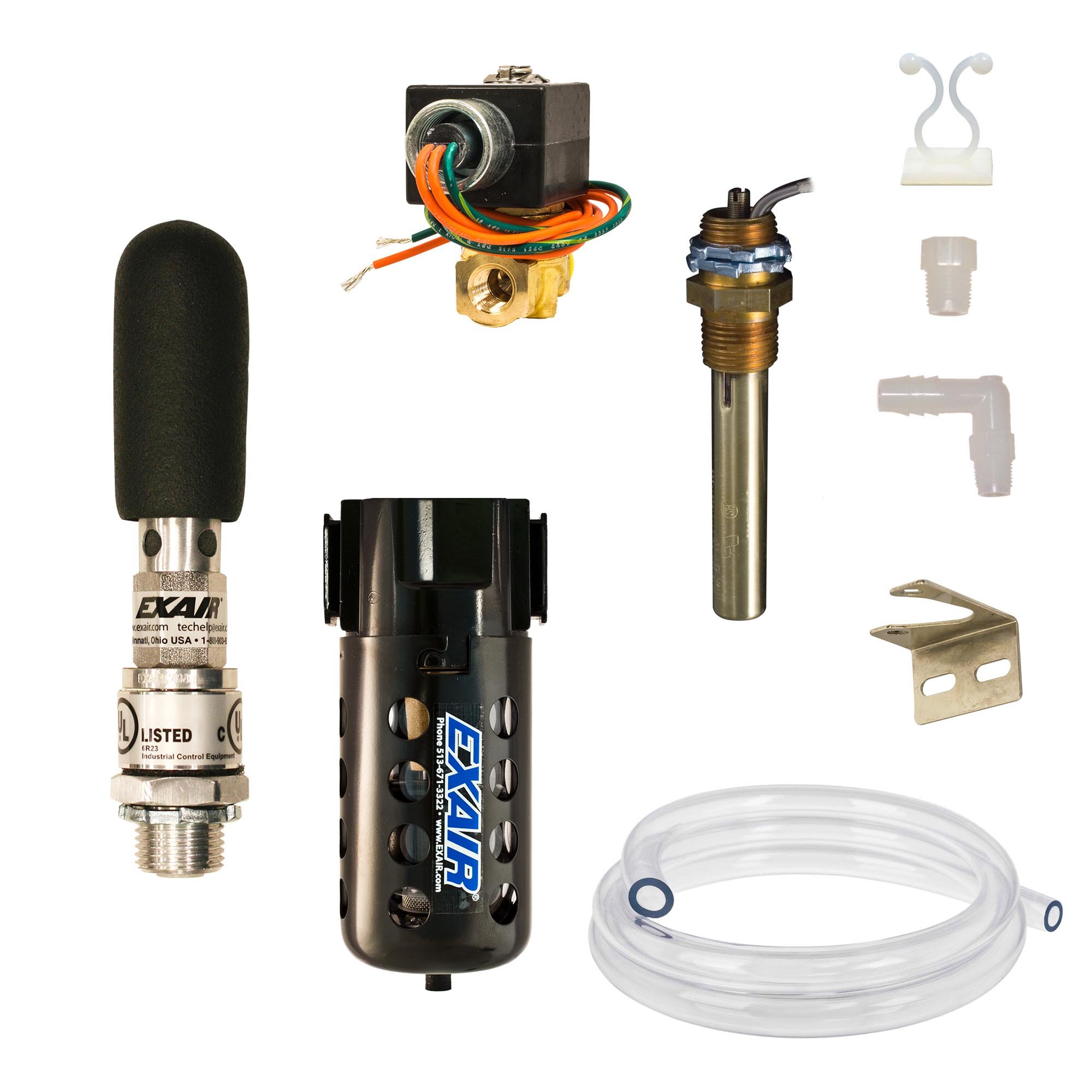

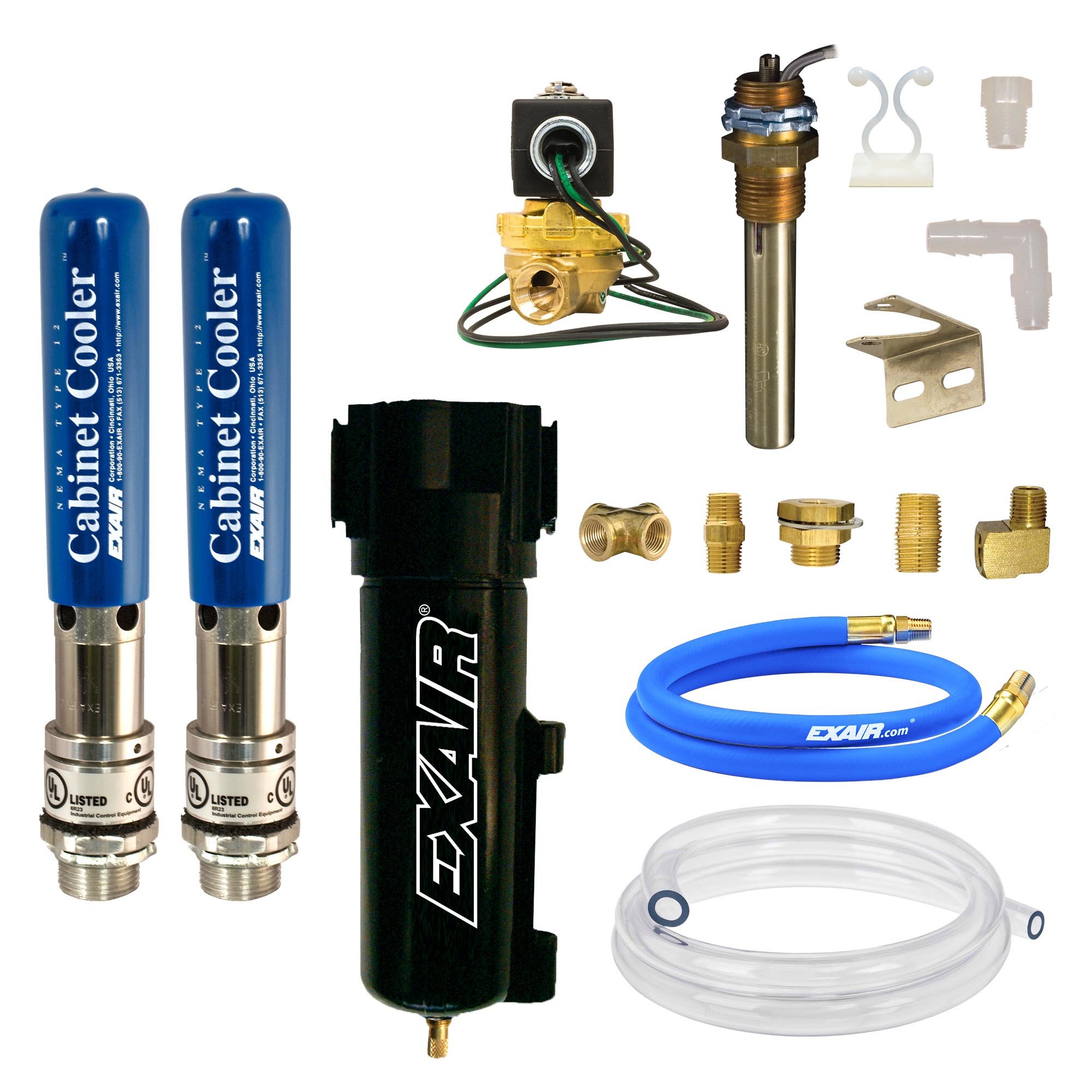

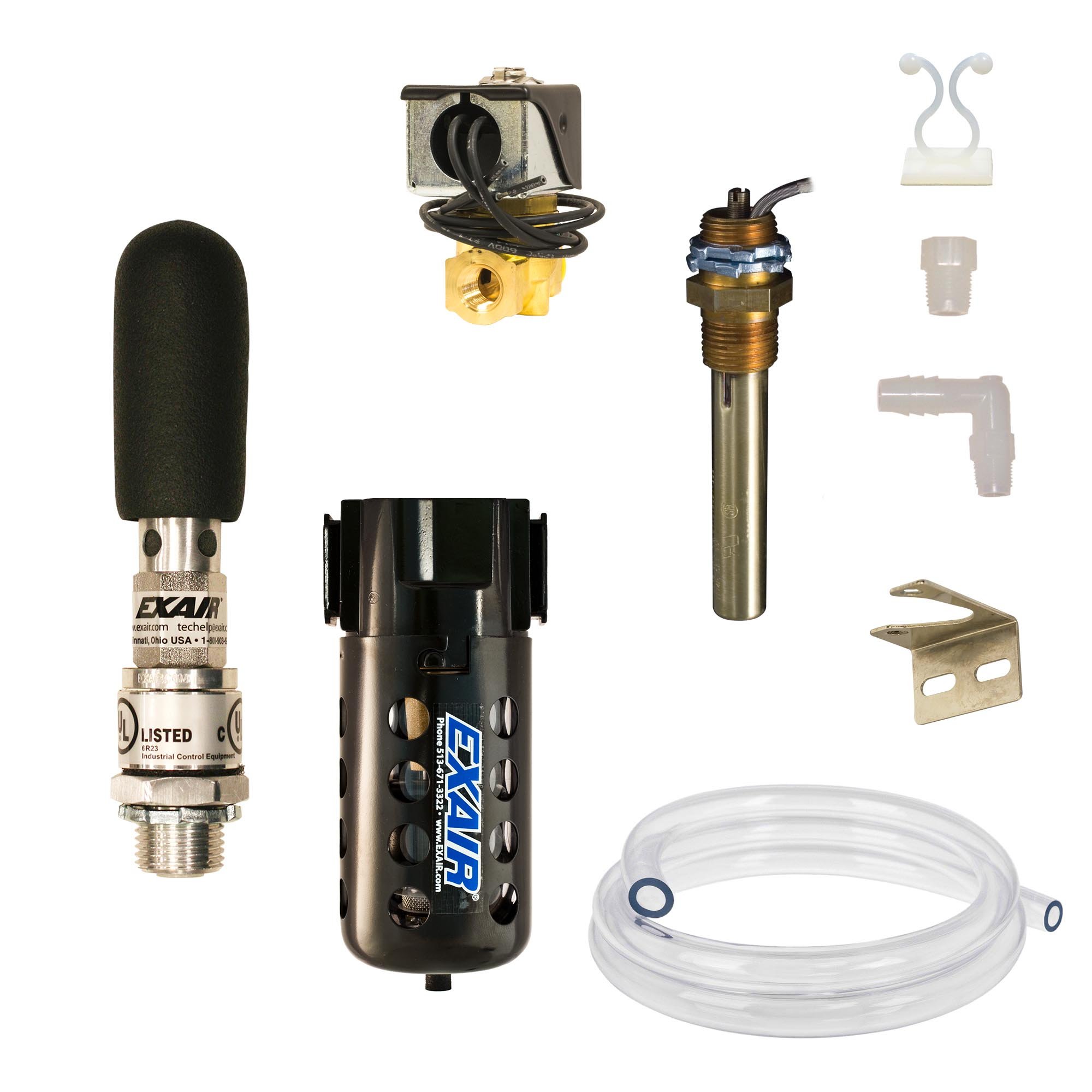

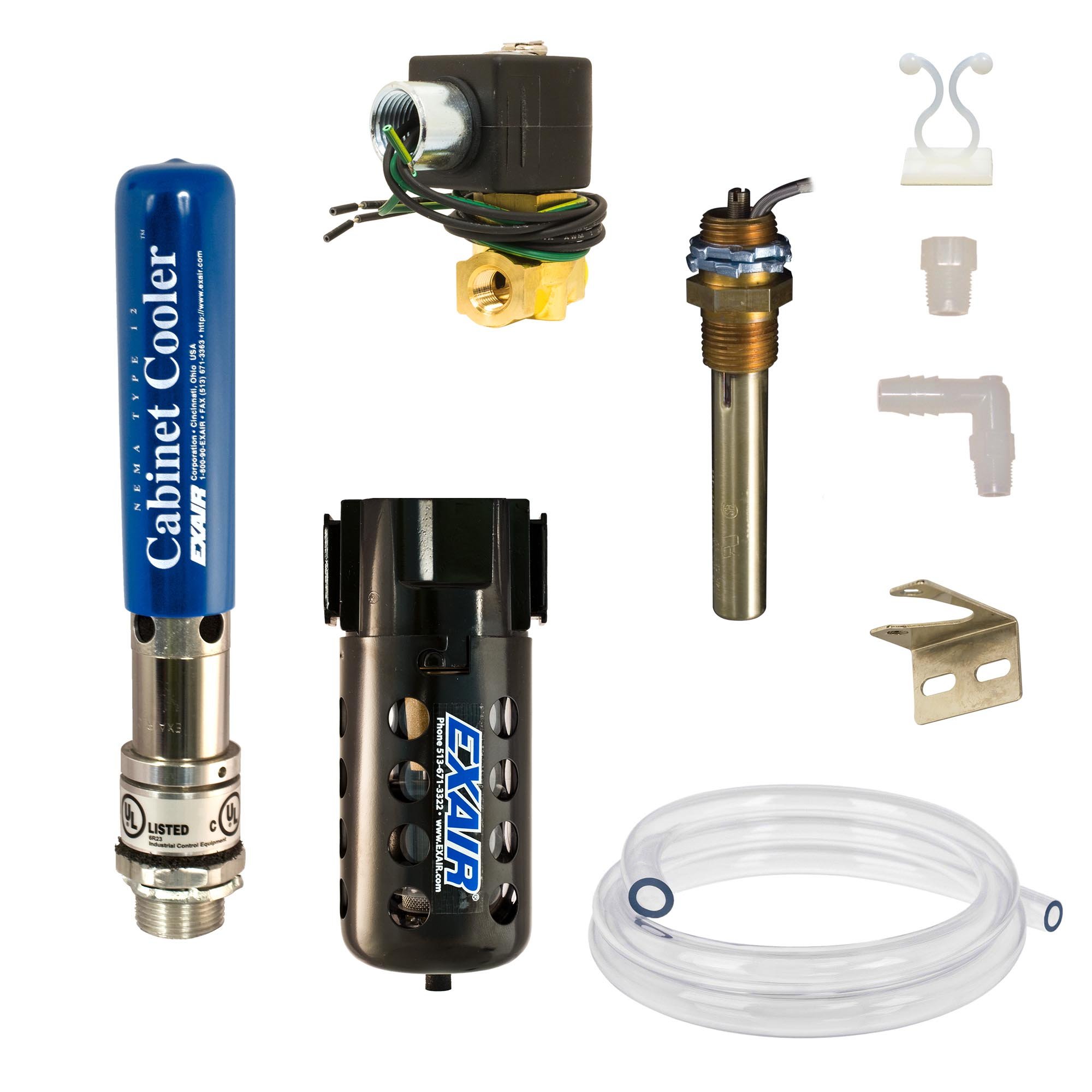

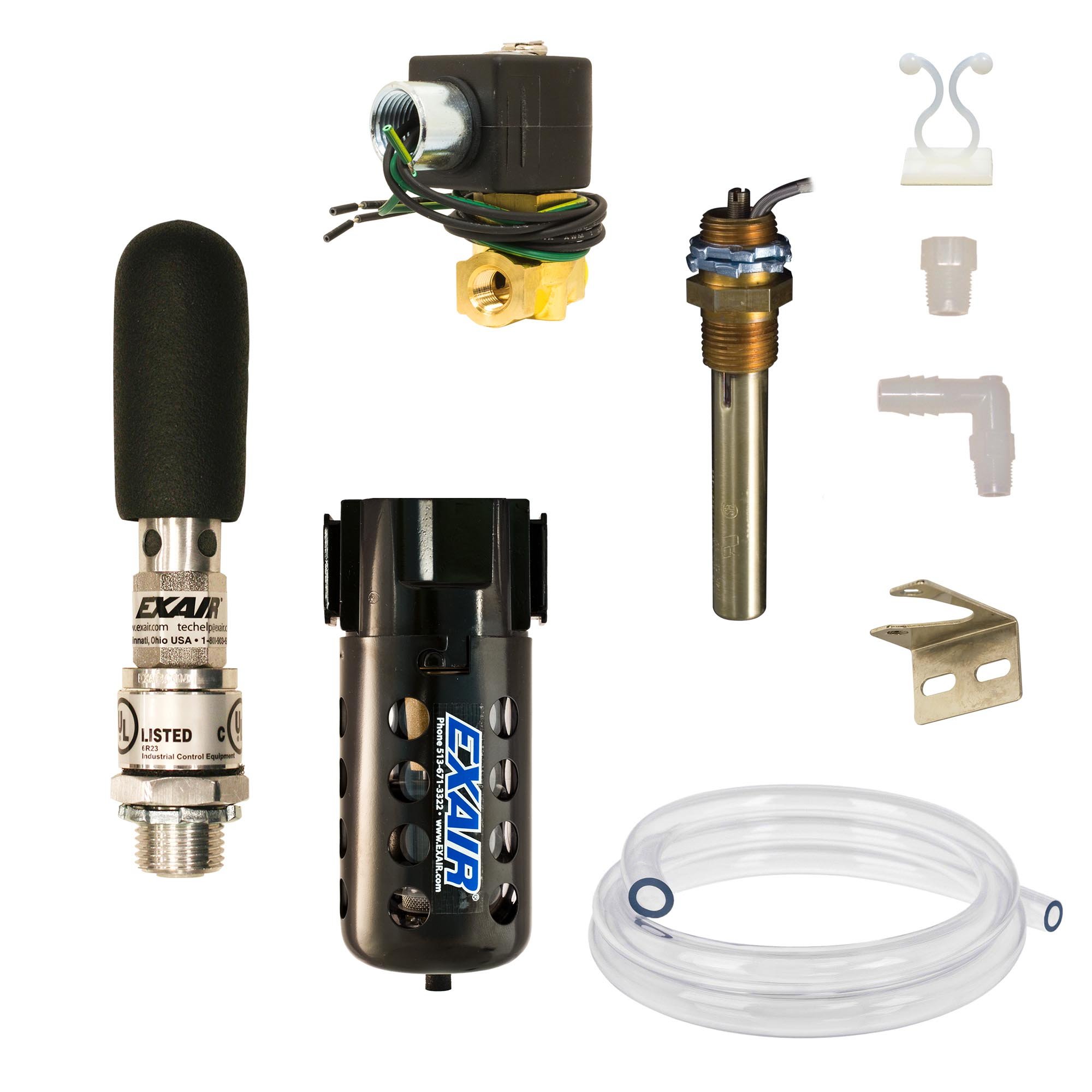

NEMA 12 (IP54) Cabinet Cooler Systems, Thermostat Control
Model
Btu/hr. (Watts)
4304
275 (80)
4308
550 (162)
4315
1,000 (293)
4325
1,700 (498)
4330
2,000 (586)
4340
2,800 (821)
4350
3,400 (997)
4360
4,000 (1,171)
4370
4,800 (1,406)
4380
5,600 (1,641)

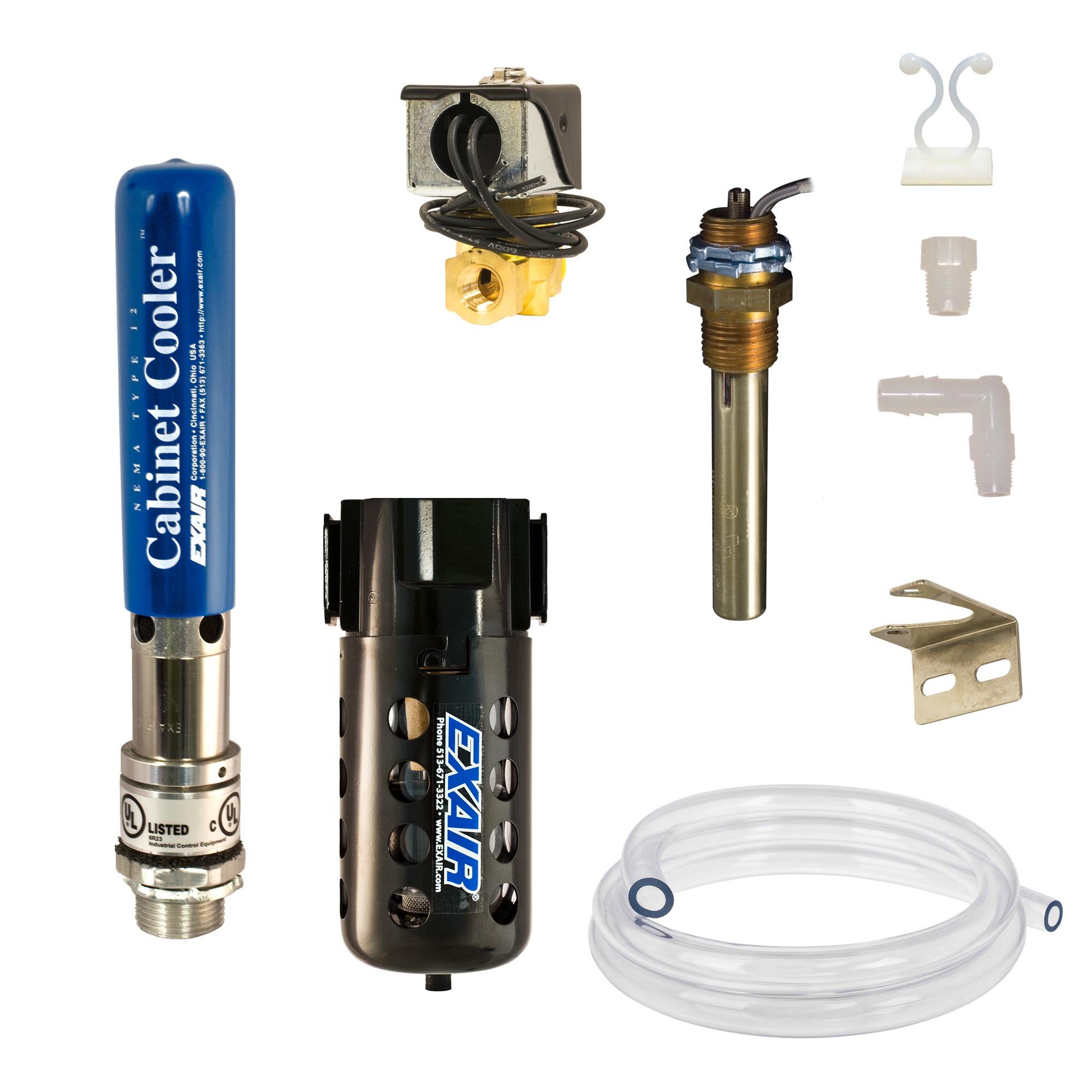

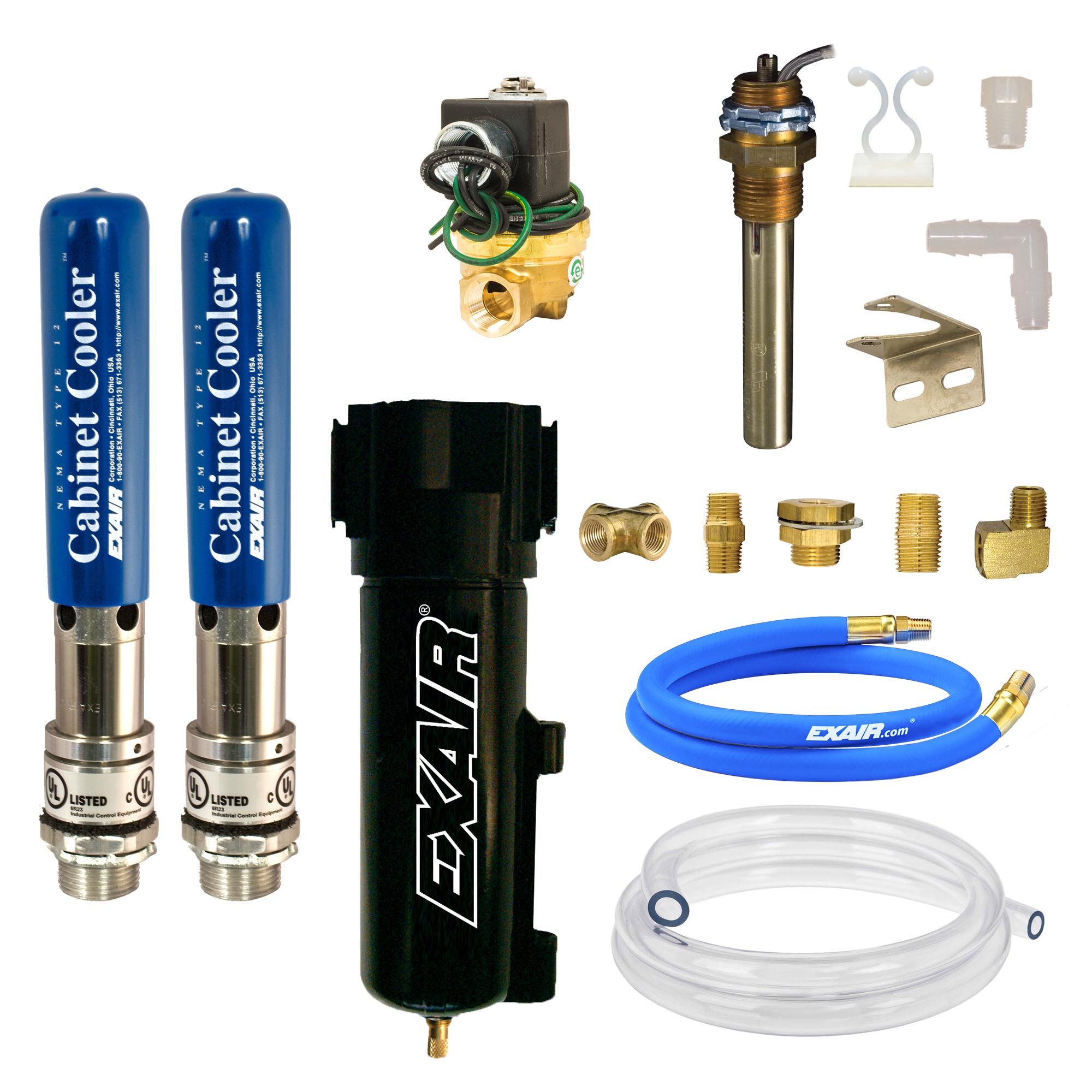

NEMA 4 (IP66) Cabinet Cooler Systems, Thermostat Control (240V)
Model
Btu/hr. (Watts)
4304-240
275 (80)
4308-240
550 (162)
4315-240
1,000 (293)
4325-240
1,700 (498)
4330-240
2,000 (586)
4340-240
2,800 (821)
4350-240
3,400 (997)
4360-240
4,000 (1,171)
4370-240
4,800 (1,406)
4380-240
5,600 (1,641)
NEMA 4 (IP66) Cabinet Cooler Systems, Thermostat Control (24VDC)
Model
Btu/hr. (Watts)
4304-24VDC
275 (80)
4308-24VDC
550 (162)
4315-24VDC
1,000 (293)
4325-24VDC
1,700 (498)
4330-24VDC
2,000 (586)
4340-24VDC
2,800 (821)
4350-24VDC
3,400 (997)
4360-24VDC
4,000 (1,171)
4370-24VDC
4,800 (1,406)
4380-24VDC
5,600 (1,641)

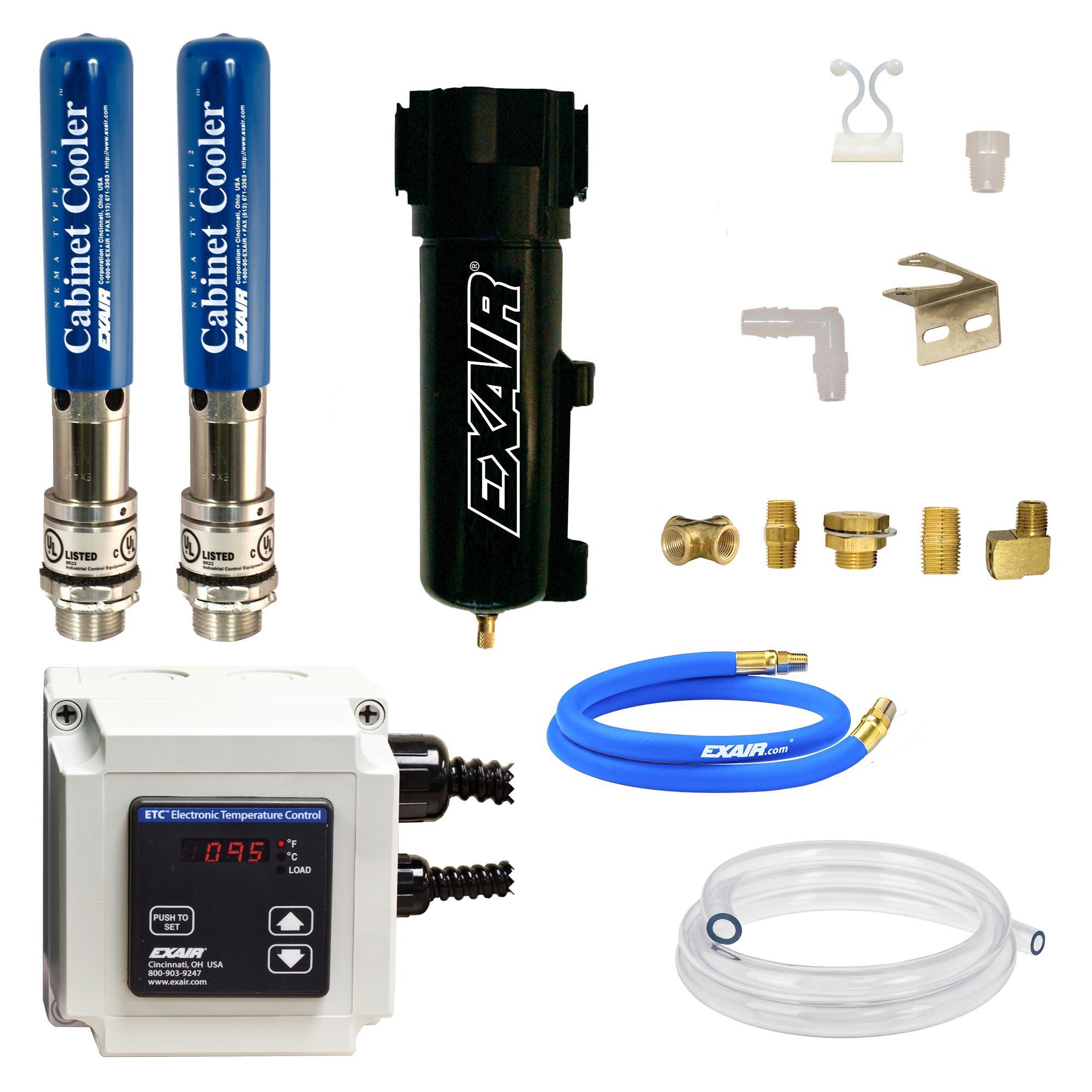

NEMA 4 (IP66) Cabinet Cooler Systems, ETC Thermostat Control (120V)
Model
Btu/hr. (Watts)
4304-ETC120
275 (80)
4308-ETC120
550 (162)
4315-ETC120
1,000 (293)
4325-ETC120
1,700 (498)
4330-ETC120
2,000 (586)
4340-ETC120
2,800 (821)
4350-ETC120
3,400 (997)
4360-ETC120
4,000 (1,171)
4370-ETC120
4,800 (1,406)
4380-ETC120
5,600 (1,641)

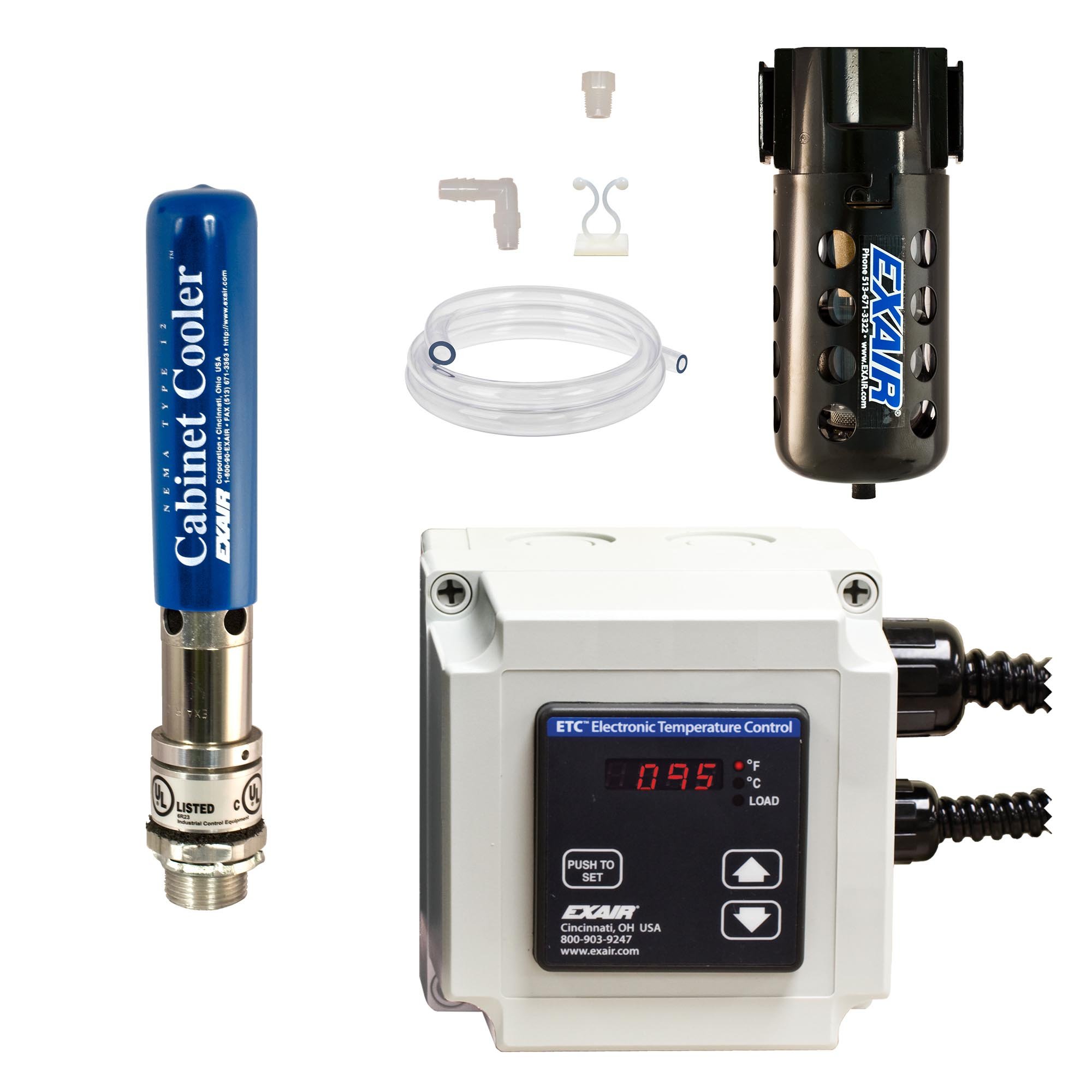

NEMA 4 (IP66) Cabinet Cooler Systems, ETC Thermostat Control (240V)
Model
Btu/hr. (Watts)
4304-ETC240
275 (80)
4308-ETC240
550 (162)
4315-ETC240
1,000 (293)
4325-ETC240
1,700 (498)
4330-ETC240
2,000 (586)
4340-ETC240
2,800 (821)
4350-ETC240
3,400 (997)
4360-ETC240
4,000 (1,171)
4370-ETC240
4,800 (1,406)
4380-ETC240
5,600 (1,641)
Accessories:
EXAIR's Side Mount Kits make mounting on the side of an electrical enclosure possible when there is limited space on the top or side. (NEMA 4 and 4X Cabinet Cooler Systems must be mounted vertically.) Side Mount Kits maintain the NEMA rating of large and small NEMA Type 12, 4, and 4X enclosures. they mount in a standard electrical knockout (1-1/2 NPS). Side Mount Kits for NEMA 12 Cabinet Cooler Systems have an aluminum construction. Those for NEMA 4 and 4X Cabinet Cooler Systems are Type 303 or Type 316 stainless steel.
Cabinet Cooler Standards and Certifications
EXAIR's Cabinet Cooler Systems comply with OSHA's Safety Requirements, the EU General Product Safety Directive (2001/95/EC) and meet the noise limitation requirements of the EU Machinery Directive (2006/42/EC). In addition, Cabinet Cooler Systems are Listed to applicable UL Standards and requirements by Underwriters' Laboratories. All sound level measurements are taken at 3 feet away.
Look for this symbol to designate conflict mineral free products throughout our website. EXAIR supports Section 1502 of the Dodd-Frank Wall Street Reform and Consumer Protection Act and we are committed to compliance with the conflict minerals rule in order to curb the illicit trade of tin, tantalum, tungsten and gold in the DRC region. EXAIR is using the CMRT 3.02 template to document our supply chain and commitment to conflict free products.
