EXAIR NEMA 12 (IP54) Cabinet Coolers (dust-tight, oil-tight) are ideal for general industrial environments where no liquids or corrosives are present. Dirt and dust resistant NEMA 12 continuous operation Cabinet Cooler® Systems are recommended when constant cooling and constant positive purge are desirable. Systems for continuous operation include a Cabinet Cooler and cold air distribution kit. NEMA 12 (IP54) Cabinet Coolers are available in many cooling capacities for large and small control panels. All Cabinet Coolers are UL Listed and CE compliant. They are a low cost, reliable way to cool and purge electronic control panels. EXAIR Cabinet Coolers incorporate a vortex tube to produce cold air from compressed air - with no moving parts. The compact Cabinet Cooler can be installed in minutes through a standard electrical knockout.
| Product | BTU/Hr | Voltage | Material | Type | High Temp or NHP | Vortex capacity | Air Inlet | Filter | |
 |

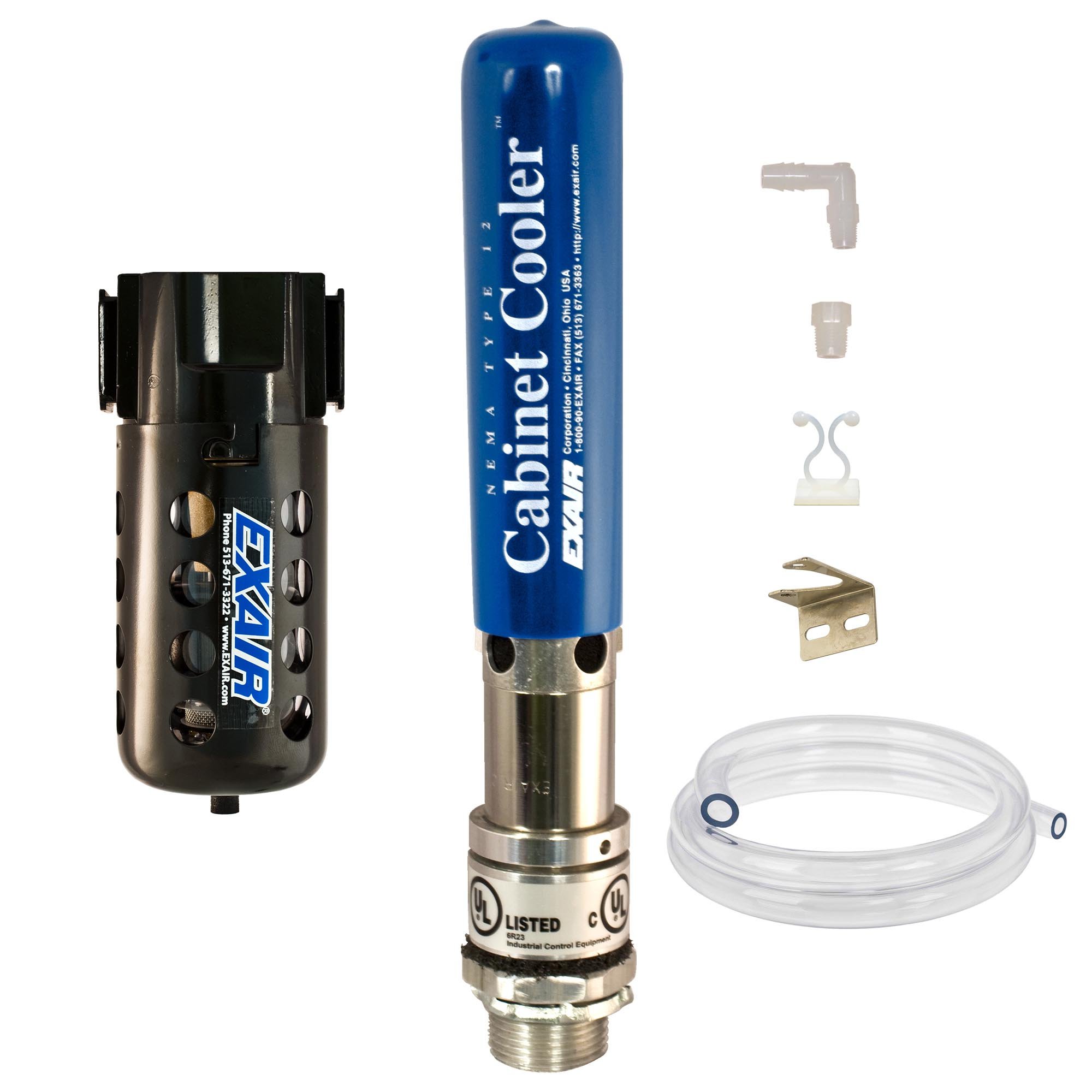

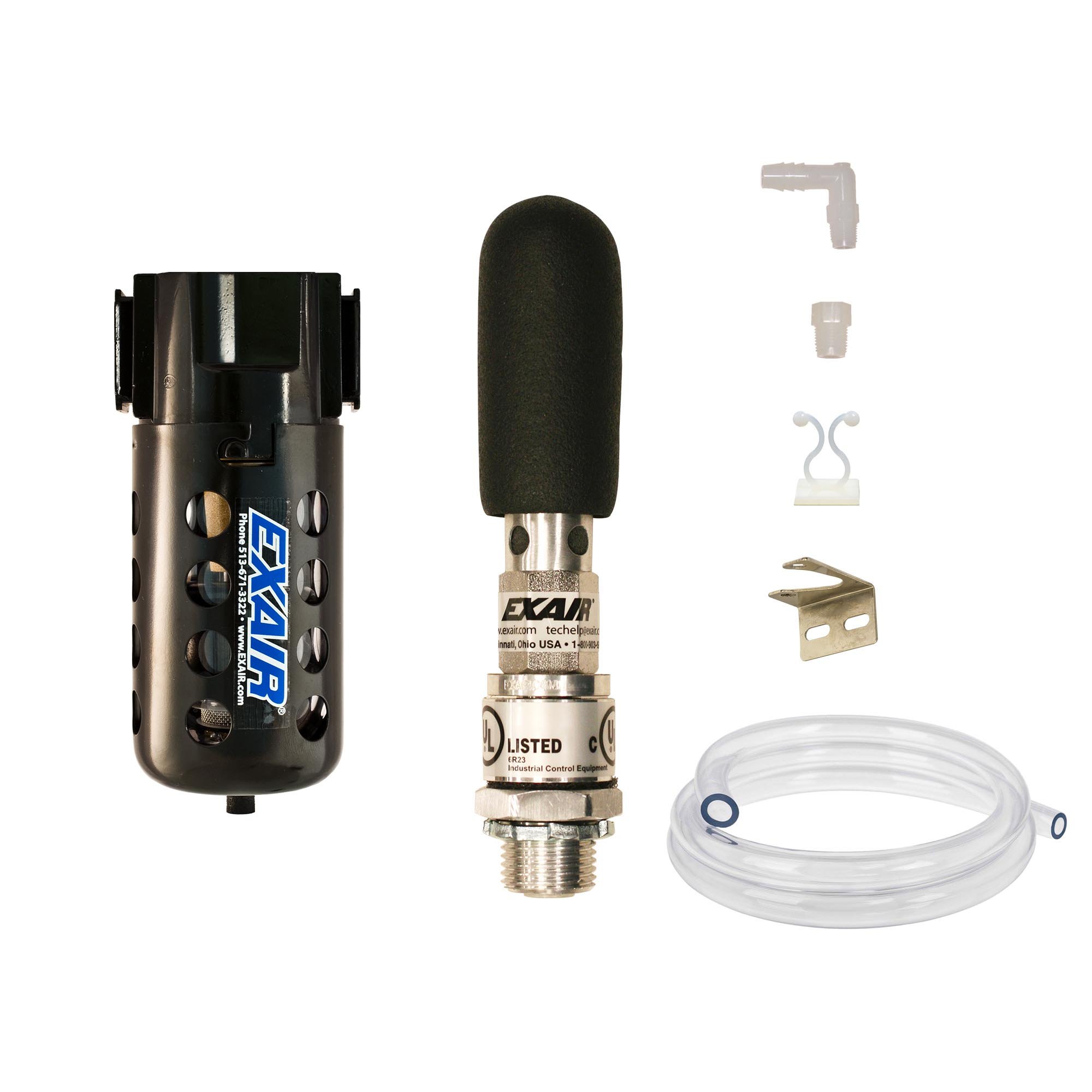

275 | N/A | N/A | Stainless Steel Vortex - Aluminum Outer Component | NEMA 12 Continuous Operation Cabinet Cooler | N/A | 4 SCFM (113 SLPM) | 1/8 MNPT | Not Included |
 |
550 | N/A | N/A | Stainless Steel Vortex - Aluminum Outer Component | NEMA 12 Continuous Operation Cabinet Cooler | N/A | 8 SCFM (227 SLPM) | 1/8 MNPT | Not Included |
 |
1000 | N/A | N/A | Stainless Steel Vortex - Aluminum Outer Component | NEMA 12 Continuous Operation Cabinet Cooler | N/A | 15 SCFM (425 SLPM) | 1/4 MNPT | Not Included |
 |
1700 | N/A | N/A | Stainless Steel Vortex - Aluminum Outer Component | NEMA 12 Continuous Operation Cabinet Cooler | N/A | 25 SCFM (708 SLPM) | 1/4 MNPT | Not Included |
 |
2000 | N/A | N/A | Stainless Steel Vortex - Aluminum Outer Component | NEMA 12 Continuous Operation Cabinet Cooler | N/A | 30 SCFM (850 SLPM) | 1/4 MNPT | Not Included |
 |
2800 | N/A | N/A | Stainless Steel Vortex - Aluminum Outer Component | NEMA 12 Continuous Operation Cabinet Cooler | N/A | 40 SCFM (1133 SLPM) | 1/4 MNPT | Not Included |
 |
3400 | N/A | N/A | Stainless Steel Vortex - Aluminum Outer Component | NEMA 12 Continuous Operation Cabinet Cooler | N/A | 50 SCFM (1416 SLPM) | 1/4 MNPT | Not Included |
 |
4000 | N/A | N/A | Stainless Steel Vortex - Aluminum Outer Component | NEMA 12 Continuous Operation Cabinet Cooler | N/A | 60 SCFM (1699 SLPM) | 1/4 MNPT | Not Included |
 |

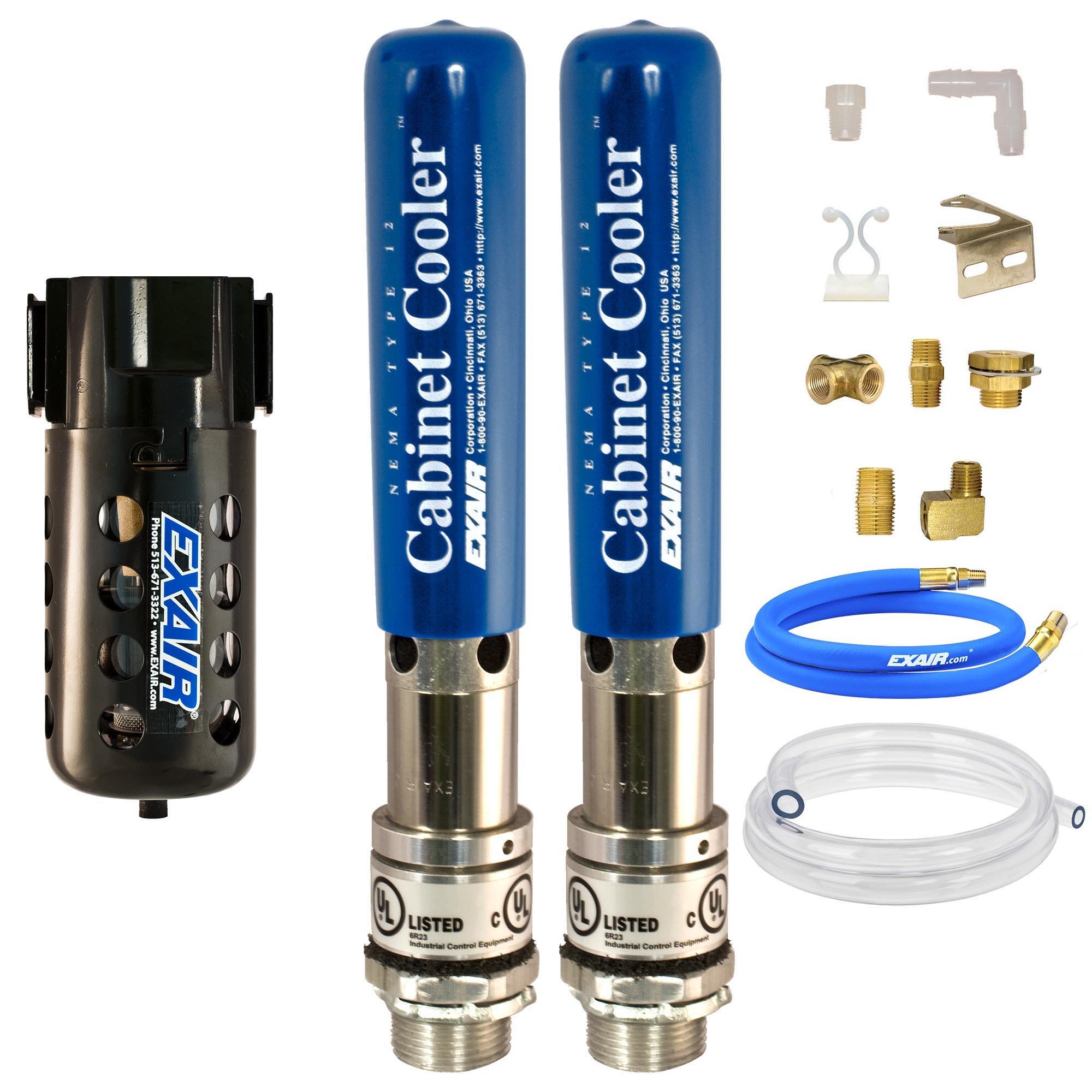

4800 | N/A | N/A | Stainless Steel Vortex - Aluminum Outer Component | NEMA 12 Continuous Operation Cabinet Cooler | N/A | 70 SCFM (1982 SLPM) | 1/4 MNPT | Not Included |
 |
5600 | N/A | N/A | Stainless Steel Vortex - Aluminum Outer Component | NEMA 12 Continuous Operation Cabinet Cooler | N/A | 80 SCFM (2265 SLPM) | 1/4 MNPT | Not Included |
Specifications:
NEMA 12 (IP54) Cabinet Cooler, Continuous Operation - Performance |
||||
| Model | Capacity | Sound Level dBA | ||
| Btu/hr. | Watts | |||
| 4204 | 275 | 80 | 59* | |
| 4208 | 550 | 162 | 67* | |
| 4215 | 1,000 | 293 | 73* | |
| 4225 | 1,700 | 498 | 74* | |
| 4230 | 2,000 | 586 | 74* | |
| 4240 | 2,800 | 821 | 78* | |
| 4250 | 3,400 | 997 | 75* | |
| 4260 | 4,000 | 1,171 | 77* | |
| 4270 | 4,800 | 1,406 | 77* | |
| 4280 | 5,600 | 1,641 | 79* | |
| *With optional cold muffler installed. Cooling Capacity at 100 PSIG (6.9 BAR) Supply Pressure. | ||||
Applications:
- Programmable controllers
- Line control cabinets
- Motor control centers
- Relay panels
- NC/CNC systems
- Modular control centers
- CCTV cameras
- Computer cabinets
- Cool laser housings
- Electronic scales
NEMA 12 Cabinet Cooler Advantages:
- Low cost
- Compact
- Cooling capacities up to 5,600 Btu/hr. (1,641 Watts)
- Quiet
- Install in minutes
- Maintain NEMA 12 integrity (IP54)
- Stabilize enclosure temperature and humidity
- No CFC's
- No moving parts - maintenance free
- Mount in standard electrical knockout
- Stop nuisance tripping
- Stop heat damage
- Eliminate fans and filters
- Eliminate lost production
- Stop circuit drift
- Provide protection from dirt and dust
Models:
NEMA 12 (IP54) Cabinet Cooler Systems, Continuous Operation |
|
| Model | Btu/hr. (Watts) |
| 4204 | 275 (80) |
| 4208 | 550 (162) |
| 4215 | 1,000 (293) |
| 4225 | 1,700 (498) |
| 4230 | 2,000 (586) |
| 4240 | 2,800 (821) |
| 4250 | 3,400 (997) |
| 4260 | 4,000 (1,171) |
| 4270 | 4,800 (1,406) |
| 4280 | 5,600 (1,641) |
Accessories:
EXAIR's Side Mount Kits make mounting on the side of an electrical enclosure possible when there is limited space on the top or side. (NEMA 4 and 4X Cabinet Cooler Systems must be mounted vertically.) Side Mount Kits maintain the NEMA rating of large and small NEMA Type 12, 4, and 4X enclosures. they mount in a standard electrical knockout (1-1/2 NPS). Side Mount Kits for NEMA 12 Cabinet Cooler Systems have an aluminum construction. Those for NEMA 4 and 4X Cabinet Cooler Systems are Type 303 or Type 316 stainless steel.
Cabinet Cooler Standards and Certifications
EXAIR's Cabinet Cooler Systems comply with OSHA's Safety Requirements, the EU General Product Safety Directive (2001/95/EC) and meet the noise limitation requirements of the EU Machinery Directive (2006/42/EC). In addition, Cabinet Cooler Systems are Listed to applicable UL Standards and requirements by Underwriters' Laboratories. All sound level measurements are taken at 3 feet away.
